System Diagram




Engine Lubrication Components - Exploded View

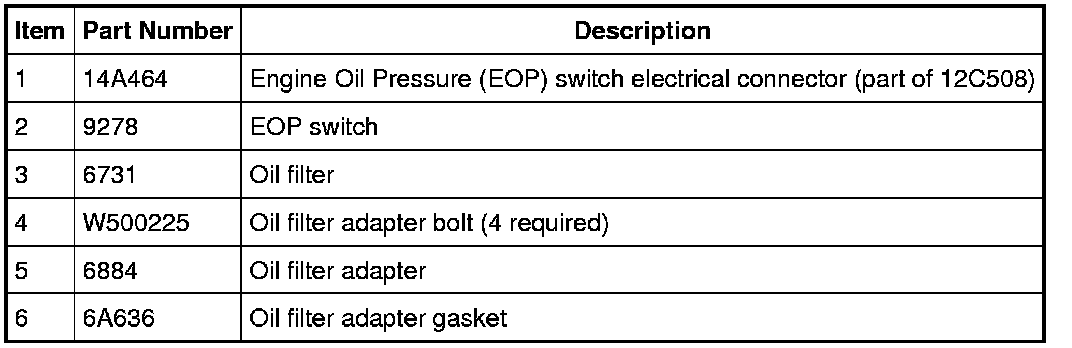

Oil Filter Adapter, Oil Filter and Engine Oil Pressure (EOP) Switch

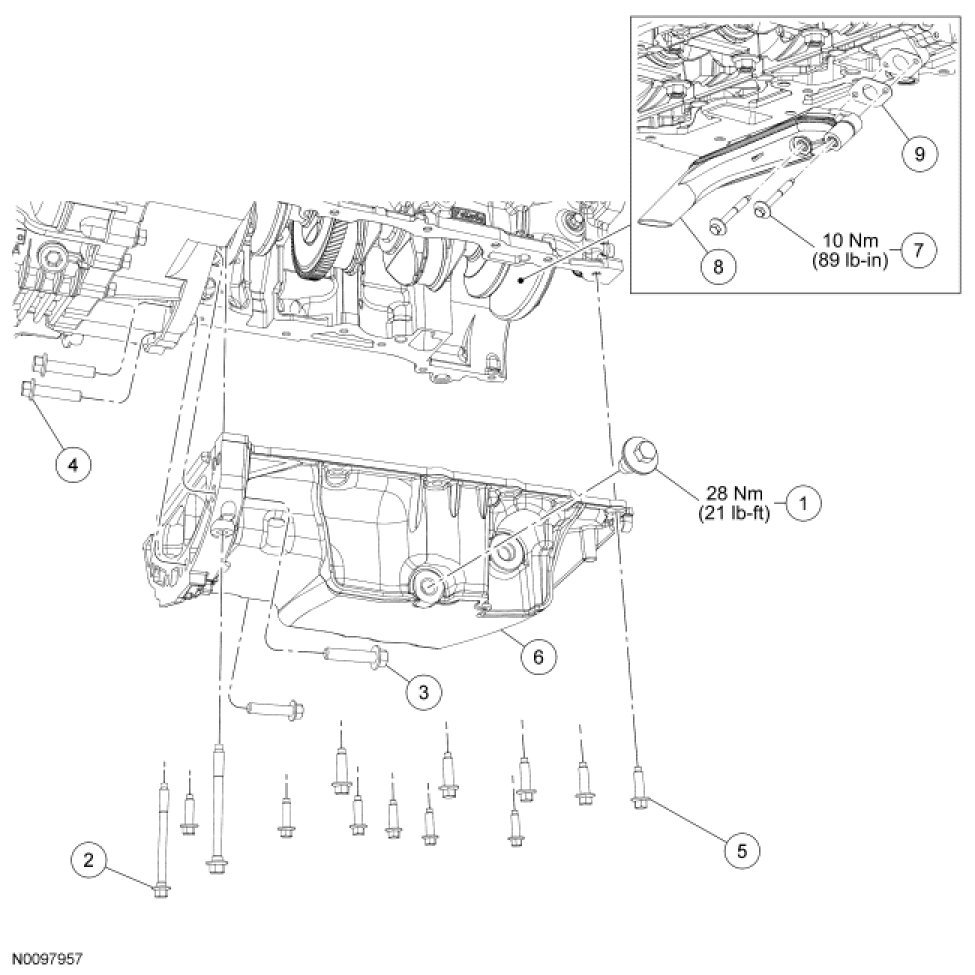

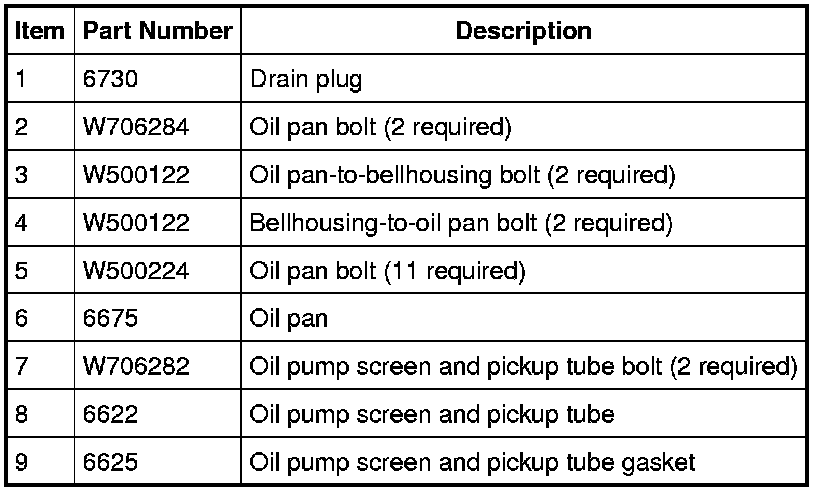

Oil Pan, Oil Pump Screen and Pickup Tube










Oil Pump
