Home >> Mercury >> 2011 >> Milan FWD L4-2.5L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Interior Lighting Module >> C2301 Interior Lighting Control Module (ILCM)

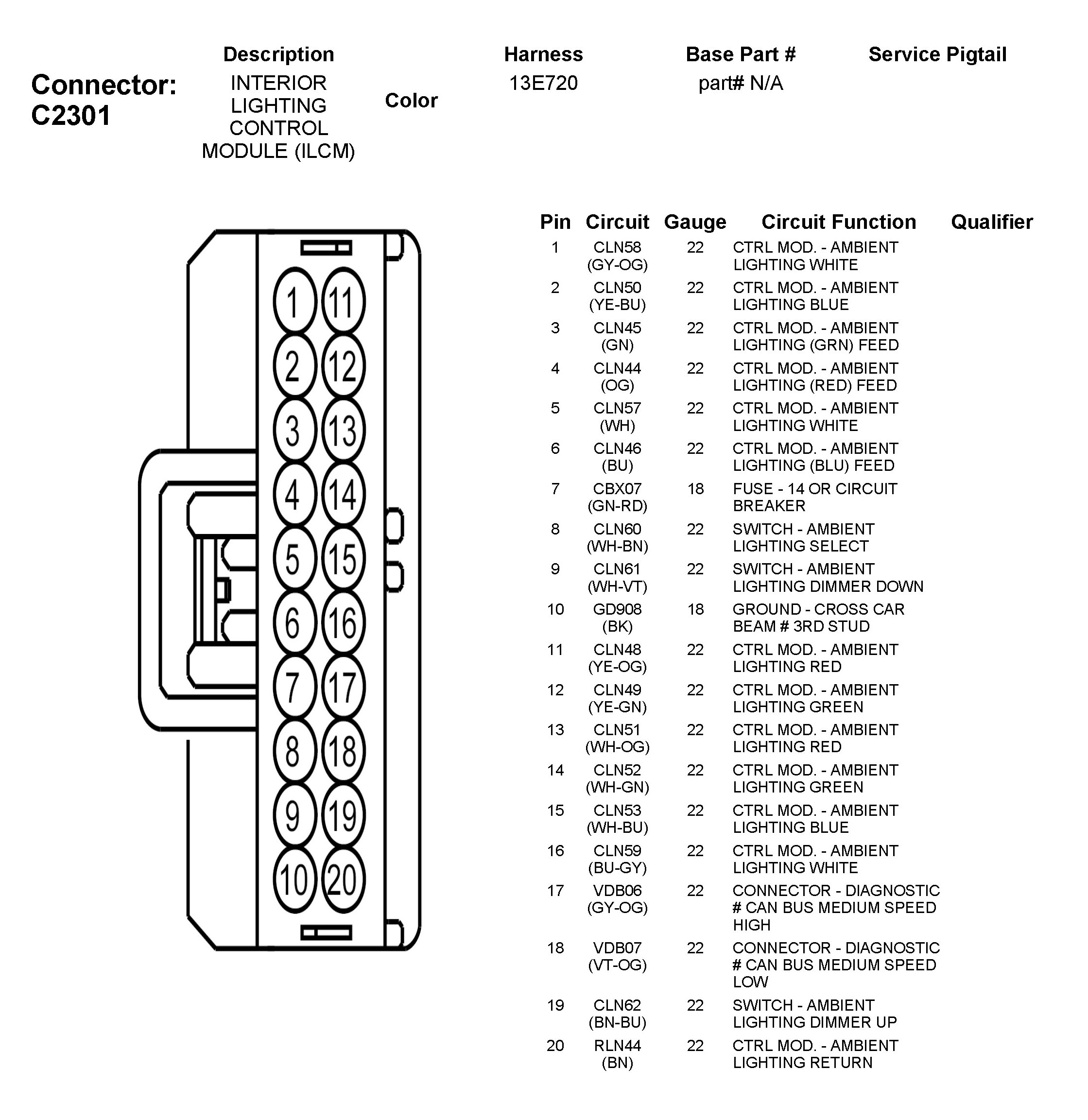

C2301 Interior Lighting Control Module (ILCM)
