Instrument Panel Cluster (IPC) DTC Chart

Anti-Lock Control - Hybrid

DTC Charts

NOTE: This DTC chart applies to hybrid vehicles only. For non-hybrid vehicle DTCs, refer to the ABS Module DTC Chart in Anti-Lock Control - Non-Hybrid. ABS Module DTC Chart

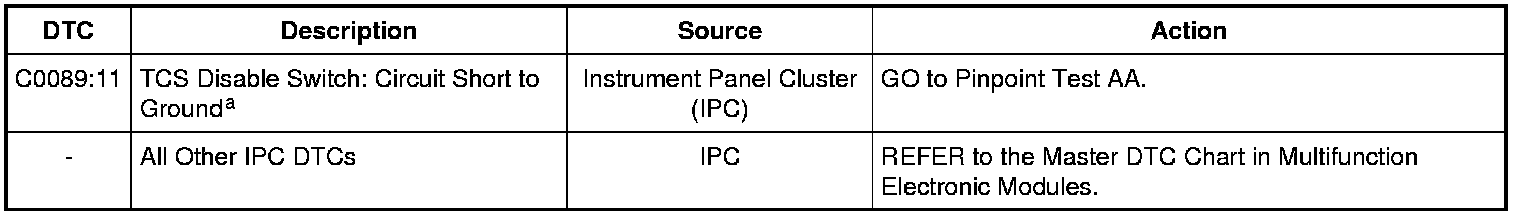

Instrument Panel Cluster (IPC) DTC Chart

NOTE: This module utilizes a 5-character DTC followed by a 2-character failure-type code. The failure-type code provides information about specific fault conditions such as opens or shorts to ground. Continuous Memory Diagnostic Trouble Codes (CMDTCs) have an additional 2-character DTC status code suffix to assist in determining DTC history.






a Traction Control System
