Rain Sensor

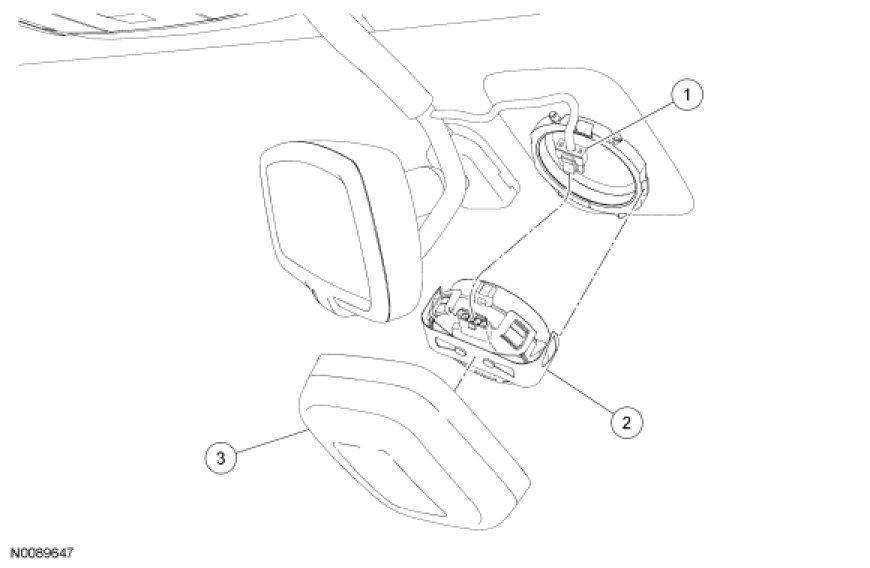

Rain Sensor









Removal and Installation

1. Remove the rain sensor cover.
- Pull the rain sensor cover outward off the windshield.

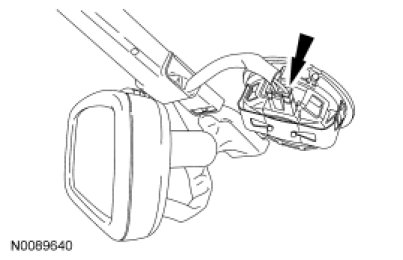

2. Disconnect the rain sensor electrical connector.





3. NOTE: Lightly press the rain sensor against the glass to relieve clip tension.

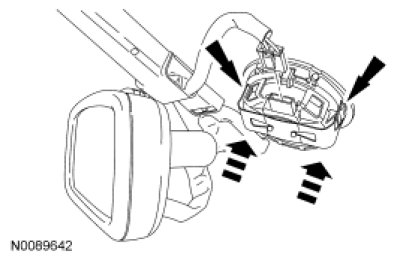

Using a flat-blade screwdriver, release the 2 rain sensor retaining clips from the windshield mounted bracket and remove the rain sensor.





4. To install, reverse the removal procedure.
- Make sure to align the rain sensor alignment tab to the alignment slot on the rain sensor mount.
