Pinpoint Test I: A Single Power Window is Inoperative - RH Front, LH or RH Rear




Glass, Frames and Mechanisms

Pinpoint Test I: A Single Power Window is Inoperative - Fusion, Milan, RH Front, LH or RH Rear

NOTE: To diagnose an inoperative RH front window that is equipped with one-touch up/down feature, GO to Pinpoint Test G. Pinpoint Test G: A Single Power Window is Inoperative - RH Front (RH Front Window is Equipped With One-Touch Up/Down)

Refer to Wiring Diagram Set 100 (Fusion/Milan/MKZ, Fusion Hybrid, Milan Hybrid, MKZ Hybrid), Power Windows for schematic and connector information. Diagrams By Number

Normal Operation

The RH front window control switch receives voltage from the accessory delay relay. The LH and RH rear window control switches receive voltage from the LH front window control switch when the window lock switch is set to the UNLOCK position. Ground is provided to the RH front, LH rear and RH rear window control switches from the LH front window control switch. Each window control switch transfers voltage and ground to their respective window motors. Window direction is controlled by reversing polarity of the voltage and ground circuits being supplied to the window motor.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Window control switch
- Power window motor


PINPOINT TEST I: A SINGLE POWER WINDOW IS INOPERATIVE - FUSION, MILAN, RH FRONT, LH OR RH REAR

NOTICE: Use the correct probe adapter(s) from the Flex Probe Kit when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

-------------------------------------------------
I1 CHECK THE VOLTAGE TO THE RH FRONT, LH REAR OR RH REAR WINDOW CONTROL SWITCH

- Disconnect: Inoperative Rear Window Control Switch C604 (RH front), C701 (LH rear) or C819 (RH rear).
- Ignition ON.
- NOTE: Set the master window control lockout switch to the UNLOCK position.

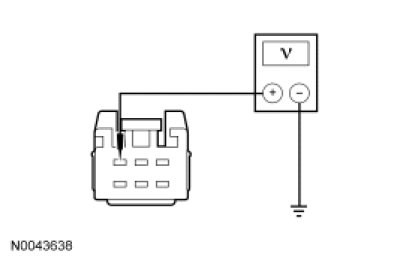

- Measure the voltage between the inoperative window connector and ground:
- for the RH front window control switch, measure the voltage between RH front window control switch C604-3, circuit CBP47 (GN/BU), harness side and ground.
- for the RH rear window control switch, measure the voltage between RH rear window control switch C819-3, circuit CPW14 (VT/WH), harness side and ground.
- for the LH rear window control switch, measure the voltage between C701-3, circuit CPW14 (VT/WH), harness side and ground.




- Is the voltage greater than 10 volts?

Yes
GO to I2.

No
For RH front window, REPAIR circuit CBP47 (GN/BU) for an open. TEST the system for normal operation.

For LH or RH rear window, REPAIR circuit CPW14 (VT/WH) for an open. TEST the system for normal operation.

-------------------------------------------------
I2 CHECK THE GROUNDS TO THE INOPERATIVE REAR WINDOW CONTROL SWITCH

- Ignition OFF.

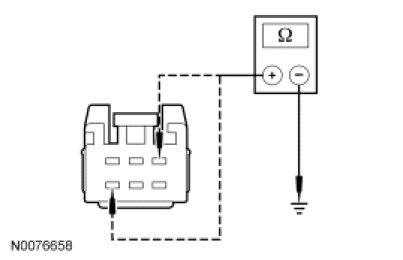

- Measure the resistance between the inoperative window control switch and ground:
- for the RH front window control switch, measure the resistance between RH front window control switch C604-1, circuit CPW12 (GN/OG), harness side and ground; and between RH front window control switch C604-6, circuit CPW13 (GY/RD), harness side and ground.
- for the RH rear window control switch, measure the resistance between RH rear window control switch C819-1, circuit CPW17 (BN/GN), harness side and ground; and between RH rear window control switch C819-6, circuit CPW18 (GY/VT), harness side and ground.
- for the LH rear window control switch, measure the resistance between LH rear window control switch C701-1, circuit CPW15 (YE), harness side and ground; and between LH rear window control switch C701-6, circuit CPW16 (BU/OG), harness side and ground.




- Are the resistances less than 5 ohms?

Yes
GO to I4.

No
GO to I3.

-------------------------------------------------
I3 CHECK THE CIRCUITS TO THE INOPERATIVE REAR WINDOW CONTROL SWITCH FOR AN OPEN

- Ignition OFF.
- Disconnect: LH Front Window Control Switch C537A, C535B (if RH front window is equipped with one-touch up/down) or C537B (if RH front window is not equipped with one-touch up/down).

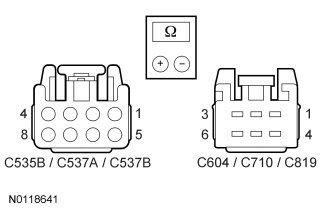

- Measure the resistance between the master window control switch and the inoperative window control switch:

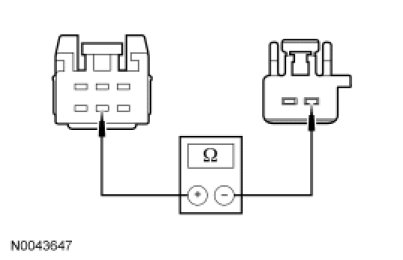

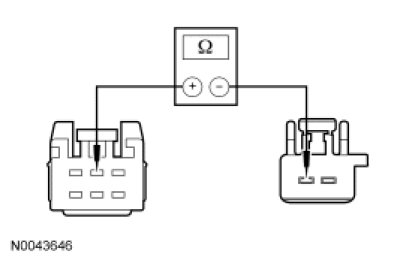

- For an inoperative RH front power window, measure the resistance between master window control switch C537A-4, circuit CPW12 (GN/OG) and RH front window control switch C604-1, circuit CPW12 (GN/OG), harness side; and between master window control switch C537A-8, circuit CPW13 (GY/RD) and RH front window control switch C604-6, circuit CPW13 (GY/RD), harness side.
- For an inoperative LH rear power window, measure the resistance between master window control switch C535B-1 or C537B-1, circuit CPW15 (YE) and LH rear window control switch C701-1, circuit CPW15 (YE), harness side; and between master window control switch C535B-2 or C537B-5, circuit CPW16 (BU/OG) and LH rear window control switch C701-6, circuit CPW16 (BU/OG), harness side.
- For an inoperative RH rear power window, measure the resistance between master window control switch C535B-7 or C537B-4, circuit CPW17 (BN/GN) and RH window control switch C819-1, circuit CPW17 (BN/GN), harness side; and between master window control switch C535B-8 or C537B-8, circuit CPW18 (GY/VT) and RH rear window control switch C819-6, circuit CPW18 (GY/VT), harness side.




- Are the resistances less than 5 ohms?

Yes
INSTALL a new master window control switch. REFER to Window Control Switch Service and Repair. TEST the system for normal operation.

No
REPAIR the circuit(s) for an open. TEST the system for normal operation.

-------------------------------------------------
I4 CHECK THE INOPERATIVE WINDOW CONTROL SWITCH

- Ignition ON.

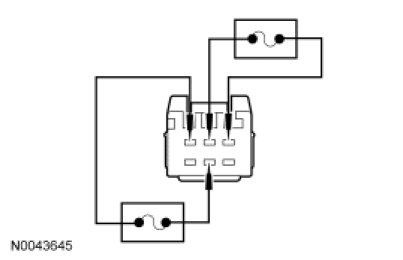

- For an inoperative RH front window, connect a fused jumper wire between RH front window control switch C604-2, circuit CPW19 (VT), harness side and RH front window control switch C604-3, circuit CBP47 (GN/BU), harness side; and between RH front window control switch C604-5, circuit CPW20 (YE/BK), harness side and RH front window control switch C604-6, circuit CPW13 (GY/RD), harness side. The RH front window should operate in the downward direction.
- For an inoperative LH rear window, connect a fused jumper wire between LH rear window control switch C701-2, circuit CPW21 (BN), harness side and LH rear window control switch C701-3, circuit CPW14 (VT/WH), harness side; and between LH rear window control switch C701-5, circuit CPW22 (GN/VT), harness side and LH rear window control switch C701-6, circuit CPW16 (BU/OG), harness side. The LH rear window should operate in the downward direction.
- For an inoperative RH rear window, connect a fused jumper wire between RH rear window control switch C819-2, circuit CPW23 (GY), harness side and RH rear window control switch C819-3, circuit CPW14 (VT/WH), harness side; and between RH rear window control switch C819-5, circuit CPW24 (WH/VT), harness side and RH rear window control switch C819-6, circuit CPW18 (GY/VT), harness side. The RH rear window should operate in the downward direction.

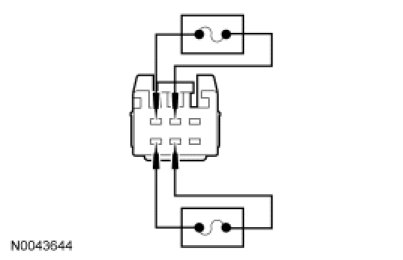

- For an inoperative RH front window, connect a fused jumper wire between RH front window control switch C604-2, circuit CPW19 (VT), harness side and RH front window control switch C604-1, circuit CPW12 (GN/OG), harness side; and between RH front window control switch C604-5, circuit CPW20 (YE/BK), harness side and RH front window control switch C604-3, circuit CBP47 (GN/BU), harness side. The RH front window should operate in the upward direction.
- For an inoperative LH rear window, connect a fused jumper wire between LH rear window control switch C701-2, circuit CPW21 (BN), harness side and LH rear window control switch C701-1, circuit CPW15 (YE), harness side; and between LH rear window control switch C701-5, circuit CPW22 (GN/VT), harness side and LH rear window control switch C701-3, circuit CPW14 (VT/WH), harness side. The LH rear window should operate in the upward direction.
- For an inoperative RH rear window, connect a fused jumper wire between RH rear window control switch C819-2, circuit CPW23 (GY), harness side and RH rear window control switch C819-1, circuit CPW17 (BN/GN), harness side; and between RH rear window control switch C819-5, circuit CPW24 (WH/VT), harness side and RH rear window control switch C819-3, circuit CPW14 (VT/WH), harness side. The RH rear window should operate in the upward direction.




- Did the inoperative window operate correctly?

Yes
INSTALL a new RH front, LH or RH rear window control switch. REFER to Window Control Switch Service and Repair. TEST the system for normal operation.

No
GO to I5.

-------------------------------------------------
I5 CHECK THE POWER WINDOW MOTOR CIRCUITS

- Ignition OFF.
- Disconnect: Inoperative Power Window Motor C608 (RH front), C703 (LH rear) or C803 (RH rear).
- For an inoperative RH front window, measure the resistance between RH front window control switch C604-2, circuit CPW19 (VT), harness side and RH front power window motor C608-2, circuit CPW19 (VT), harness side.
- For an inoperative LH rear window, measure the resistance between LH rear window control switch C701-2, circuit CPW21 (BN), harness side and LH rear power window motor C703-2, circuit CPW21 (BN), harness side.
- For an inoperative RH rear window, measure the resistance between RH rear window control switch C819-2, circuit CPW23 (GY), harness side and RH rear power window motor C803-2, circuit CPW23 (GY), harness side.




- For an inoperative RH front window, measure the resistance between RH front window control switch C604-5, circuit CPW20 (YE/BK), harness side and RH front power window motor C608-1, circuit CPW20 (YE/BK), harness side.
- For an inoperative LH rear window, measure the resistance between LH rear window control switch C701-5, circuit CPW22 (GN/VT), harness side and LH rear power window motor C703-1, circuit CPW22 (GN/VT), harness side.
- For an inoperative RH rear window, measure the resistance between RH rear window control switch C819-5, circuit CPW24 (WH/VT), harness side and RH rear power window motor C803-2, circuit CPW24 (WH/VT), harness side.




- Are the resistances less than 5 ohms?

Yes
INSTALL a new RH front, LH or RH rear power window motor. REFER to Window Regulator Motor Window Regulator Motor. TEST the system for normal operation.

No
REPAIR the circuit. TEST the system for normal operation.

-------------------------------------------------
