Home >> Mercury >> 2011 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures

Diagnostic Trouble Code Tests and Associated Procedures




Four Wheel Drive (4WD) Systems

DTC Chart

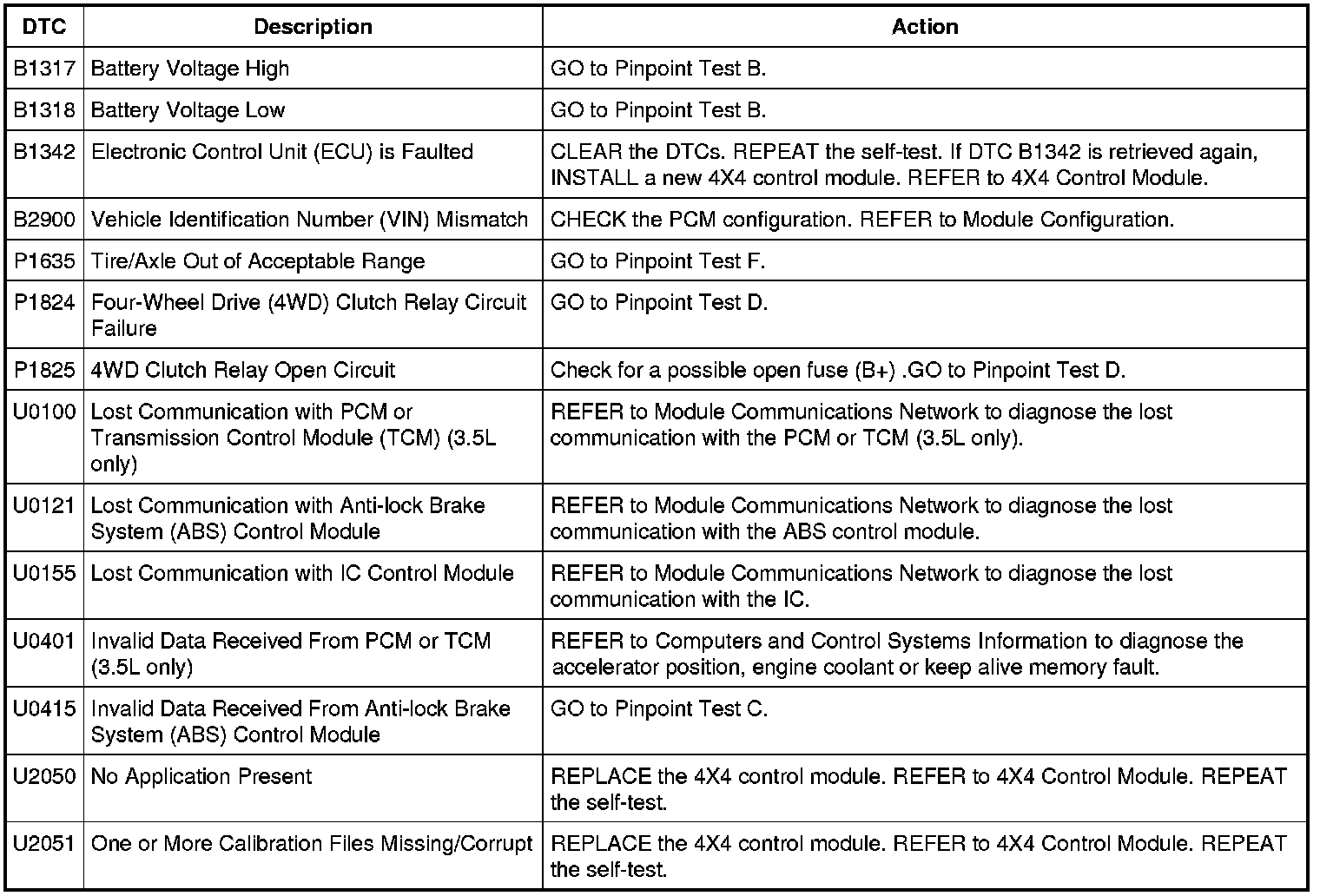

4X4 Control Module DTC Chart
