Home >> Mercury >> 2011 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Chart - Transaxle

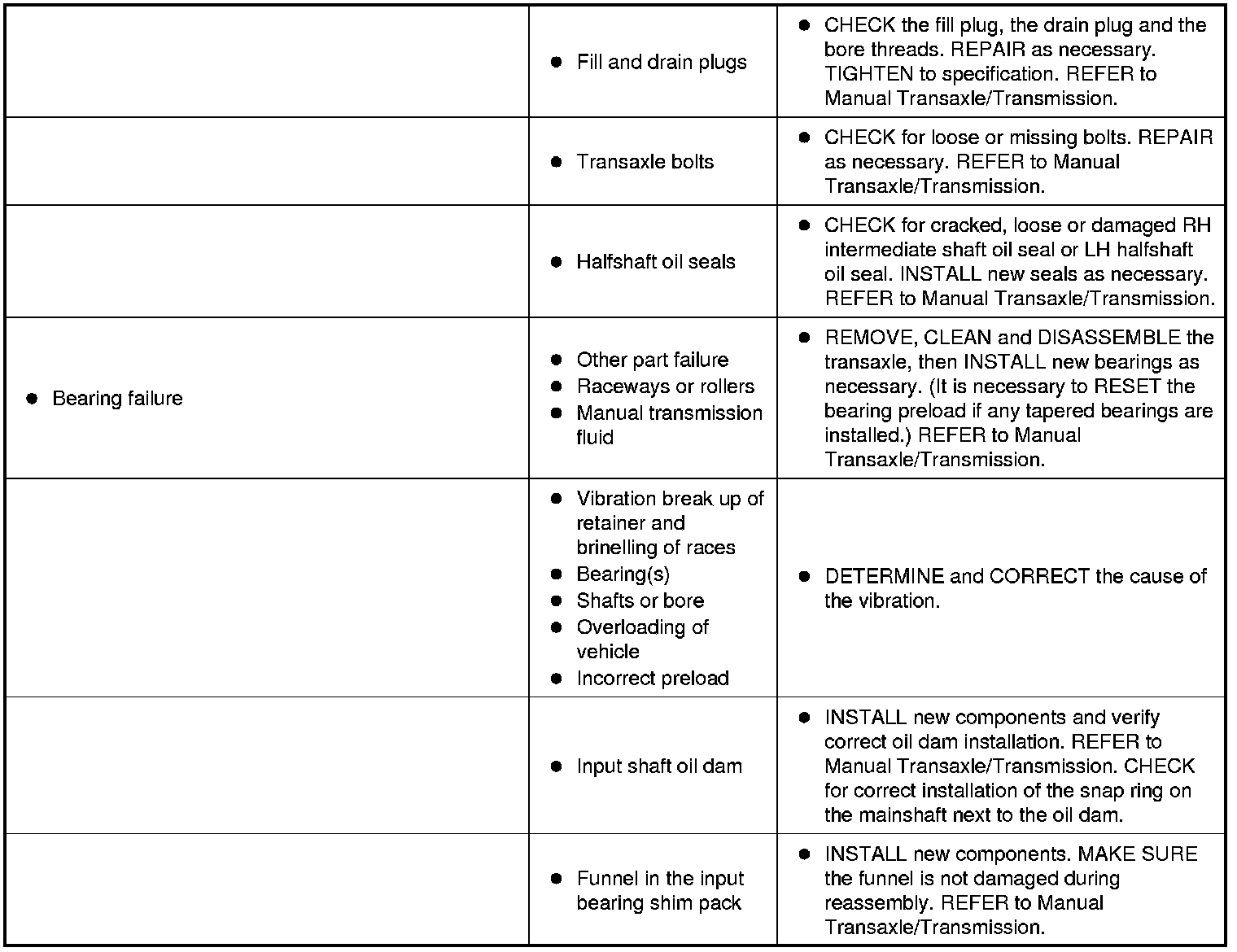

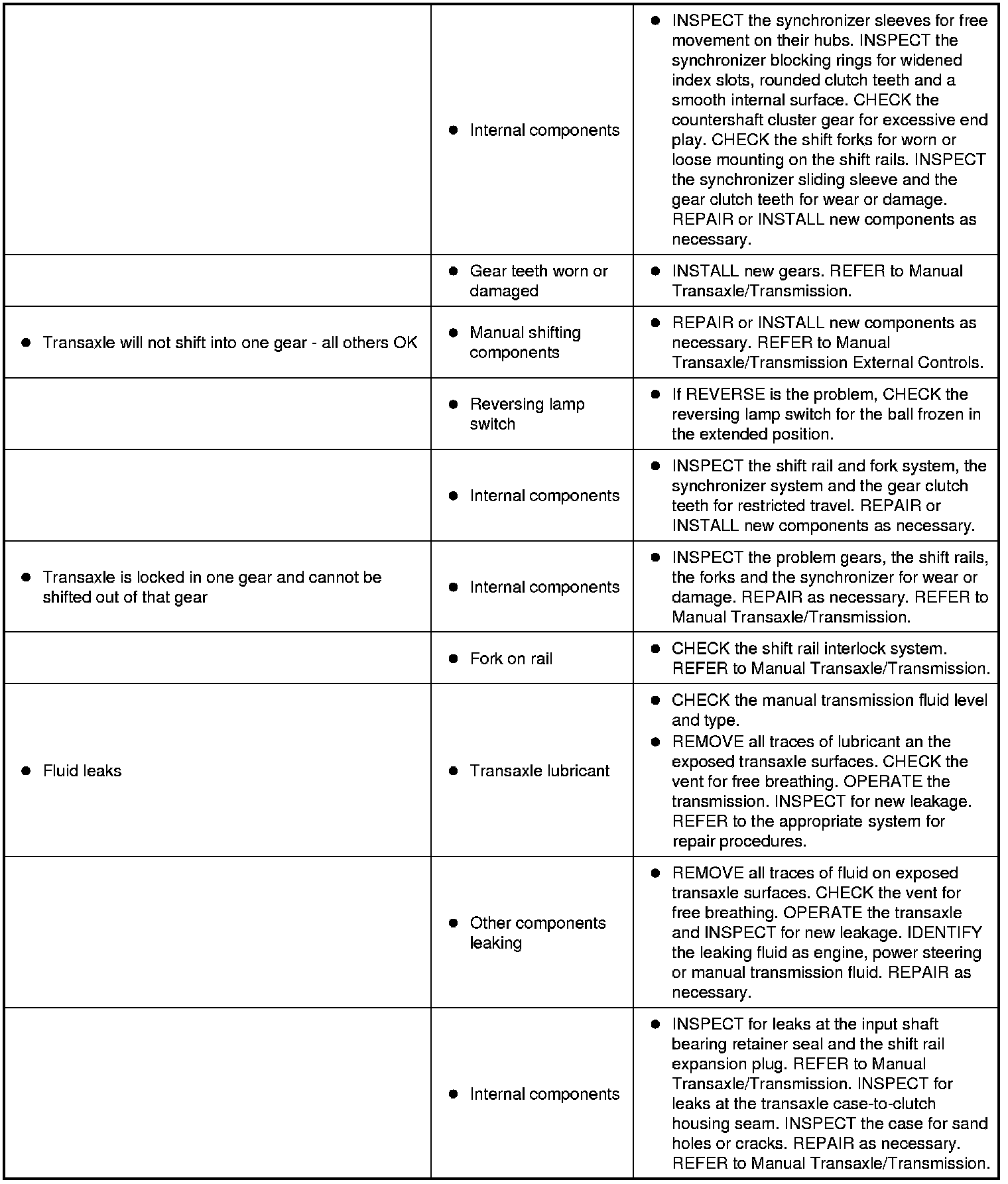

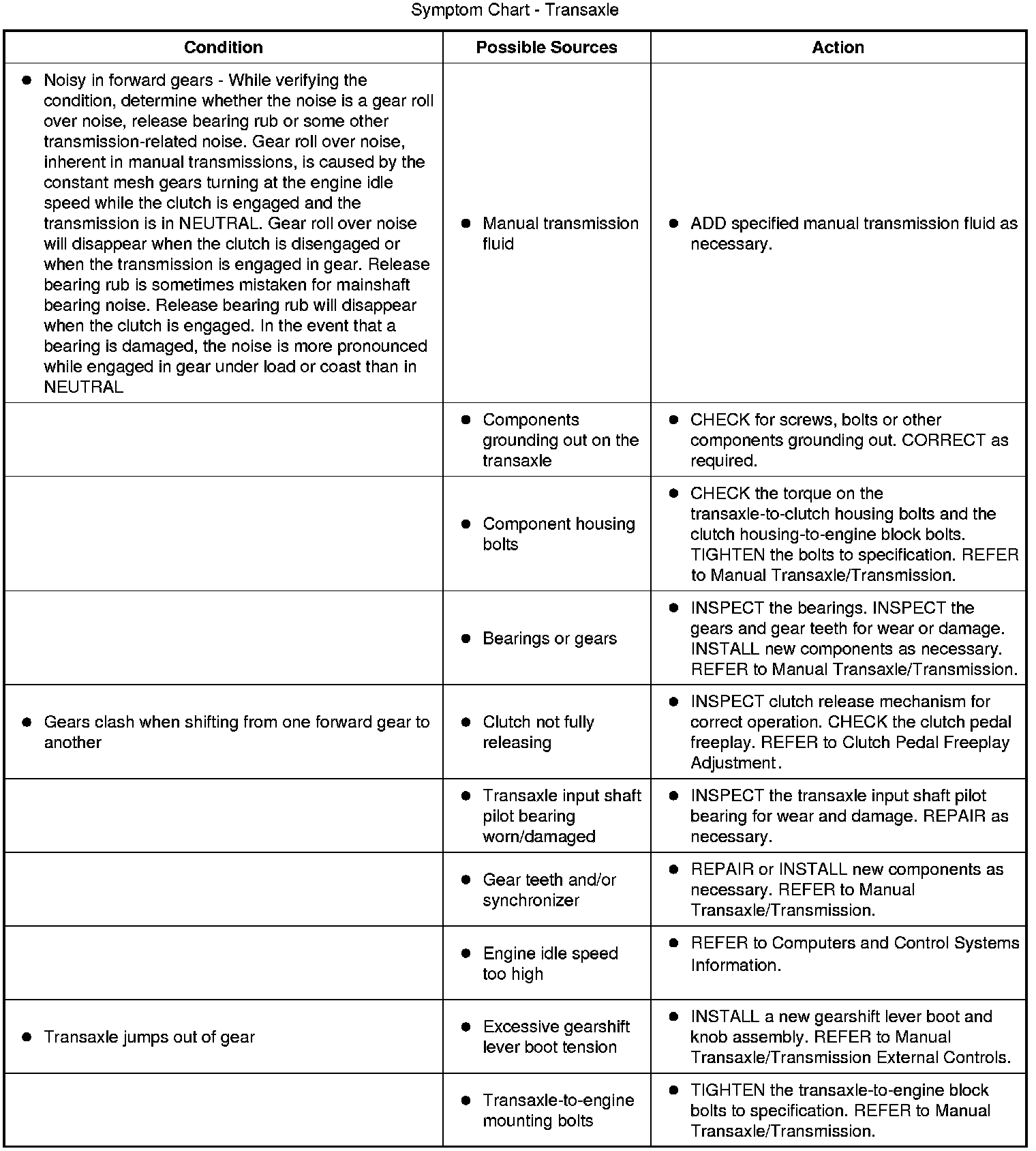

Symptom Chart - Transaxle




Manual Transaxle and Clutch

Symptom Chart - Transaxle
