Stub Shaft Seal

Stub Shaft Seal

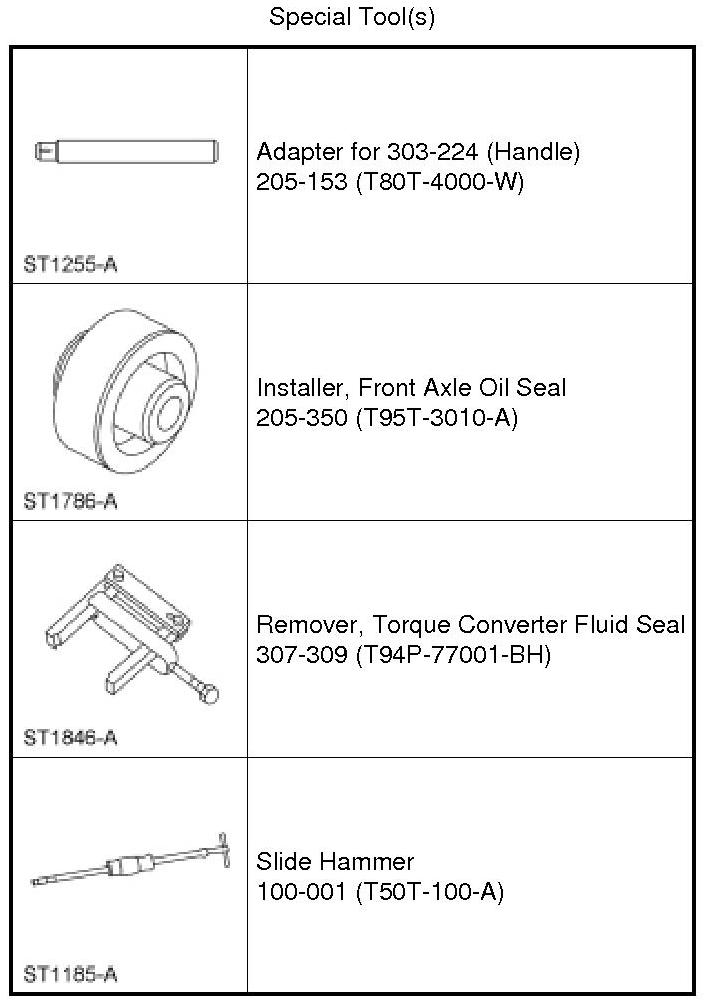

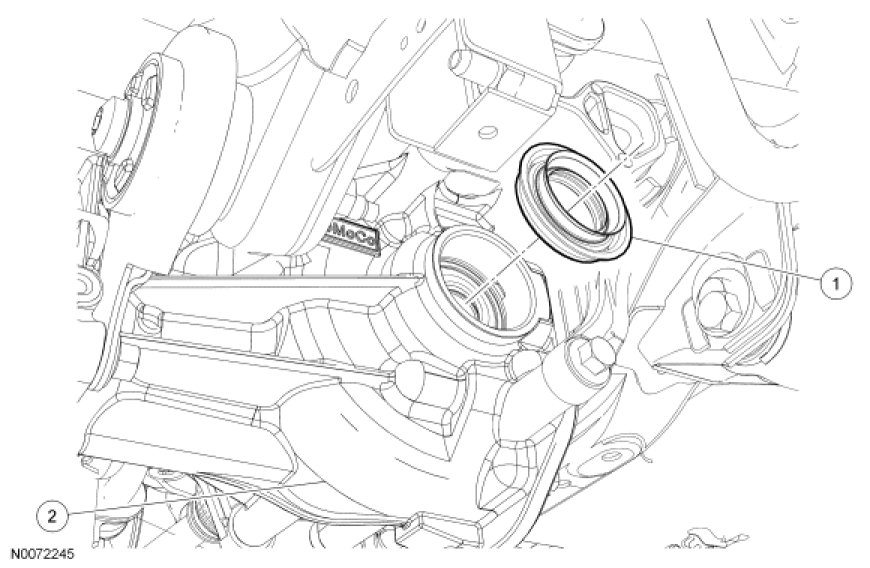

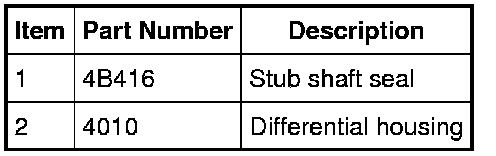

Removal

NOTE: The Rear Drive Unit (RDU) does not have stub shaft pilot bearings. It has stub shaft seals only.

1. Remove the halfshaft. For additional information, refer to Rear Drive Halfshafts Rear Drive Halfshafts.

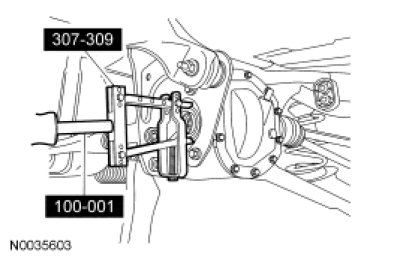

2. Using the Torque Converter Fluid Seal Remover and Slide Hammer, remove the stub shaft seal.





Installation

1. NOTE: Lubricate the new stub shaft seal with grease.

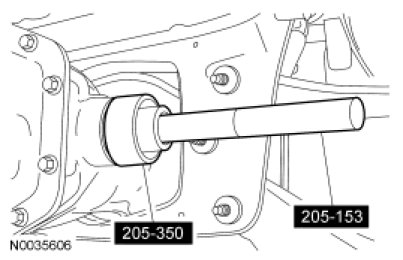

Using the Front Axle Oil Seal Installer and Adapter Handle, install the stub shaft pilot bearing housing seal.





2. Install the halfshaft assembly. For additional information, refer to Rear Drive Halfshafts Rear Drive Halfshafts.
