Transaxle Support Insulator - Anti-Roll

Transaxle Support Insulator - Anti-Roll









Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Remove the 7 screws and the underbody cover.

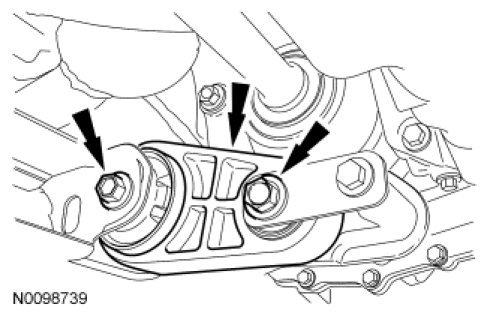

3. Remove the 2 bolts and remove the roll restrictor.





Installation

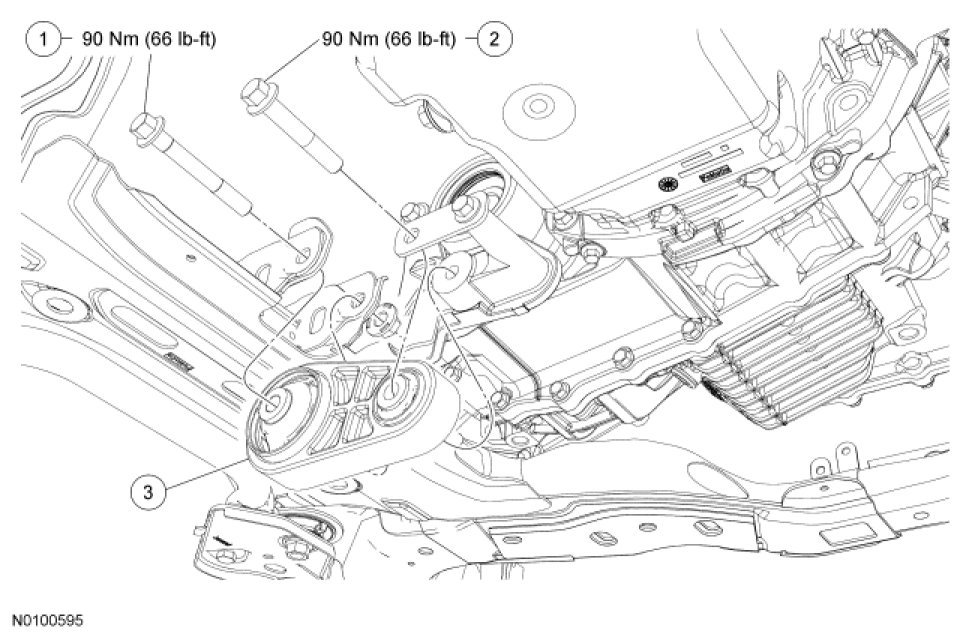

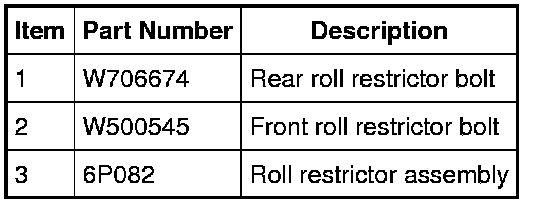

1. Position the roll restrictor in place and install the 2 bolts.
- Tighten to 90 Nm (66 lb-ft).





2. Install the underbody cover and 7 screws.
