Transmission Fluid Cooler Tubes









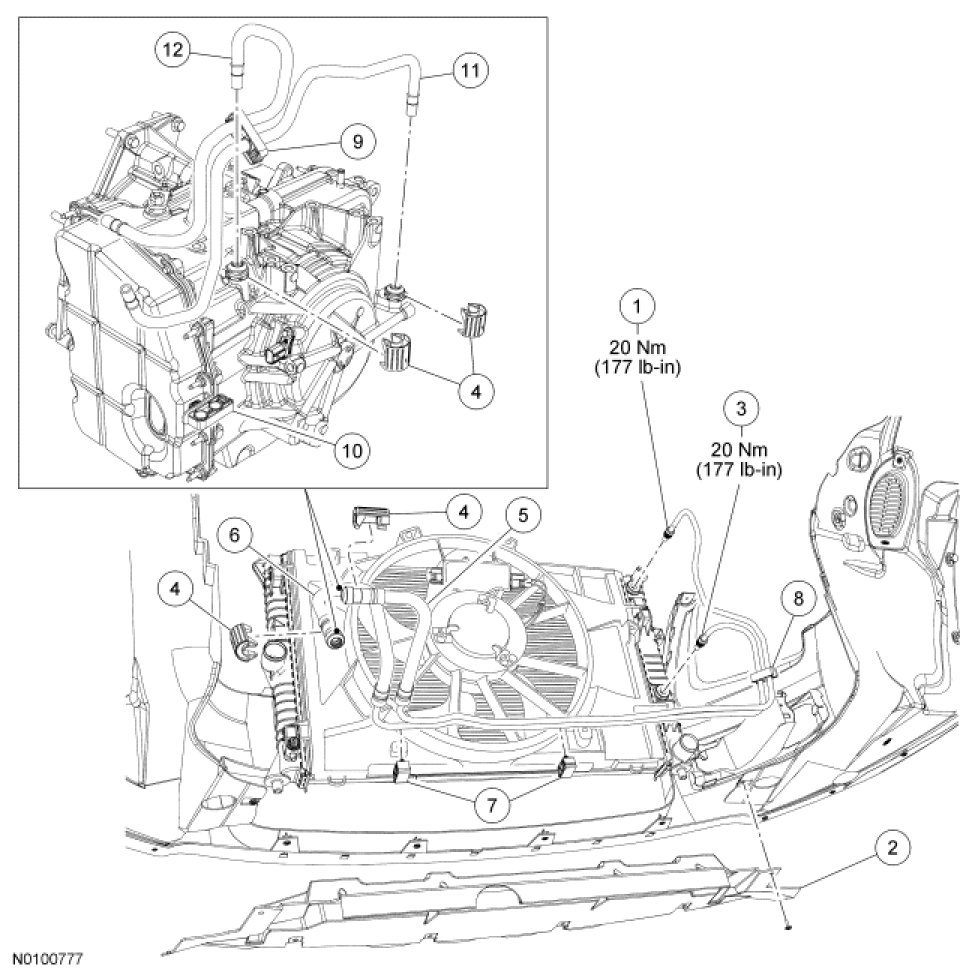

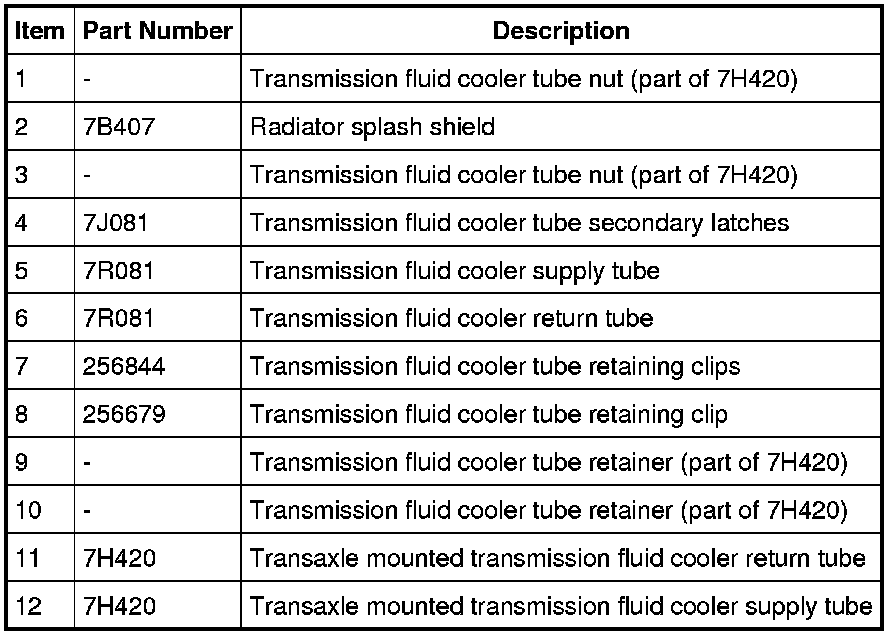

Removal

NOTICE: Automatic transmission fluids are not interchangeable. The use of any fluid other than what is recommended for this transaxle will cause transaxle damage.

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Disconnect the upper transmission fluid cooler tube from the radiator.





3. Remove the bolts and the splash shield.





4. Remove the radiator splash shield.

1. Remove the 6 screws.

2. Remove the 4 retainers.





5. Disconnect the lower transmission fluid cooler tube from the radiator.





6. Remove the transmission fluid cooler tube secondary latches.

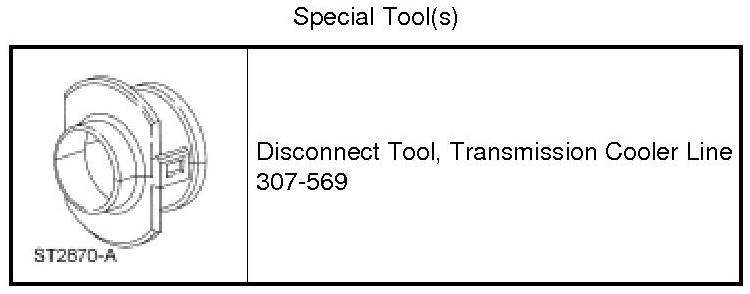

7. Using the Transmission Cooler Line Disconnect Tool, disconnect the transmission fluid cooler tubes.





8. NOTE: When removing the transmission fluid cooler tubes from the retainers, do not remove the retainers from the shroud.

Release the transmission fluid cooler tube retainers and remove the transmission fluid cooler tubes from the retainers.





9. Remove the transmission fluid cooler tube retainer and remove the transmission fluid cooler tubes from the vehicle.





10. Remove the Air Cleaner (ACL) and the outlet pipe. For additional information, refer to Intake Air Distribution and Filtering - Air Cleaner.

11. Remove the battery and battery tray. For additional information, refer to Battery, Mounting and Cables Service and Repair.

12. Open the transmission fluid cooler tube retainers.





13. Remove the 2 transmission fluid cooler tube secondary latches.





14. Using the Transmission Cooler Line Disconnect Tool, disconnect and remove the transmission fluid cooler tubes from the transaxle.





Installation

1. Install the transmission fluid cooler tubes in the transaxle by inserting the tube into the fitting until a click is heard/felt. Pull back to confirm connection is secure and position them in the retainer mounted on the main control cover studbolts.





2. Install the 2 transmission fluid cooler tube secondary latches.





3. Position the transmission fluid cooler tubes in the retainers and close the 2 transmission fluid cooler tube retainers.





4. Install the battery and battery tray. For additional information, refer to Battery, Mounting and Cables Service and Repair.

5. Install the ACL and the outlet pipe. For additional information, refer to Intake Air Distribution and Filtering - Air Cleaner and Air Cleaner Outlet Pipe.

6. Position the transmission fluid cooler tubes in place in the vehicle and install the retainer.





7. Position the transmission fluid cooler tubes in the retainers and close the retainers.





8. Connect the transmission fluid cooler tubes by inserting the tube into the fitting until a click is heard/felt. Pull back to confirm that the connection is secure.





9. Install the transmission fluid cooler tube secondary latches.





10. Install the lower transmission fluid cooler tube in the radiator.
- Tighten to 20 Nm (177 lb-in).





11. Install the radiator splash shield

1. Install the 6 screws.

2. Install the 4 retainers.





12. If equipped, install the bolts and the splash shield.





13. Install the upper transmission fluid cooler tube in the radiator.
- Tighten to 20 Nm (177 lb-in).





14. Fill the transaxle with clean transmission fluid.

15. Using the scan tool with the engine running, check and make sure that the transmission is at normal operating temperature 85-93°C (185-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
