FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2011
>>
Milan AWD V6-3.0L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
External Controls - Aisin AW21 / 6F35
>>
Electrical Connectors
Electrical Connectors
External Controls
Electrical Connectors

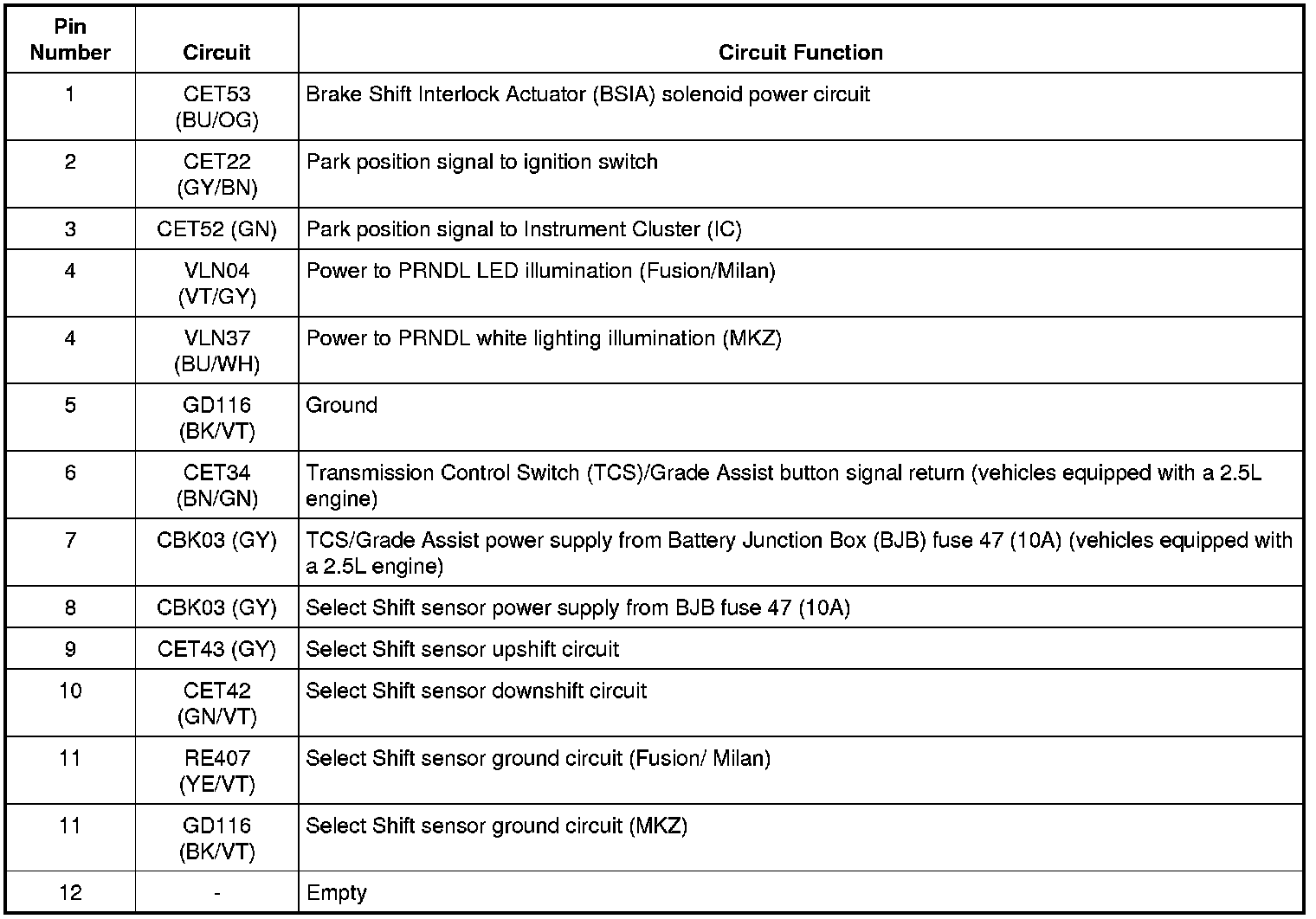

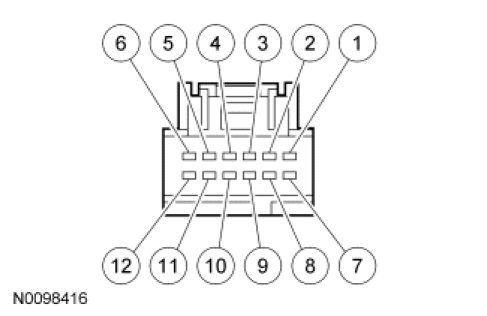

Selector Lever Harness C3233
