Selector Lever Knob

Selector Lever Knob

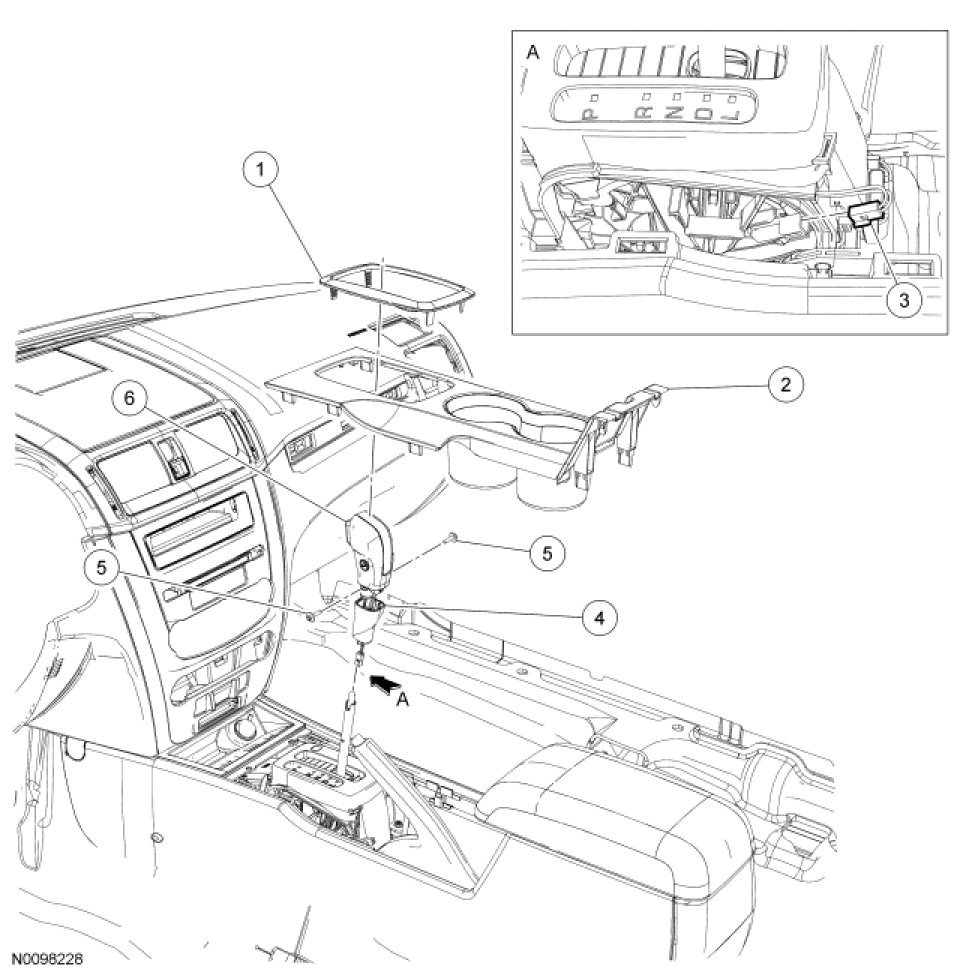

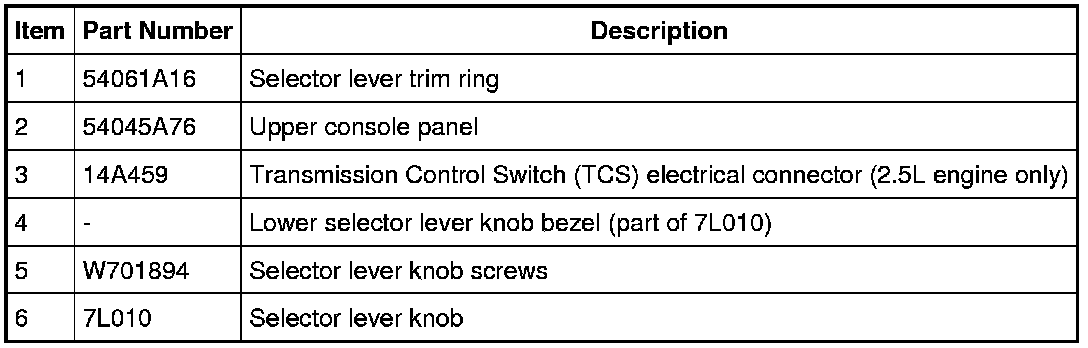

NOTE: Transmission Control Switch (TCS) shown, select switch similar.











Removal

Vehicles equipped with a 2.5L or 3.0L (4V) engine

1. Remove the selector lever trim ring.





2. Remove the center console trim panel.





3. Disconnect the Transmission Control Switch (TCS) or select switch electrical connector.





All vehicles

4. NOTE: TCS shown, select switch similar.

Slide the selector lever knob bezel downward to gain access to the 2 selector lever knob screws.





5. NOTICE: It is necessary to route the Transmission Control Switch (TCS) harness or select switch harness out of the selector lever bezel when removing the selector lever knob.

Remove the 2 screws from the selector lever knob. Remove the selector lever knob and selector lever knob bezel.





Installation

All vehicles

1. NOTICE: It is necessary to route the Transmission Control Switch (TCS) harness or select switch harness through the selector lever bezel when installing the selector lever knob.

NOTE: TCS shown, select switch similar.

Install the selector lever knob on the selector lever and install the screws.





2. Slide the selector lever knob bezel up and install it on the selector lever knob.





Vehicles equipped with 2.5L or 3.0L (4V) engine

3. Connect the TCS or select switch electrical connector.





4. Install the center console trim panel.





5. Install the selector lever trim ring.
