Selector Lever Bezel

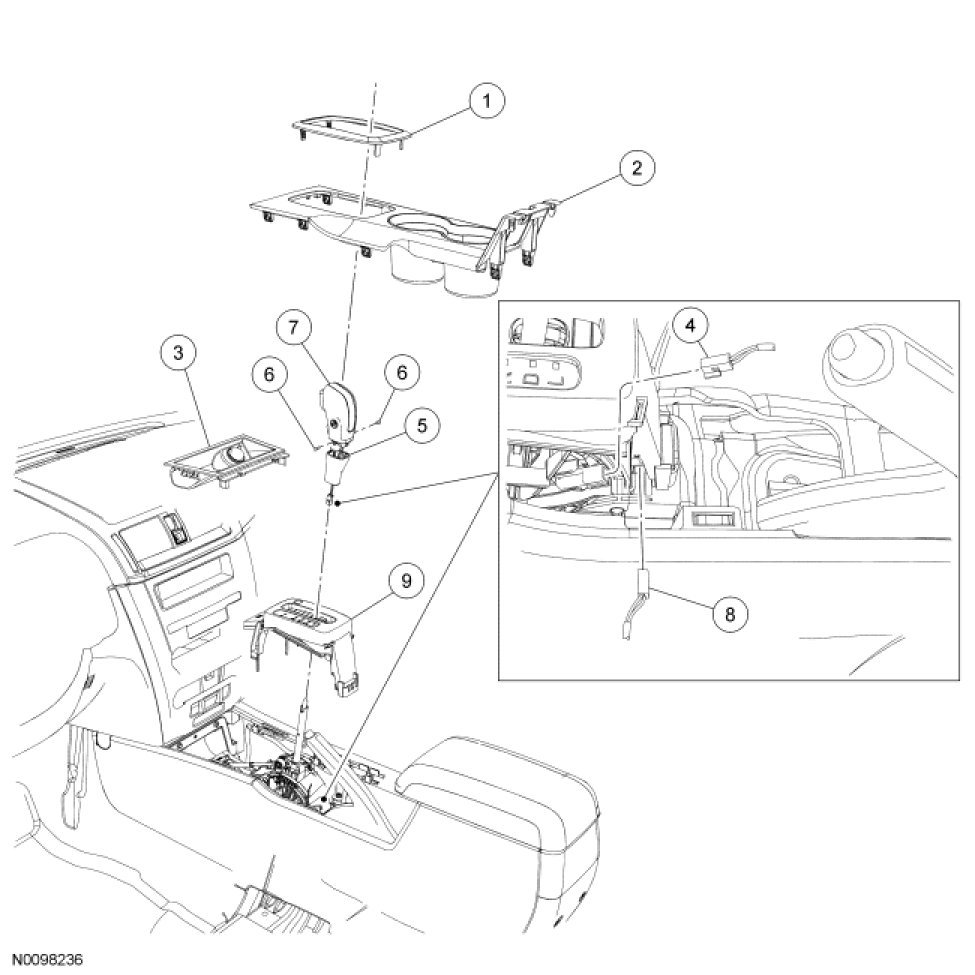

Selector Lever Bezel - Fusion/Milan

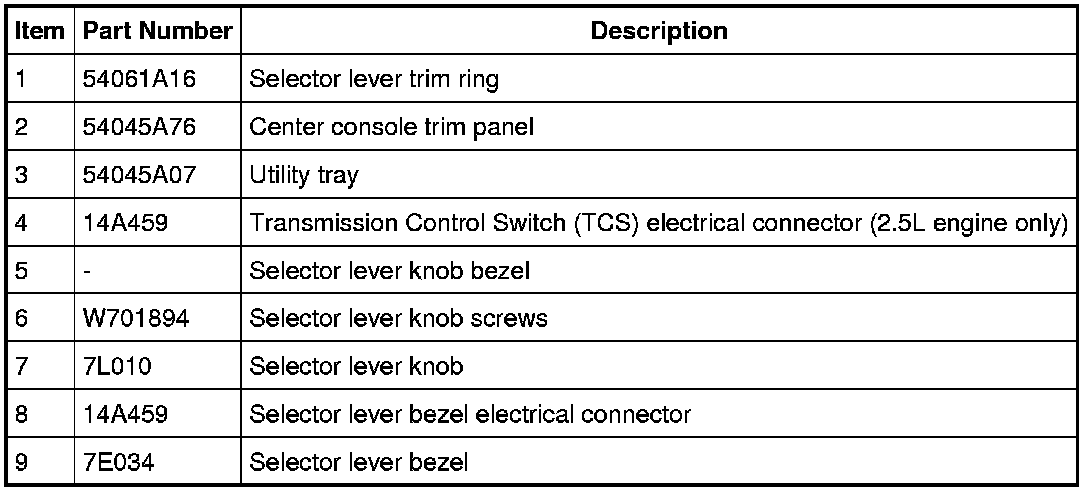

NOTE: Transmission Control Switch (TCS) shown, select switch similar.











Removal

All vehicles

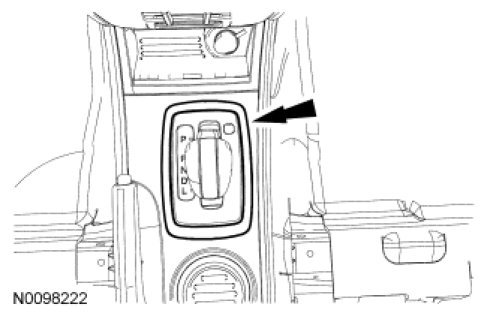

1. Remove the selector lever trim ring.

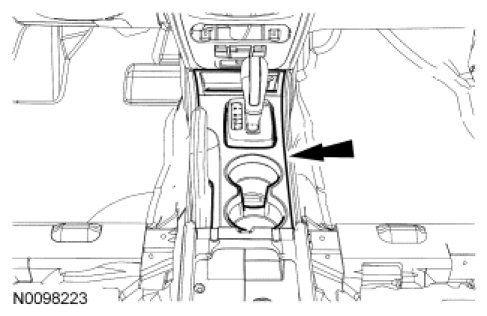

2. Remove the center console trim panel.

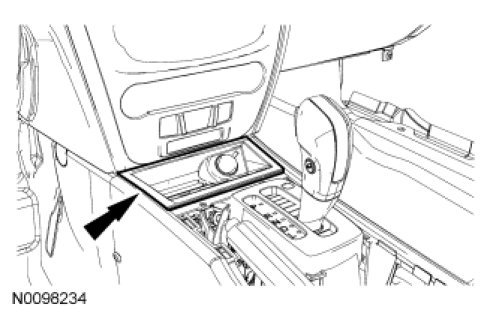

3. Remove the utility tray from the center console.





4. Disconnect the electrical connector and remove the utility tray.





Vehicles equipped with a 2.5L or 3.0L (4V) engine

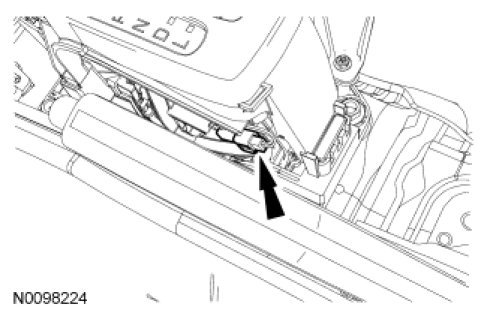

5. Disconnect the Transmission Control Switch (TCS) or select switch electrical connector.





All vehicles

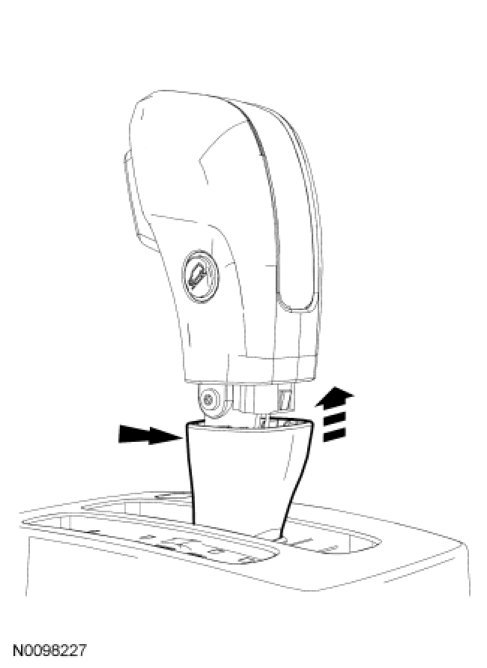

6. NOTE: TCS shown, select switch similar.

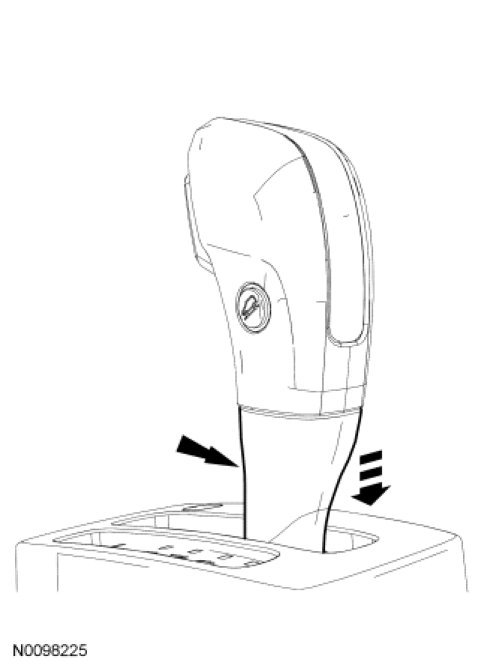

Slide the selector lever knob bezel downward to gain access to the 2 selector lever knob screws.

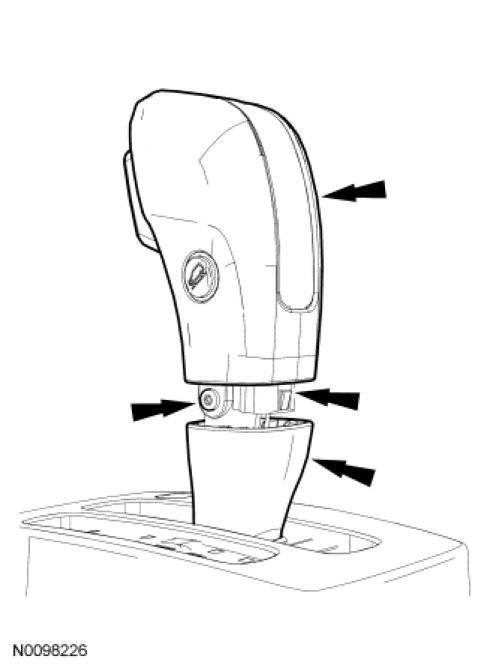

7. NOTICE: It is necessary to route the Transmission Control Switch (TCS) harness or select switch harness out of the selector lever bezel when removing the selector lever knob.

Remove the 2 screws from the selector lever knob. Remove the selector lever knob and selector lever knob bezel.

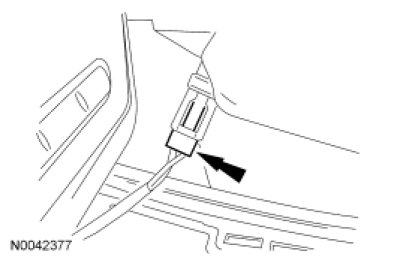

8. Disconnect the selector lever bezel electrical connector.

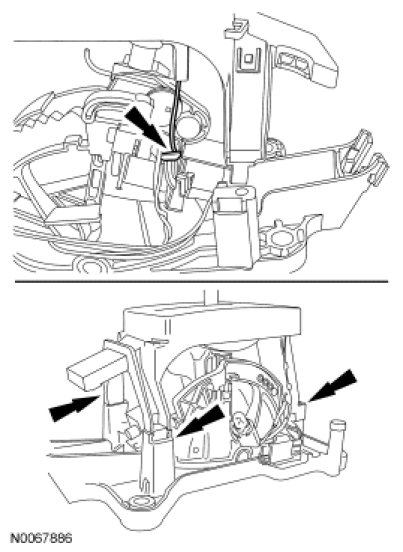

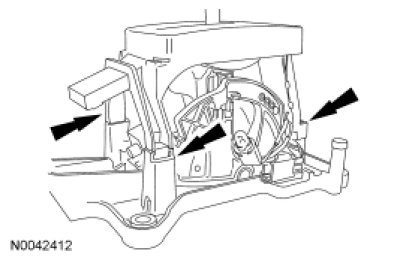

9. NOTE: Selector lever removed for clarity.

Release the 3 tabs and remove the selector lever knob bezel.





Installation

Vehicles equipped with a 2.5L or 3.0L (4V) engine

1. NOTICE: Be sure that the override lever is inserted in the override lever guide or the shift interlock override button will not work correctly.

NOTE: Selector lever removed for clarity.

Install the selector lever bezel on the selector lever.

- Position the override lever in the override lever guide.

- Make sure that the 3 locking tabs are locked in place.





Vehicles equipped with a 3.5L engine

2. NOTE: Selector lever removed for clarity.

Install the selector lever bezel on the selector lever and be sure the 3 tabs are locked in place.





All vehicles

3. Connect the selector lever bezel electrical connector.





4. NOTICE: It is necessary to route the Transmission Control Switch (TCS) harness or select switch harness out of the selector lever bezel when removing the selector lever knob.

NOTE: TCS shown, select switch similar.

Install the selector lever knob on the selector lever and install the screws.





5. Slide the selector lever knob bezel up and install it on the selector lever knob.





Vehicles equipped with 2.5L or 3.0L (4V) engine

6. Connect the TCS or select switch electrical connector.





All vehicles

7. Position the utility tray in place and connect the electrical connector.





8. Install the utility tray on the center console.





9. Install the center console trim panel.





10. Install the selector lever trim ring.
