Mercury
>>
2011
>>
Milan AWD V6-3.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures
Starting System

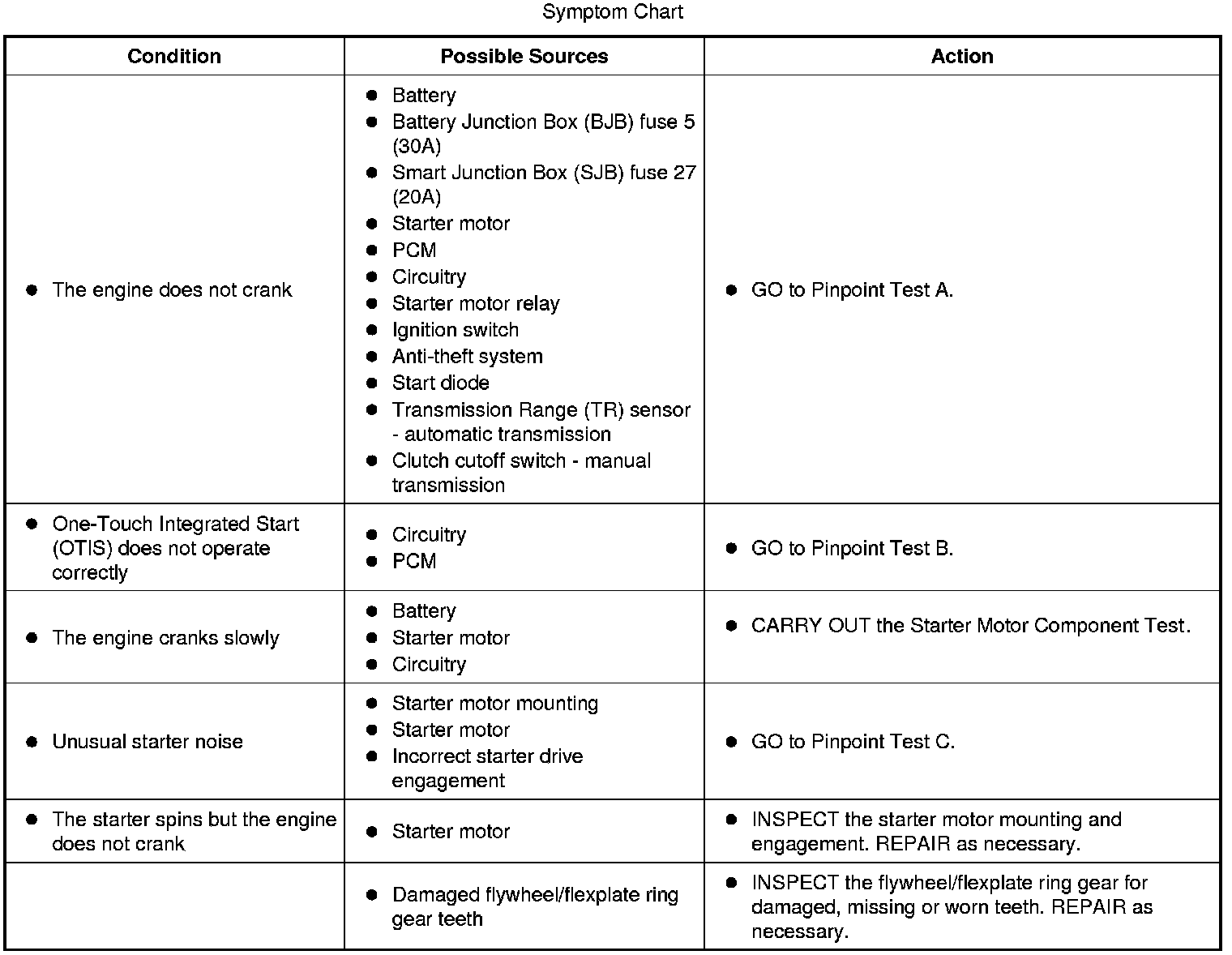

Symptom Chart
NOTE:
For hybrid
starting system
diagnostics, refer to Computers and Control Systems Information.
