Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
6F35
>>

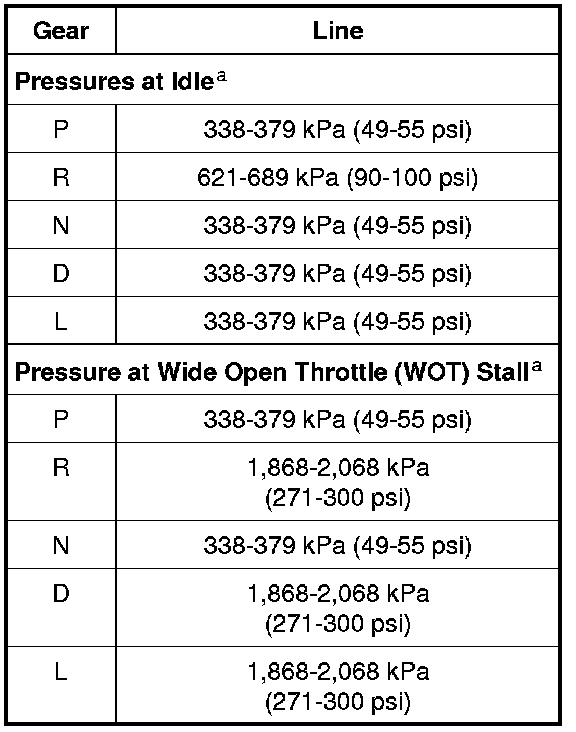

Line Pressure Chart
Line Pressure Chart
Line Pressure Chart
a
All pressures are approximate.
