6F35
>>

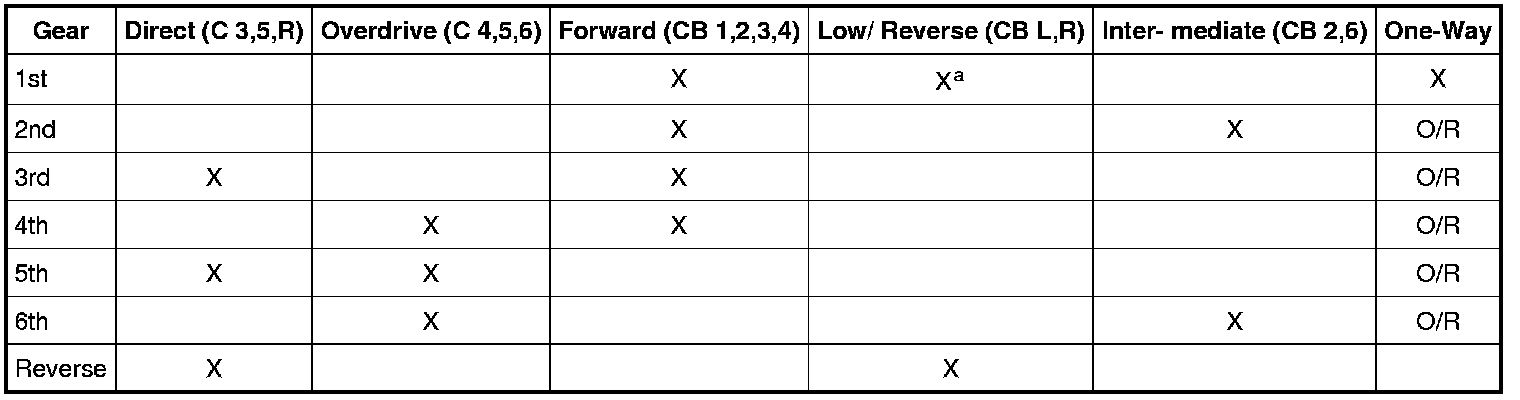

Clutch Application Chart
Clutch Application Chart
Clutch Application Chart
a
Turns off above 6 km/h (4 mph).
CB = Clutch brake
O/R = Overrunning
