Home >> Mercury >> 2011 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Impact Sensor >> Diagrams >> C567 Side Impact Sensor, Driver Front Door

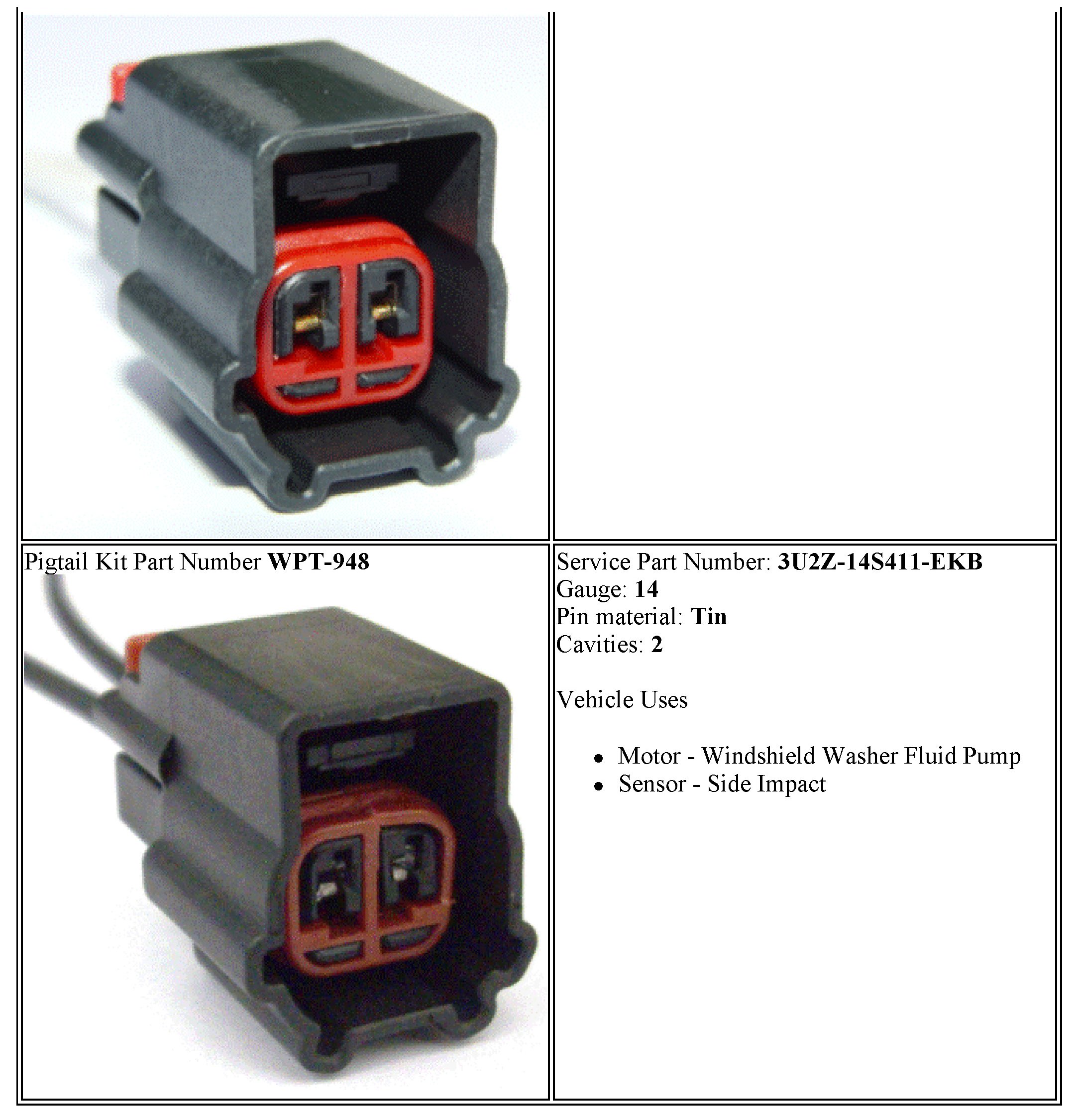

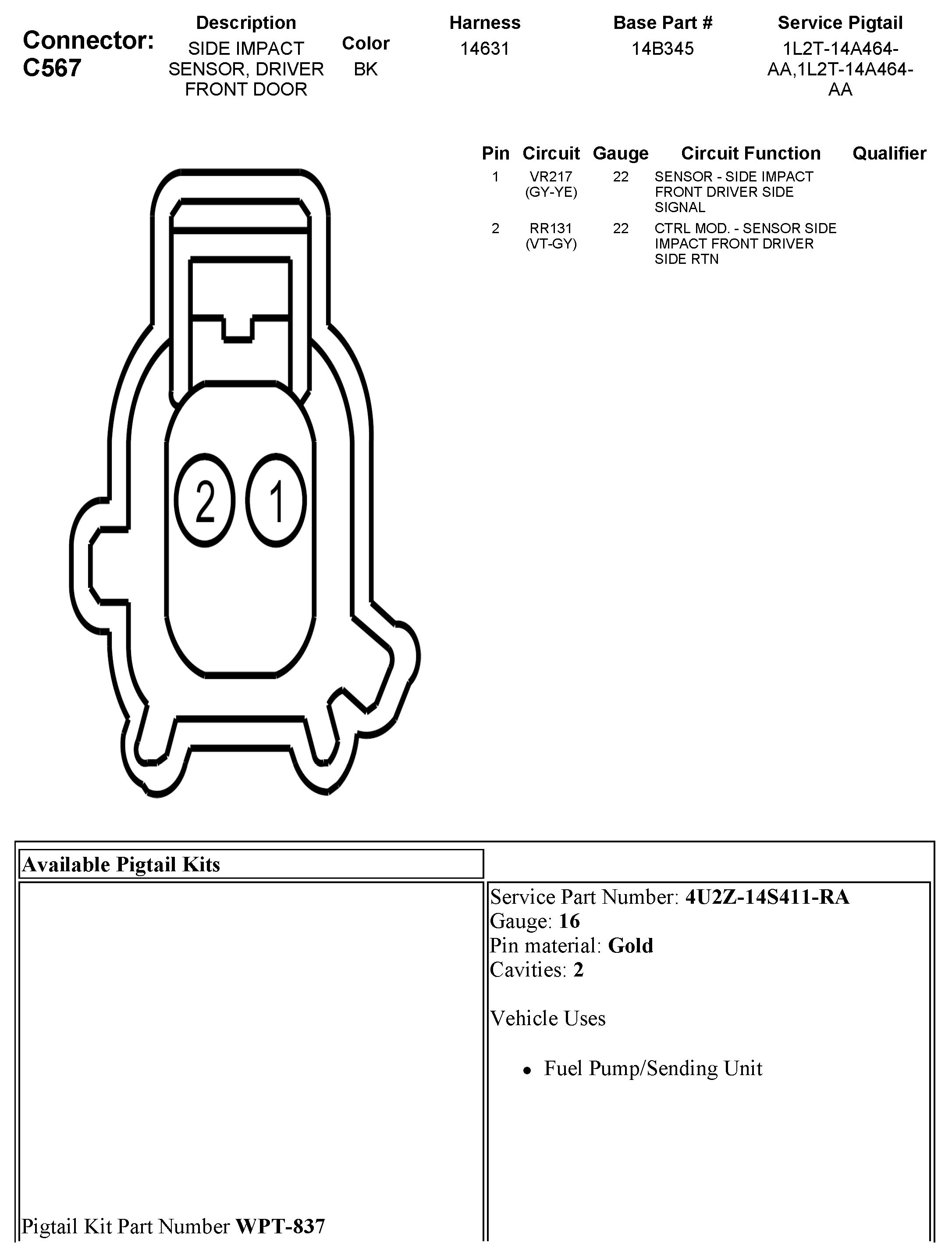

C567 Side Impact Sensor, Driver Front Door
