Parking Brake Warning Switch: Service and Repair

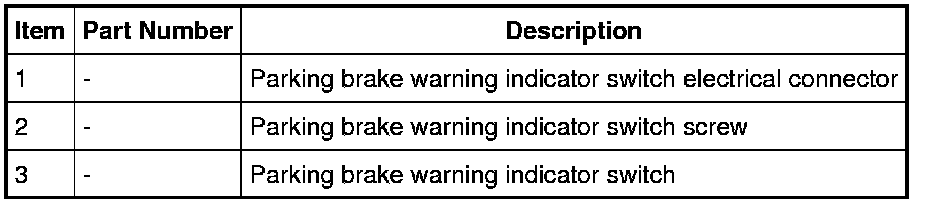

Parking Brake Warning Indicator Switch

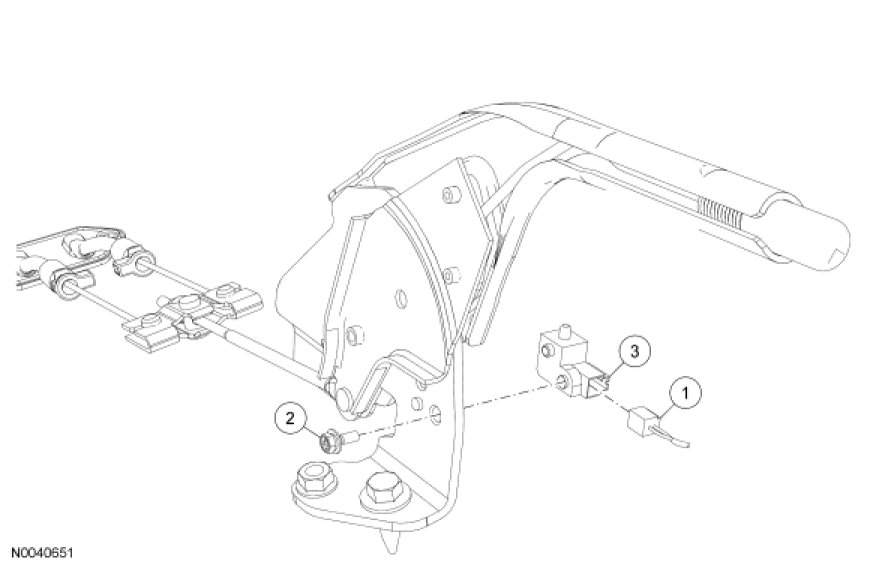

NOTE: Parking brake control cover removed for clarity.











Removal and Installation

1. Remove the floor console. For additional information, refer to Instrument Panel and Console Service and Repair.

2. Disconnect the parking brake warning indicator switch electrical connector.

3. Remove the parking brake warning indicator switch screw.

4. Remove the parking brake warning indicator switch.

5. To install, reverse the removal procedure.
