Wheel Speed Sensor - Rear

Wheel Speed Sensor - Rear, All Wheel Drive (AWD)

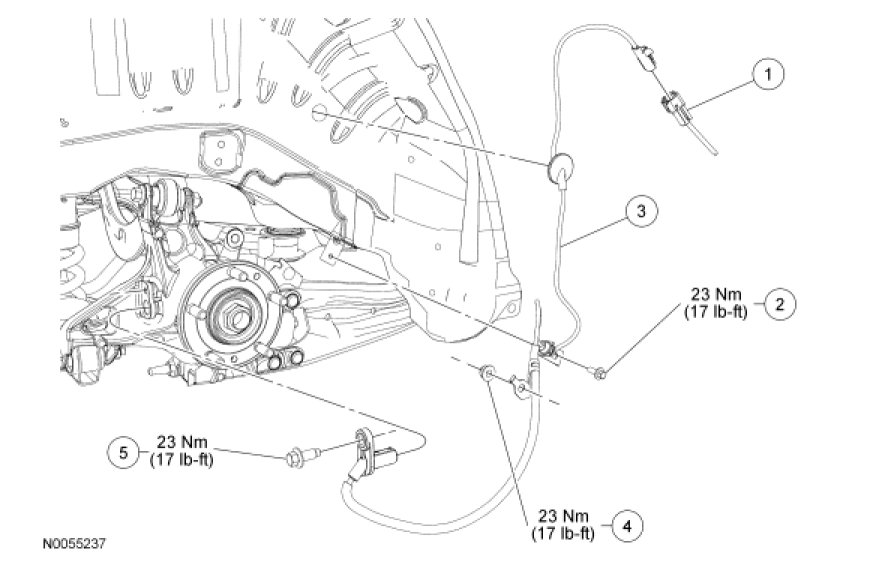

Removal and Installation

1. Remove the rear seat bolster. For additional information, refer to Seating Seat Bolster - Rear.

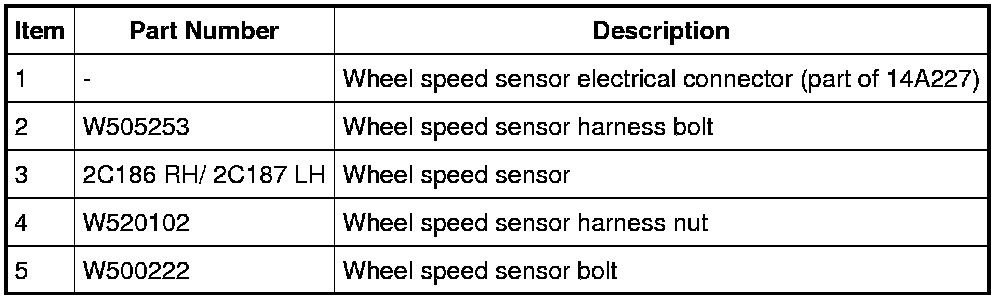

2. Disconnect the wheel speed sensor electrical connector.

3. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

4. Using a suitable tool, disconnect the grommet from the body.

5. Remove the wheel speed sensor harness nut and bolt.
- To install, tighten to 23 Nm (17 lb-ft).

6. Remove the wheel speed sensor bolt and the wheel speed sensor.
- To install, tighten to 23 Nm (17 lb-ft).

7. To install, reverse the removal procedure.
