Steering Angle Sensor: Service and Repair

Steering Wheel Rotation Sensor

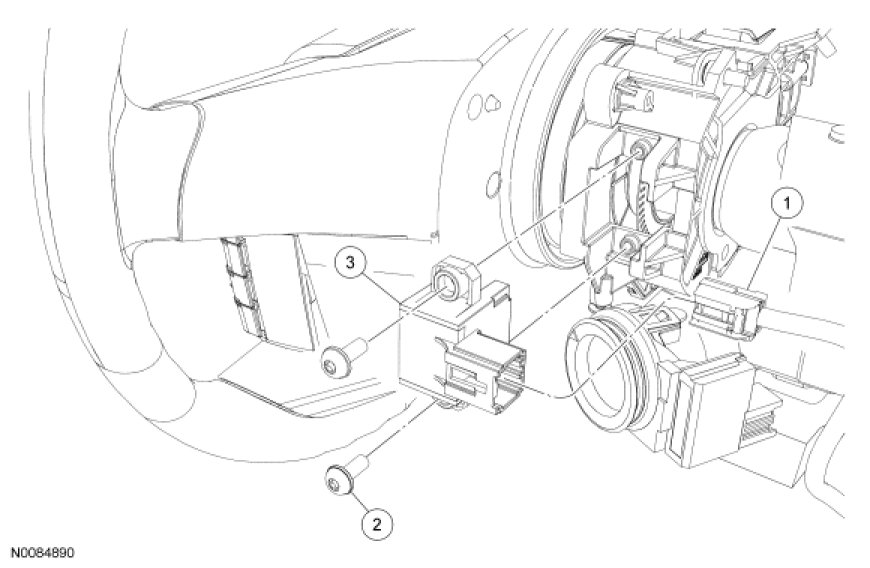

Removal and Installation

1. Remove the steering column shroud. For additional information, refer to Steering Column Steering Column Shroud.

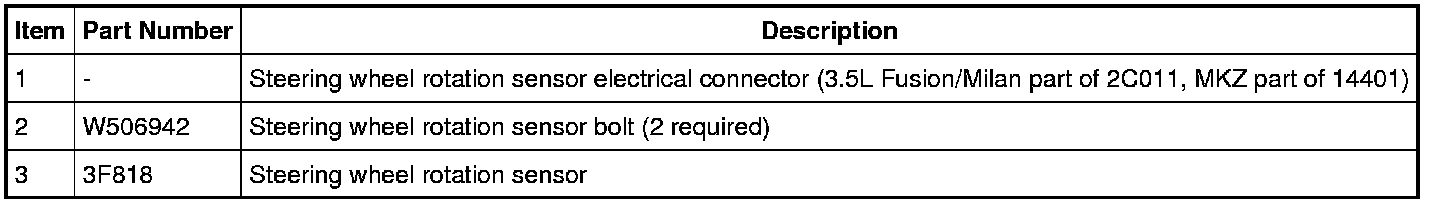

2. Disconnect the steering wheel rotation sensor electrical connector.

3. Remove the 2 bolts and the steering wheel rotation sensor.

4. To install, reverse the removal procedure.

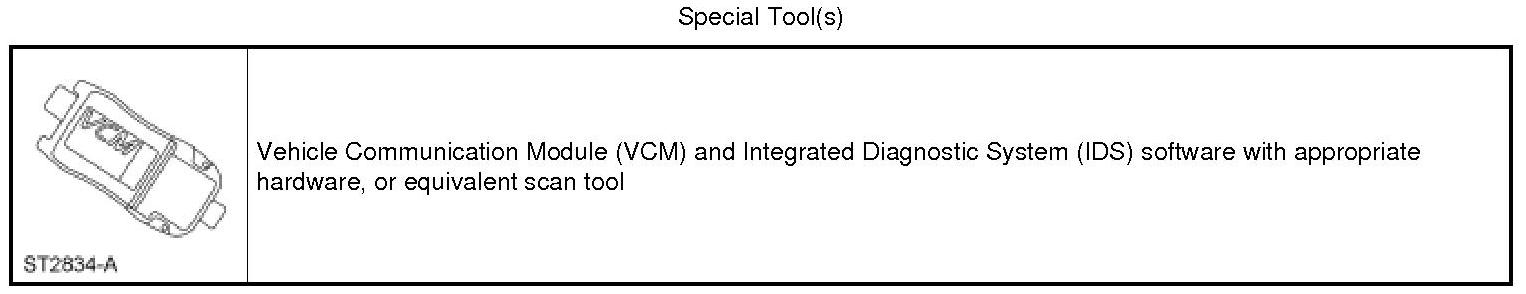

- Using the scan tool, calibrate the new steering wheel rotation sensor to the ABS module. Follow the scan tool instructions for Interactive Vehicle Dynamics (IVD) Initialization.
