Parking Assist Distance Sensor
>>
Diagrams
>>

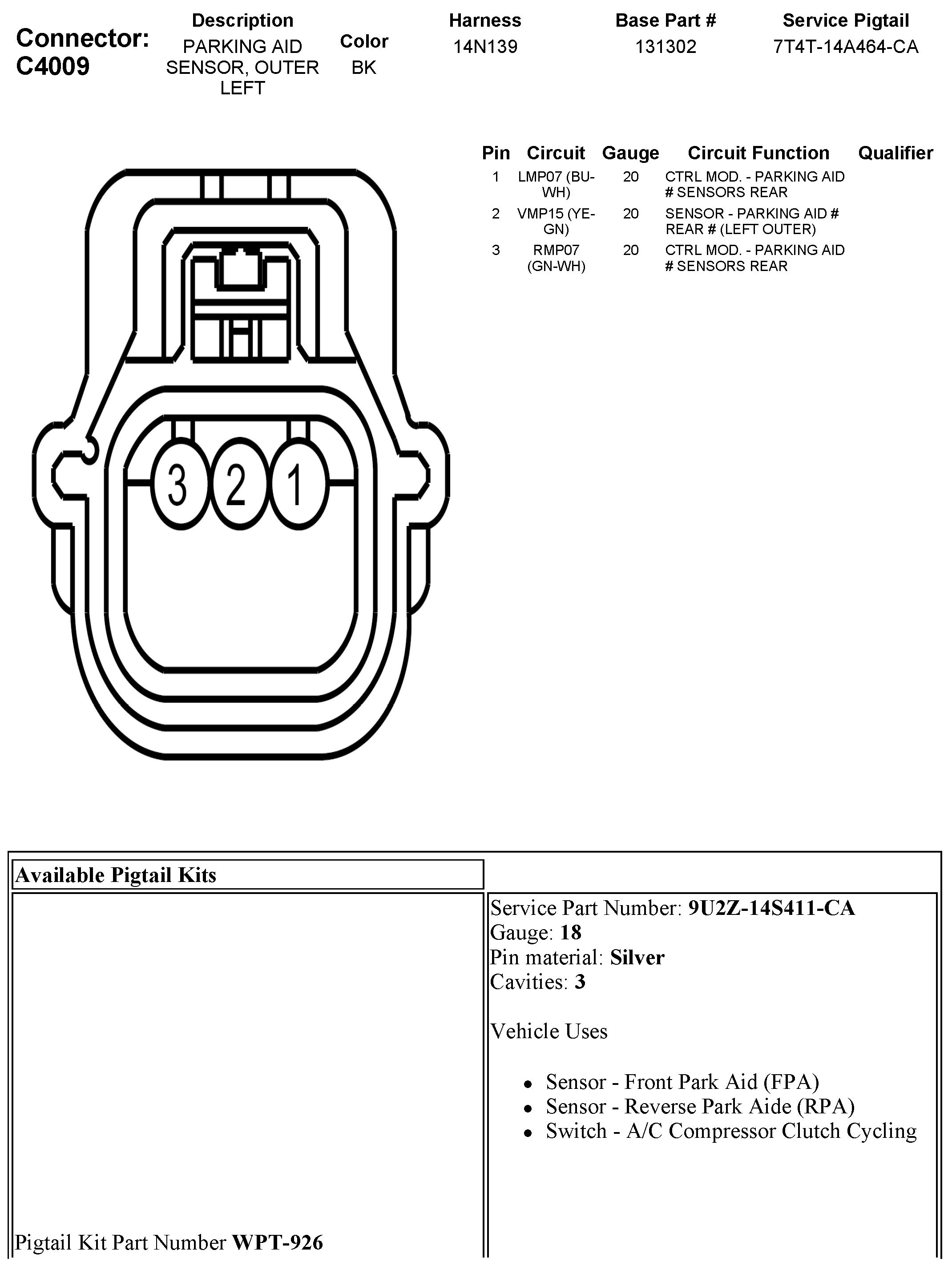

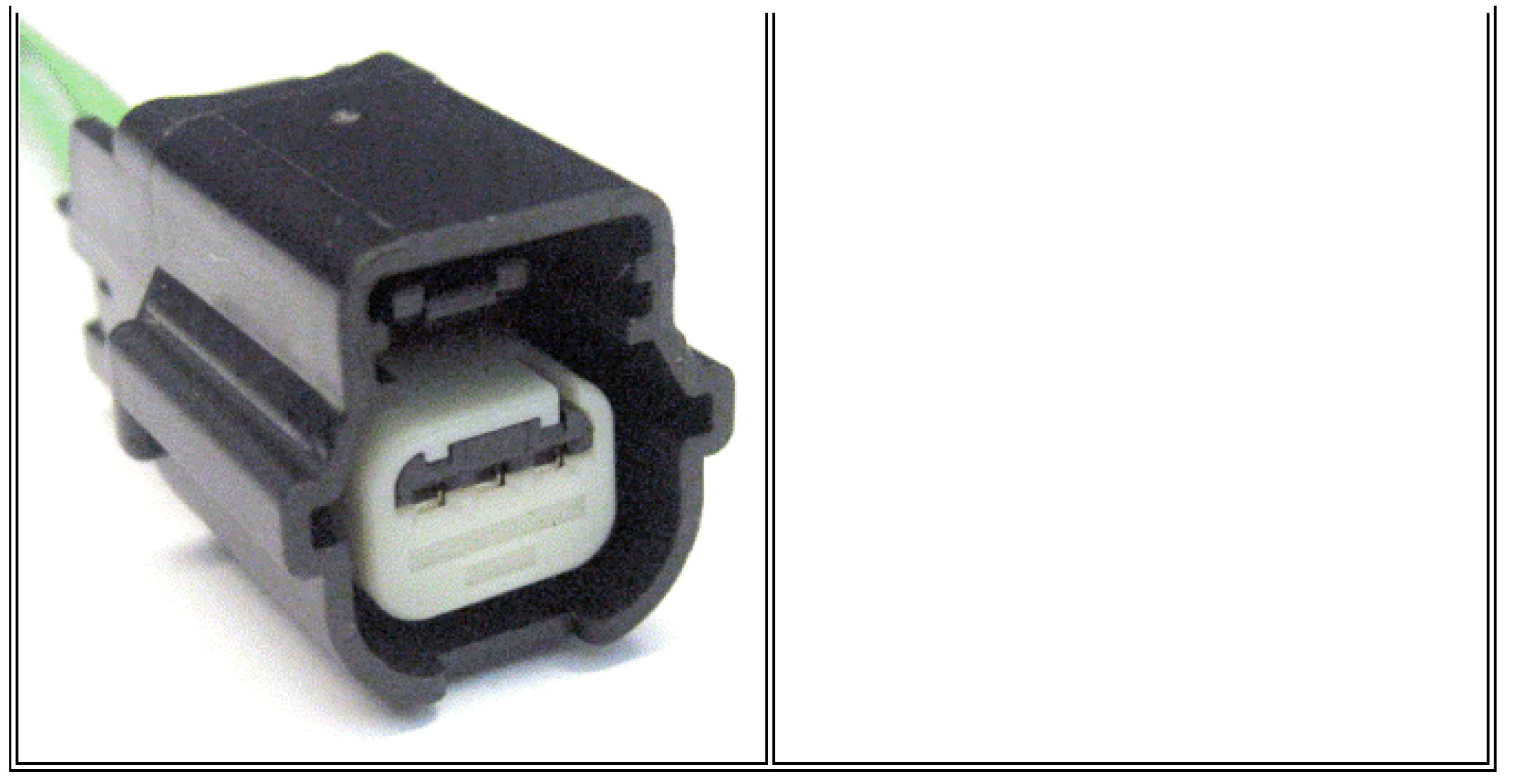

C4009 Parking Aid Sensor, Outer Left
C4009 Parking Aid Sensor, Outer Left
