Mercury
>>
2011
>>
Milan AWD V6-3.0L
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Accessories and Optional Equipment
>>
Blind Spot Switch
>>
Diagrams
>>

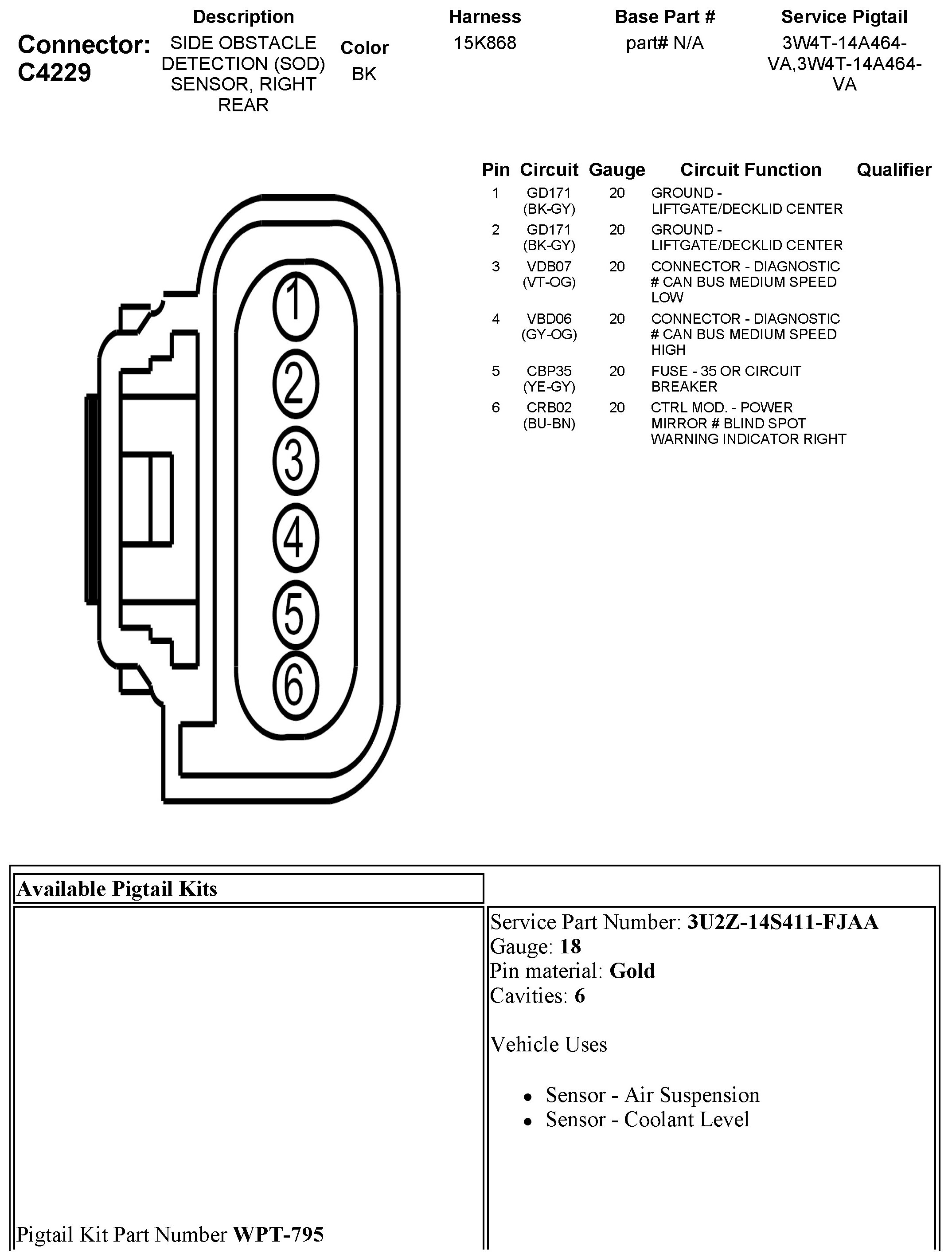

C4229 Side Obstacle Detection (SOD) Sensor, Right Rear
C4229 Side Obstacle Detection (SOD) Sensor, Right Rear
