FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2011
>>
Milan AWD V6-3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Tune-up and Engine Performance Checks
>>
Spark Plug
>>
Service and Repair
>>

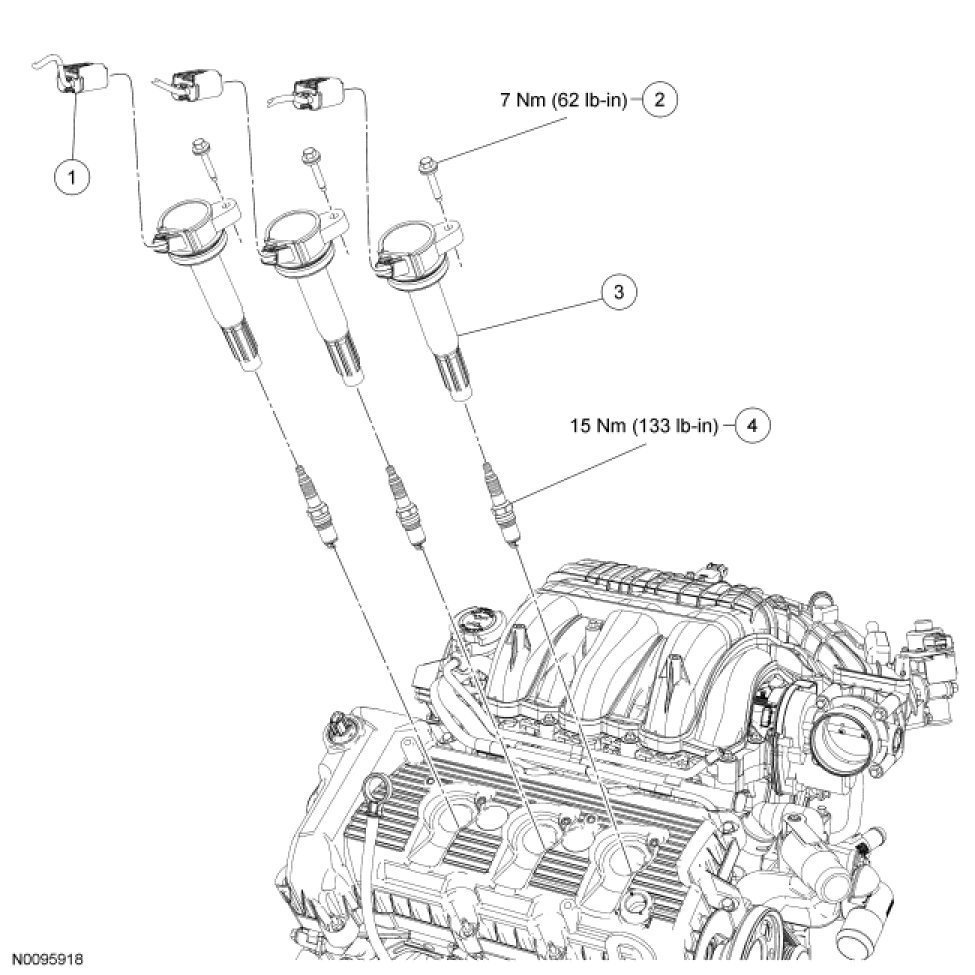

Engine Ignition Components - Exploded View

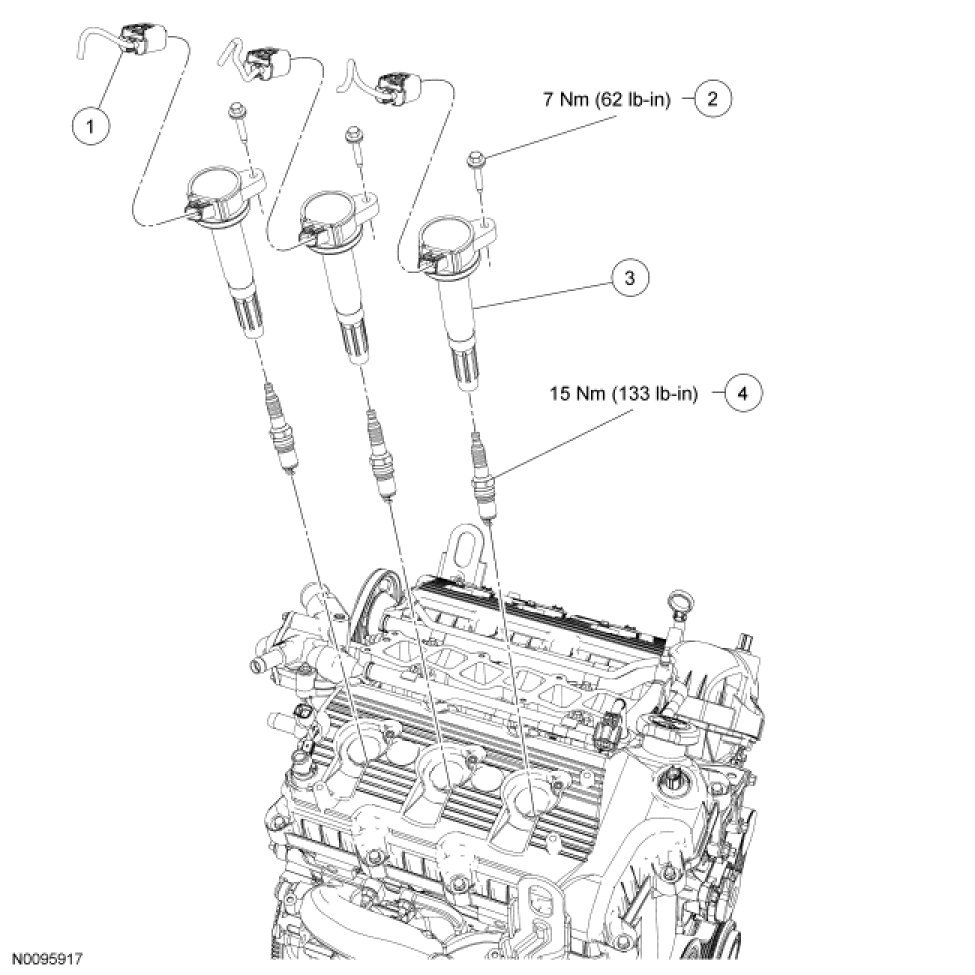

Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View
LH Side
RH Side
