Fuel Tank and Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

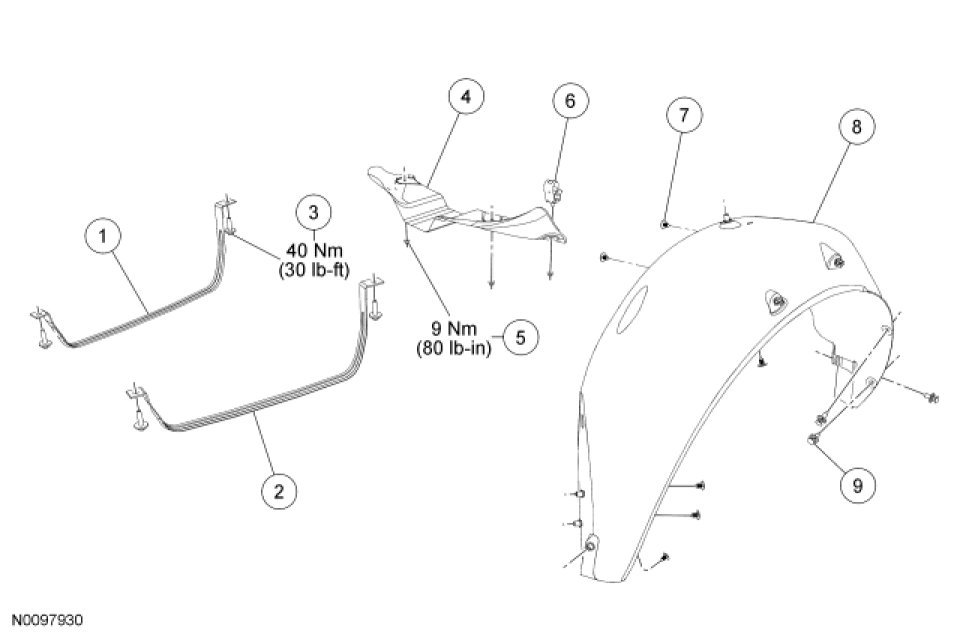

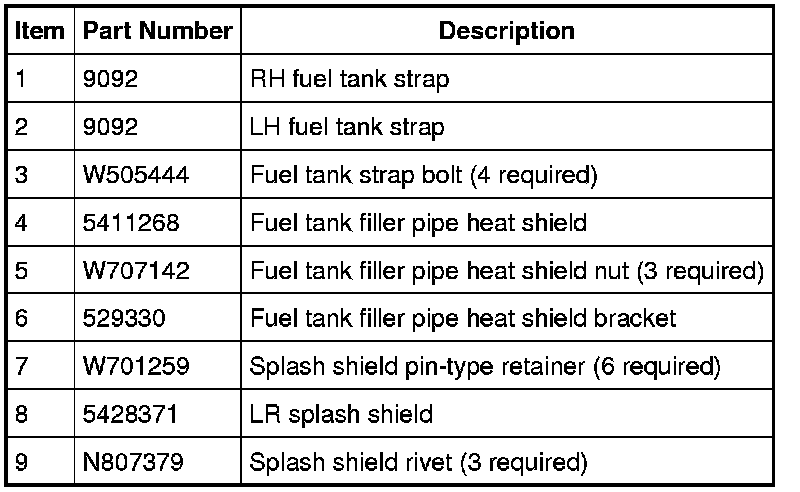

Fuel Tank Supports and Shields (Front Wheel Drive (FWD) Vehicles)

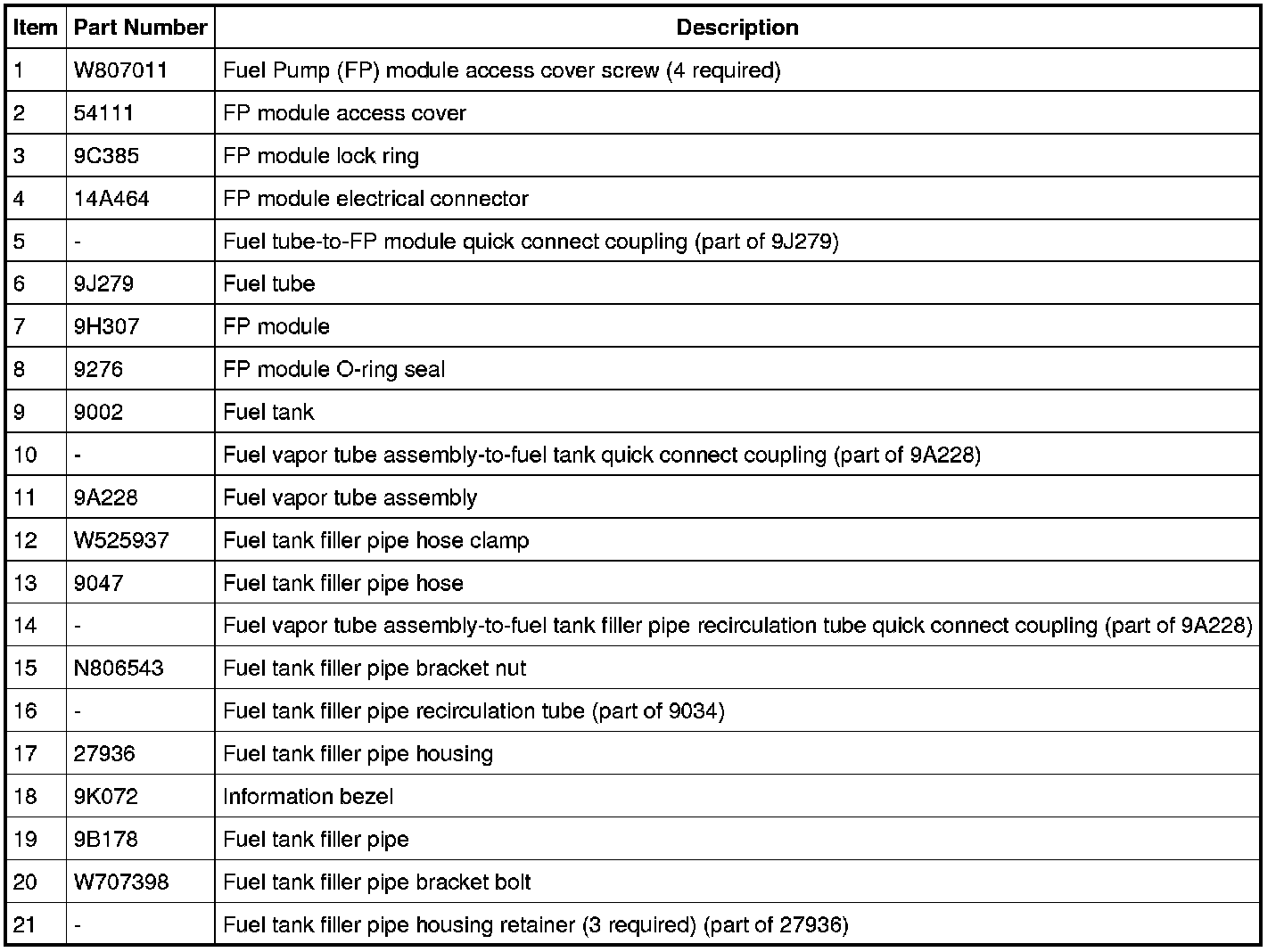

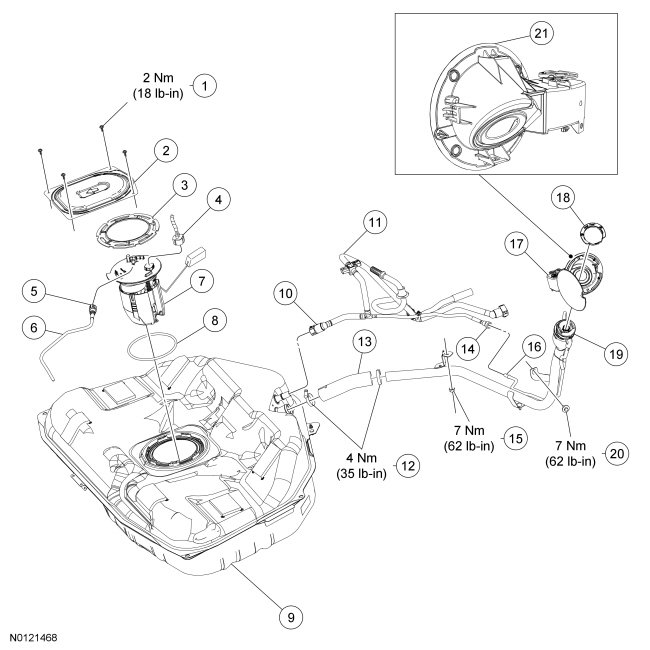

Fuel Tank and Filler Pipe (FWD Vehicles)

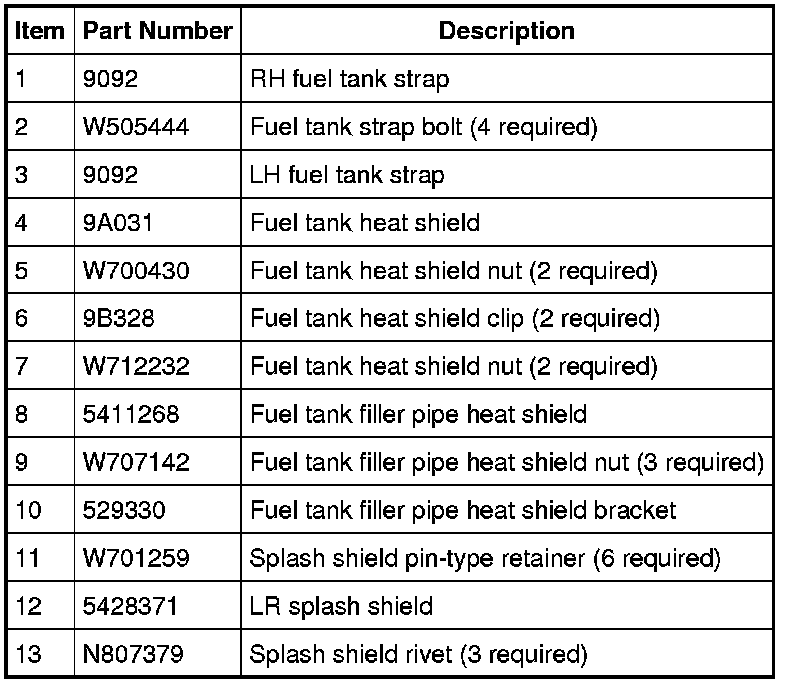

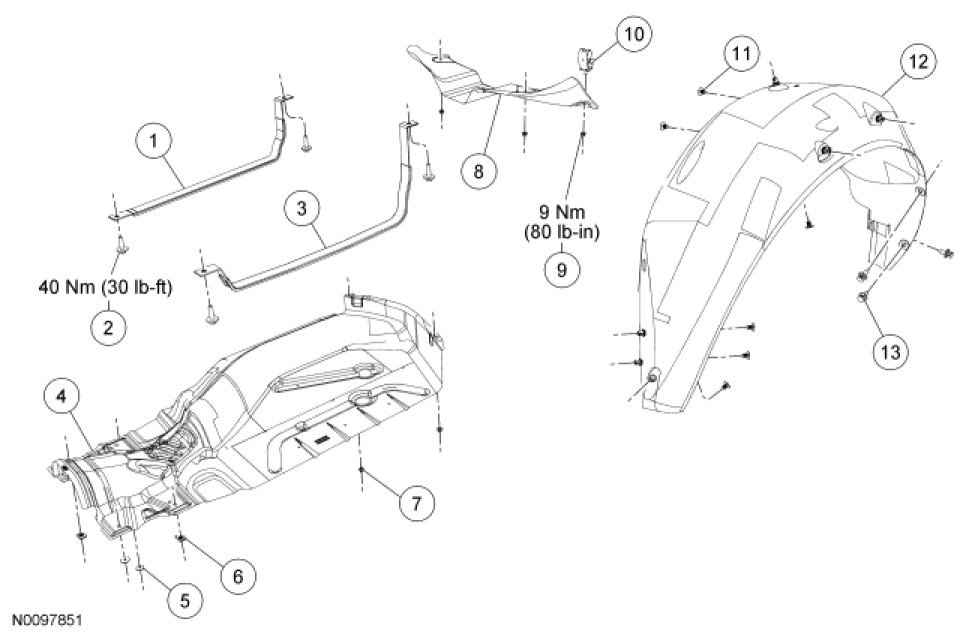

Fuel Tank Supports and Shields (All-Wheel Drive (AWD) Vehicles)

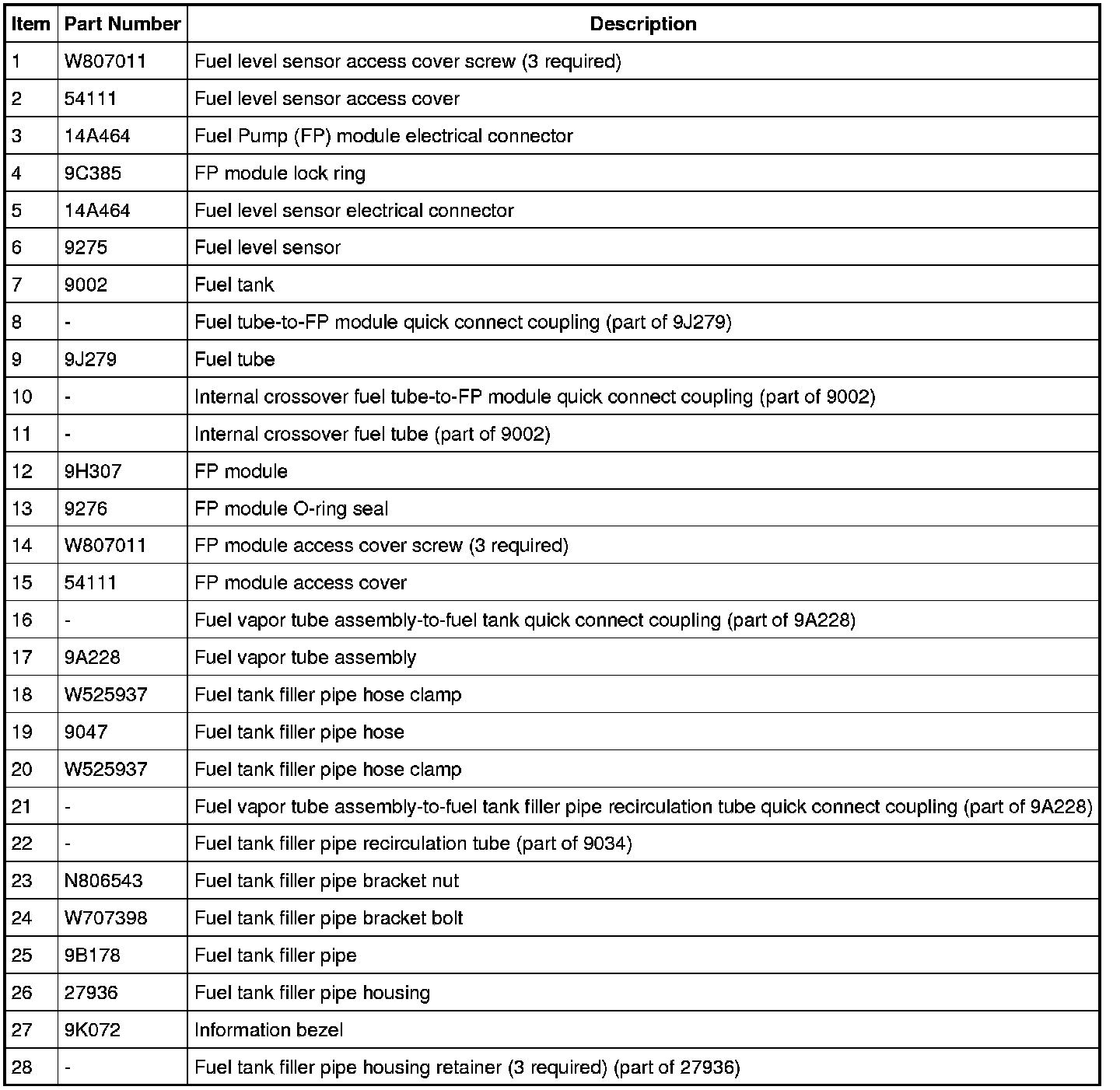

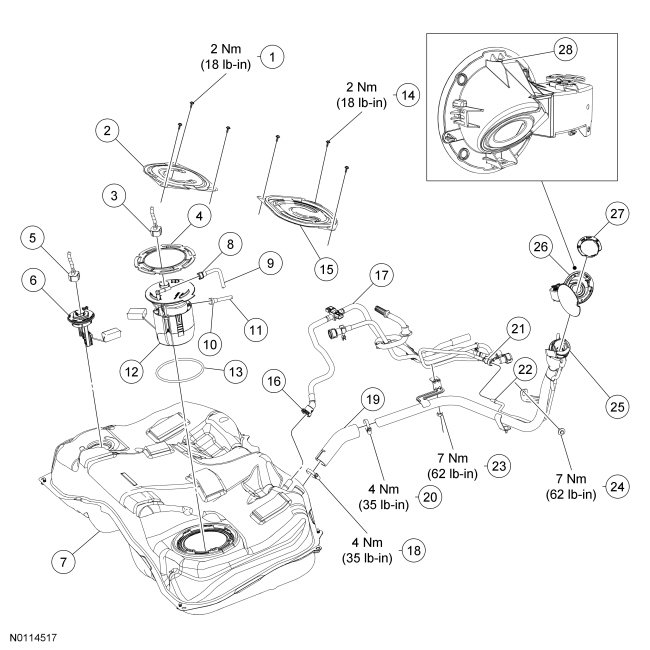

Fuel Tank and Filler Pipe (AWD Vehicles)
