Fuel Rail and Fuel Injector - Exploded View




Fuel Rail and Fuel Injector - Exploded View

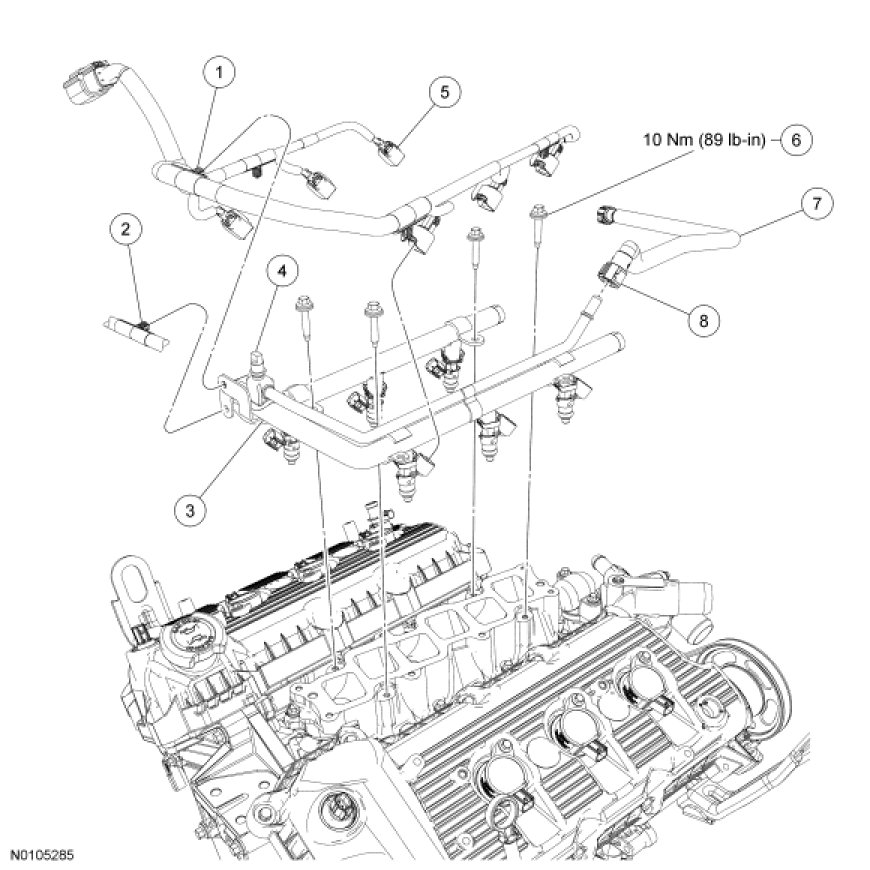

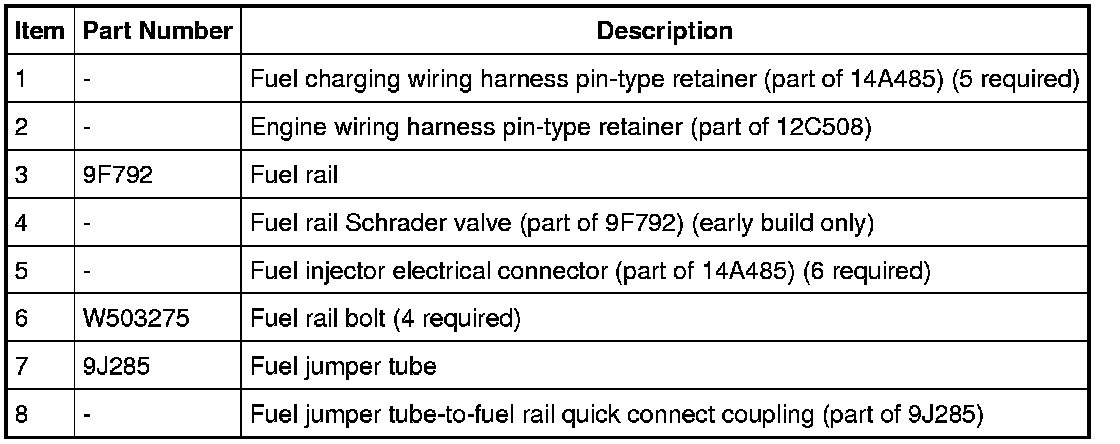

Fuel Rail

NOTE: Early build shown, late build similar.

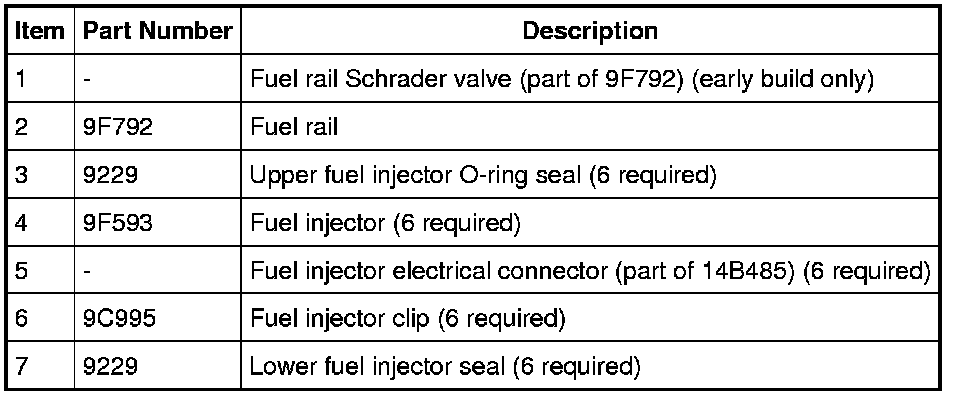

Fuel Injector

NOTE: Early build shown, late build similar.
