EGR Valve
>>
Service and Repair
>>

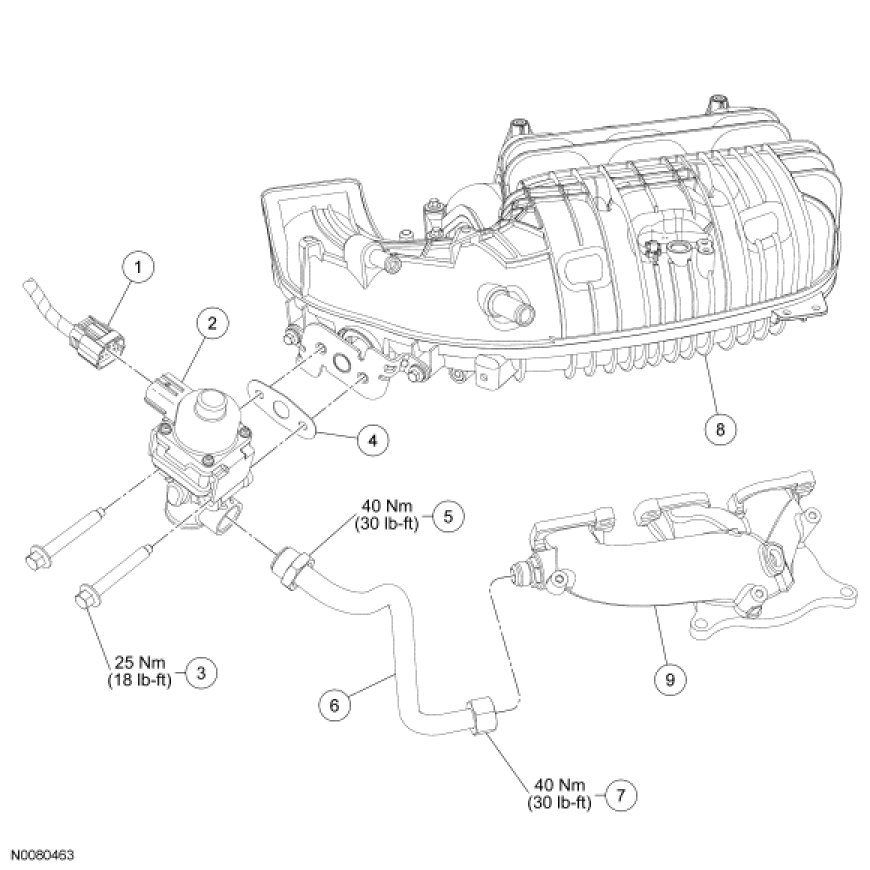

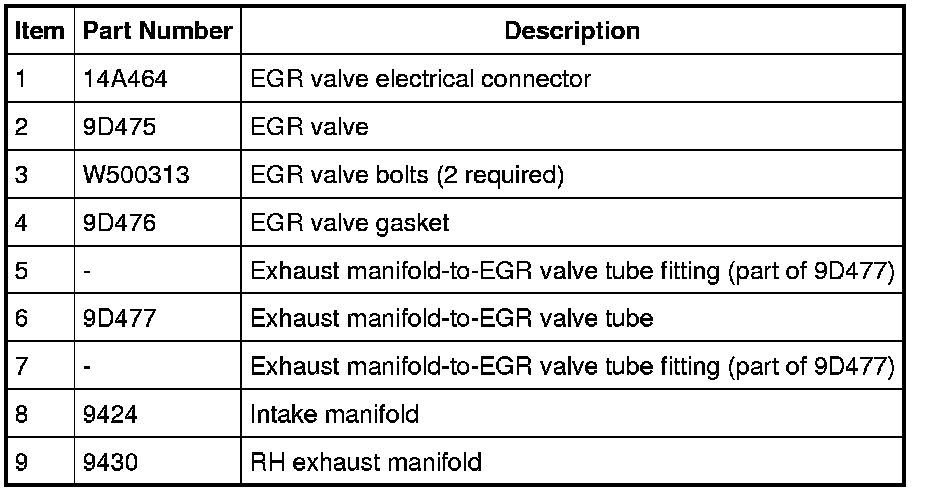

Exhaust Gas Recirculation (EGR) System Components - Exploded View
Exhaust Gas Recirculation (EGR) System Components - Exploded View
Exhaust Gas Recirculation (EGR) System Components - Exploded View
