Evaporative Emission Control Canister: Service and Repair

Evaporative Emission Canister

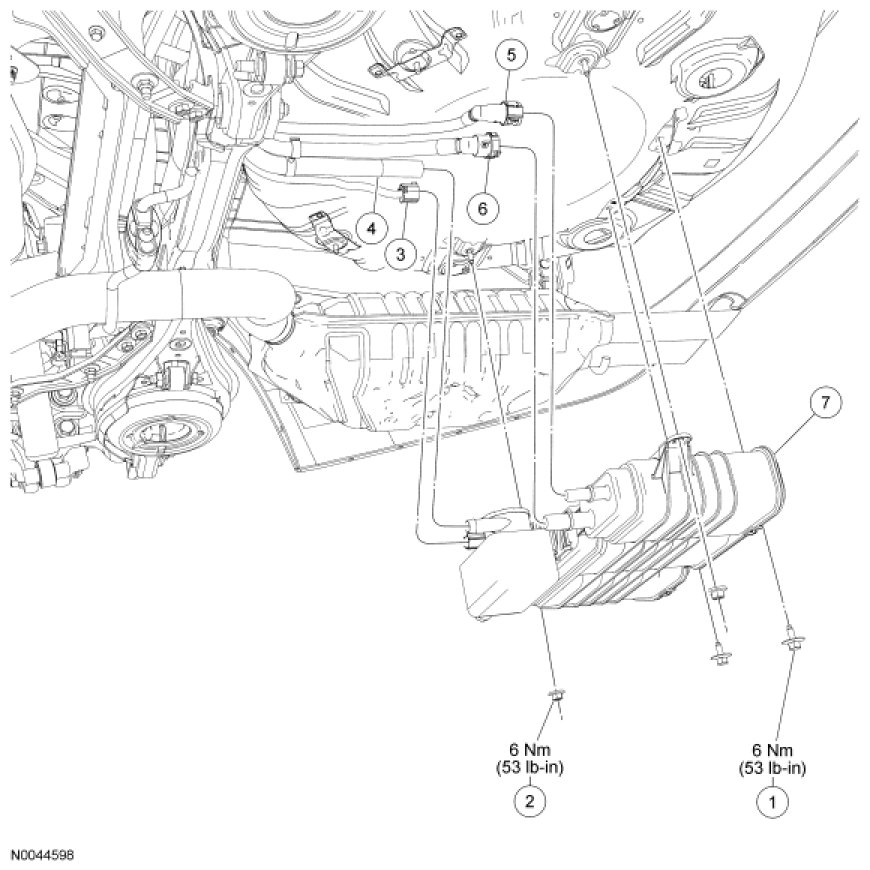

Removal and Installation

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Disconnect the battery ground cable. For additional information, refer to Battery, Mounting and Cables Battery Disconnect.

3. NOTE: Clean the Evaporative Emission (EVAP) canister vent solenoid electrical connector and the immediate surrounding area of any dirt or foreign material.

Disconnect the EVAP canister vent solenoid electrical connector.

4. Disconnect the fresh air hose from the dust separator.

5. Disconnect the fuel vapor tube assembly-to-EVAP canister quick connect couplings. For additional information, refer to Fuel System - General Information Quick Connect Coupling.

6. Disconnect the vapor tube-to-EVAP canister quick connect couplings. For additional information, refer to Fuel System - General Information Quick Connect Coupling.

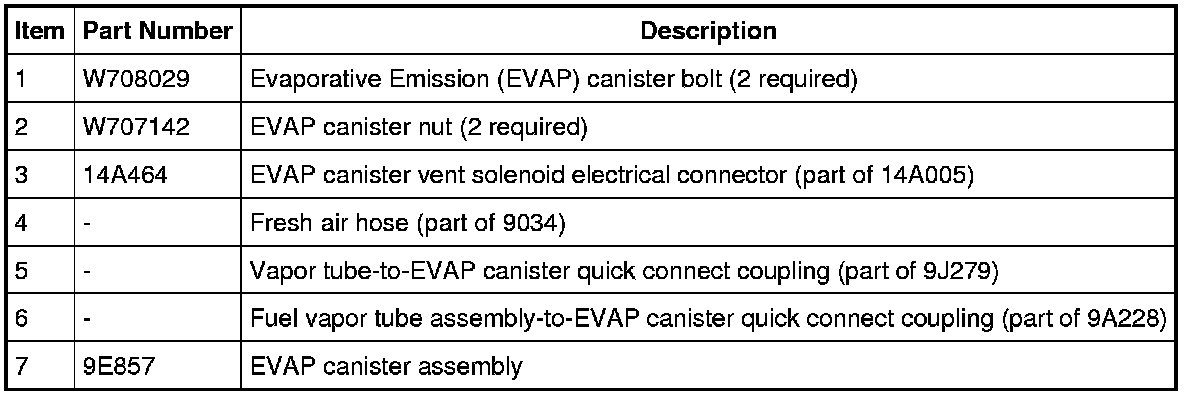

7. Remove the 2 nuts, 2 bolts and the EVAP canister assembly.
- To install, tighten to 6 Nm (53 lb-in).

8. To install, reverse the removal procedure.
- Carry out the Evaporative Emission System Leak Test. For additional information, refer to Evaporative Emission System Leak Test Testing and Inspection.
