Test HX: Evaporative Emission (EVAP) System and Monitor

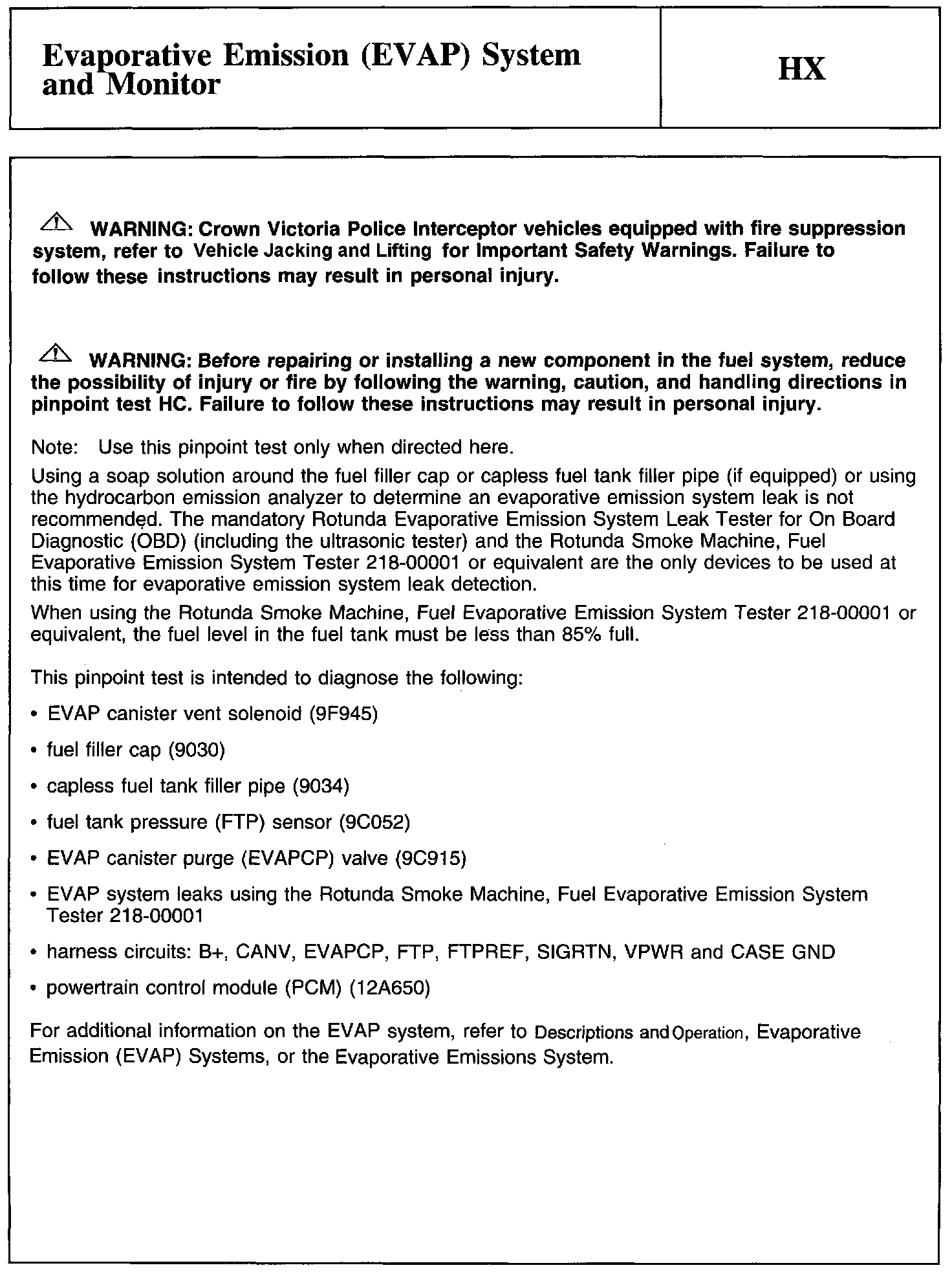

Warnings And Note:

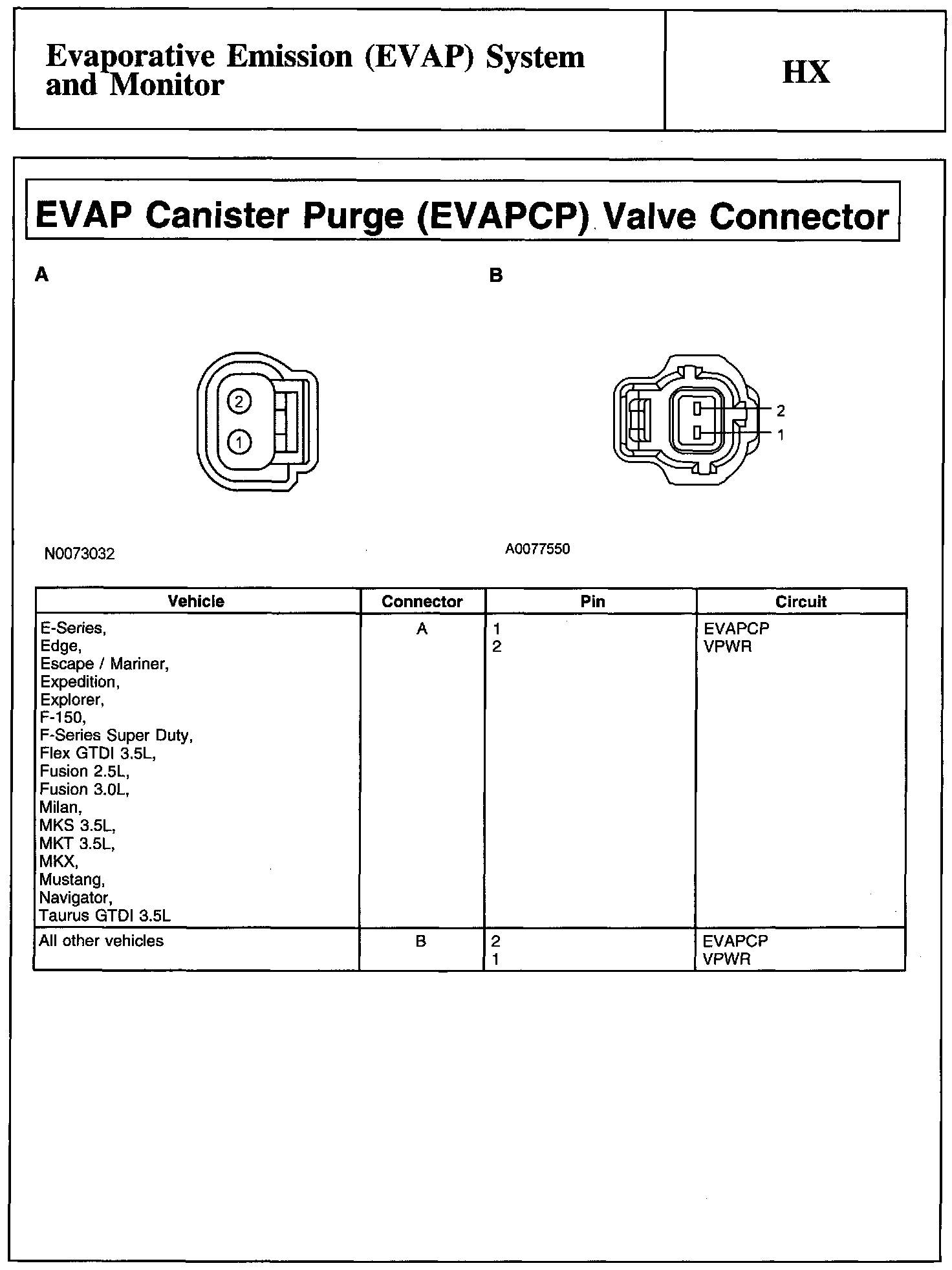

EVAP Canister Purge (EVAPCP) Valve Connector:

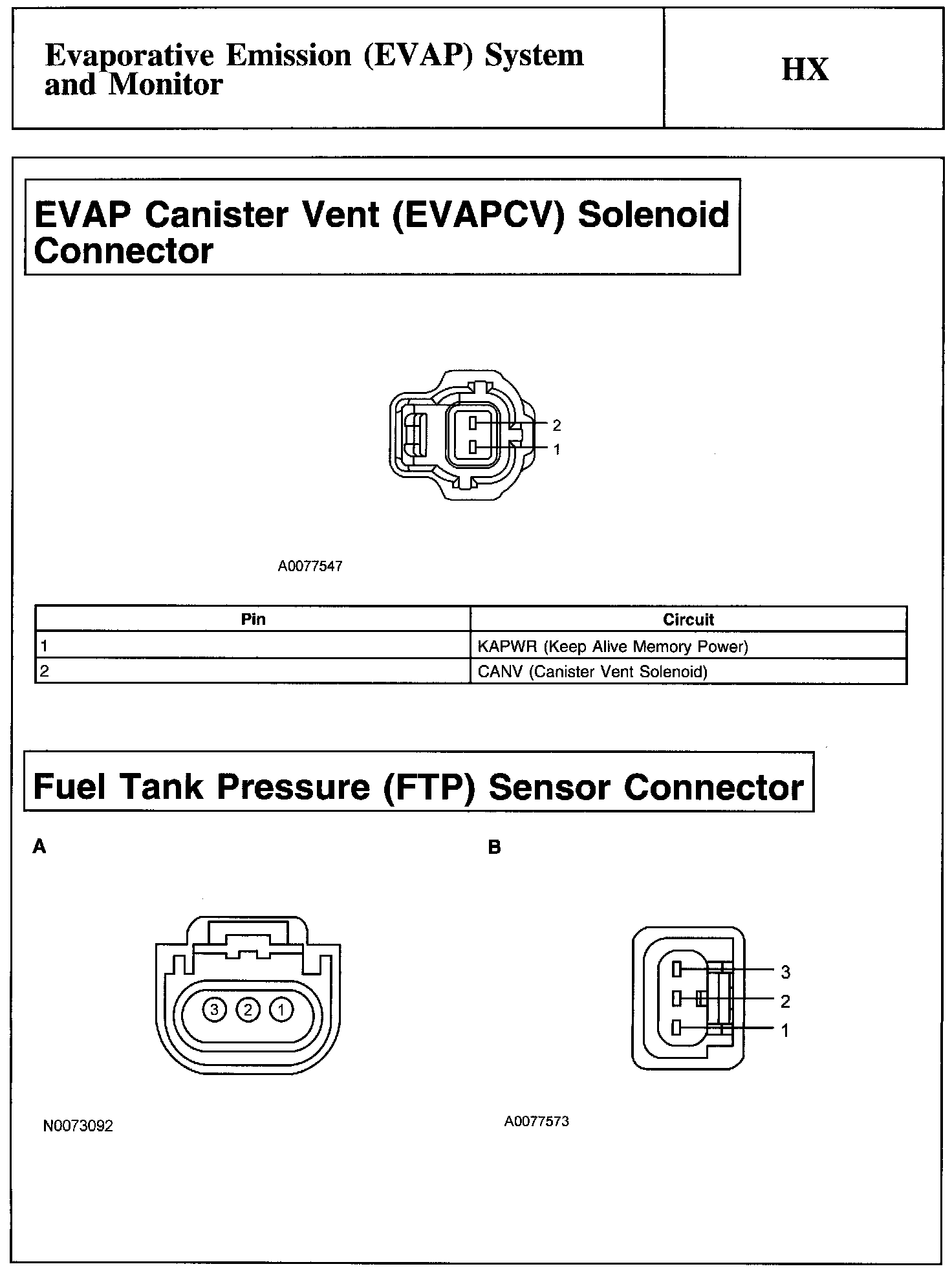

EVAP Canister Vent (EVAPCV) Solenoid Connector And Fuel Tank Pressure (FTP) Sensor Connector:

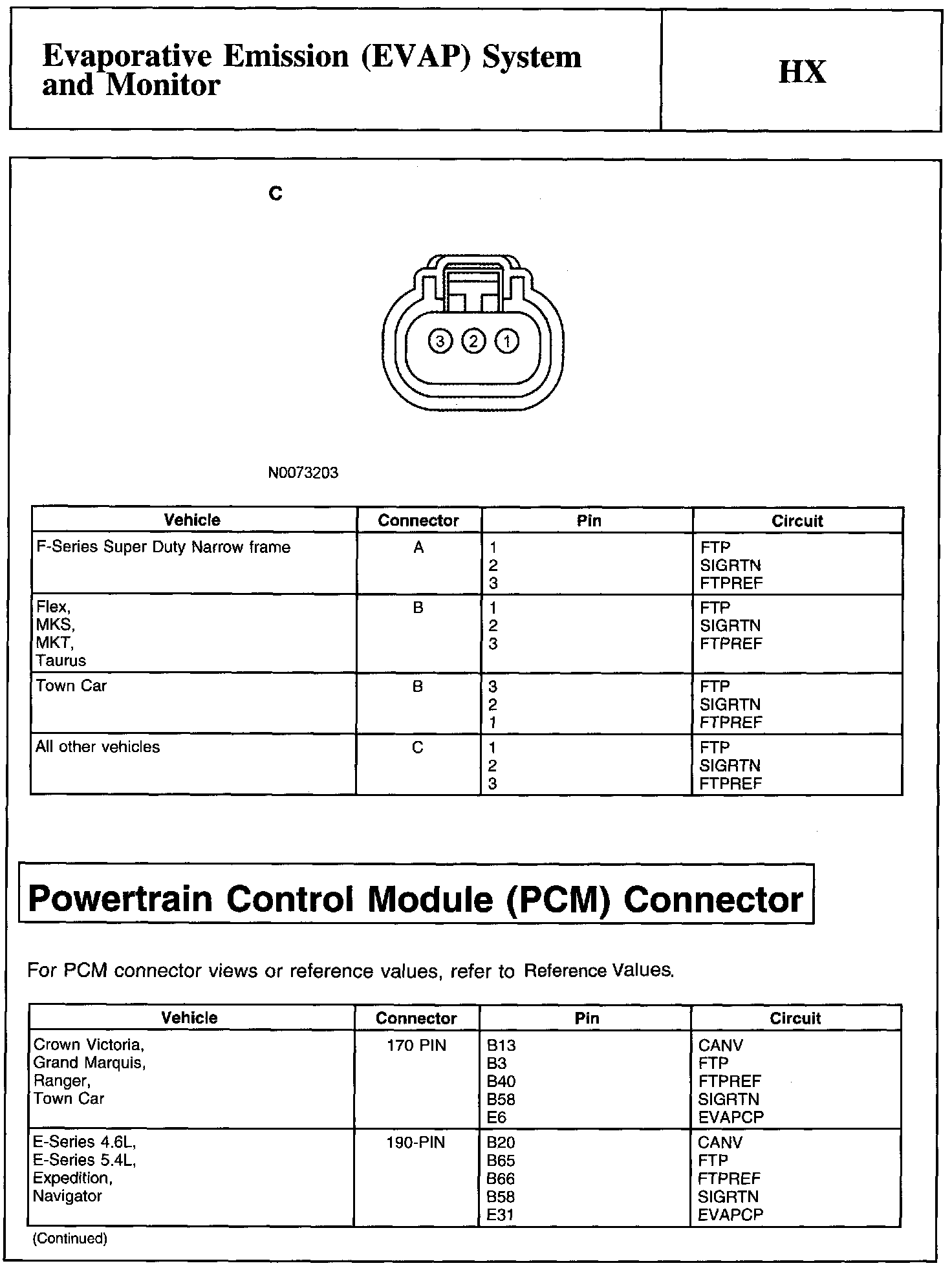

Fuel Tank Pressure (FTP) Sensor Connector And Powertrain Control Module (PCM) Connector:

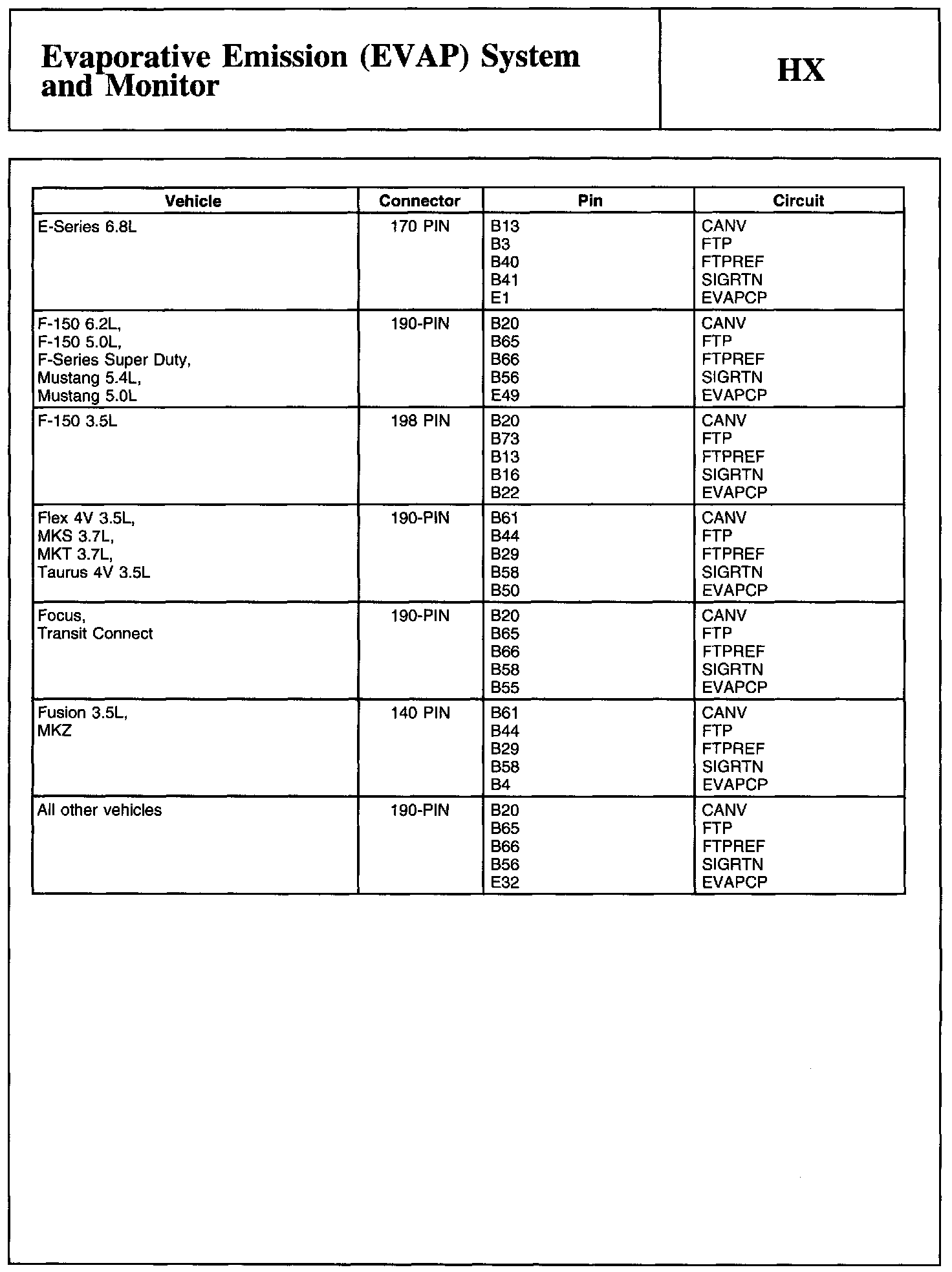

Powertrain Control Module (PCM) Connector:

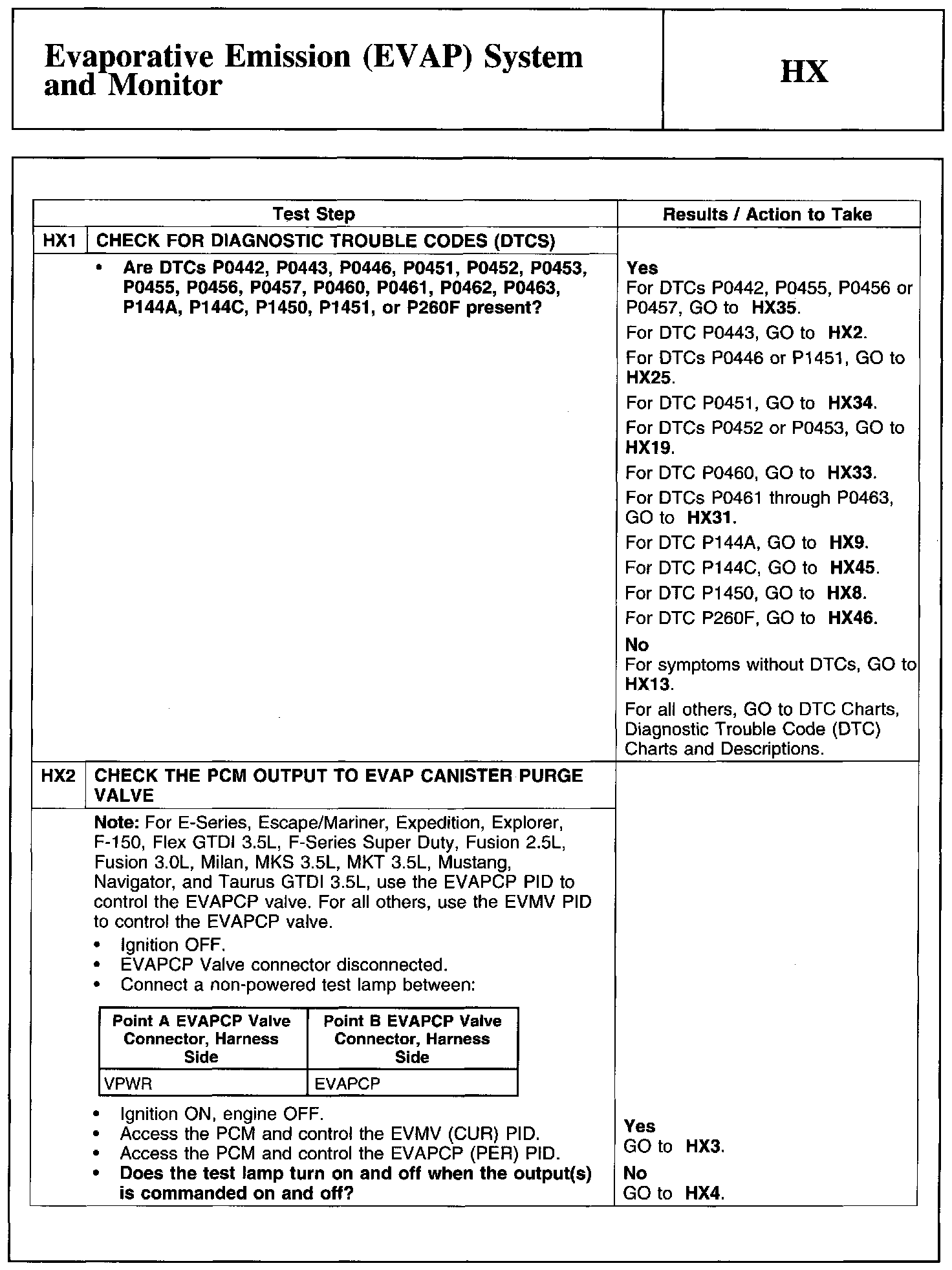

HX1-HX2:

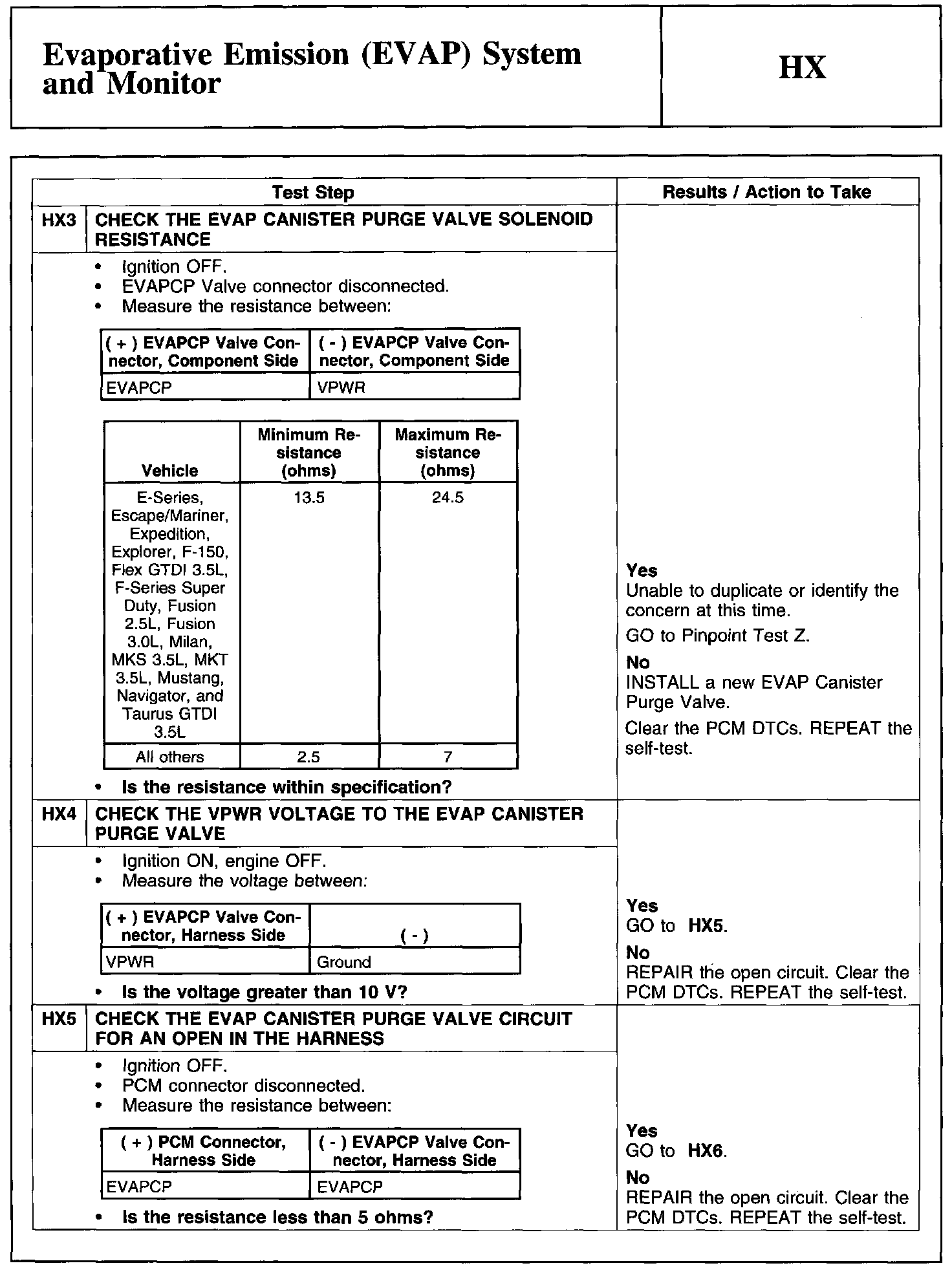

HX3-HX5:

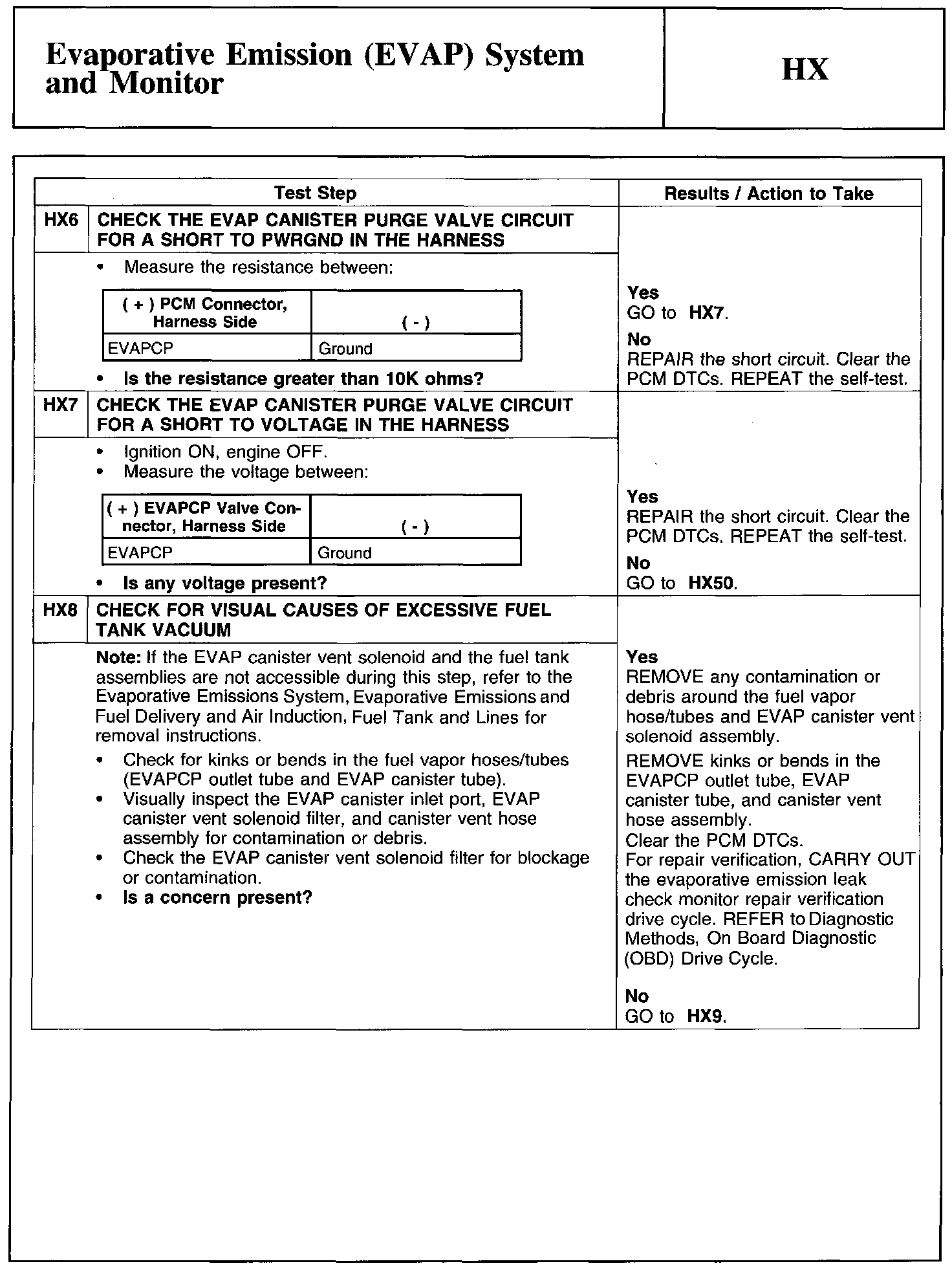

HX6-HX8:

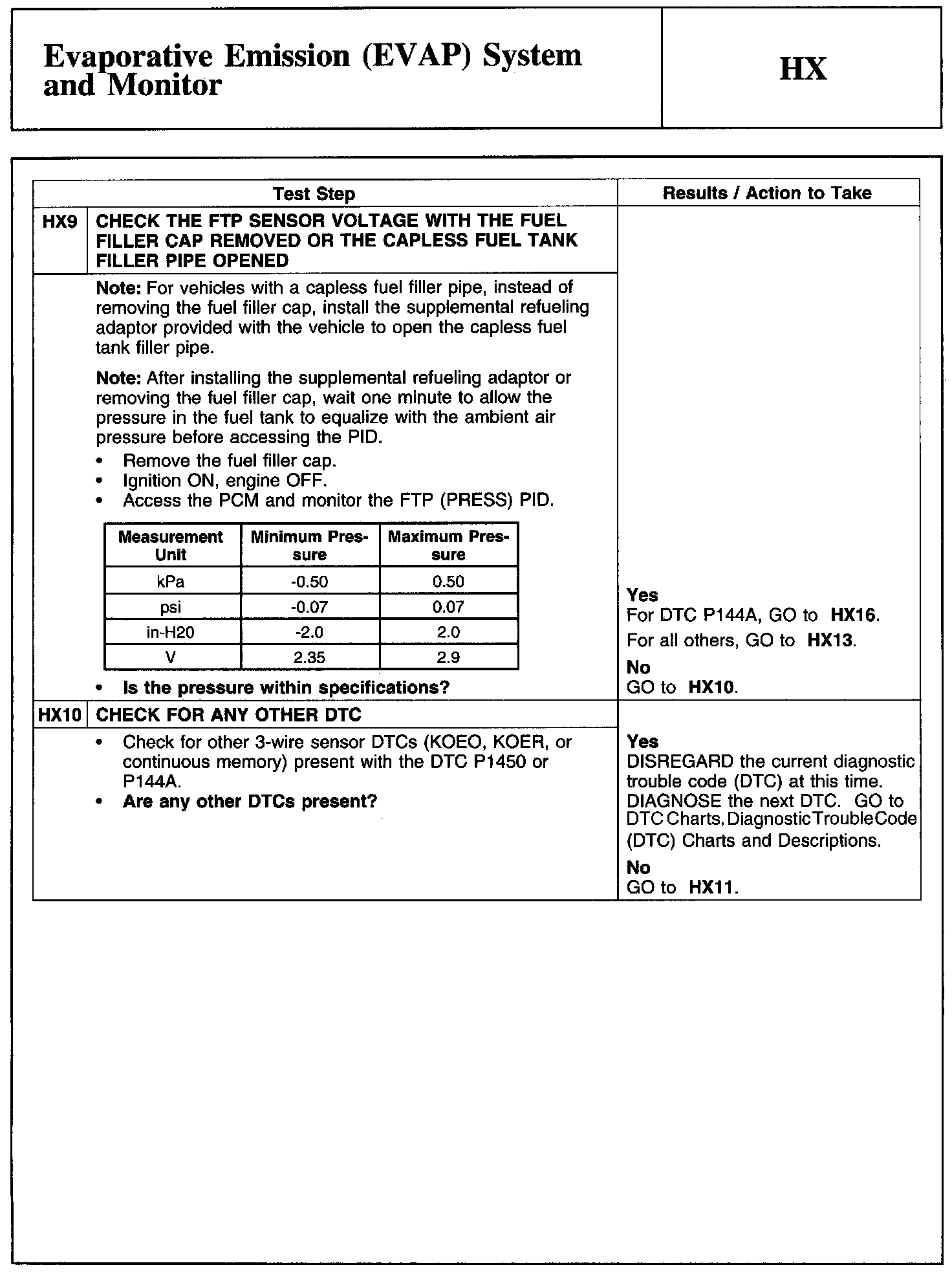

HX9-HX10:

HX11-HX14:

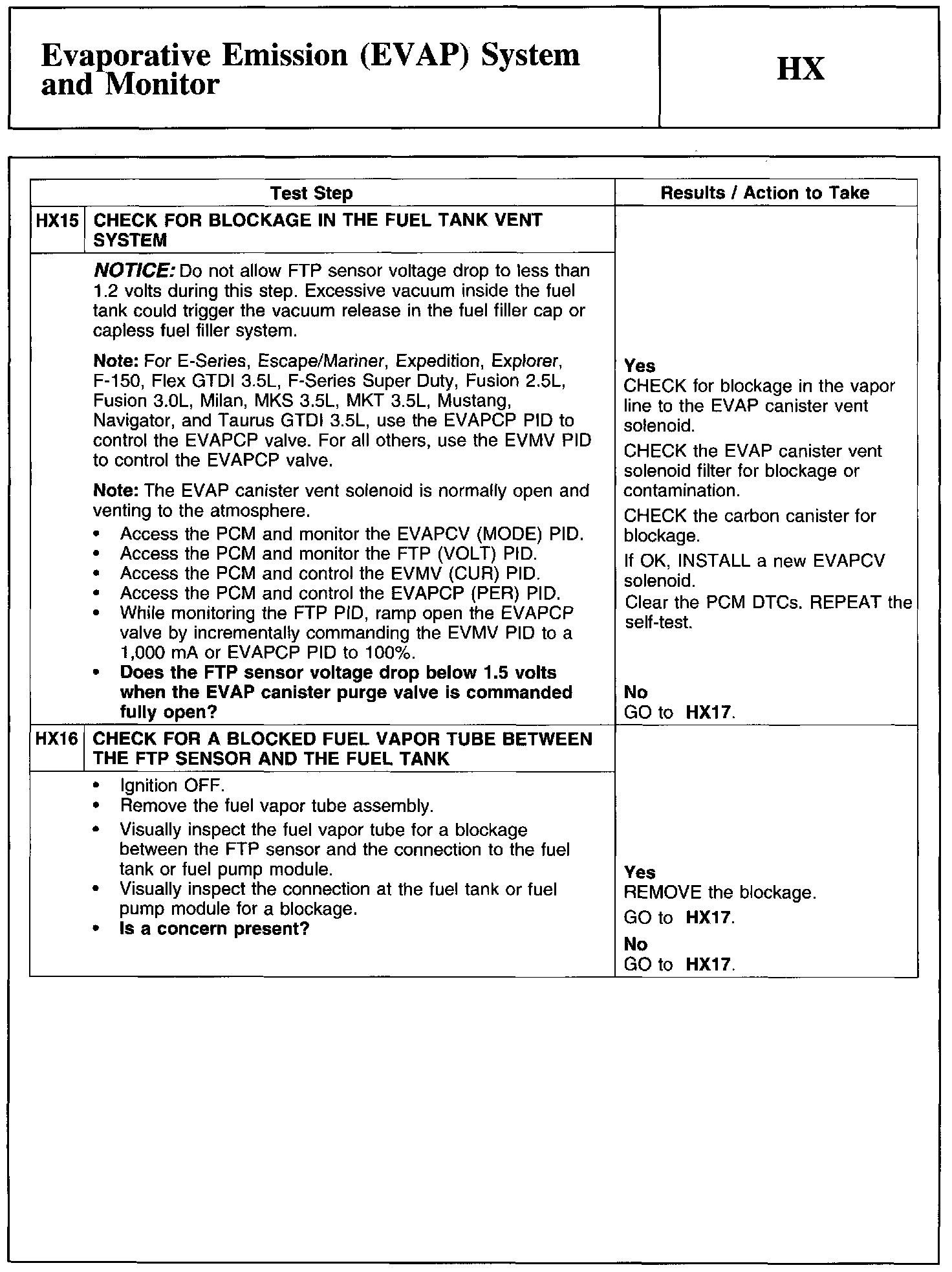

HX15-HX16:

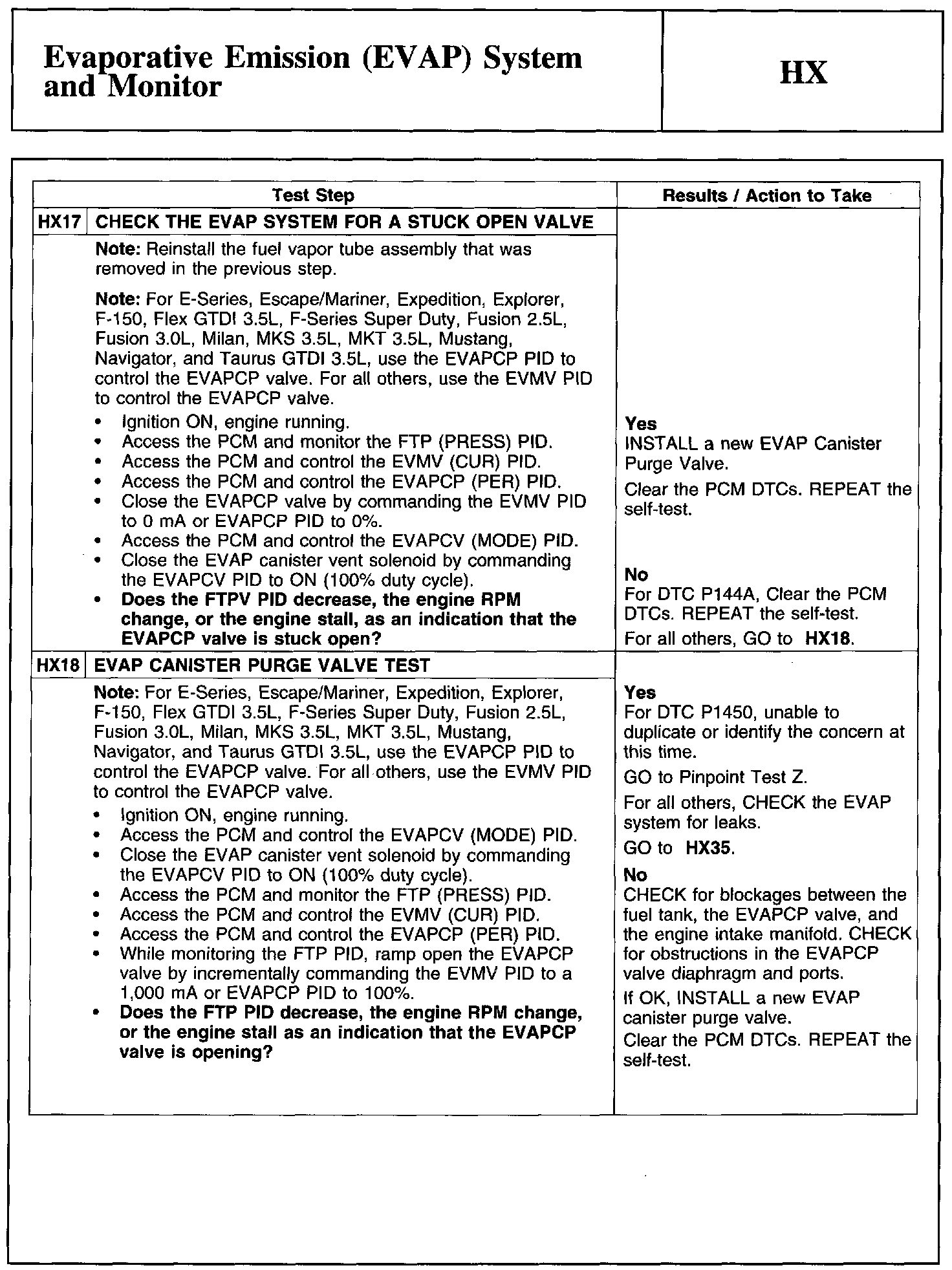

HX17-HX18:

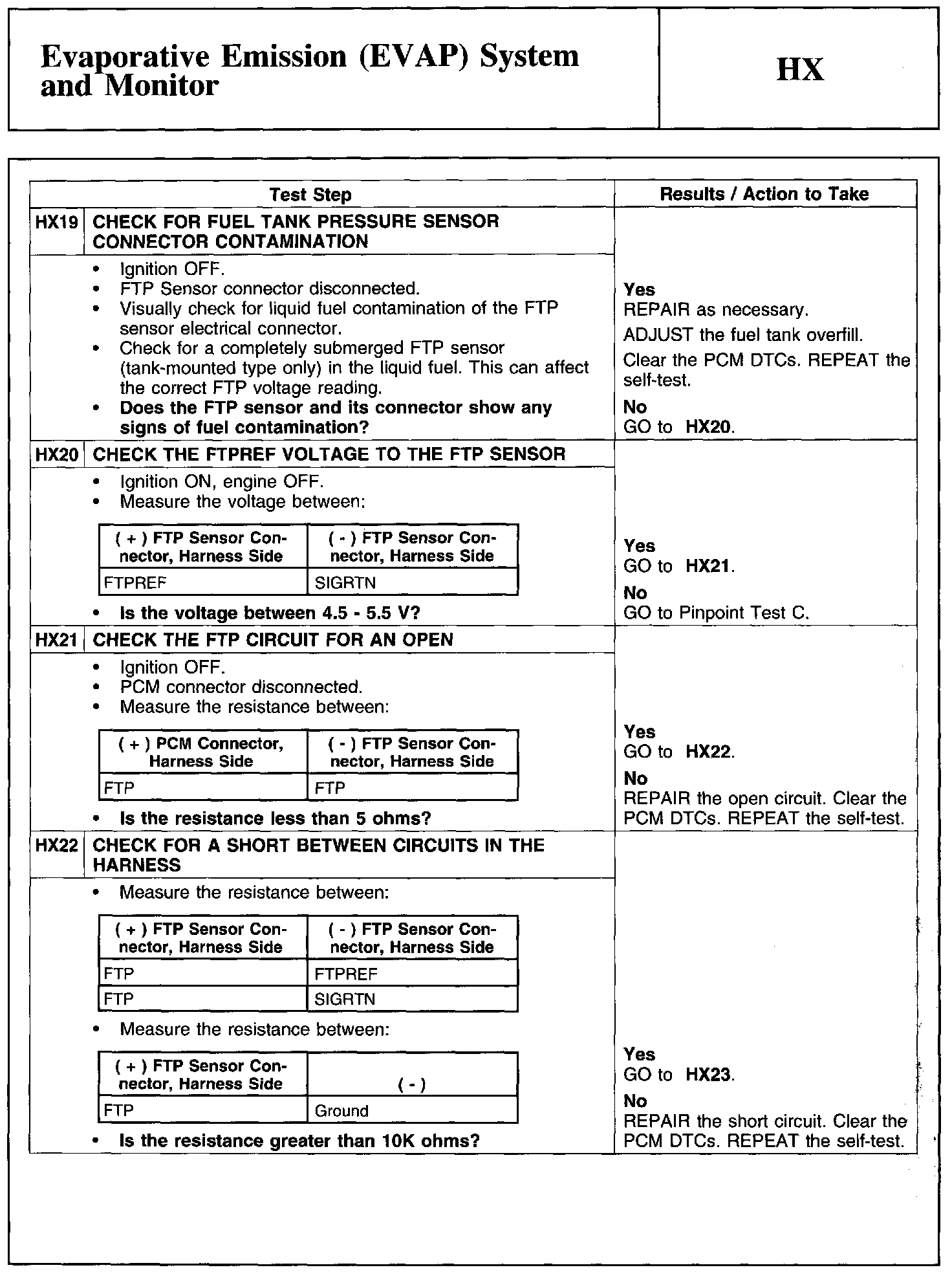

HX19-HX22:

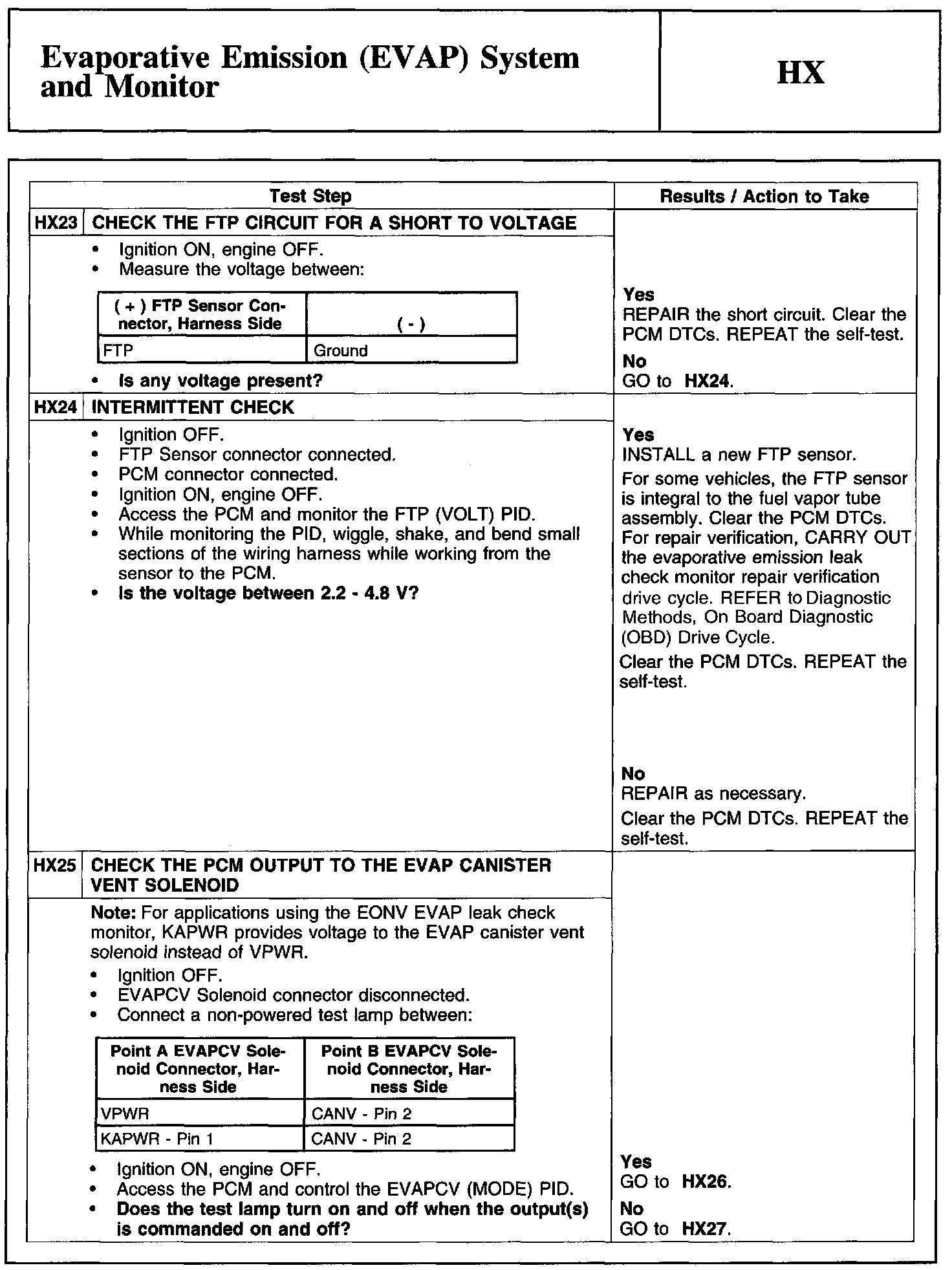

HX23-HX25:

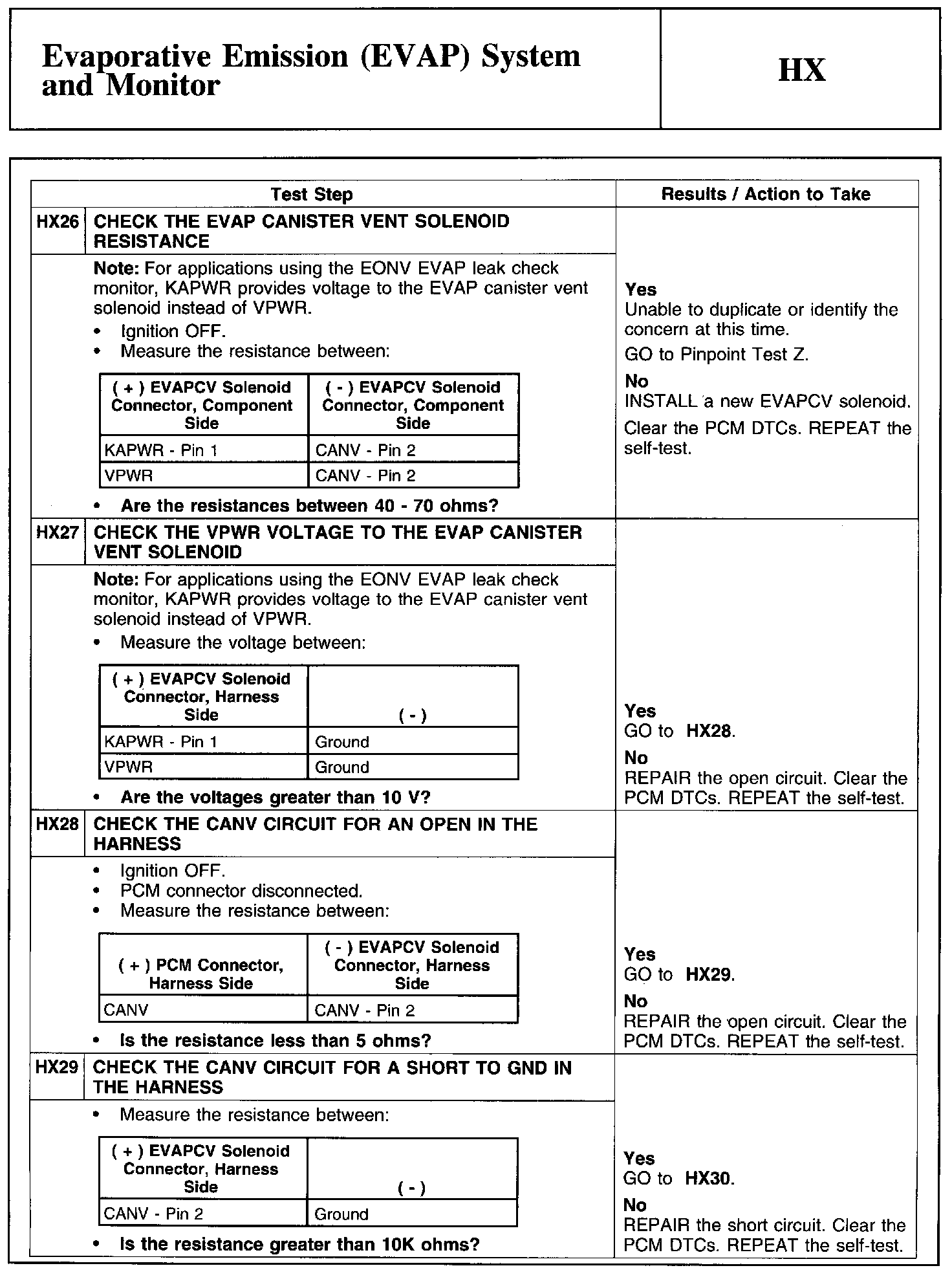

HX26-HX29:

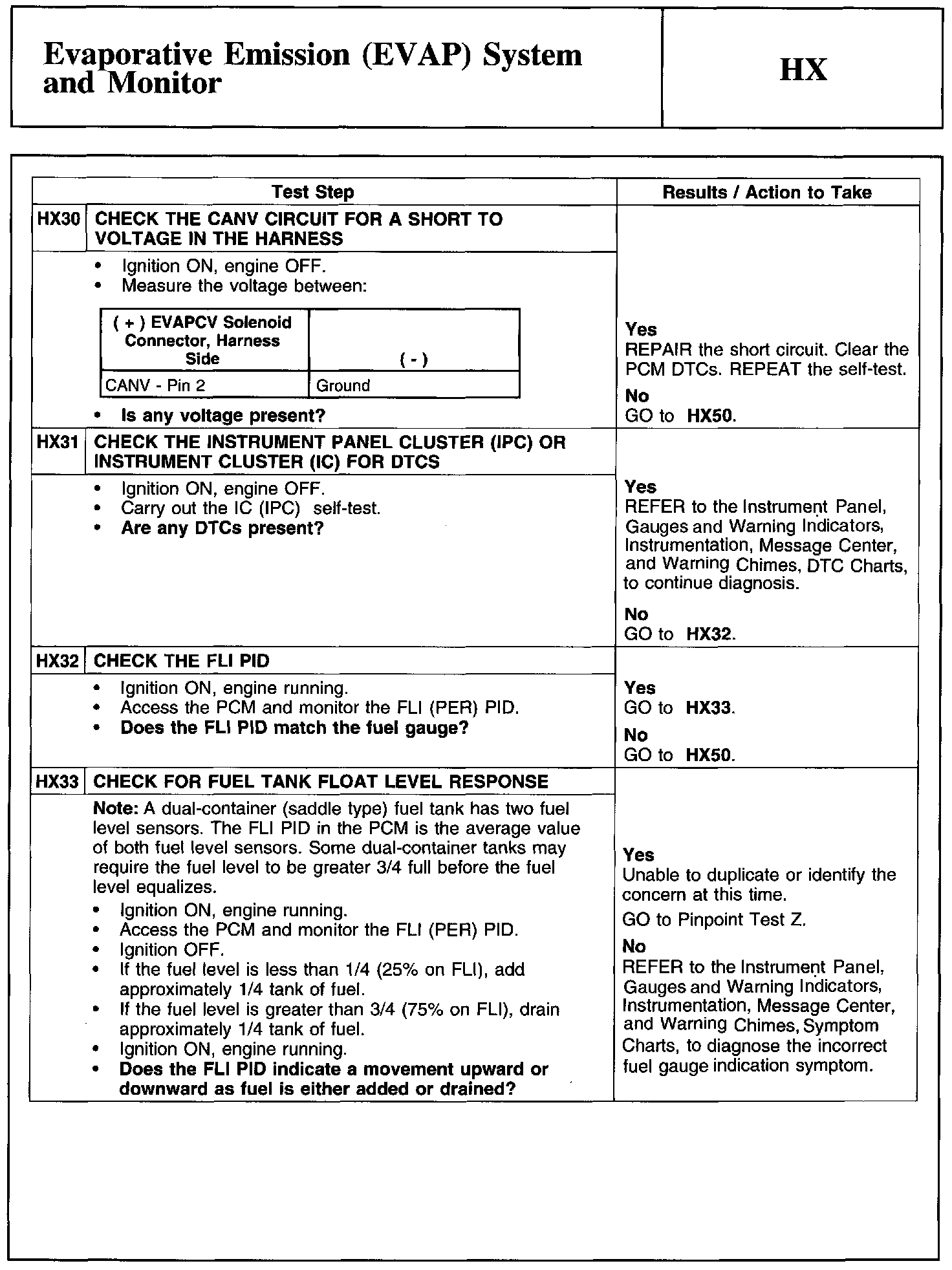

HX30-HX33:

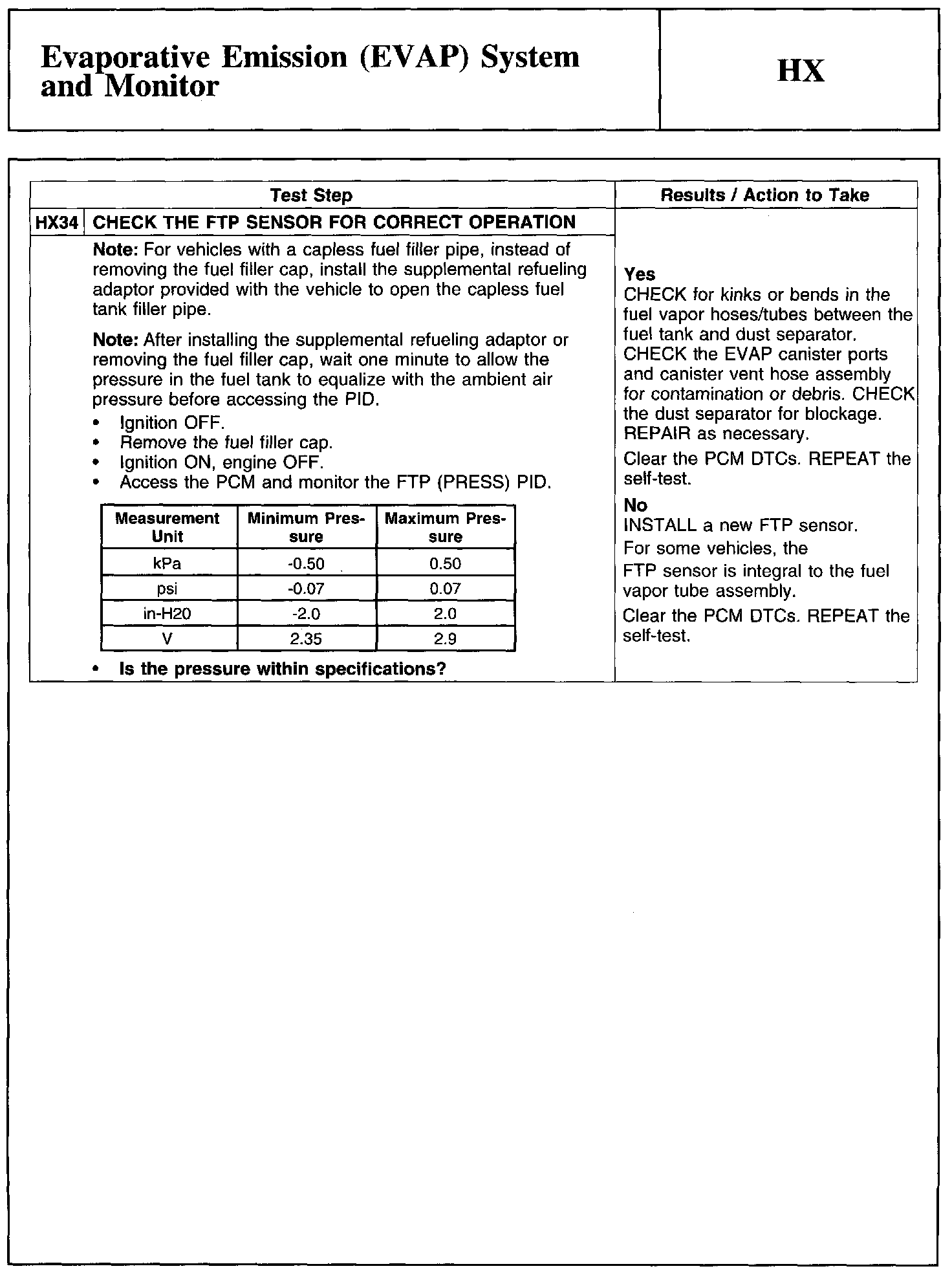

HX34:

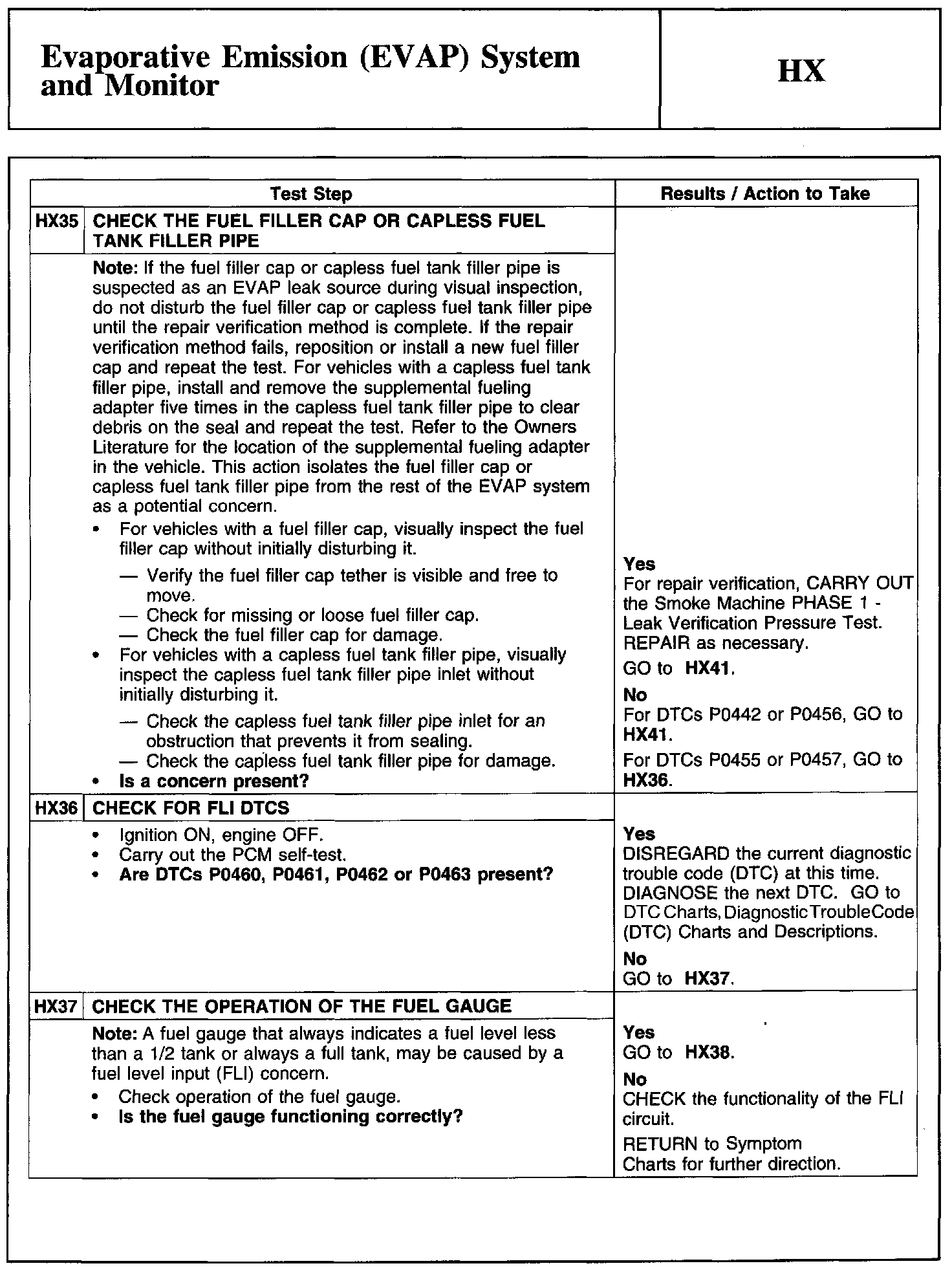

HX35-HX37:

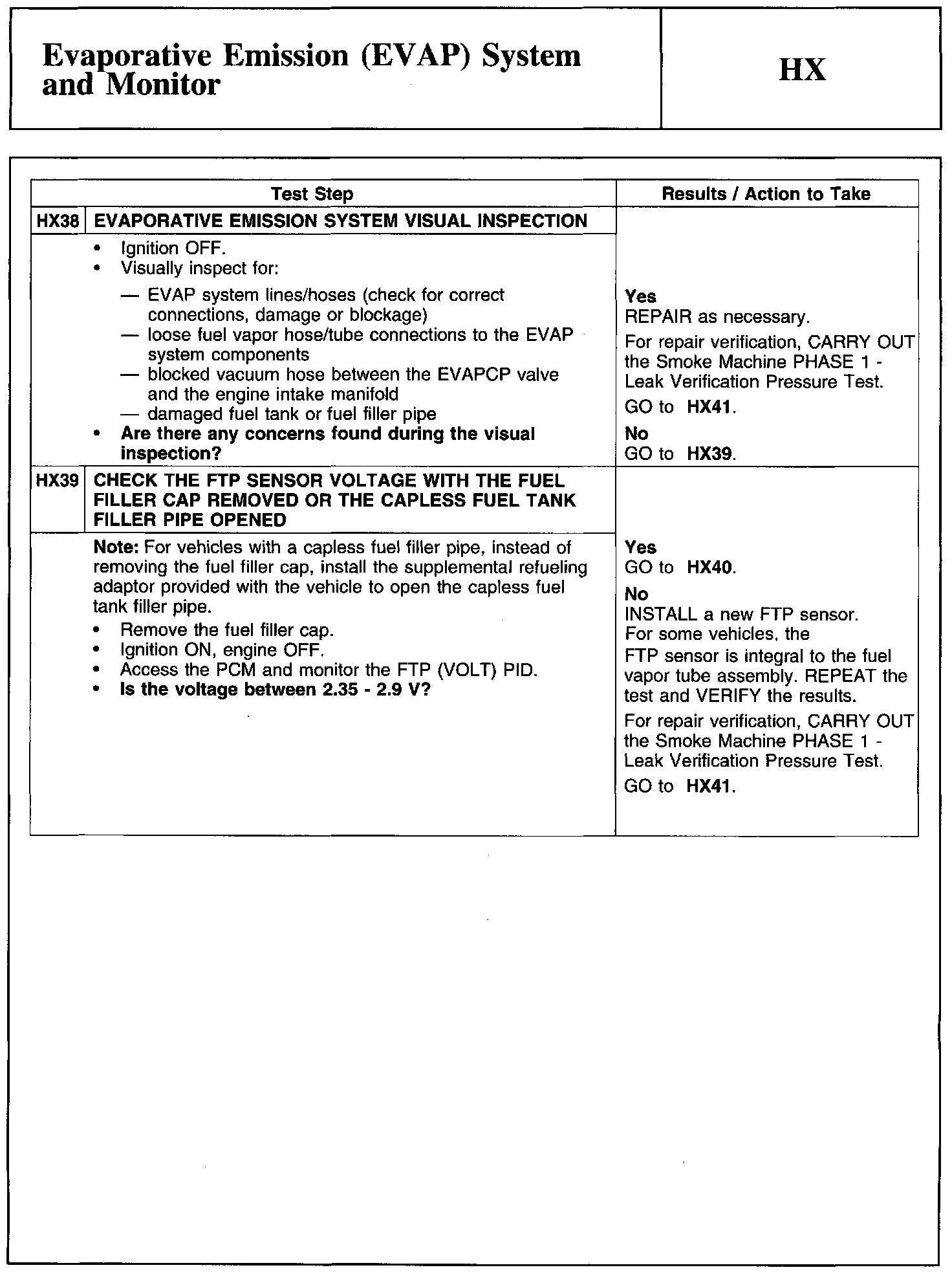

HX38-HX39:

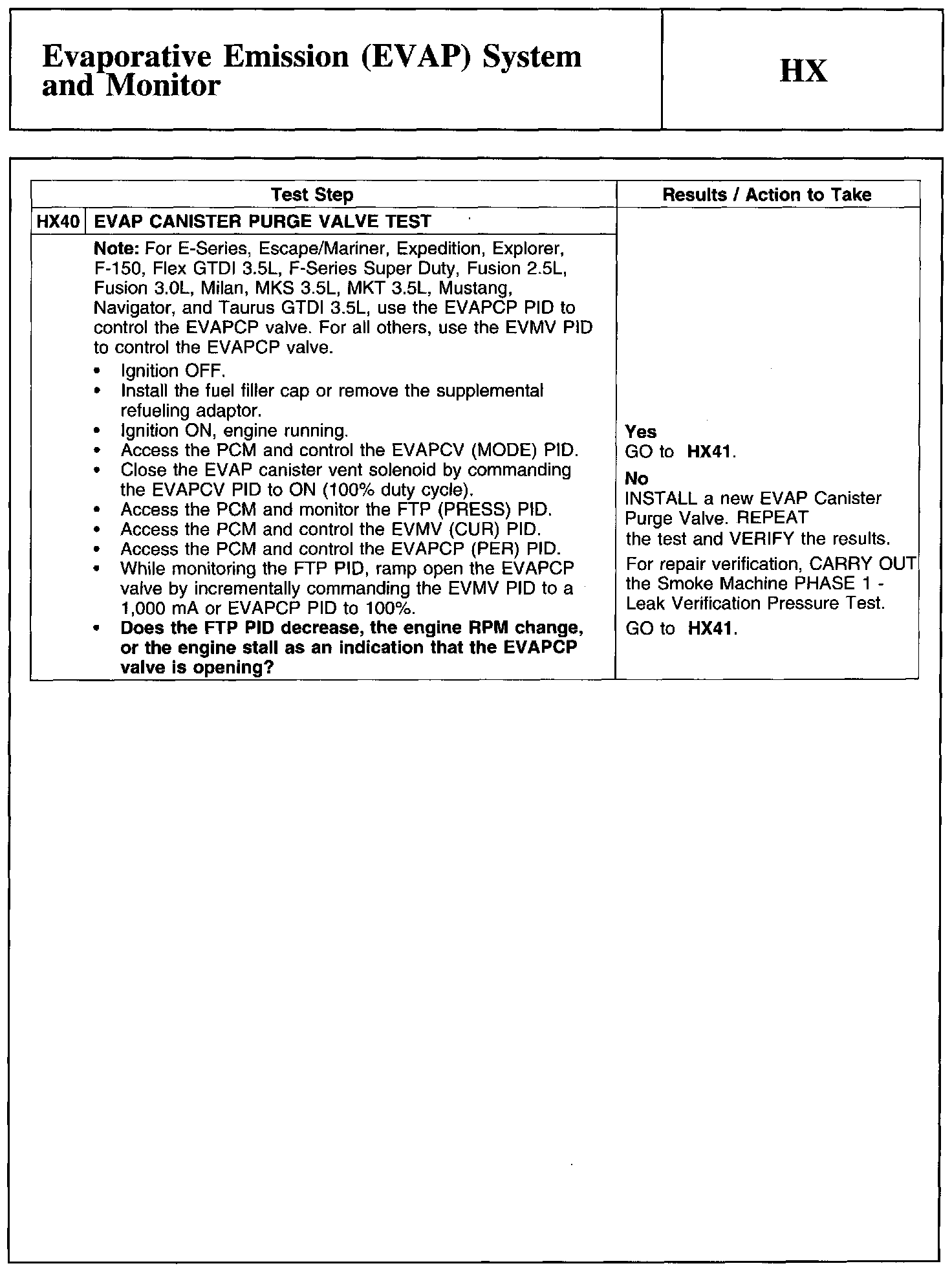

HX40:

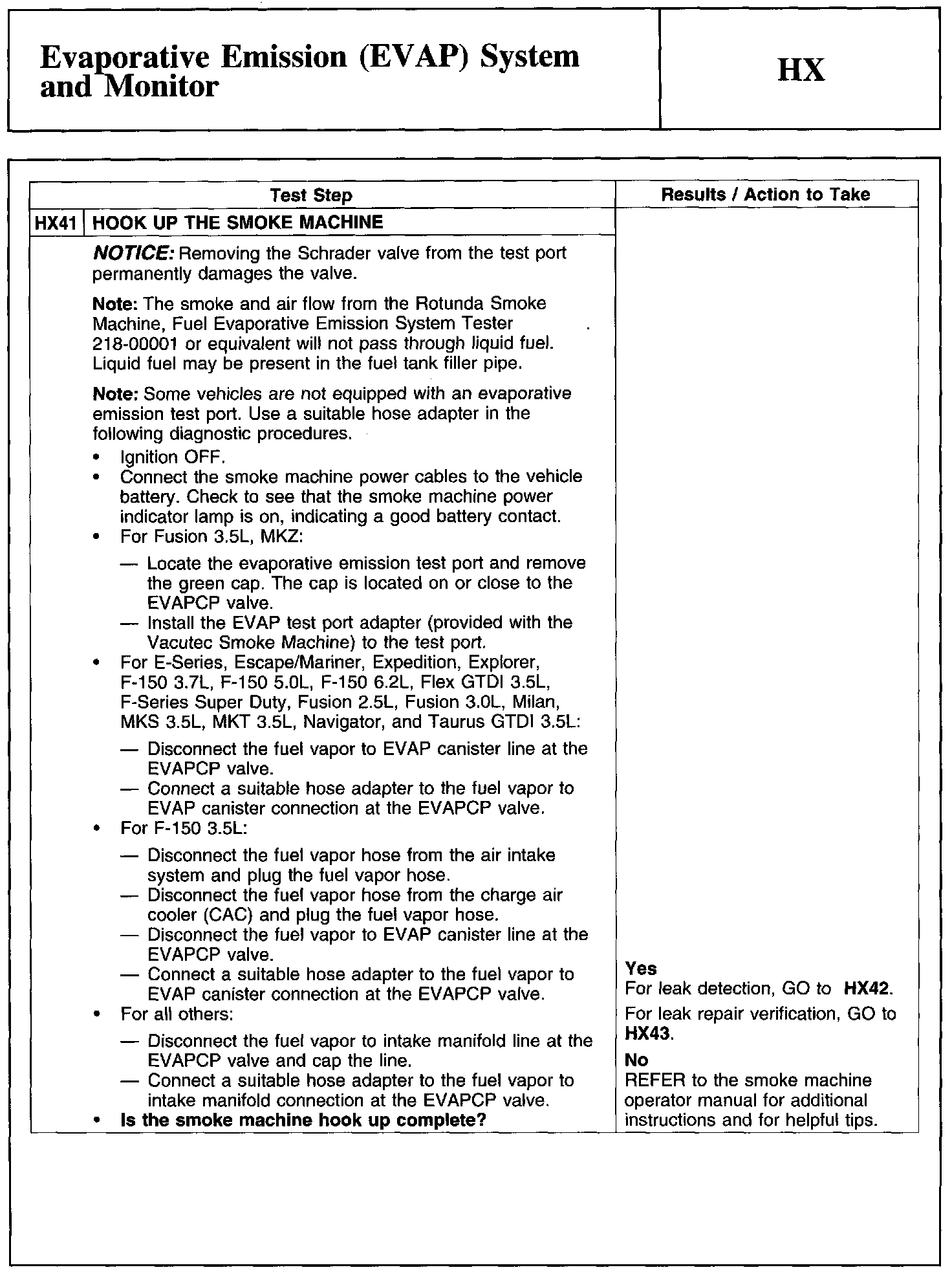

HX41:

HX42:

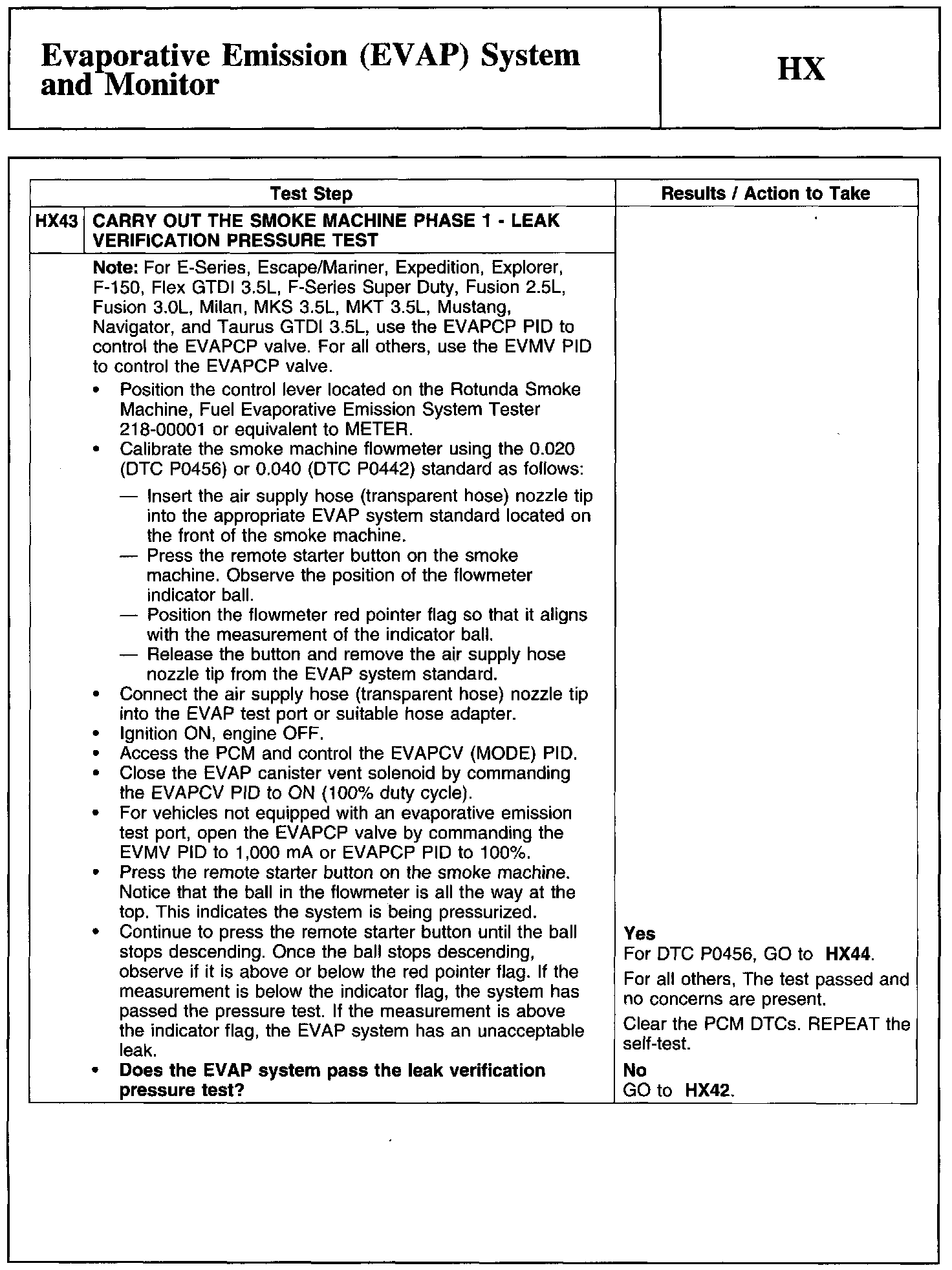

HX43:

HX44-HX45:

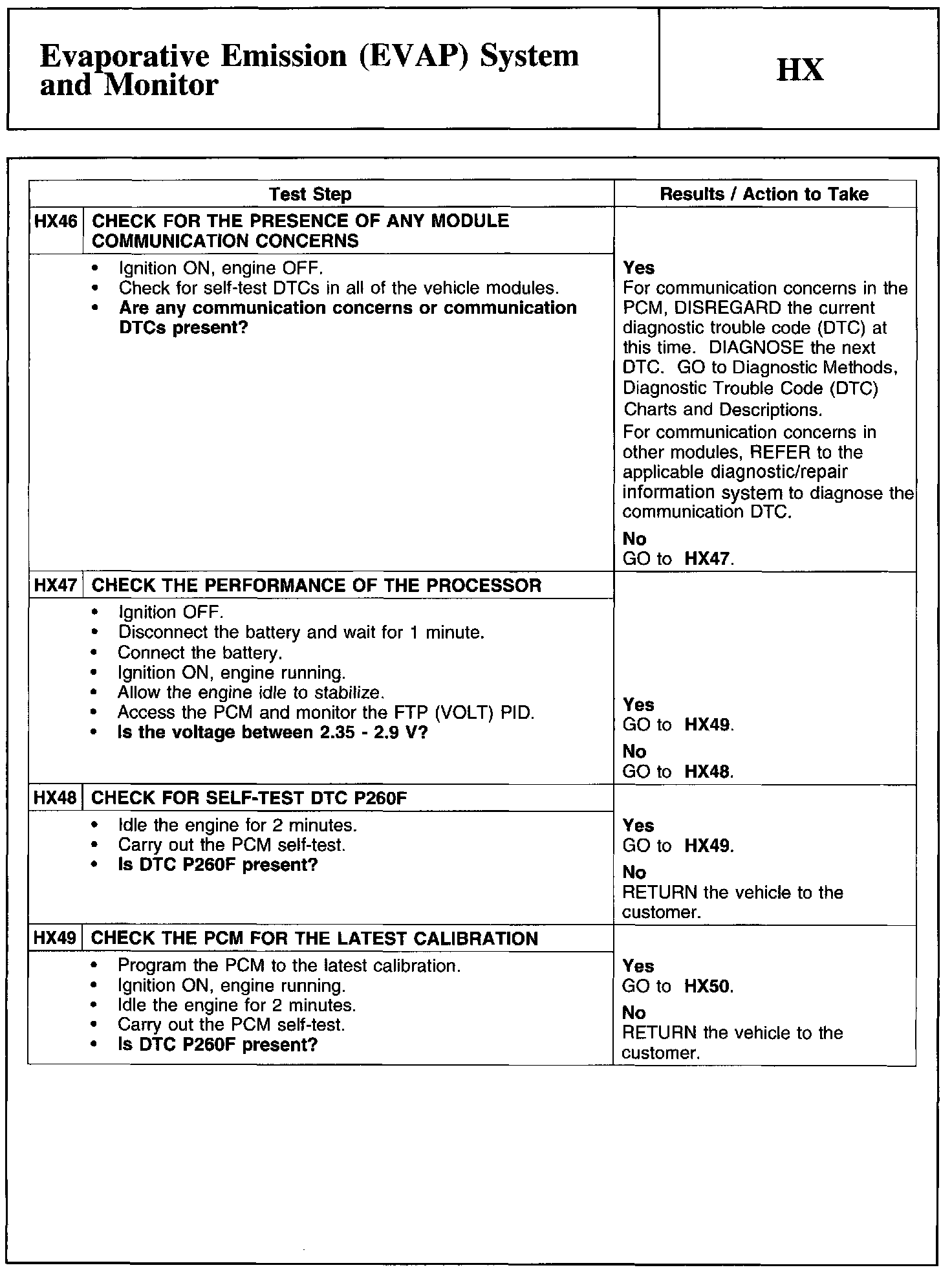

HX46-HX49:

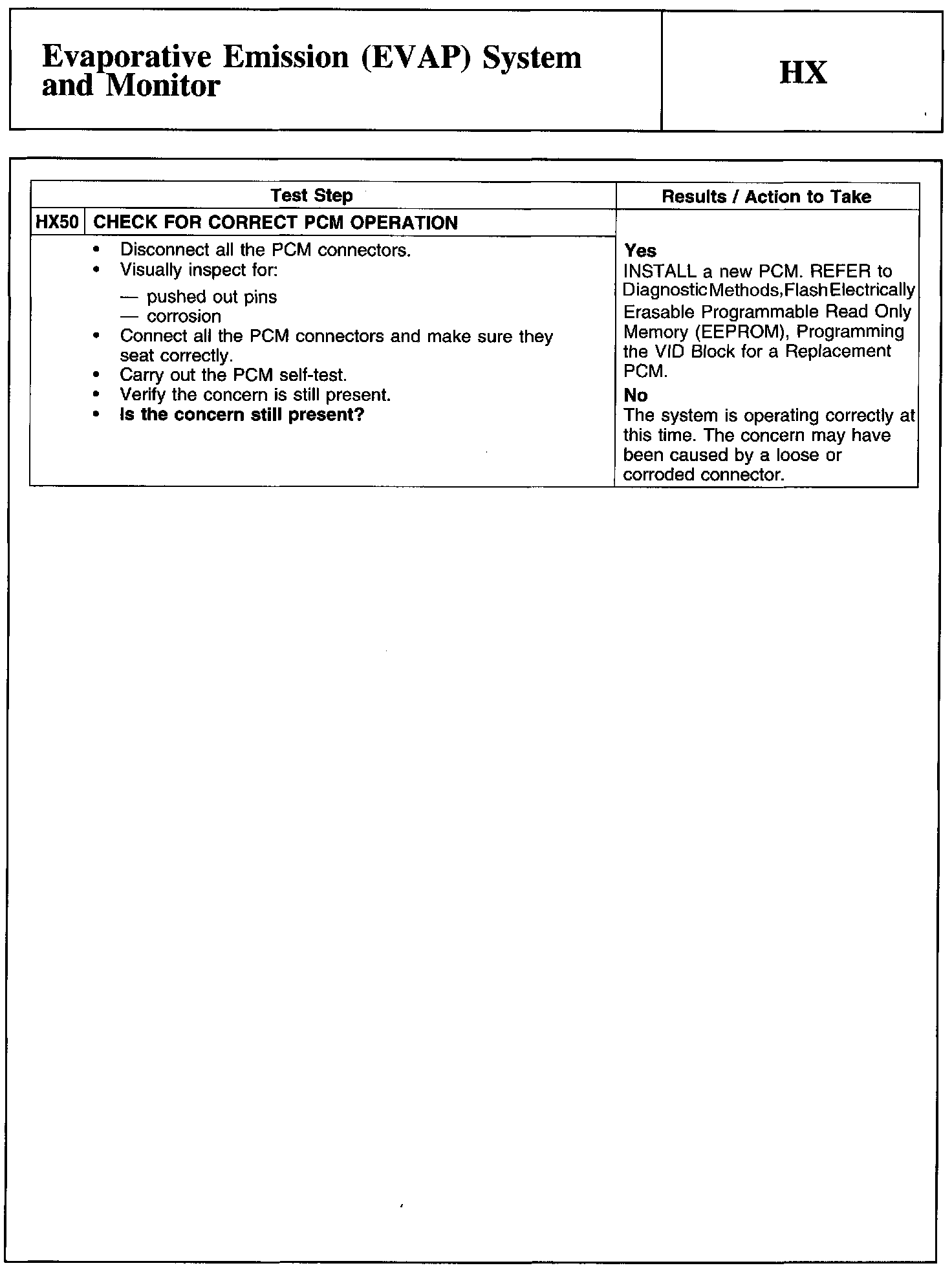

HX50:
