Home >> Mercury >> 2011 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test FF: Power Steering Pressure (PSP) Switch

Test FF: Power Steering Pressure (PSP) Switch

PINPOINT TEST FF: POWER STEERING PRESSURE (PSP) SWITCH


Warning And Power Steering Pressure (PSP) Switch Connector:

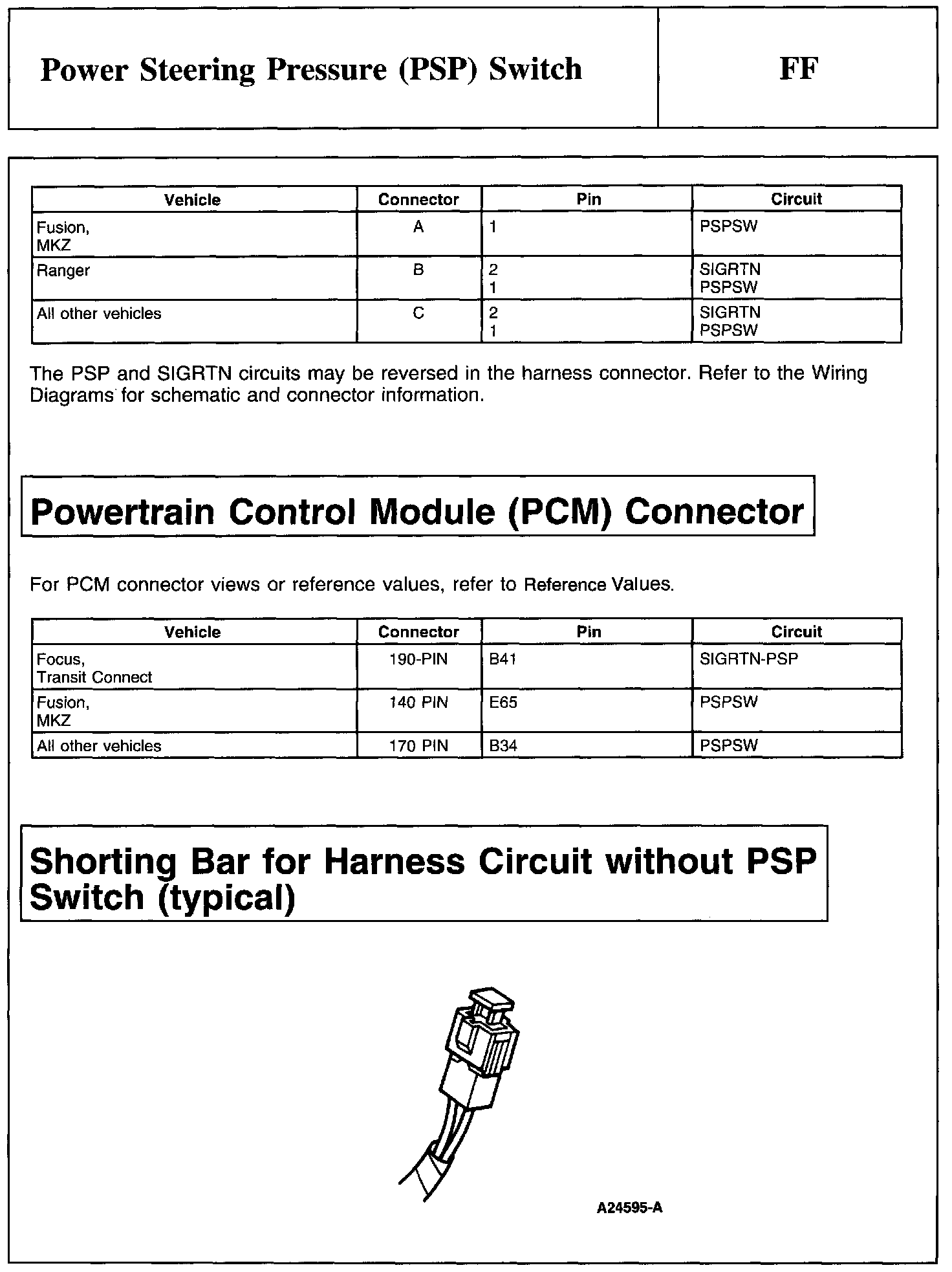

Power Steering Pressure (PSP) Switch Connector, Powertrain Control Module (PCM) Connector And Shorting Bar For Harness Circuit Without PSP Switch (Typical):

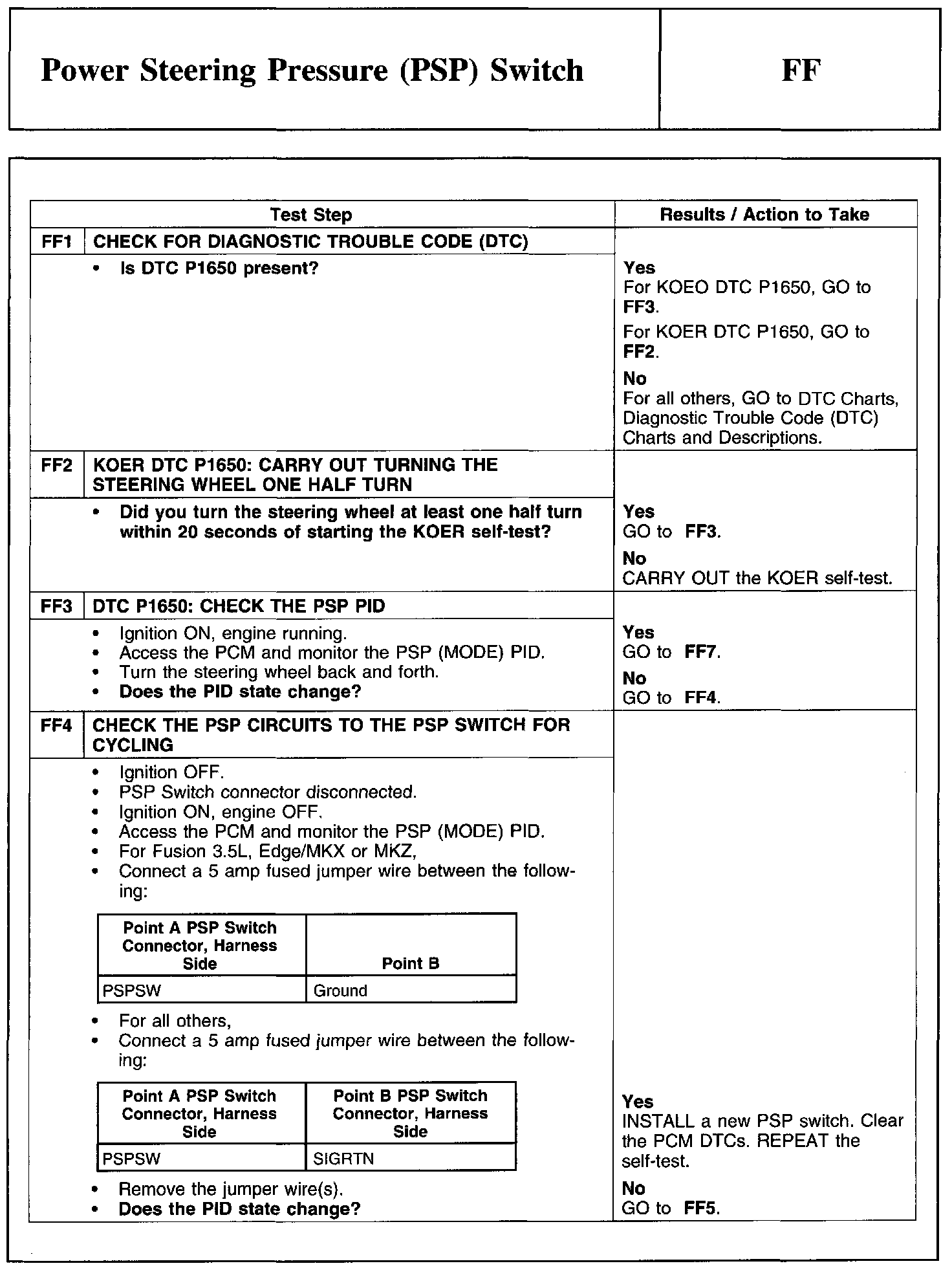

FF1-FF4:

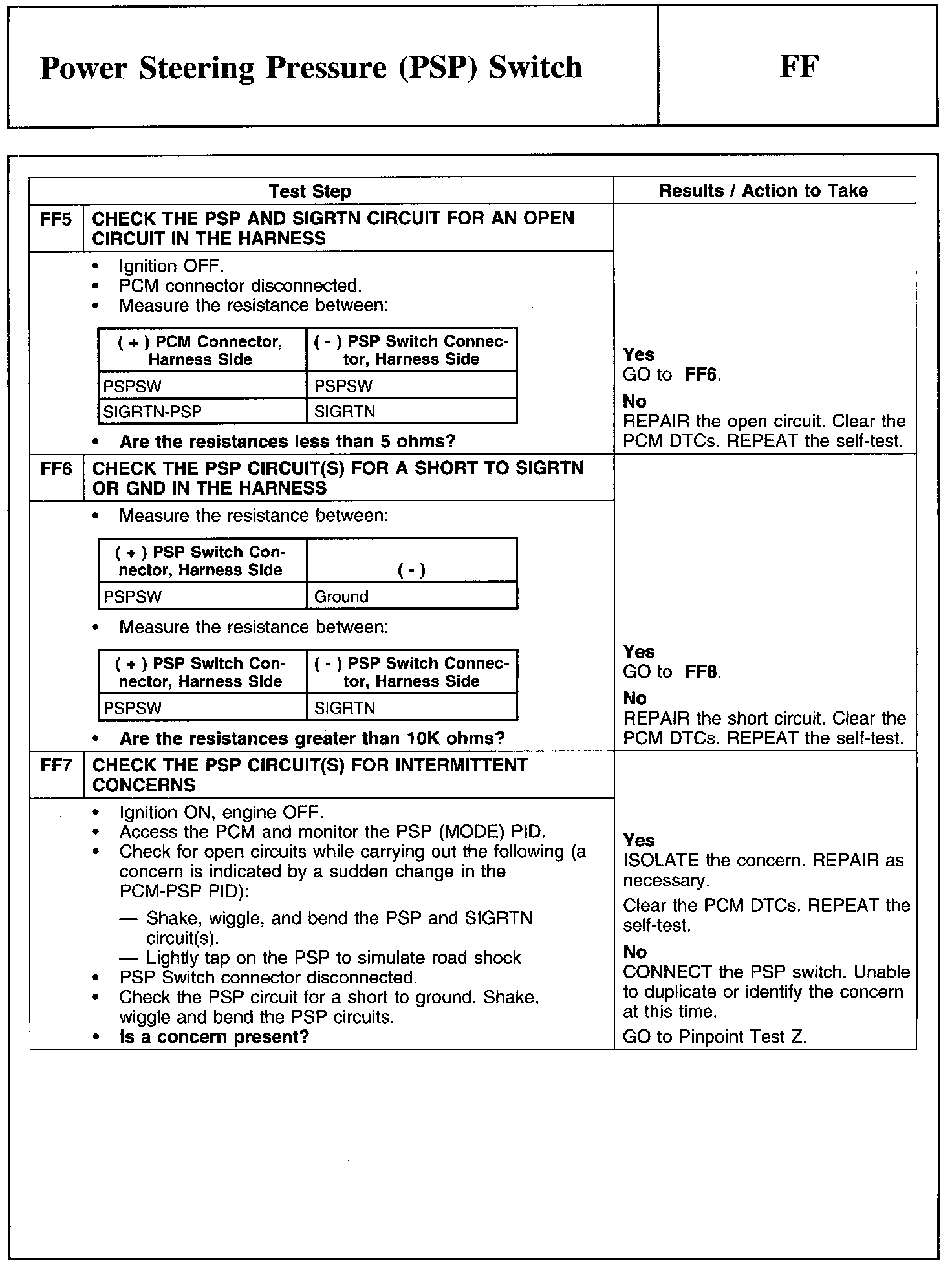

FF5-FF7:

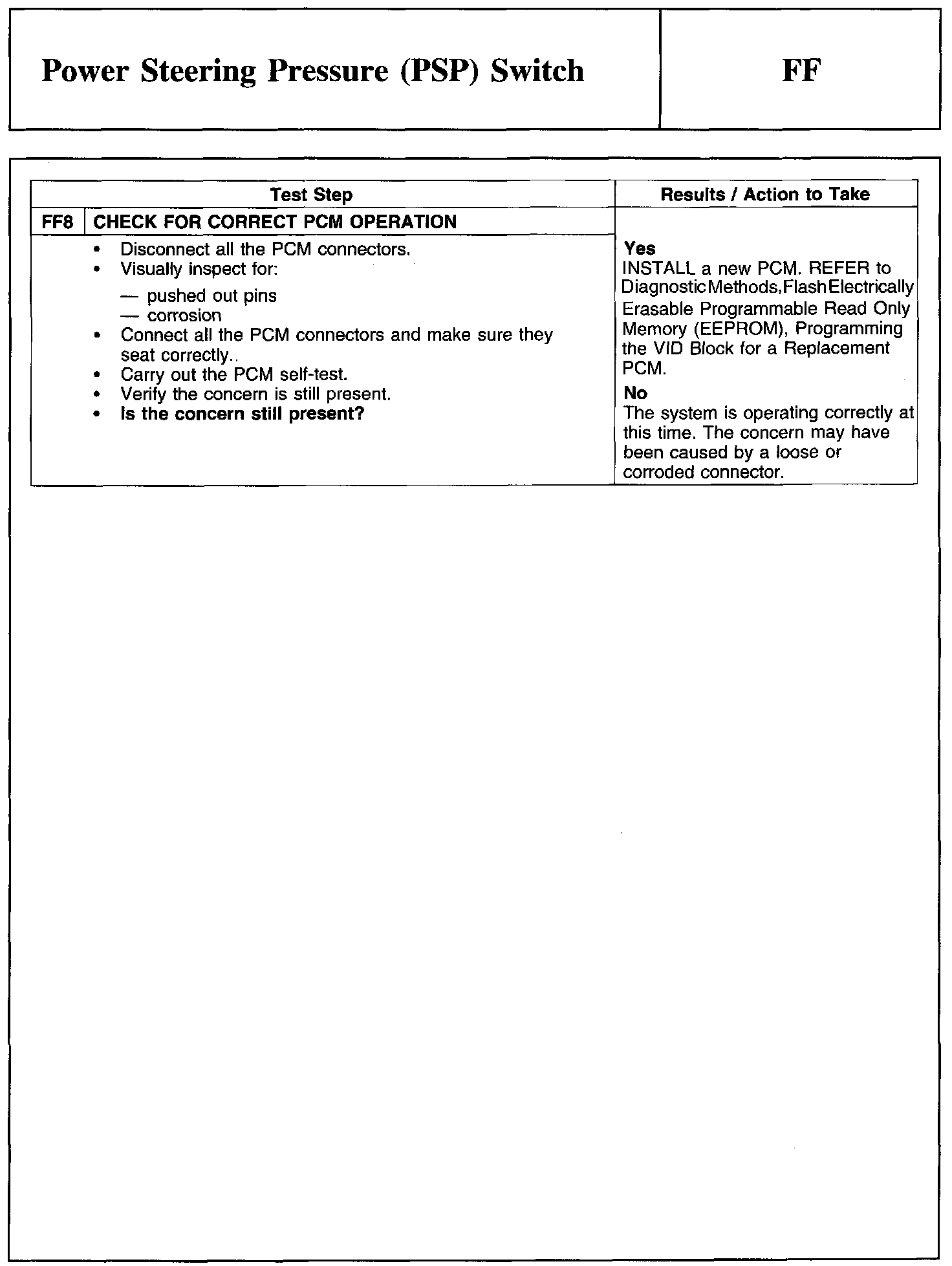

FF8:
