Test DZ: Universal Heated Oxygen Sensor (HO2S)

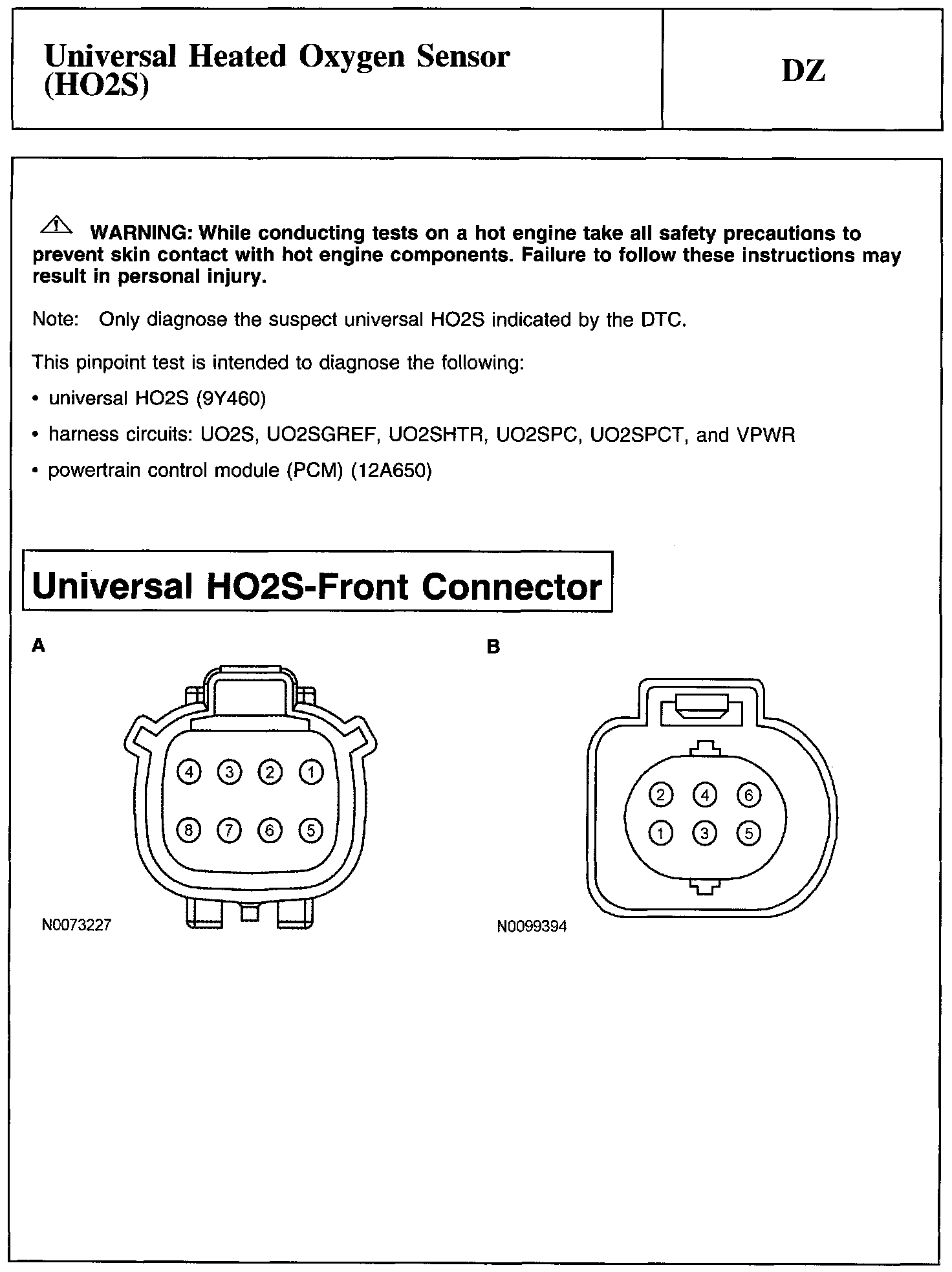

PINPOINT TEST DZ: UNIVERSAL HEATED OXYGEN SENSOR (HO2S)Warning, Note And Universal HO2S-Front Connector:

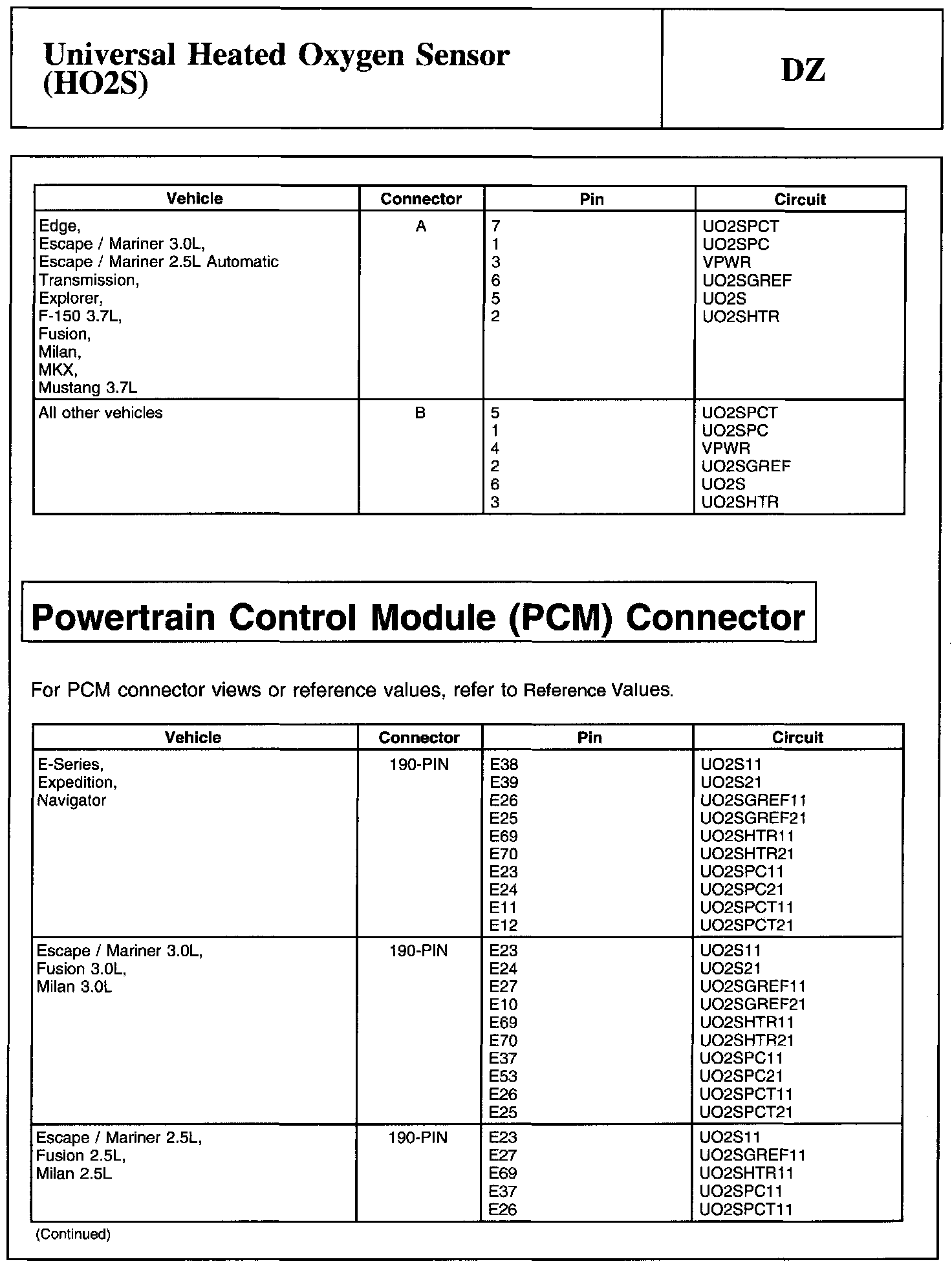

Universal HO2S-Front Connector And Powertrain Control Module (PCM) Connector:

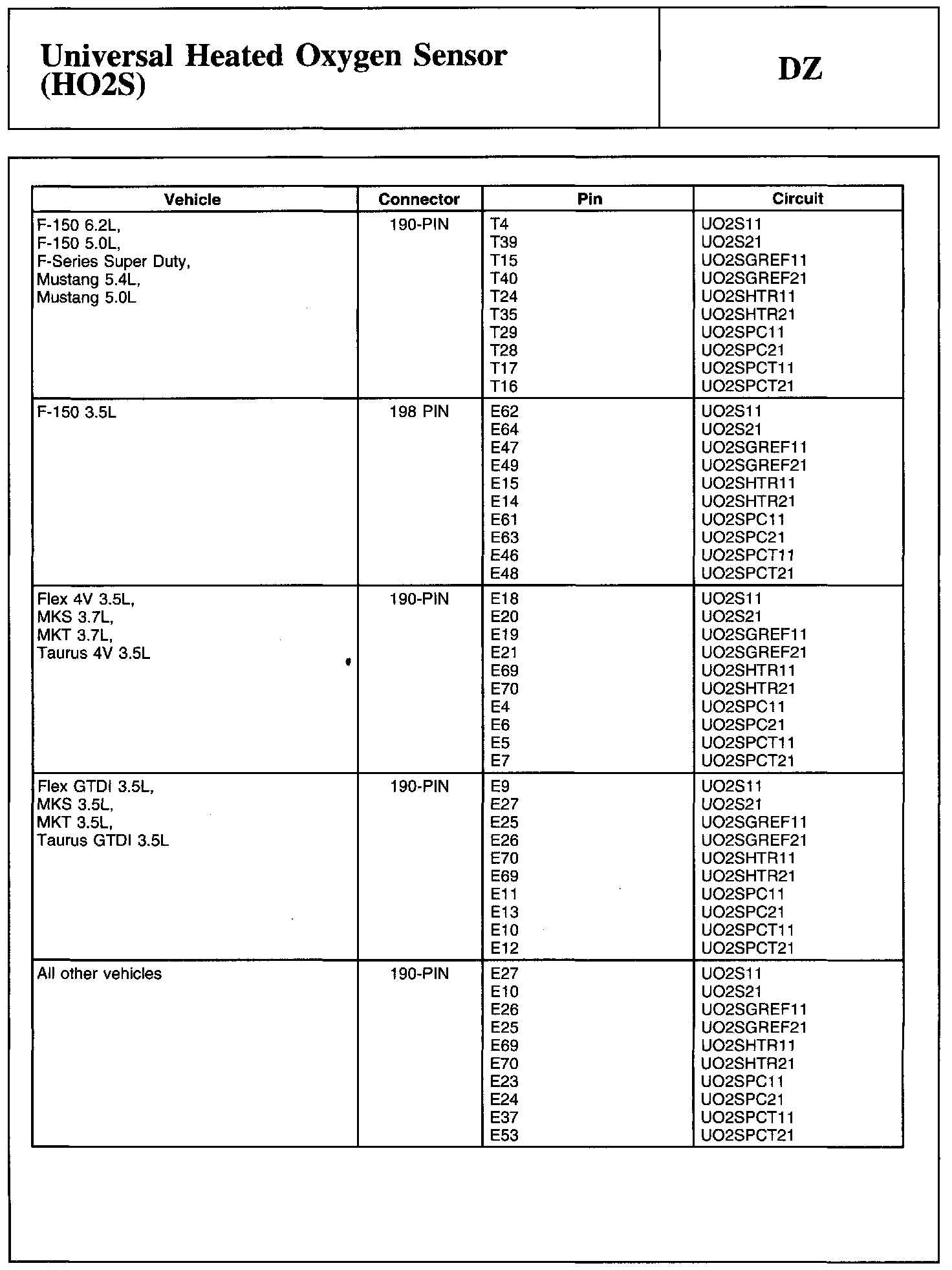

Powertrain Control Module (PCM) Connector:

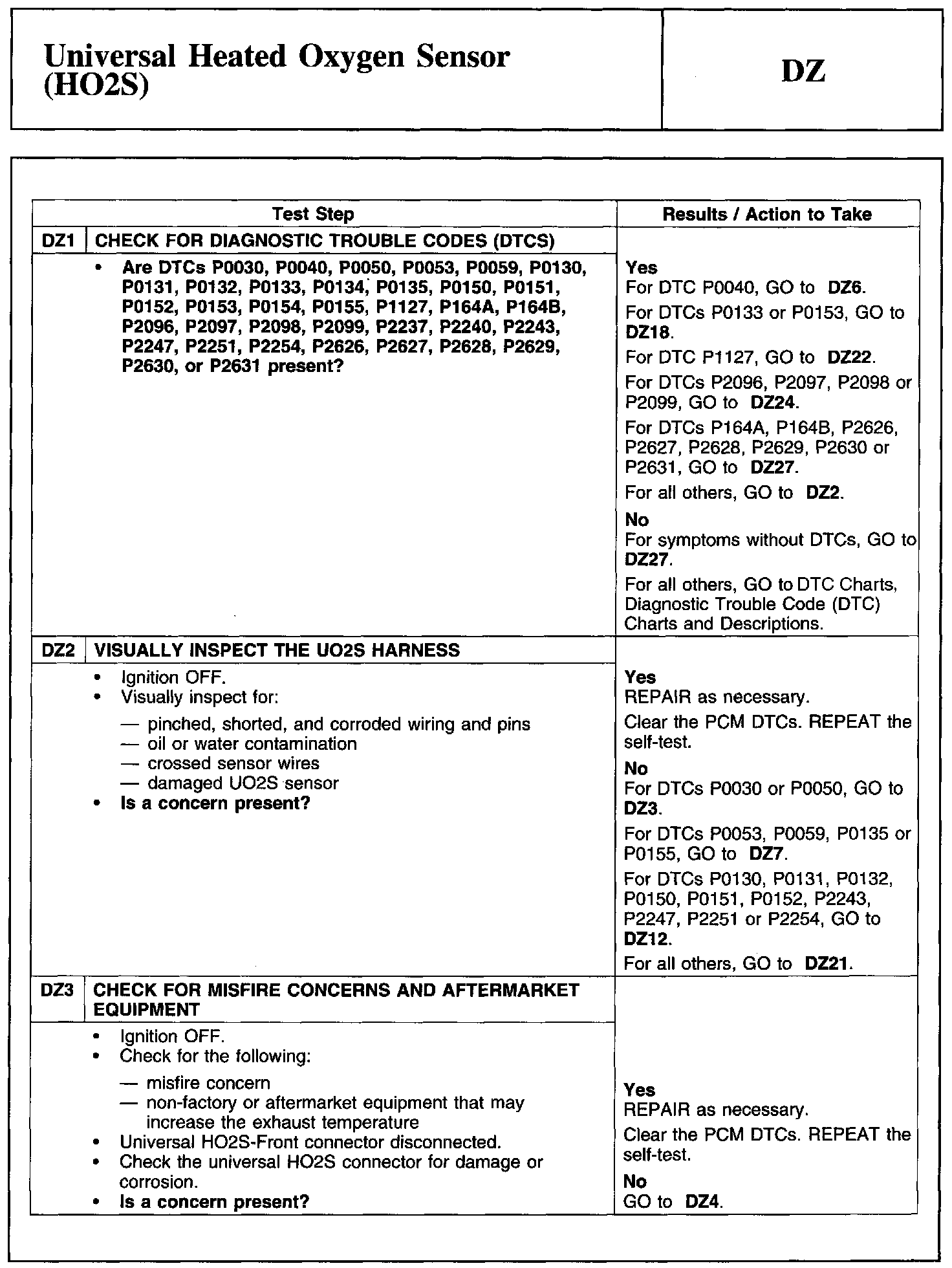

DZ1-DZ3:

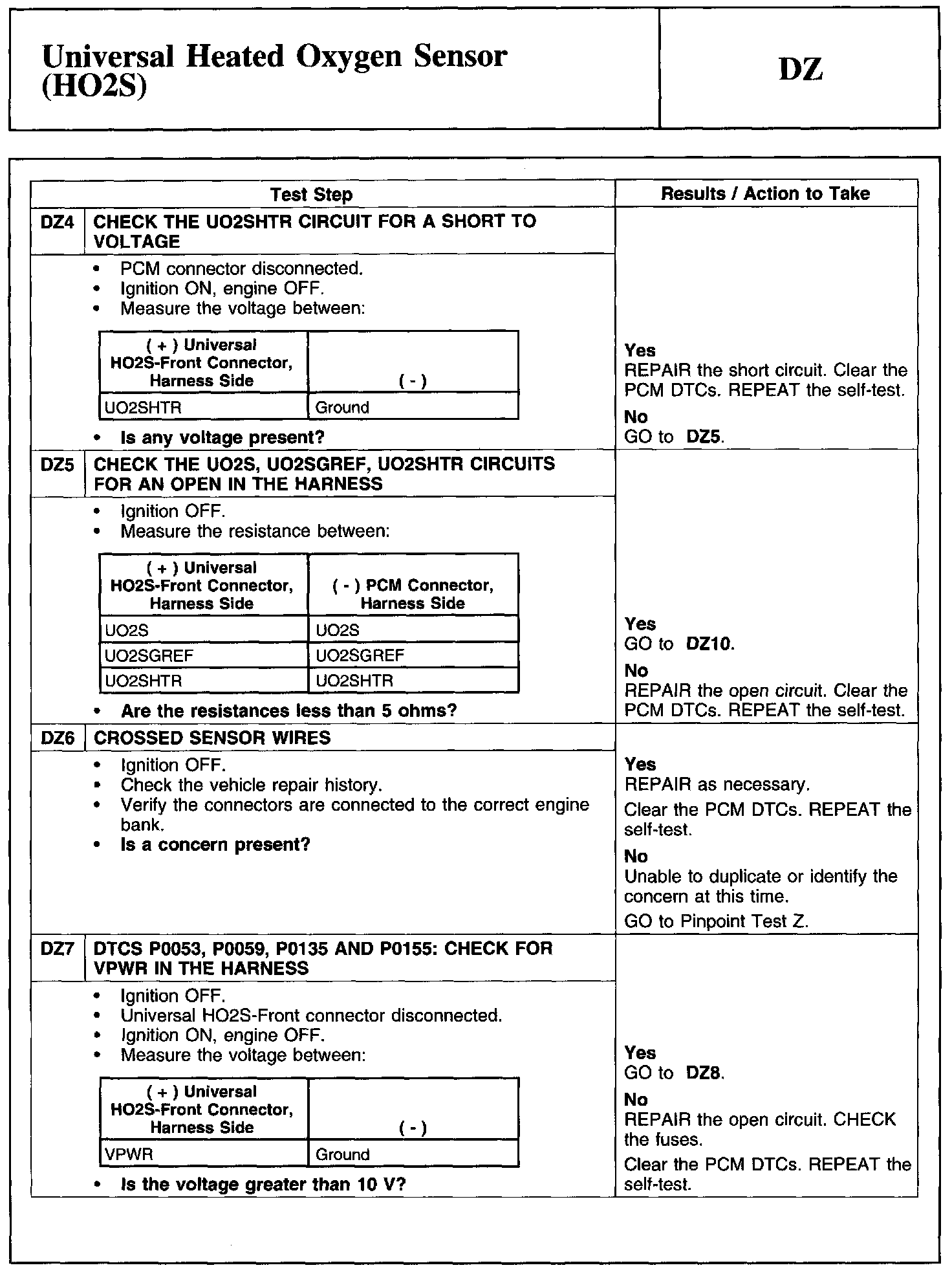

DZ4-DZ7:
DZ8-DZ10:

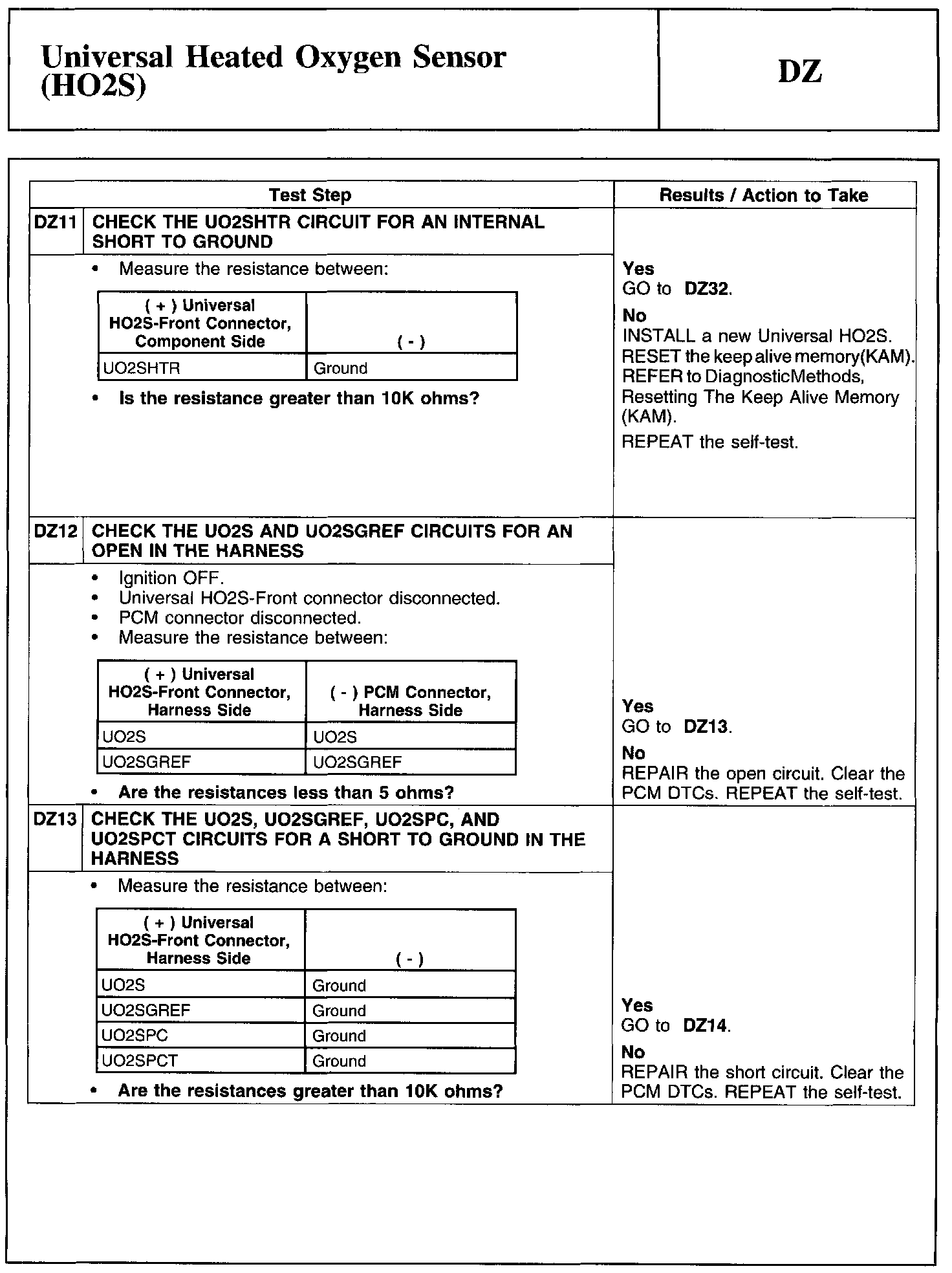

DZ11-DZ13:

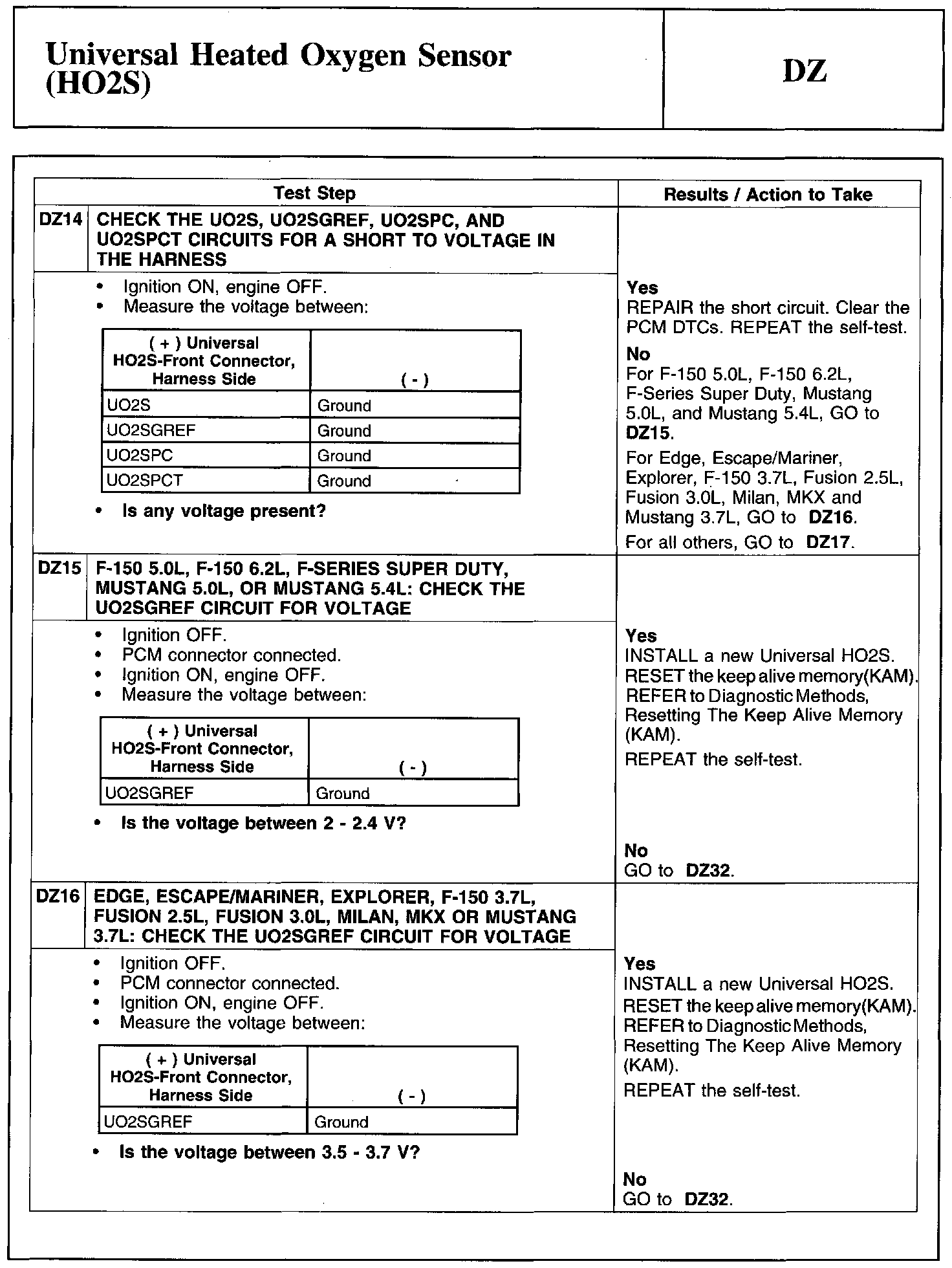

DZ14-DZ16:
DZ17-DZ19:

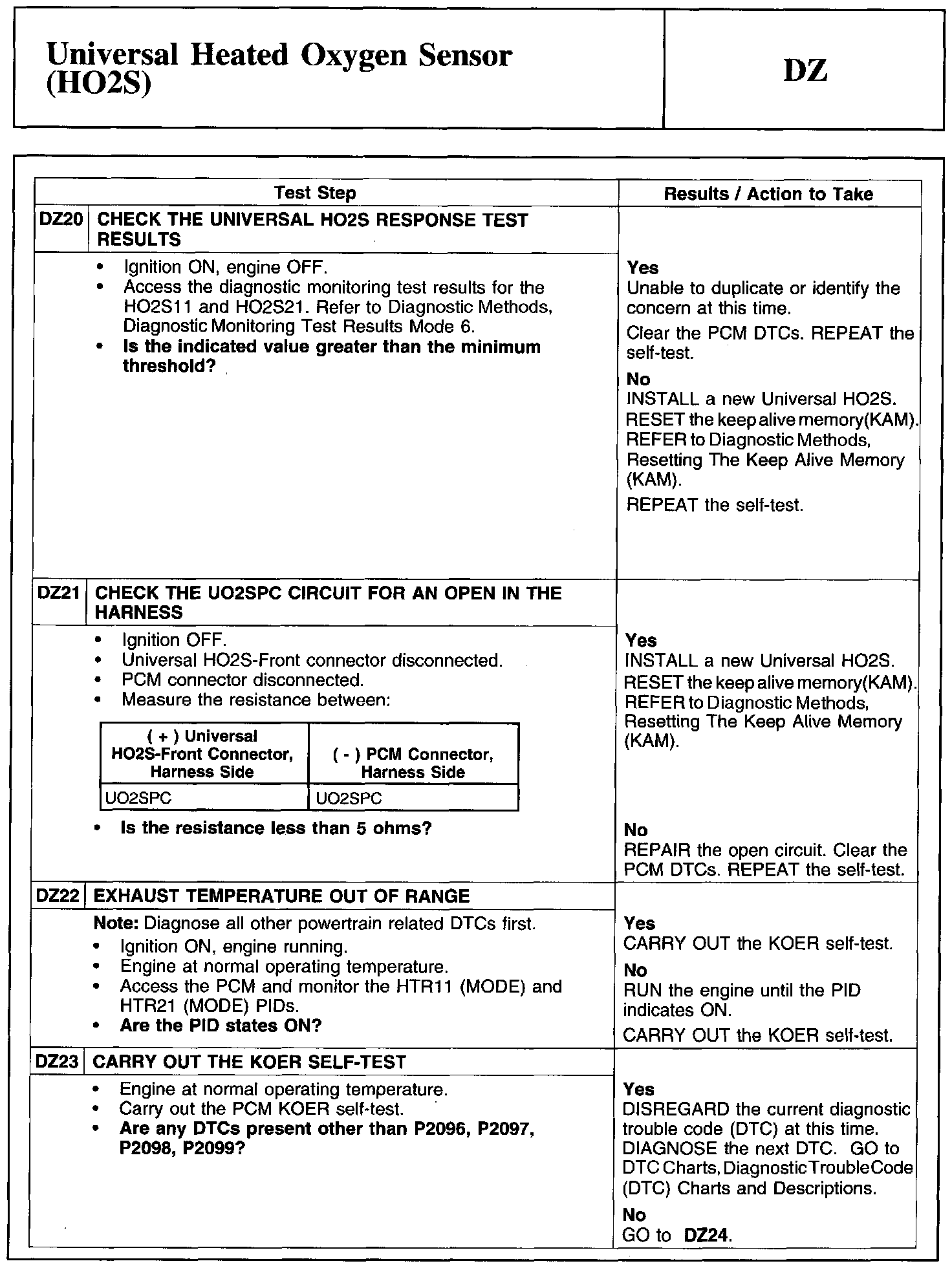

DZ20-DZ23:

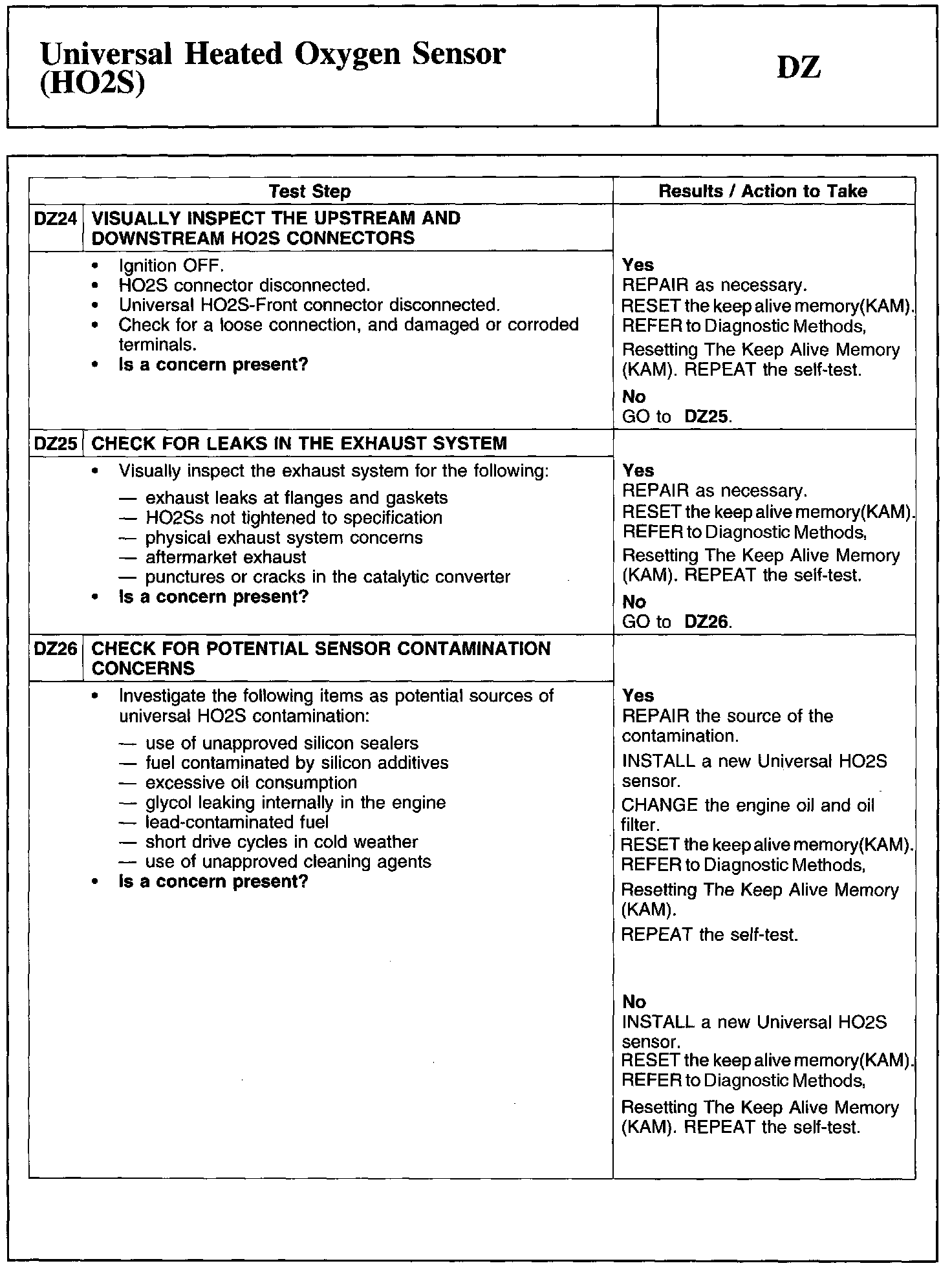

DZ24-DZ26:
DZ27-DZ29:
