Test DD: Fuel Rail Pressure (FRP) and Fuel Rail Pressure Temperature (FRPT) Sensors

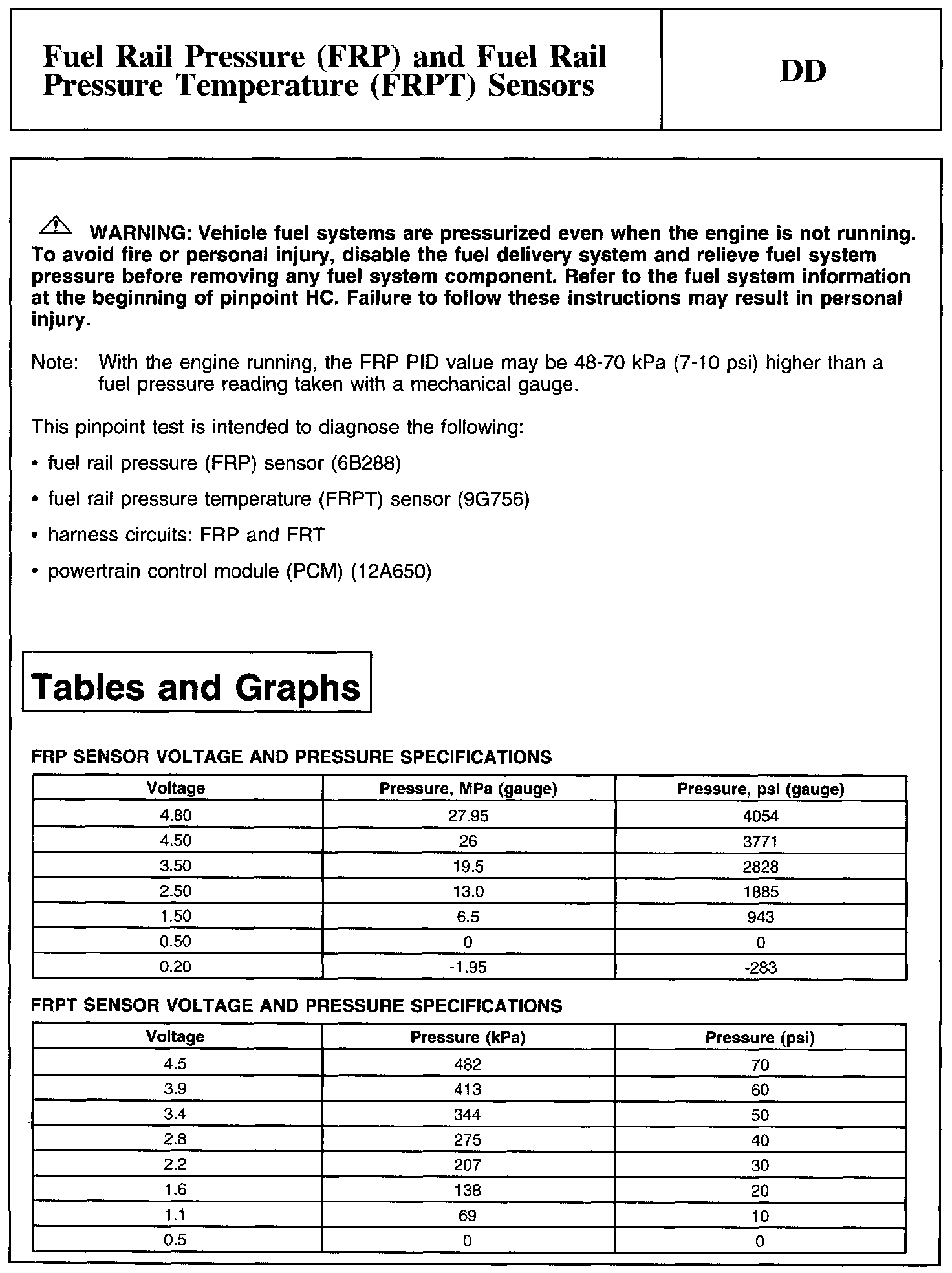

Warning, Note And Tables And Graphs:

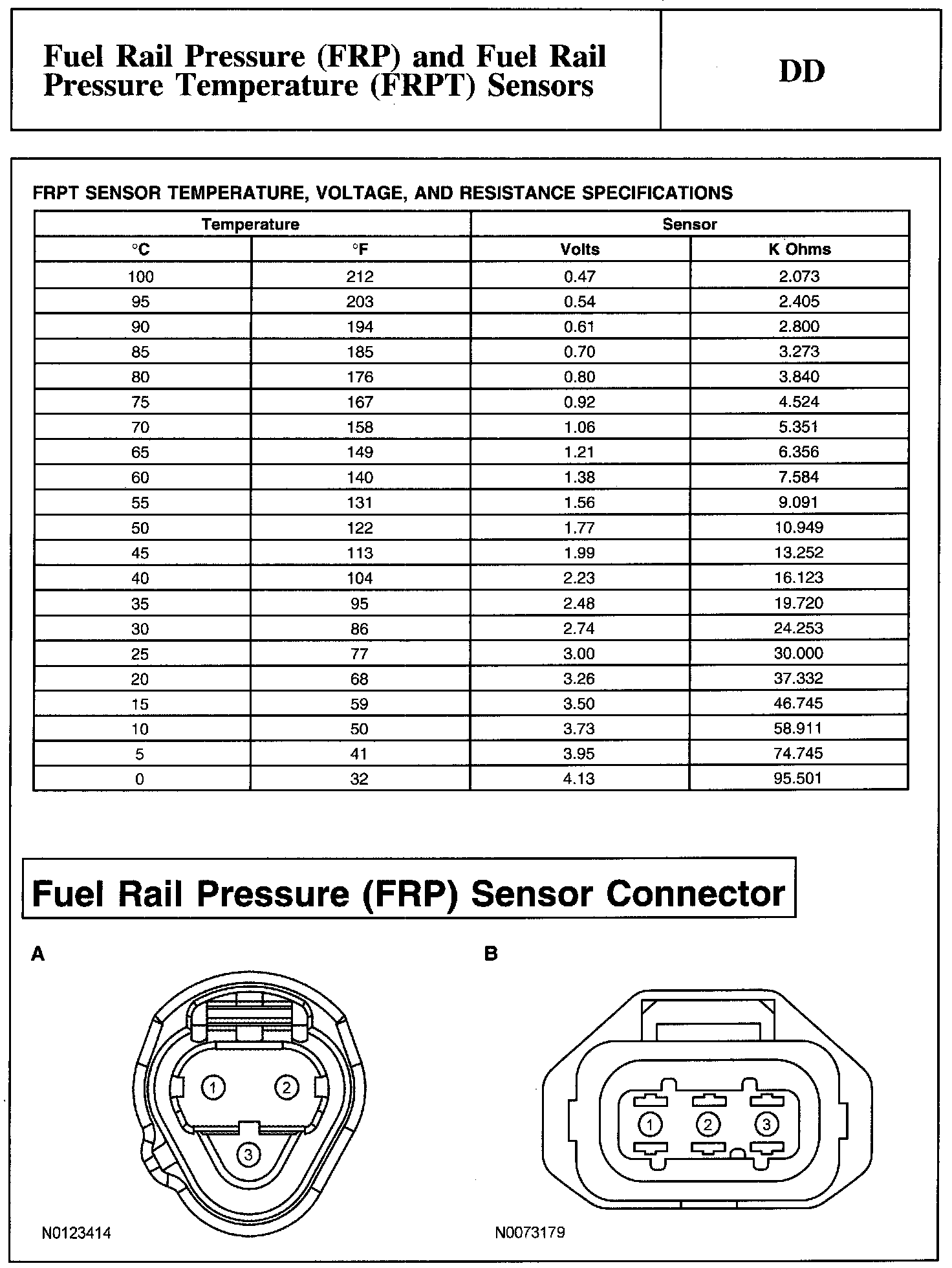

Tables And Graphs And Fuel Rail Pressure (FRP) Sensor Connector:

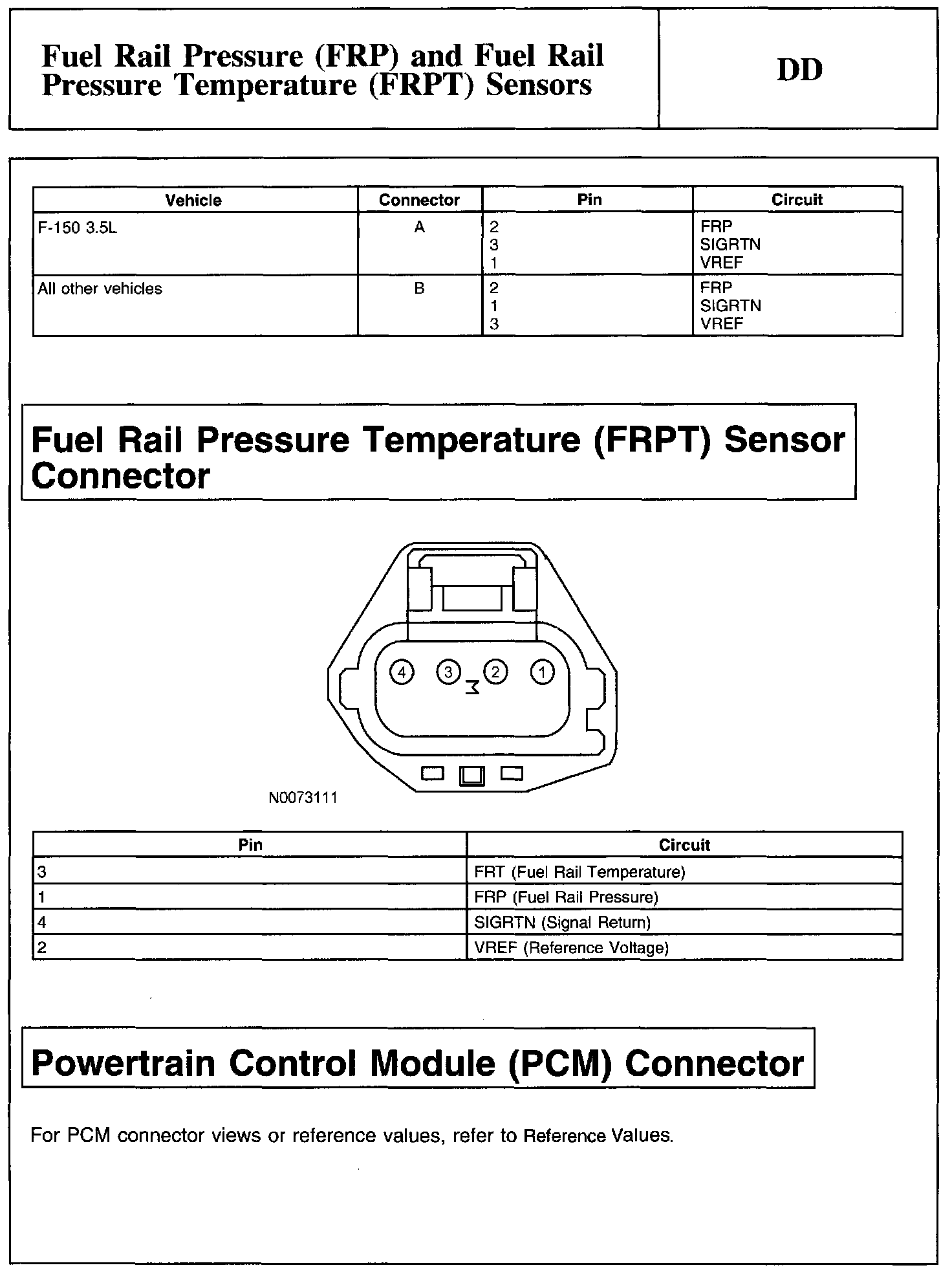

Fuel Rail Pressure (FRP) Sensor Connector, Fuel Rail Pressure Temperature (FRPT) Sensor Connector And Powertrain Control Module (PCM) Connector:

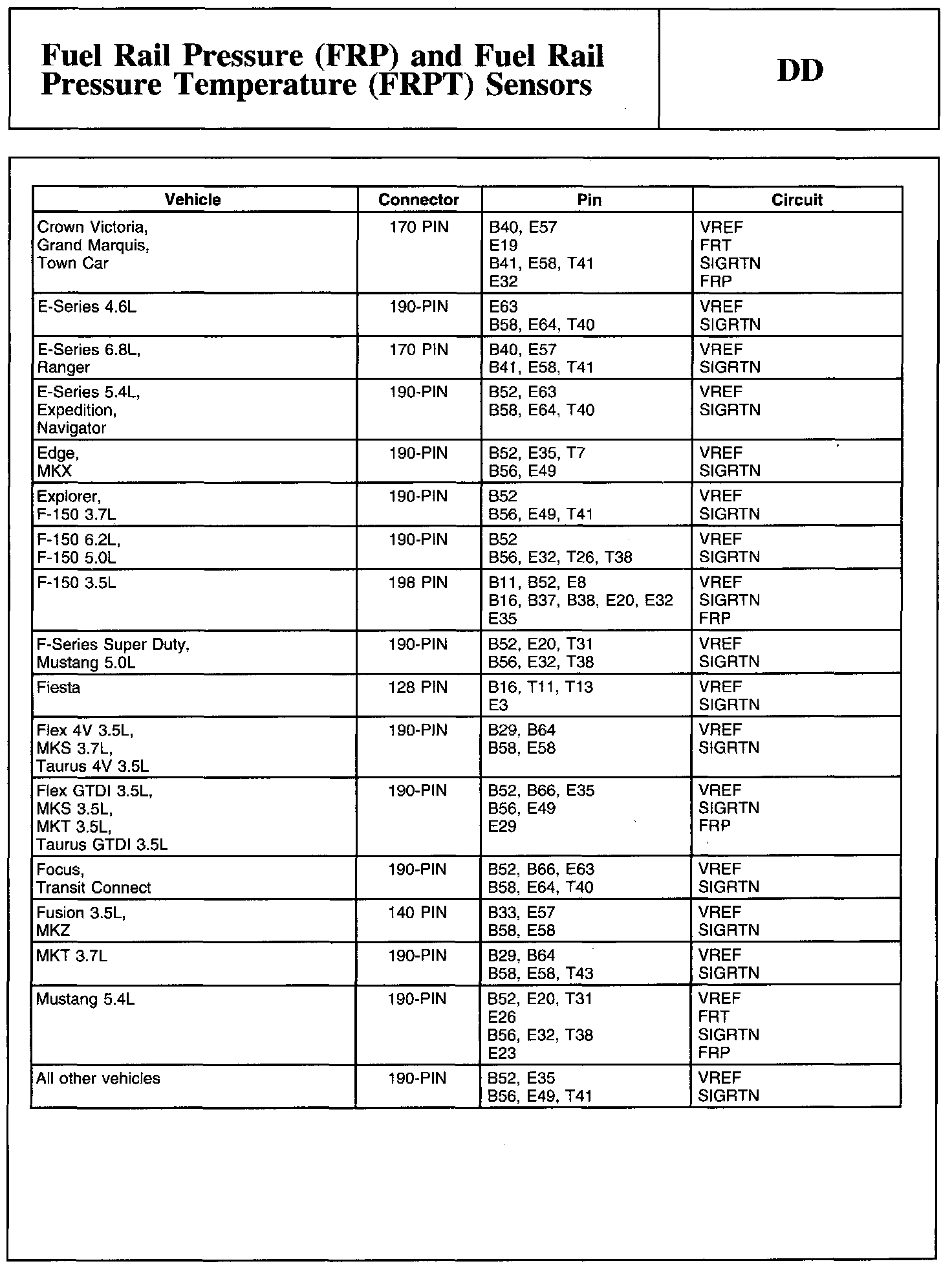

Powertrain Control Module (PCM) Connector:

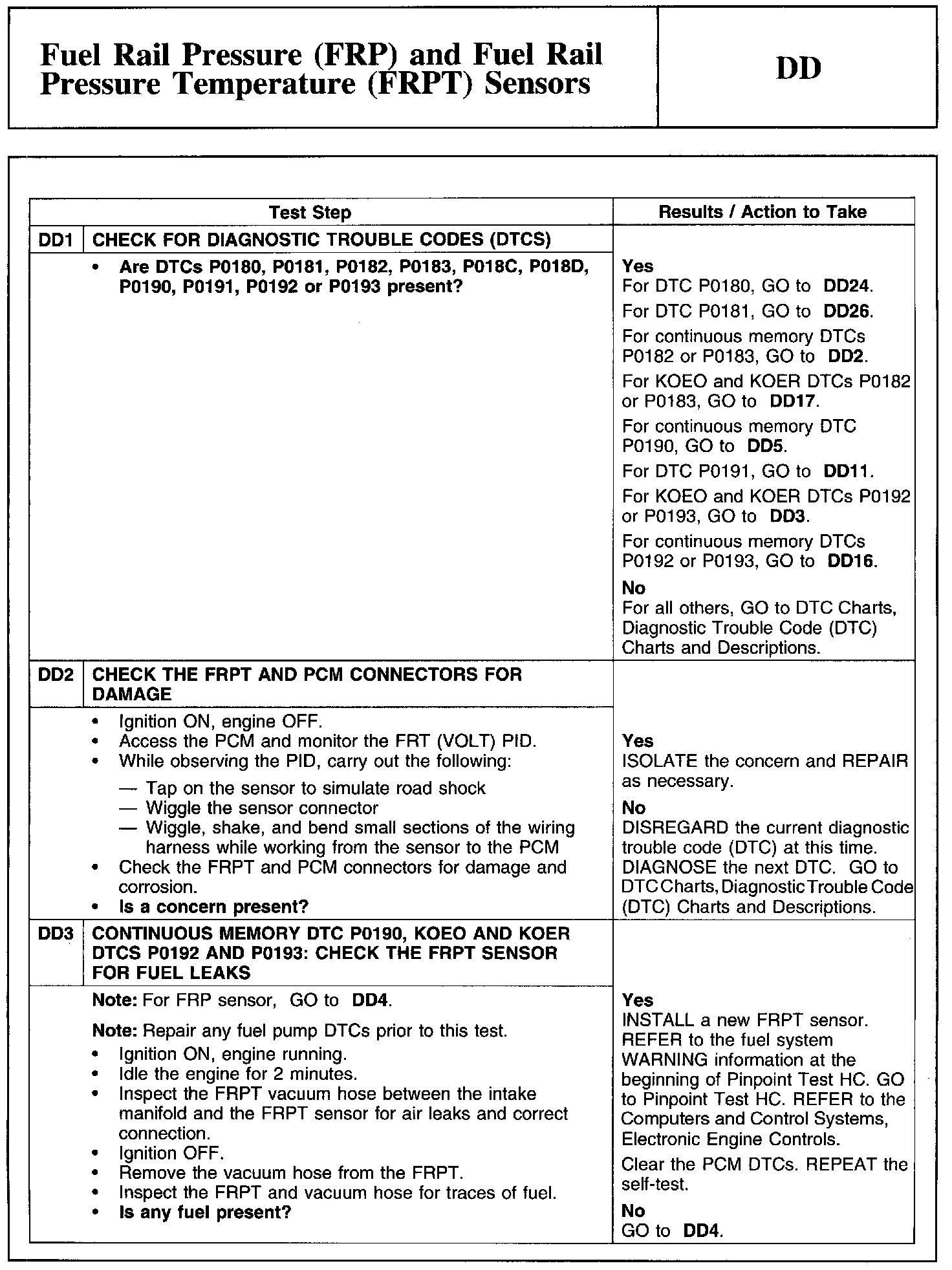

DD1-DD3:

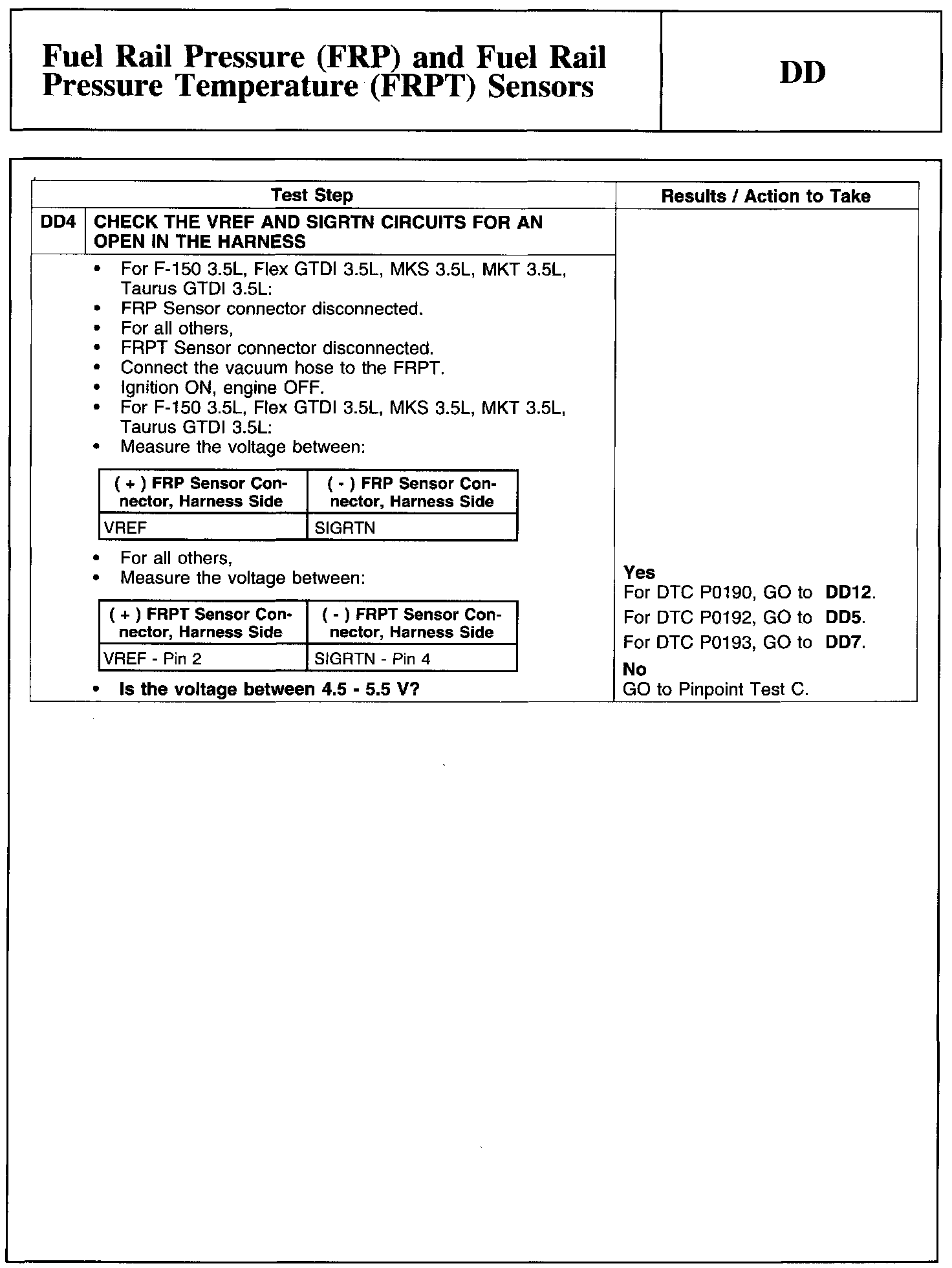

DD4:

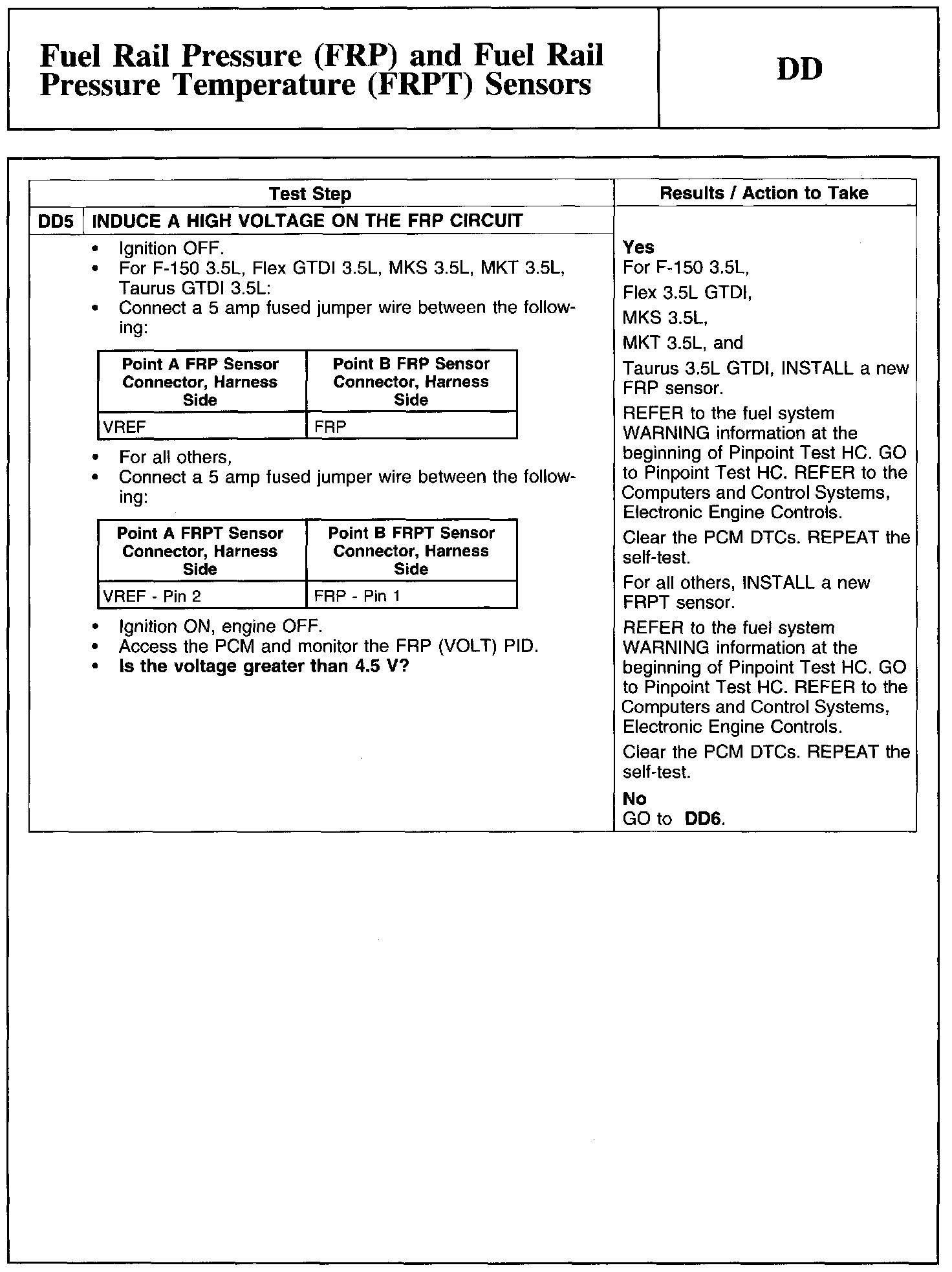

DD5:

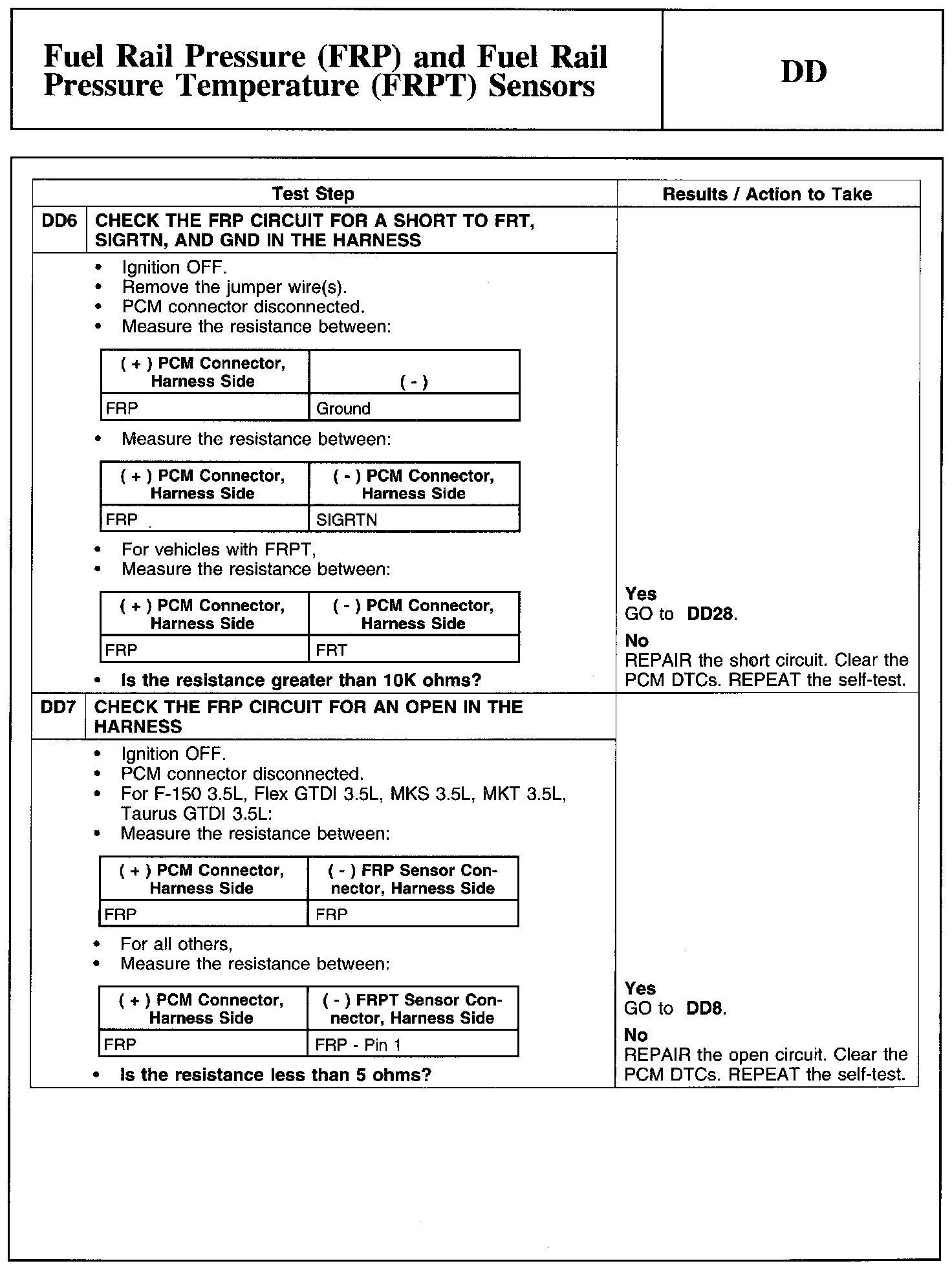

DD6-DD7:

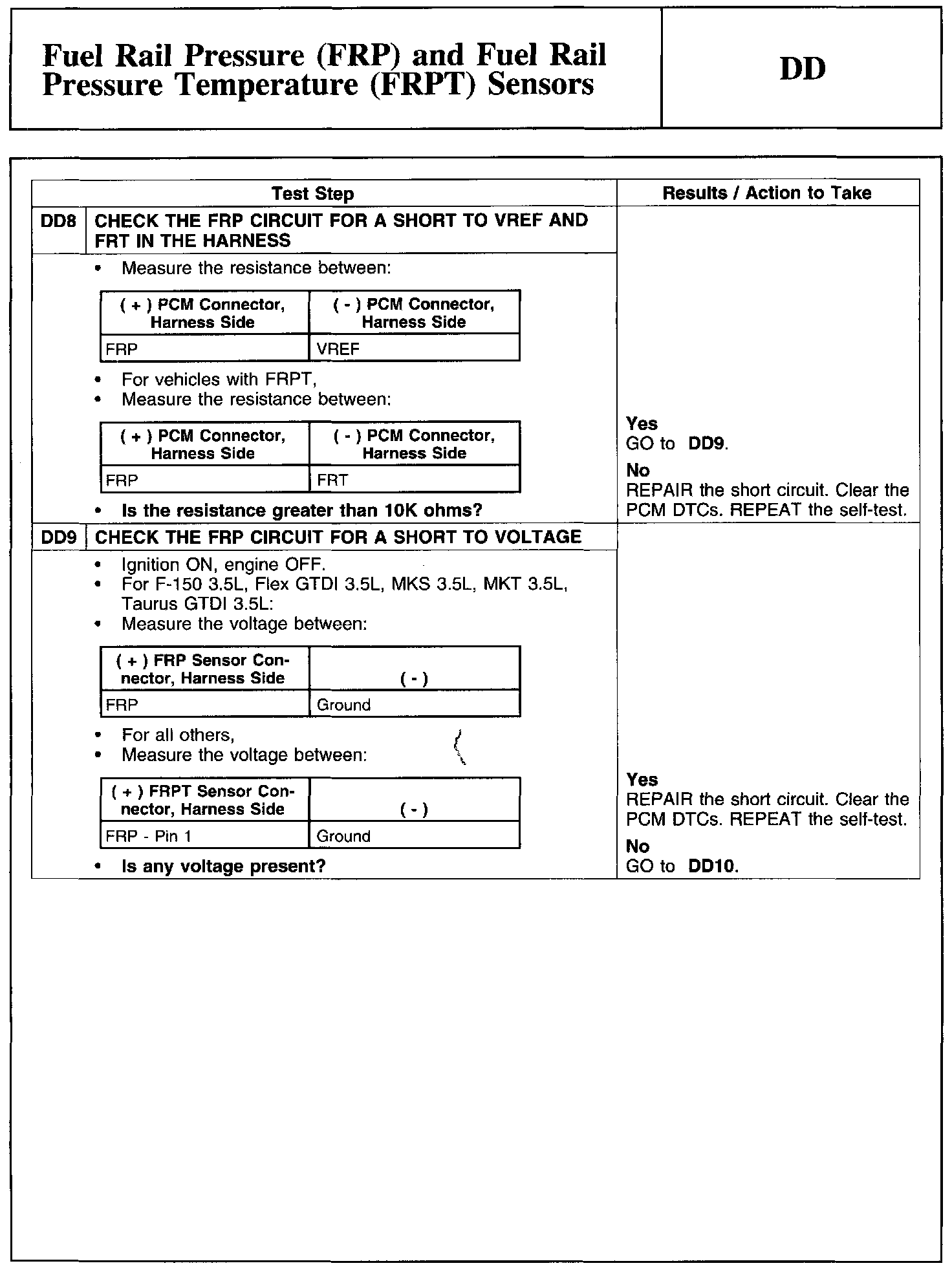

DD8-DD9:

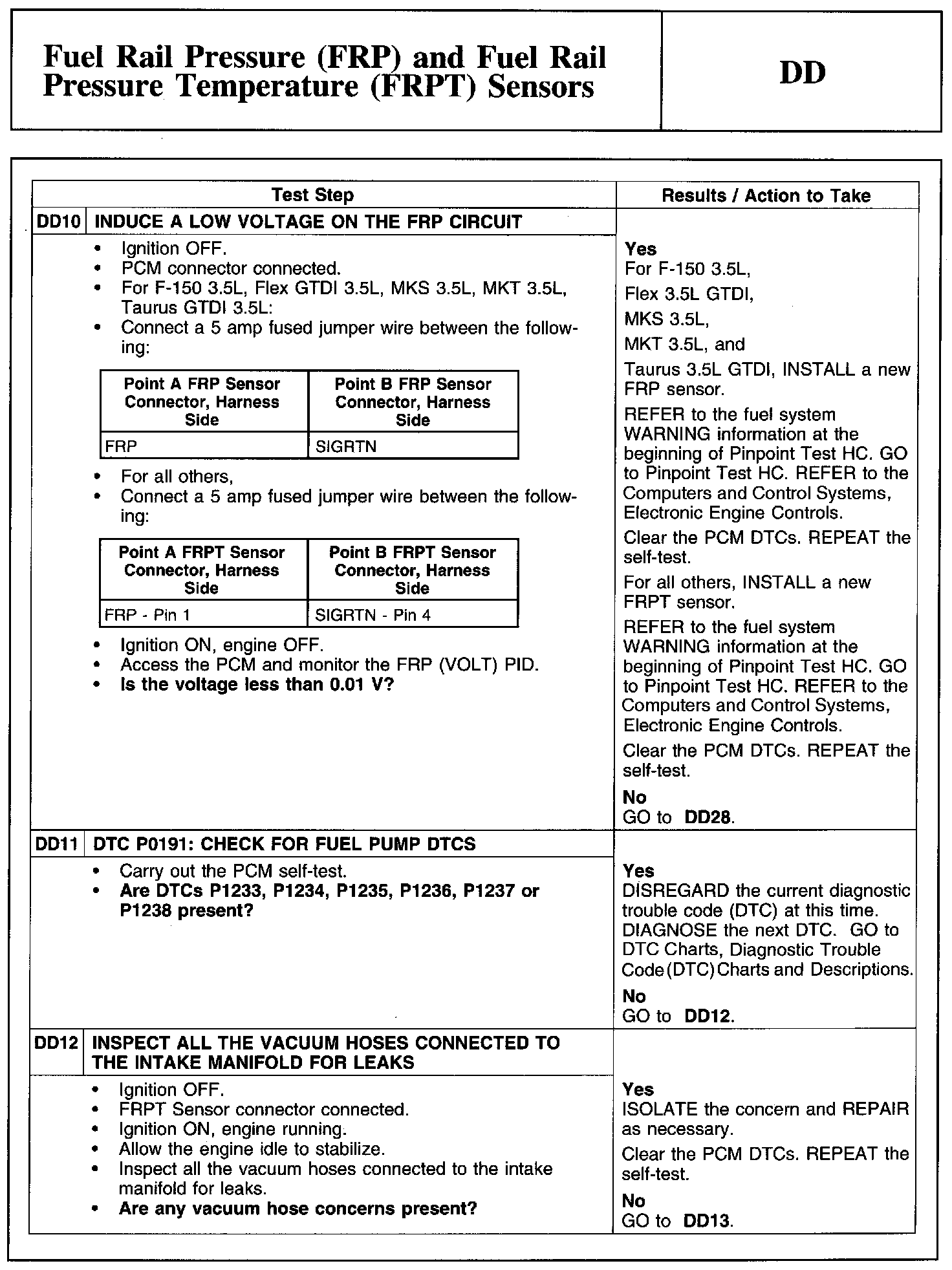

DD10-DD12:

DD13-DD14:

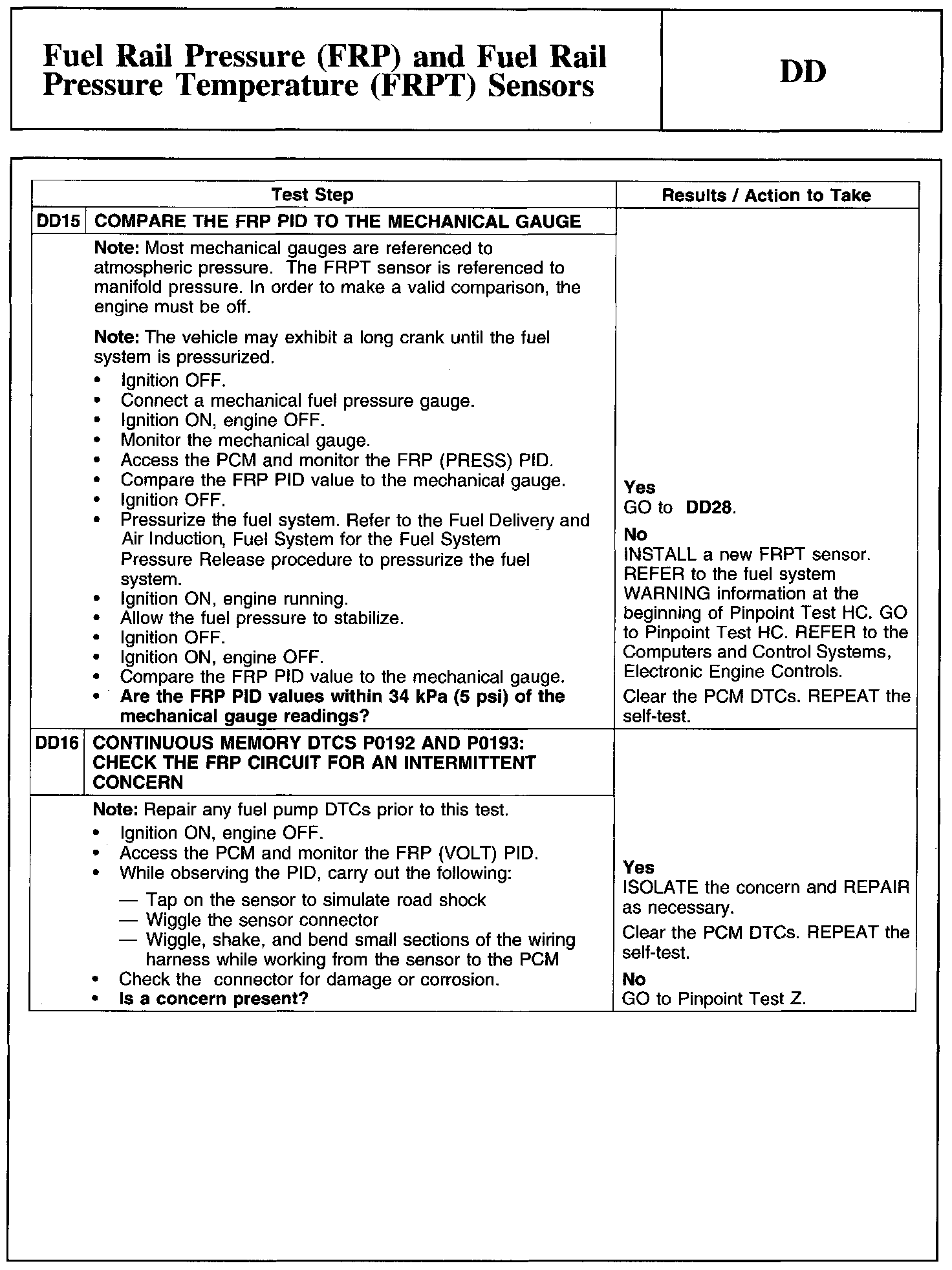

DD15-DD16:

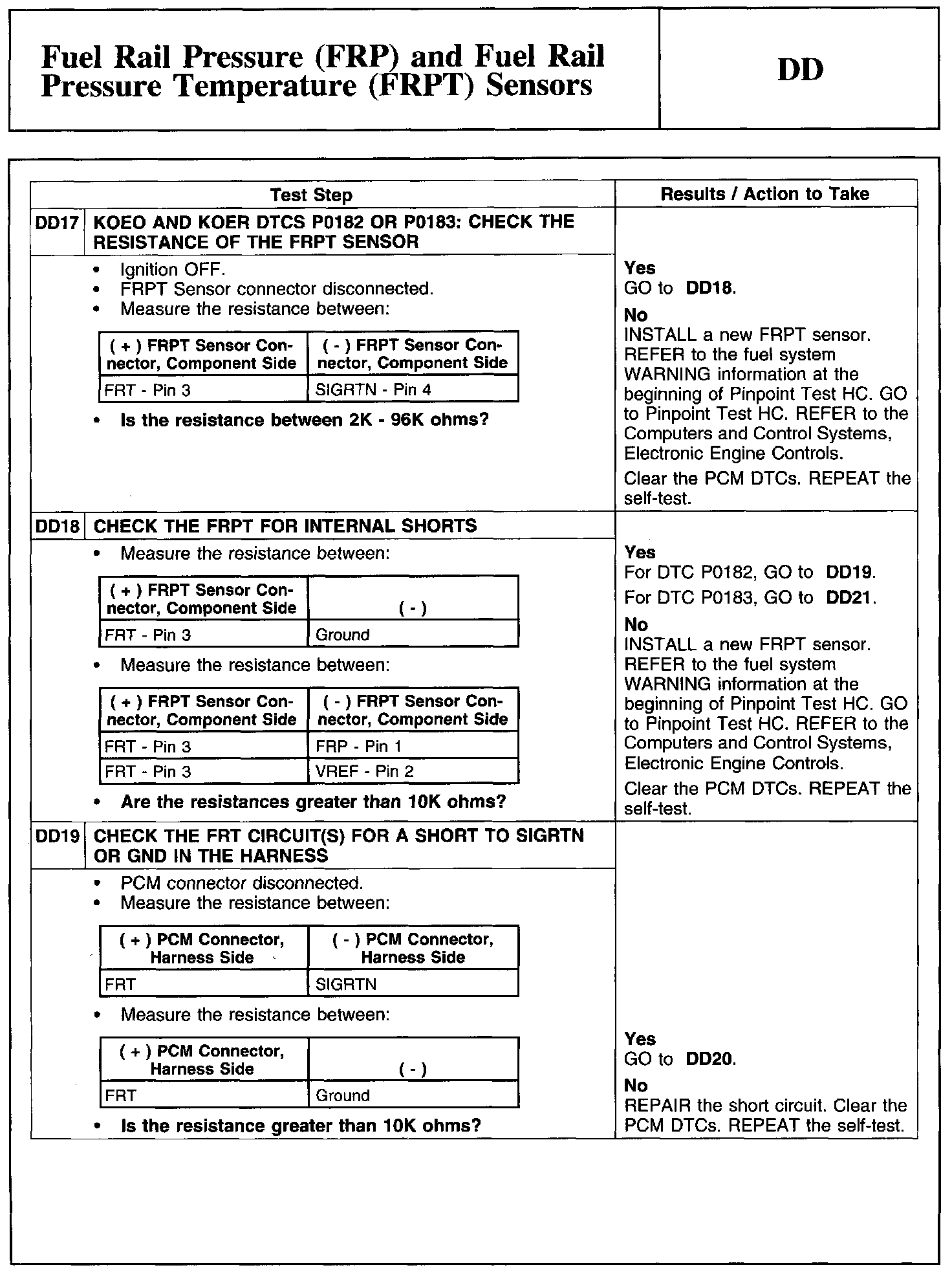

DD17-DD19:

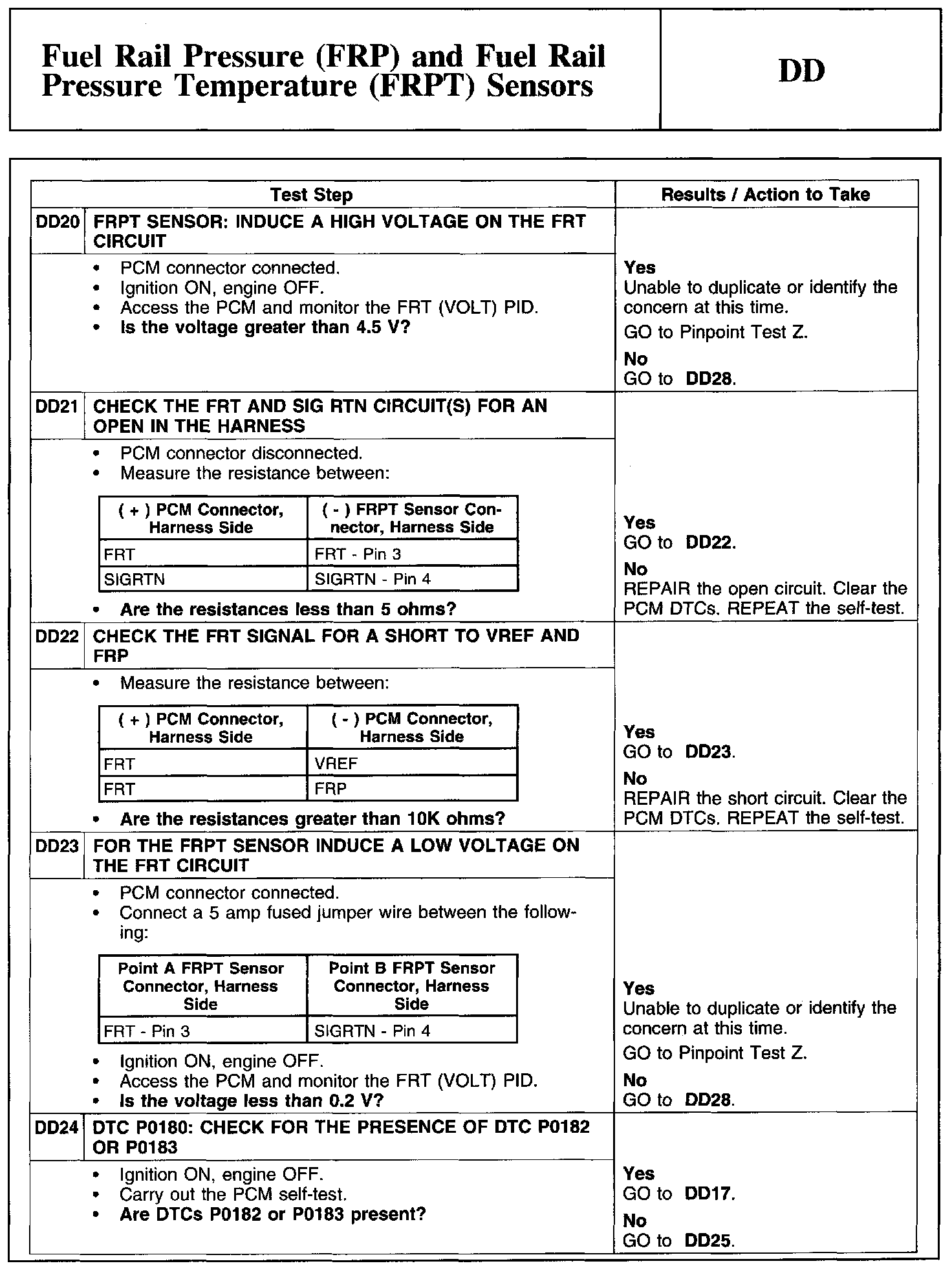

DD20-DD24:

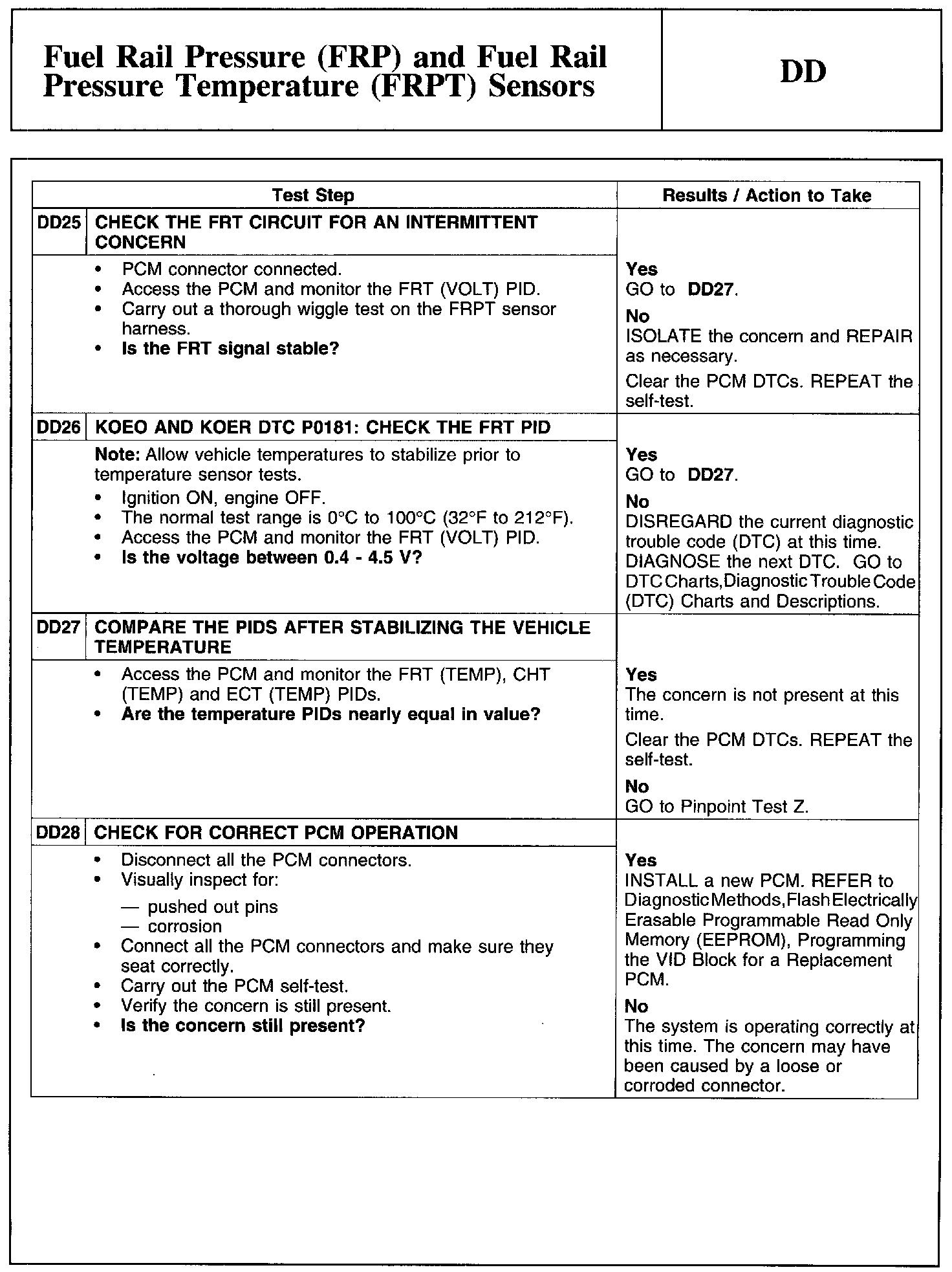

DD25-DD28:
