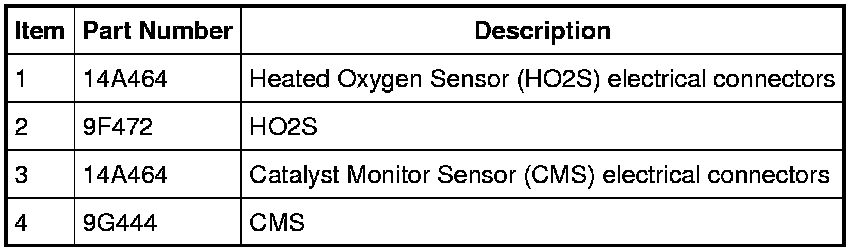

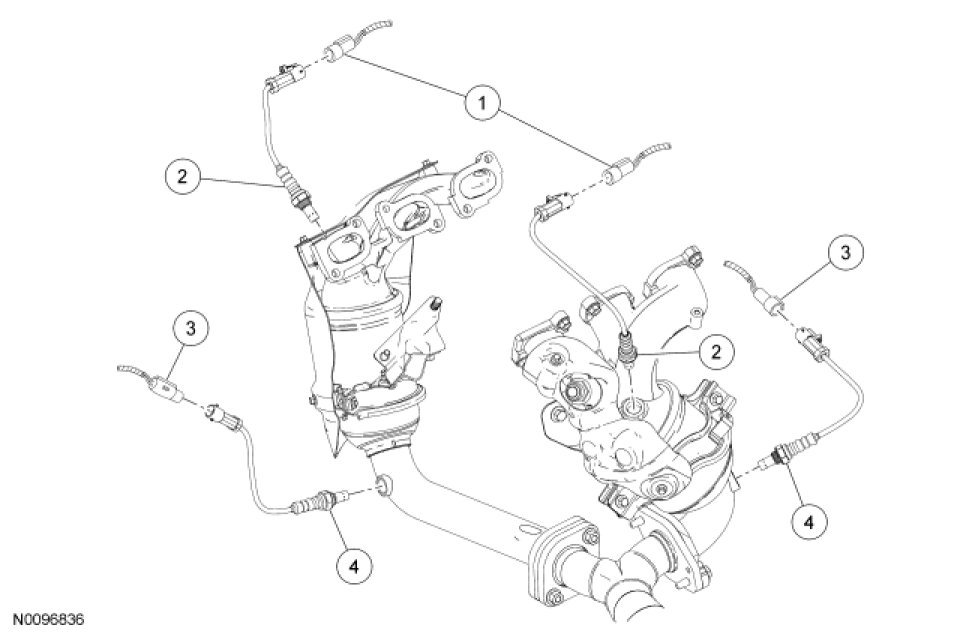

Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View




Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View

NOTE: Front Wheel Drive (FWD) shown, All-Wheel Drive (AWD) similar.
