Parking Lamp Bulb - LH

Parking Lamp Bulb - LH, Milan

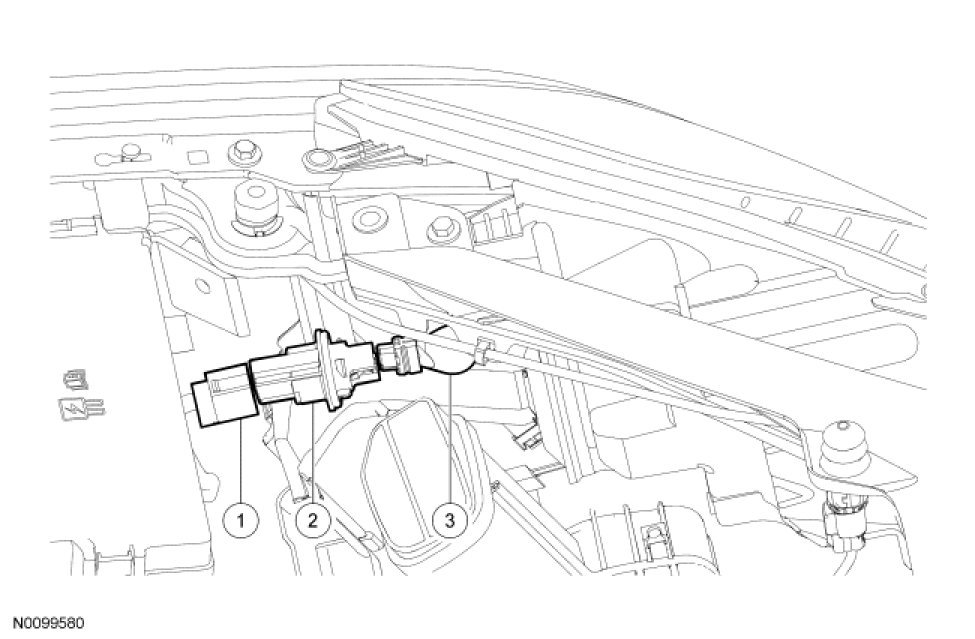

NOTE: Non-Hybrid shown, Hybrid similar.











Removal and Installation

1. For Hybrid vehicles, remove the headlamp assembly. For additional information, refer to Headlamp Assembly Service and Repair.

2. For non-Hybrid vehicles, remove the air cleaner. For additional information, refer to Intake Air Distribution and Filtering - Air Cleaner.

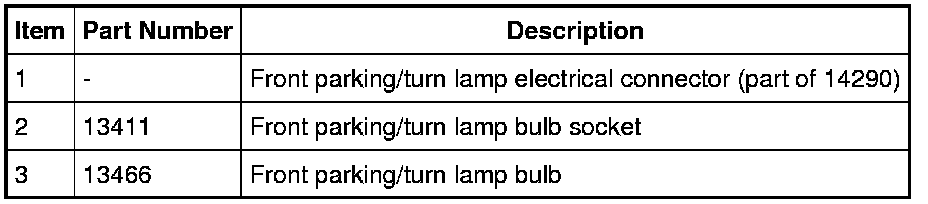

3. For non-Hybrid vehicles, disconnect the parking/turn lamp electrical connector.

4. Remove the front parking lamp socket from the headlamp assembly.
- Remove the front parking lamp bulb.

5. To install, reverse the removal procedure.
