Home >> Mercury >> 2011 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Interior Lighting Control Module (ILCM) DTC Chart

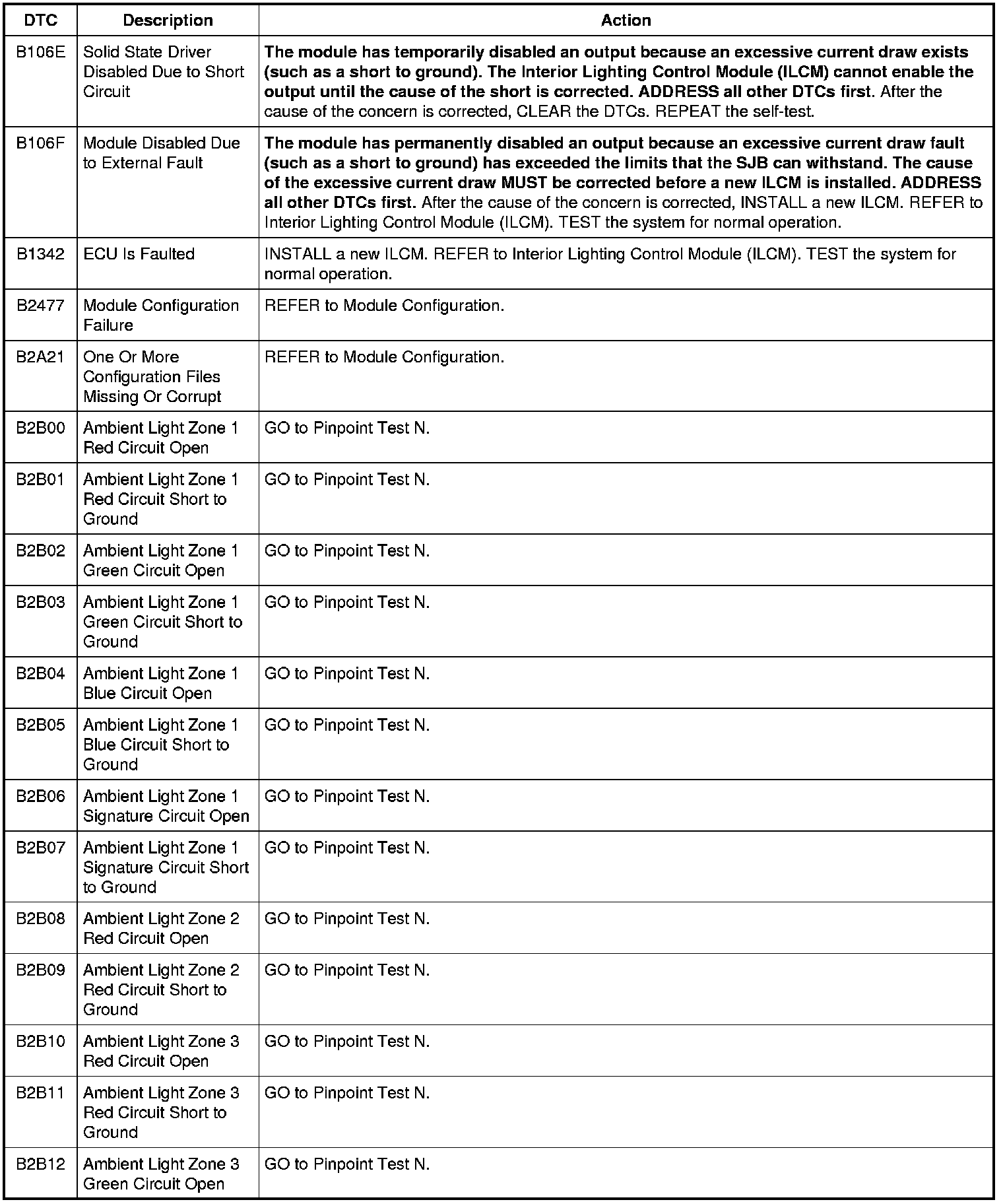

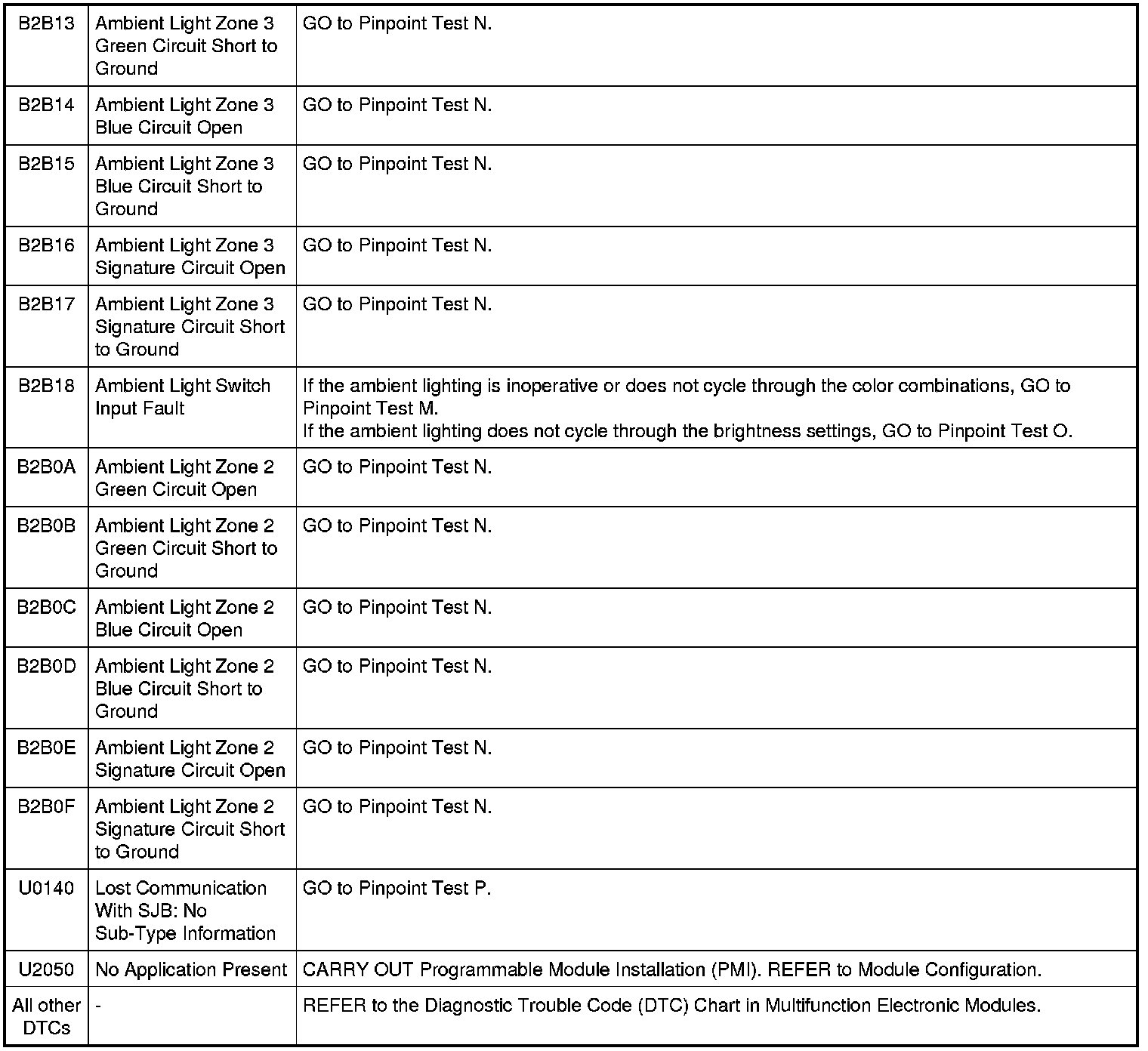

Interior Lighting Control Module (ILCM) DTC Chart




Interior Lighting

DTC Charts

Interior Lighting Control Module (ILCM) DTC Chart
