Pinpoint Test D: The Temperature Gauge Is Inoperative
Instrumentation, Message Center and Warning Chimes
Pinpoint Test D: The Temperature Gauge Is Inoperative
Normal Operation
The PCM uses the Cylinder Head Temperature (CHT) sensor to measure the engine temperature. The Instrument Panel Cluster (IPC) receives the engine temperature data from the PCM over the High Speed Controller Area Network (HS-CAN) communication bus. The IPC monitors the engine temperature data received from the PCM and commands the temperature gauge indication with a corresponding movement of the pointer.
The non-hybrid and hybrid temperature gauges appear differently but essentially function the same. The non-hybrid gauge is an analog gauge with a needle that points to a specified area of the gauge depending on the data received from the PCM. The hybrid gauge is a digital display that appears as a thermometer. The fill color of the thermometer is blue when the temperature is between the cold and normal ranges. When the temperature indicates an overheating condition, the fill color turns to red.
If the engine temperature data is missing for 5 seconds or less or if the IPC receives invalid engine temperature data for 5 seconds or less, the IPC defaults the temperature gauge to the last setting, based upon the last known good temperature status message. If the IPC does not receive the engine temperature status message for more than 5 seconds, the IPC sets DTC U0100:00 in continuous memory and defaults the temperature gauge to cold (C). If the engine temperature data is deemed invalid by the IPC for 5 seconds or more, the IPC sets DTC U0401:68 and defaults the temperature gauge to cold (C).
NOTE: If DTC U0100:00 is set in the IPC, other observable symptoms may be an inoperative tachometer, speedometer or odometer.
This pinpoint test is intended to diagnose the following:
- PCM
- IPC
PINPOINT TEST D: THE TEMPERATURE GAUGE IS INOPERATIVE
-------------------------------------------------
D1 RETRIEVE THE RECORDED DTCs FROM THE PCM KOEO SELF-TEST
- Check for recorded PCM DTCs from the Key ON Engine OFF (KOEO) self-test.
- Are any DTCs recorded?
Yes
DIAGNOSE all PCM DTCs first. REFER to Computers and Control Systems Information.
No
GO to D2.
-------------------------------------------------
D2 CARRY OUT THE TEMPERATURE GAUGE ACTIVE COMMAND USING THE SCAN TOOL
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: IPC DataLogger .
- NOTE: The coolant temperature should range between 0-59°C (32-138°F) with the gauge in the cold (C) range, between 60-120°C (140-248°F) with the gauge in the normal or mid-range and above 123°C (253°F) with the gauge in the hot (H) range.

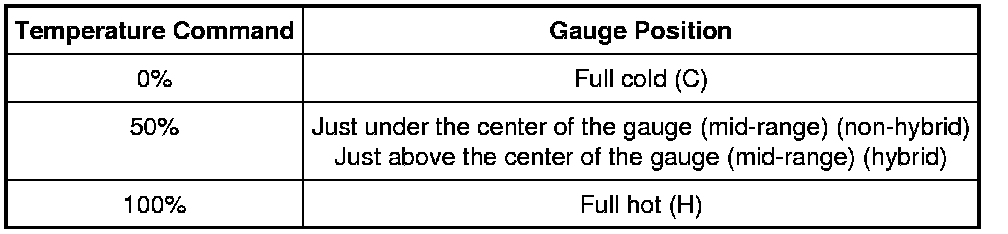

- Select the IPC temperature gauge (ENGCOOLNT) active command. Command the temperature gauge according to the following table:
- Does the temperature gauge start at cold (C), move to the mid-range and end at full hot (H)?
Yes
GO to D3.
No
INSTALL a new IPC. REFER to Instrument Panel Cluster (IPC) Instrument Panel Cluster (IPC). TEST the system for normal operation.
-------------------------------------------------
D3 RETRIEVE THE RECORDED DTCs FROM THE IPC SELF-TEST
- Check for recorded DTCs from the IPC self-test.
- Are any DTCs recorded?
Yes
For DTC U0100:00, GO to Pinpoint Test BF. Pinpoint Tests BF: DTC U0100:00
For DTC U0401:68, RETRIEVE and REPAIR all non-network DTCs in the PCM and other modules on the network. REFER to Computers and Control Systems Information and Multifunction Electronic Modules Testing and Inspection for a list of all DTCs.
For all other DTCs, REFER to DTC Charts. Instrumentation, Message Center and Warning Chimes
No
INSTALL a new PCM. TEST the system for normal operation.
-------------------------------------------------
