Pinpoint Test A: The Instrument Panel Cluster (IPC) Is Inoperative

Instrumentation, Message Center and Warning Chimes

Pinpoint Test A: The Instrument Panel Cluster (IPC) Is Inoperative

Refer to Wiring Diagram Set 60 (Fusion/Milan/MKZ, Fusion Hybrid, Milan Hybrid, MKZ Hybrid), Instrument Cluster for schematic and connector information. Diagrams By Number

Normal Operation

With the ignition in the START or RUN mode, the Instrument Panel Cluster (IPC) receives voltage from the Smart Junction Box (SJB) fuse 29 (5A). With the ignition in the OFF mode, the IPC receives its keep-alive voltage from the SJB fuse 26 (10A). The IPC grounding is through a single ground. The IPC sets DTC U300A:62 in continuous memory and on-demand if the RUN/START input is open or if the SJB fuse 29 (5A) has failed.

This pinpoint test is intended to diagnose the following:

- Fuse(s)
- Wiring, terminals or connectors
- IPC


PINPOINT TEST A: THE IPC IS INOPERATIVE

NOTICE: Failure to use the correct probe adapter(s) may damage the connector.

-------------------------------------------------
A1 RETRIEVE THE RECORDED DTCs FROM THE CONTINUOUS IPC SELF-TEST

- Check for recorded IPC DTCs from the continuous self-test.
- Is DTC U300A:62 recorded?

Yes
VERIFY SJB fuse 29 (5A) is OK. If OK, GO to Pinpoint Test BZ. If not OK, Refer to the Wiring Diagrams to identify the possible causes of the circuit short. Diagrams By Number Pinpoint Tests BZ: DTC U300A:62 Or U300A:64

No
GO to A2.

-------------------------------------------------
A2 CHECK THE IPC VOLTAGE SUPPLY

- Ignition OFF.
- Disconnect: IPC C220 .
- For the non-hybrid, measure the voltage between the IPC C220-21, circuit SBP26 (YE/RD), harness side and ground.




- For the hybrid, measure the voltage between the IPC C220-19, circuit SBP26 (YE/RD), harness side and ground.




- Is the voltage greater than 10 volts?

Yes
GO to A3.

No
VERIFY SJB fuse 26 (10A) is OK. If OK, REPAIR the circuit for an open. If not OK, Refer to the Wiring Diagrams to identify the possible causes of the circuit short. TEST the system for normal operation. Diagrams By Number

-------------------------------------------------
A3 CHECK THE IPC GROUND CIRCUIT FOR AN OPEN

- Ignition OFF.

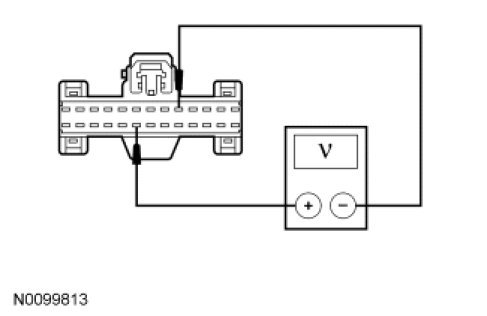

- For the non-hybrid, measure the voltage between the IPC C220-21, circuit SBP26 (YE/RD), harness side and the IPC C220-5, circuit GD116 (BK/VT), harness side.

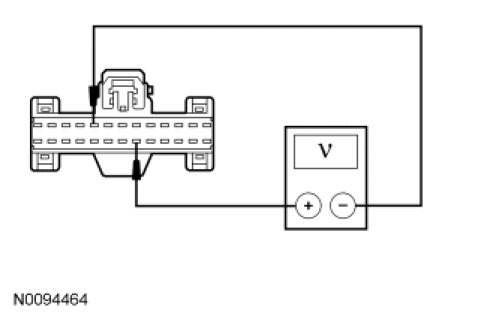

- For the hybrid, measure the voltage between the IPC C220-19, circuit SBP26 (YE/RD), harness side and the IPC C220-9, circuit GD116 (BK/VT), harness side.




- Is the voltage greater than 10 volts?

Yes
GO to A4.

No
REPAIR circuit GD116 (BK/VT) for an open. TEST the system for normal operation.

-------------------------------------------------
A4 CHECK FOR CORRECT IPC OPERATION

- Disconnect the IPC connector.
- Check for:
- corrosion
- damaged pins
- pushed-out pins
- Connect the IPC connector and make sure it seats correctly.
- Operate the system and determine if the concern is still present.
- Is the concern still present?

Yes
INSTALL a new IPC. REFER to Instrument Panel Cluster (IPC) Instrument Panel Cluster (IPC). TEST the system for normal operation.

No
The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.

-------------------------------------------------
