Instrument Cluster / Carrier: Locations

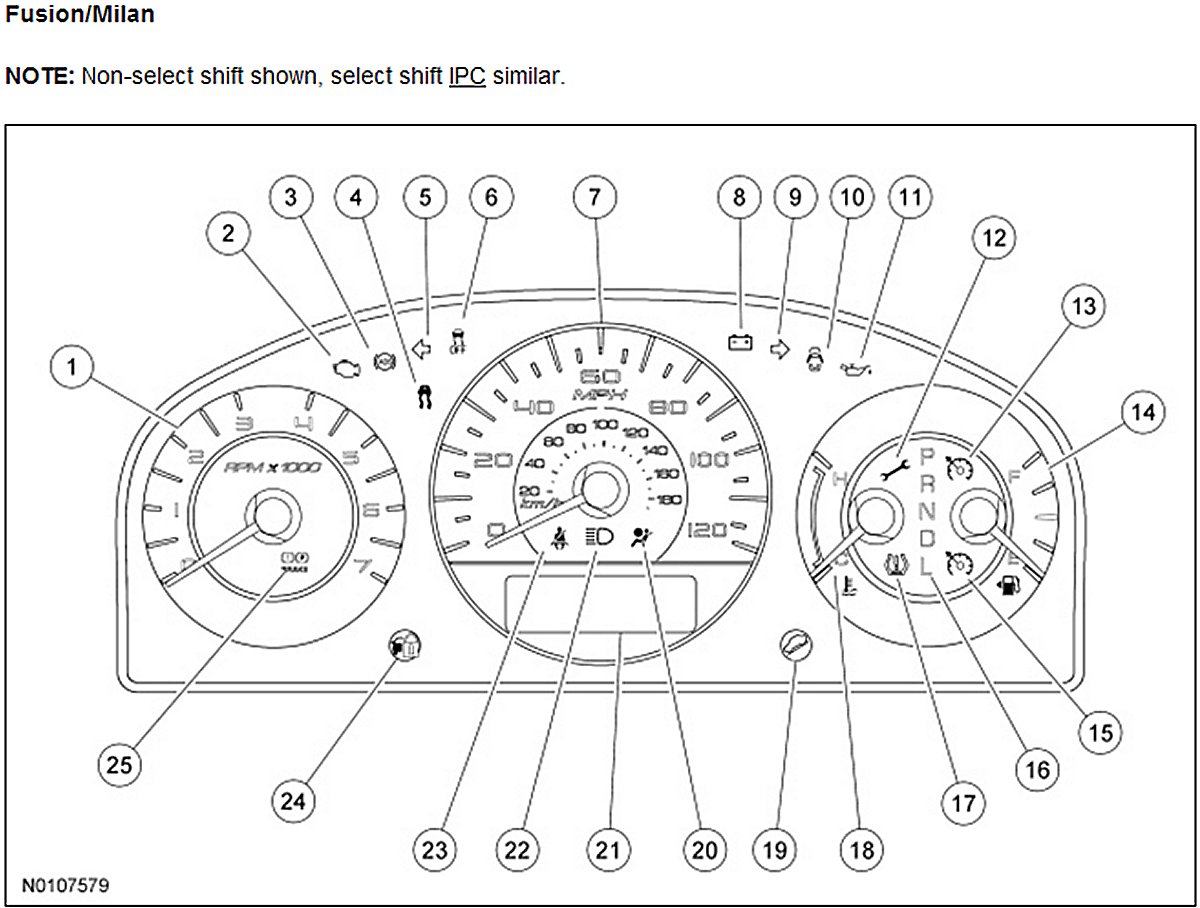

Fusion/Milan (1 Of 2):

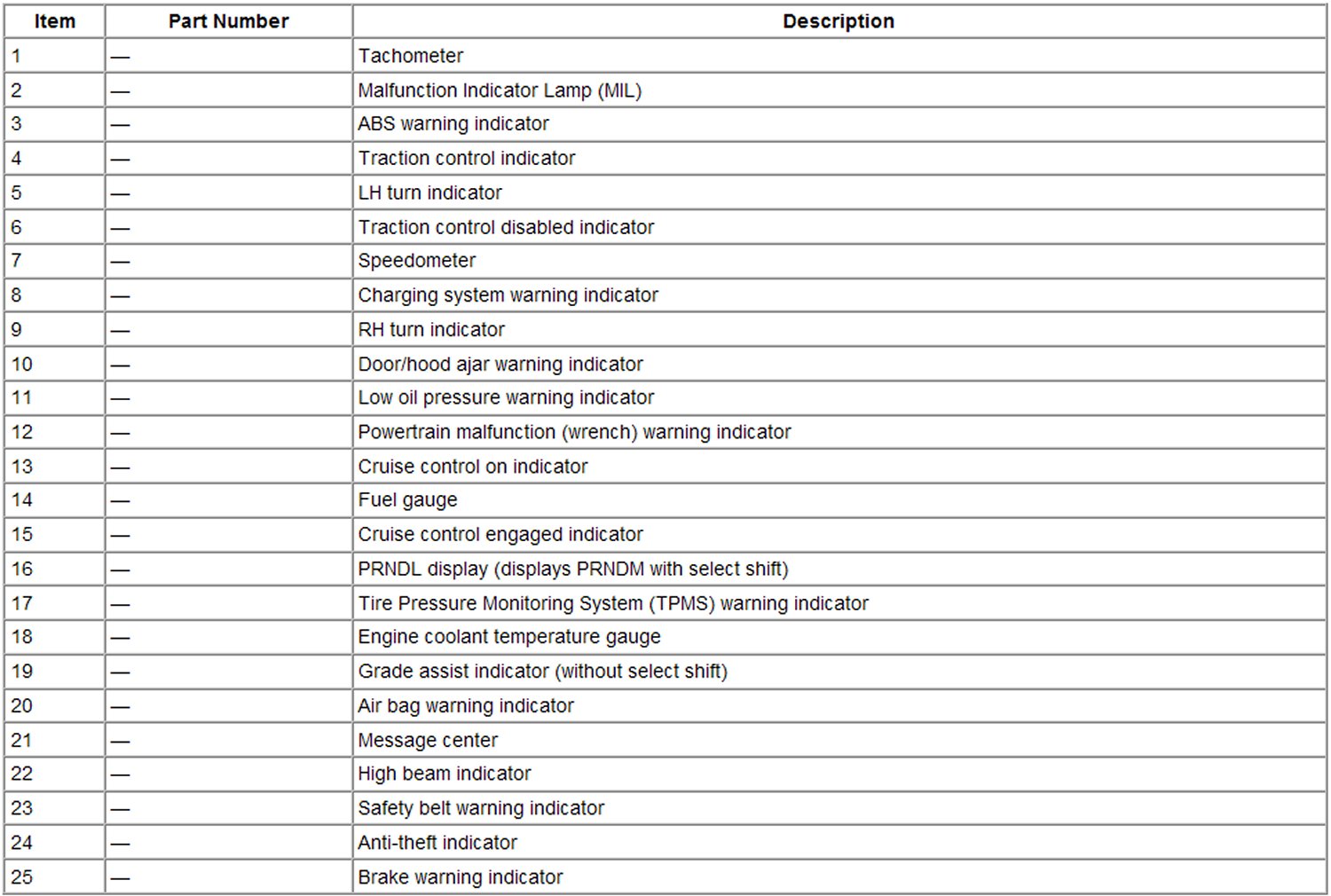

Fusion/Milan (2 Of 2):

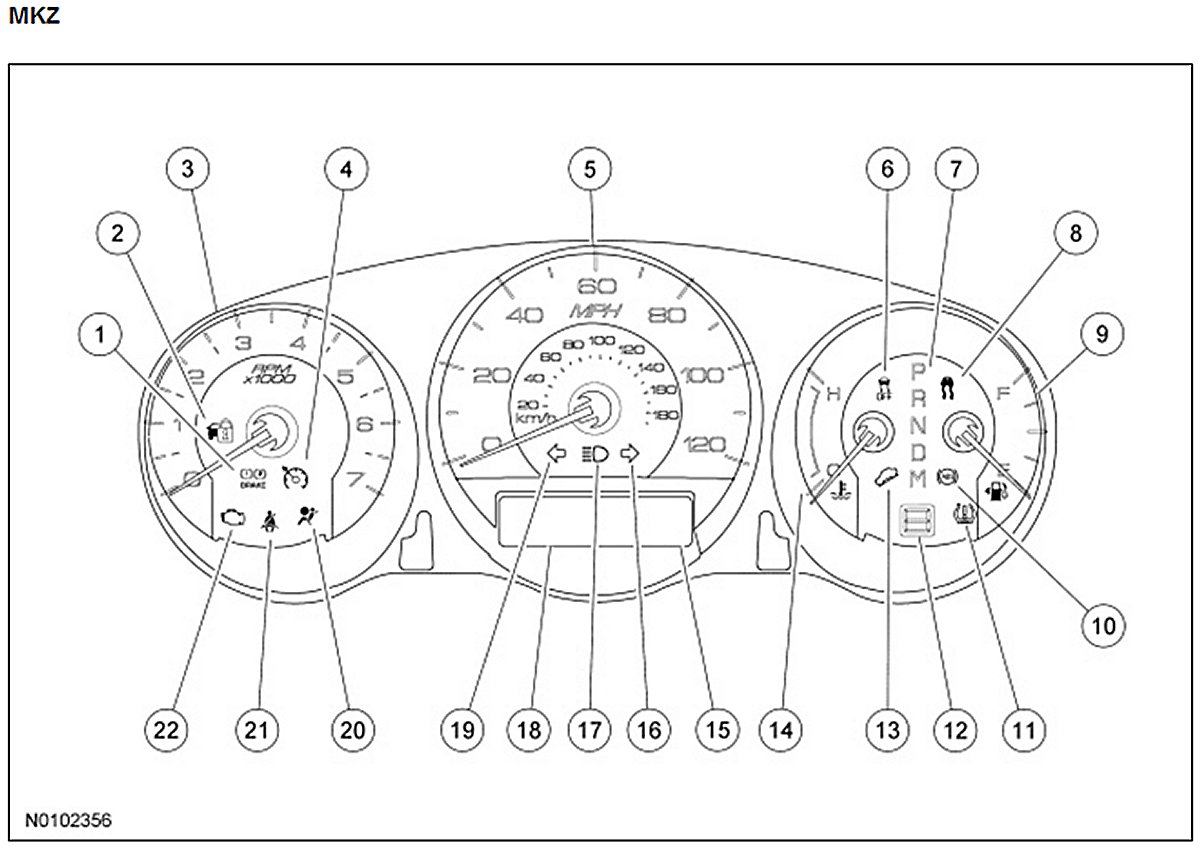

MKZ (1 Of 2):





MKZ (2 Of 2):

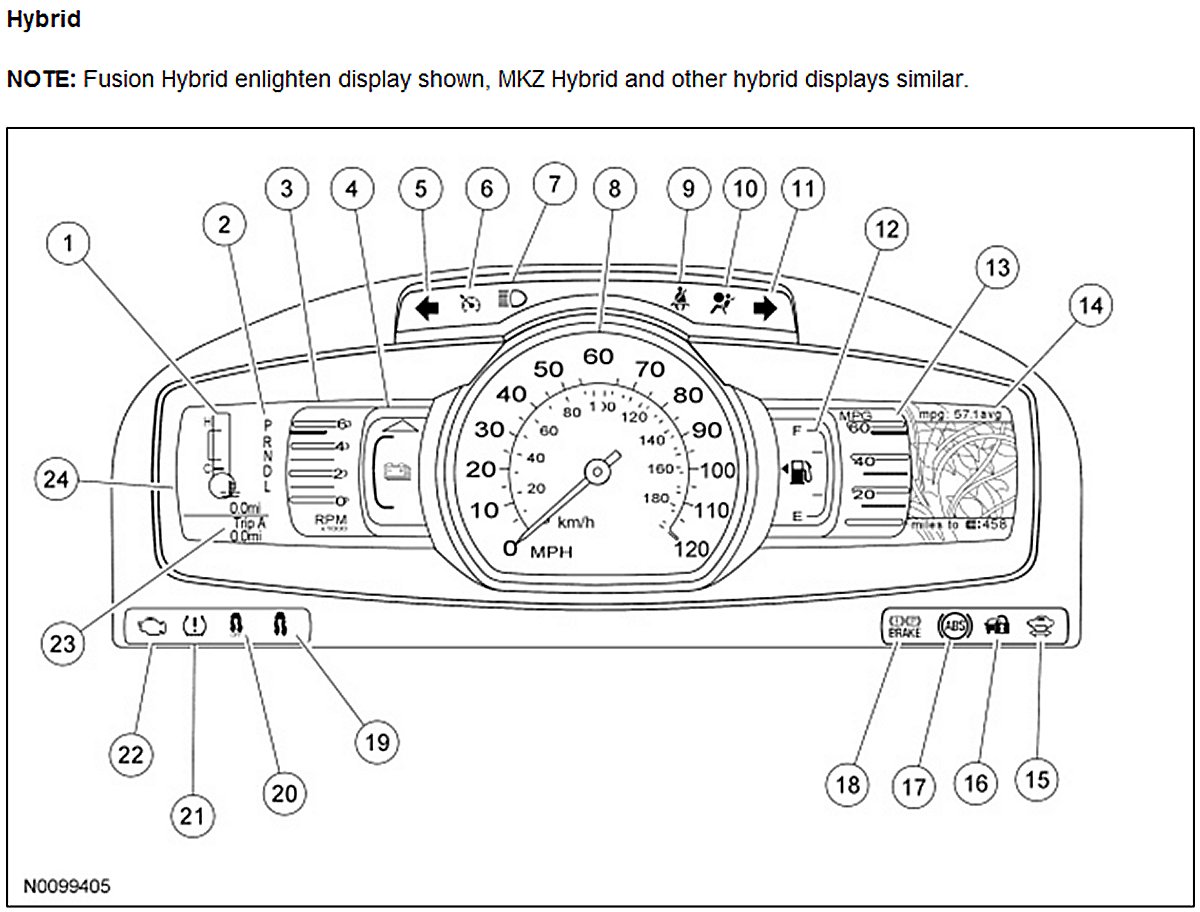

Hybrid (1 Of 2):





Hybrid (2 Of 2):
