Crankshaft Pulley

Crankshaft Pulley









Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Remove the accessory drive belt. For additional information, refer to Accessory Drive - 3.0L (4V) Accessory Drive Belt.

3. Remove the crankshaft pulley bolt and washer.
- Discard the crankshaft pulley bolt.

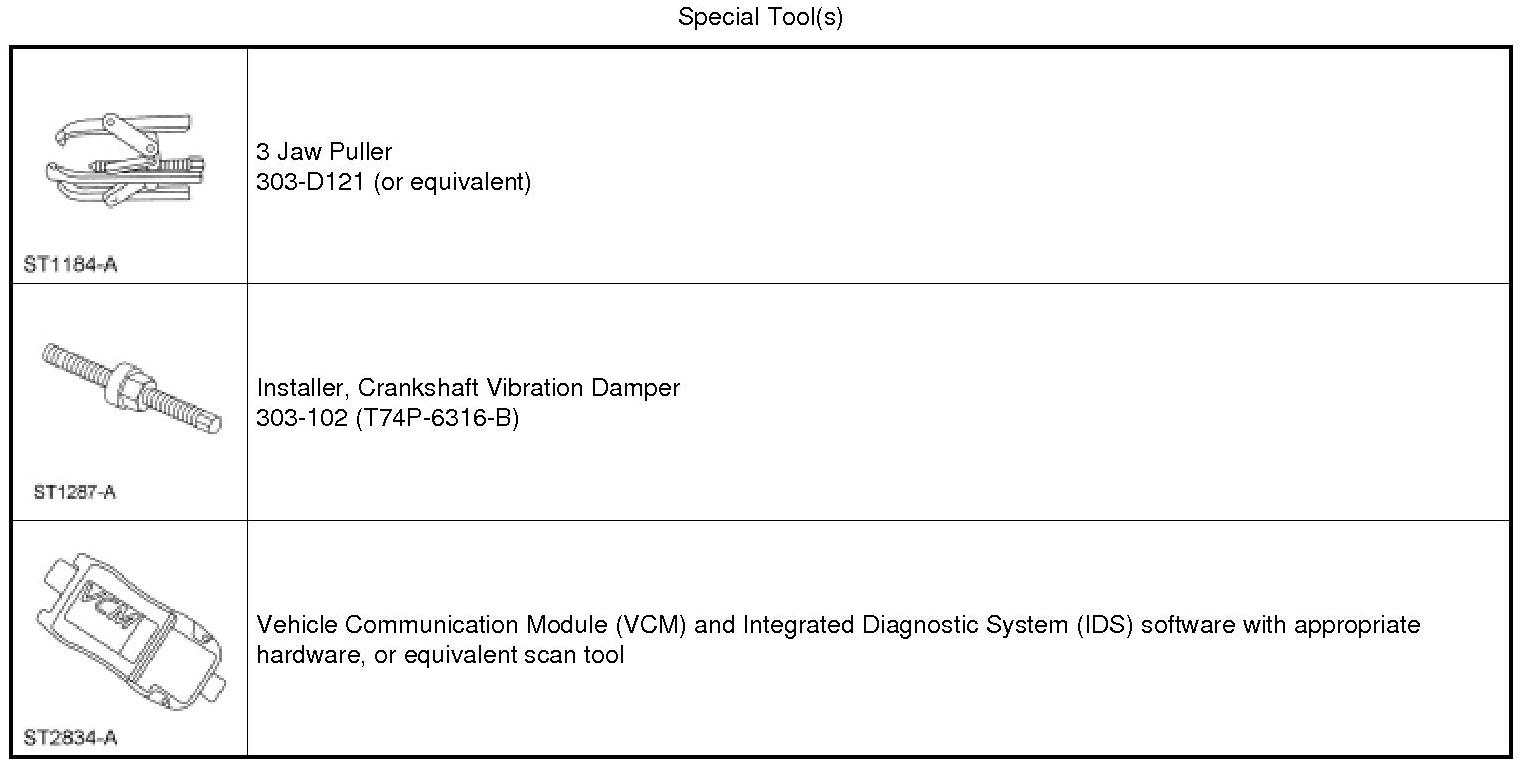

4. Using the 3 Jaw Puller, remove the crankshaft pulley.





Installation

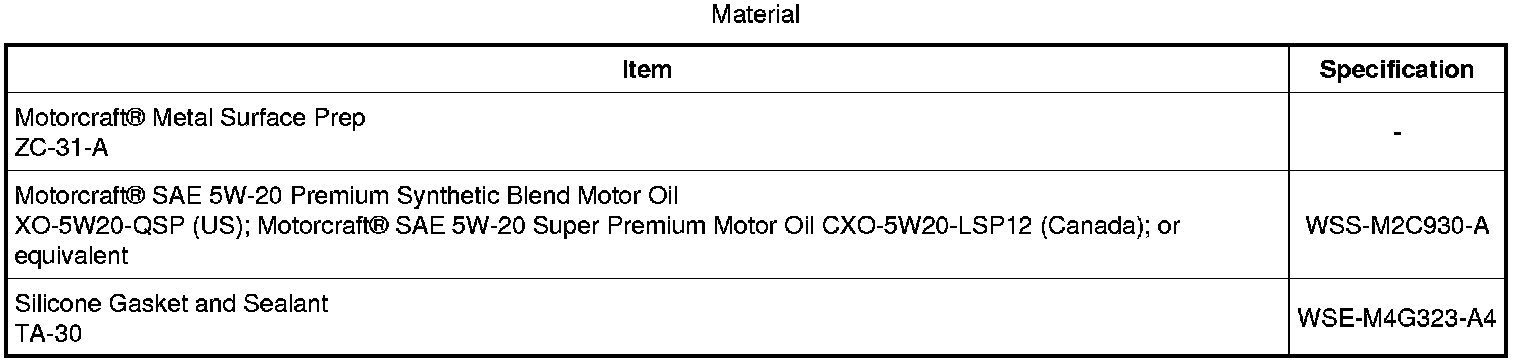

1. Lubricate the crankshaft front seal inner lip with clean engine oil.

2. NOTE: Clean the keyway and slot using metal surface prep before applying silicone gasket and sealant.

NOTE: The crankshaft pulley must be installed and the bolt tightened within 4 minutes of applying the silicone gasket and sealant.

Apply silicone gasket and sealant to the end of the keyway slot.





3. NOTE: Lubricate the outside diameter sealing surface with clean engine oil.

Using the Crankshaft Vibration Damper Installer, install the crankshaft pulley.





4. Install the bolt and washer. Tighten the bolt in 4 stages:
- Stage 1: Tighten to 120 Nm (89 lb-ft).

- Stage 2: Loosen one full turn.

- Stage 3: Tighten to 50 Nm (37 lb-ft).

- Stage 4: Tighten an additional 90 degrees.

5. Install the accessory drive belt. For additional information, refer to Accessory Drive - 3.0L (4V) Accessory Drive Belt.

6. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.
