Home >> Mercury >> 2011 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 34 (All Wheel Drive (AWD))

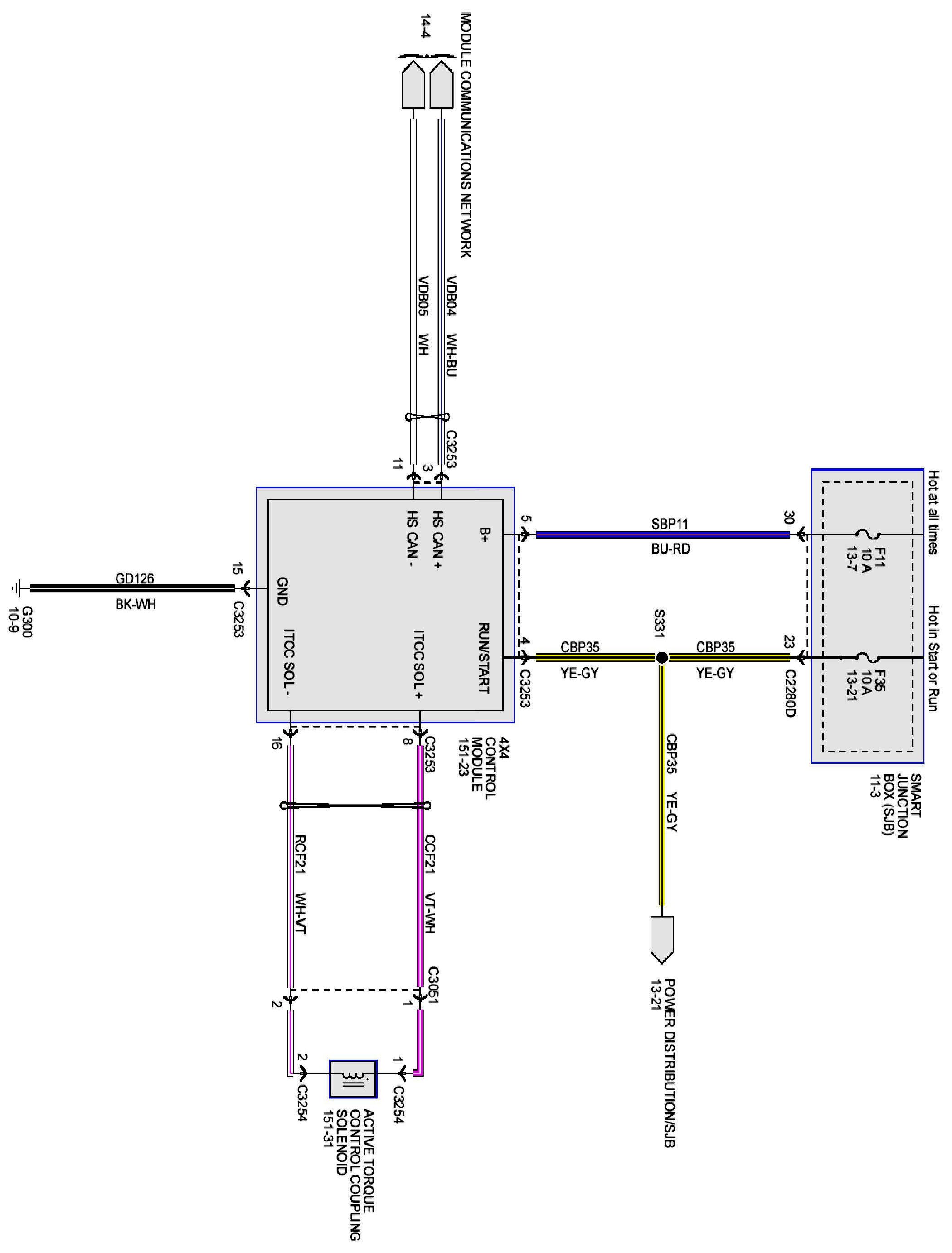

Diagram Set 34 (All Wheel Drive (AWD))
