Home >> Mercury >> 2011 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wheel Speed Sensor >> C160 Wheel Speed Sensor, Right Front

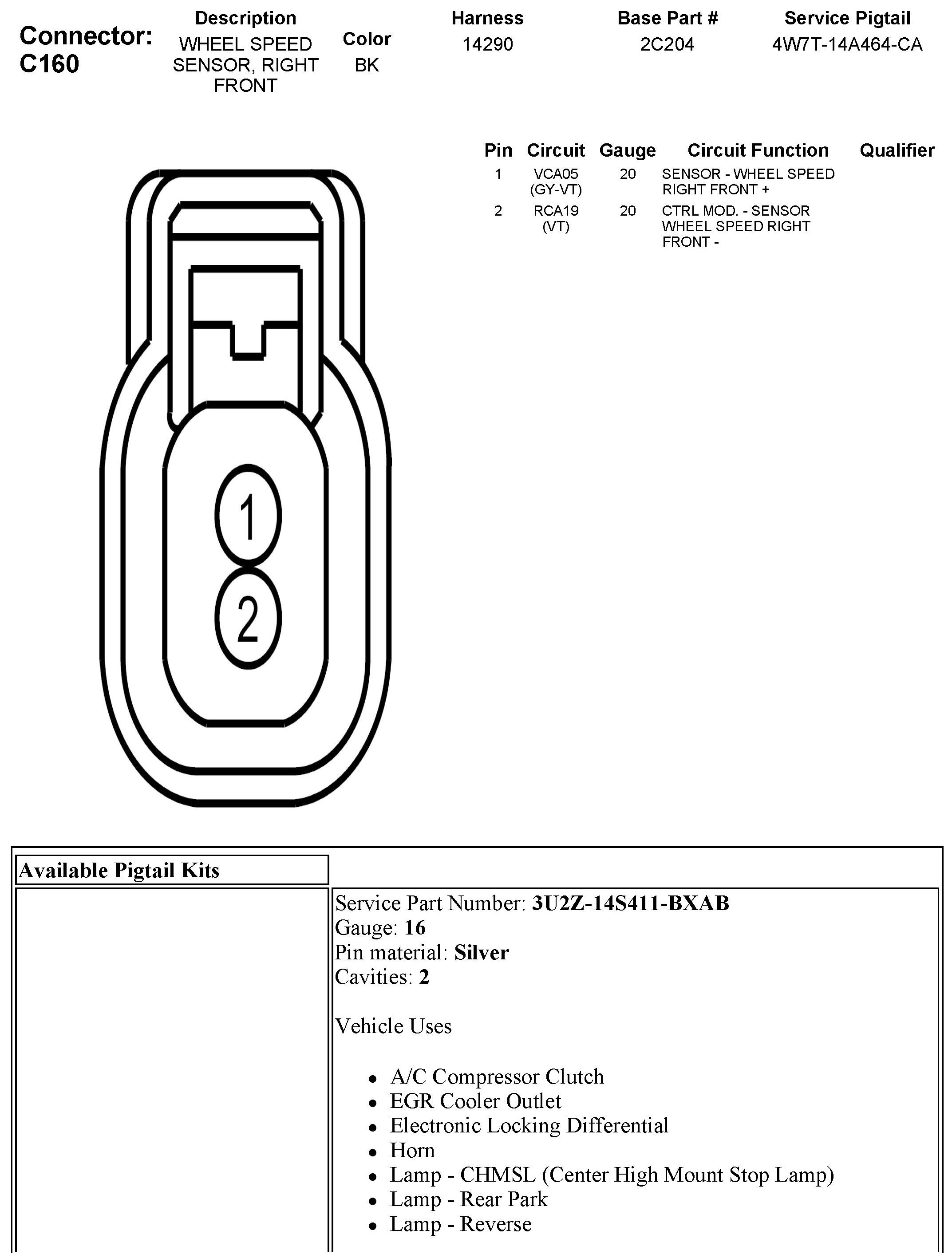

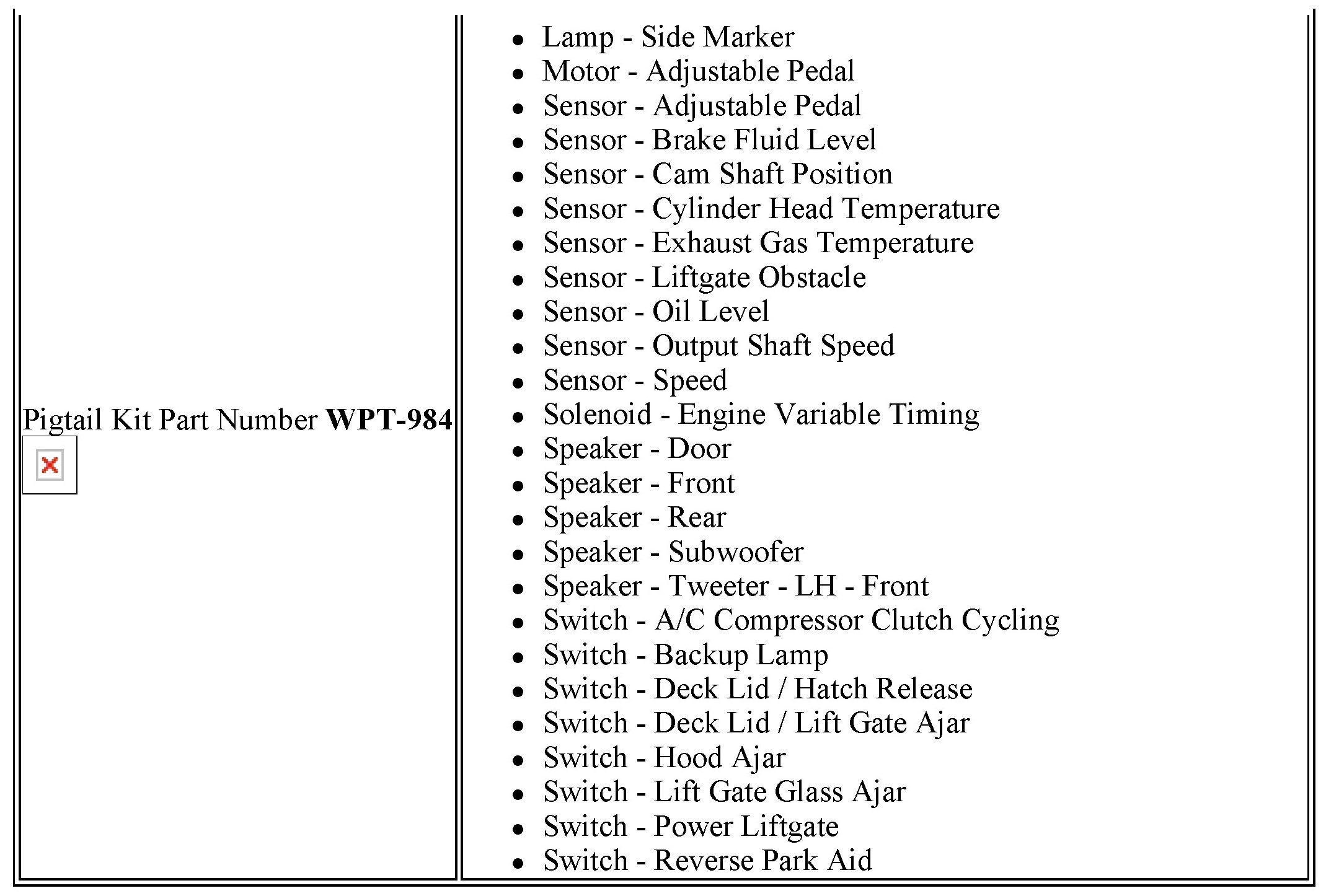

C160 Wheel Speed Sensor, Right Front
