Home >> Mercury >> 2011 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Throttle Actuator >> C1568 Electronic Throttle Control (ETC) Module

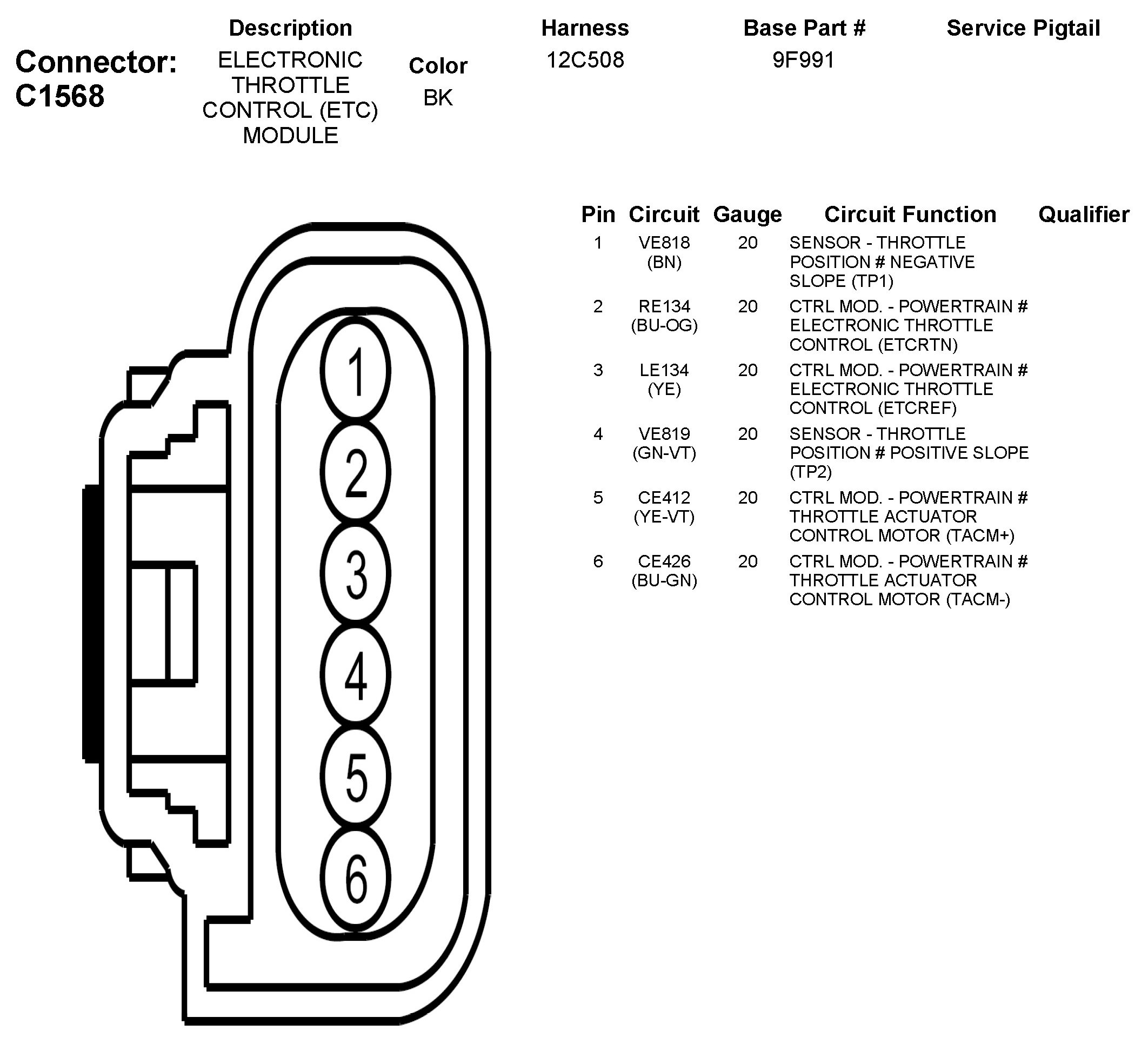

C1568 Electronic Throttle Control (ETC) Module
