Home >> Mercury >> 2011 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> Interior Light Switch >> C2304 Traction Control/Ambient Lighting Switch

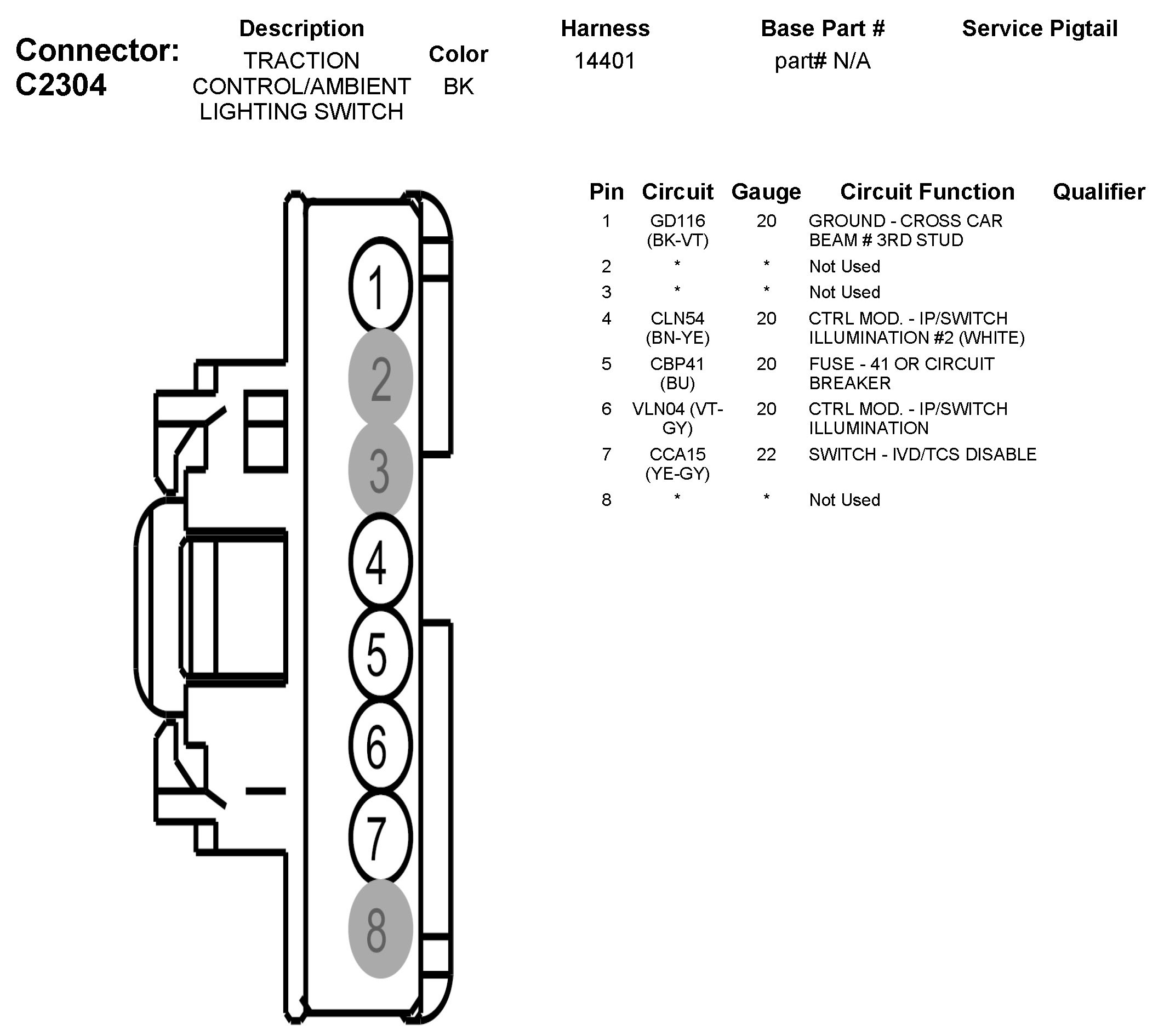

C2304 Traction Control/Ambient Lighting Switch
