Home >> Mercury >> 2011 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag >> C3056 Side Air Curtain Module, Passenger

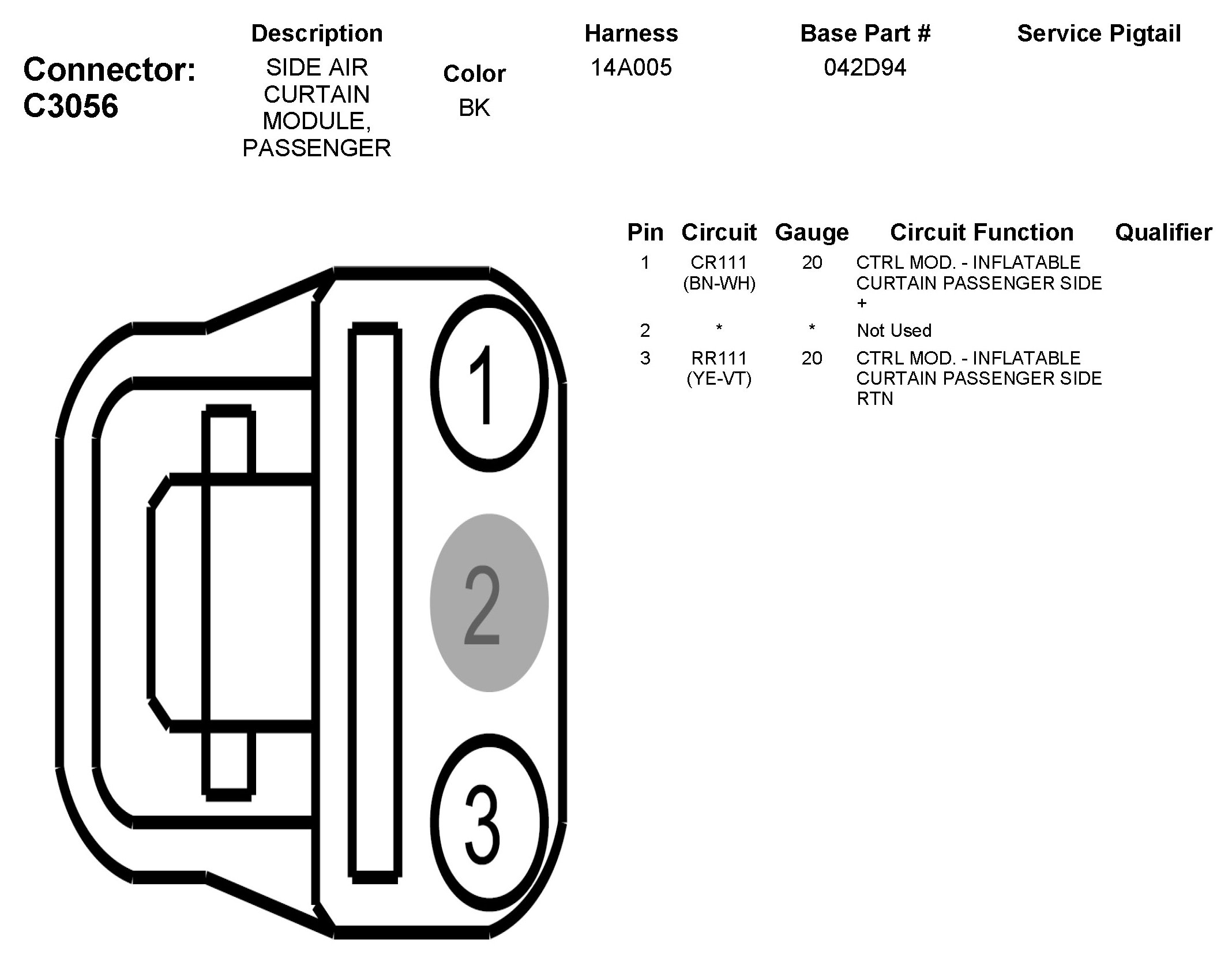

C3056 Side Air Curtain Module, Passenger
