Home >> Mercury >> 2011 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accelerator Pedal Position Sensor >> C2302 Accelerator Pedal Position (APP) Sensor

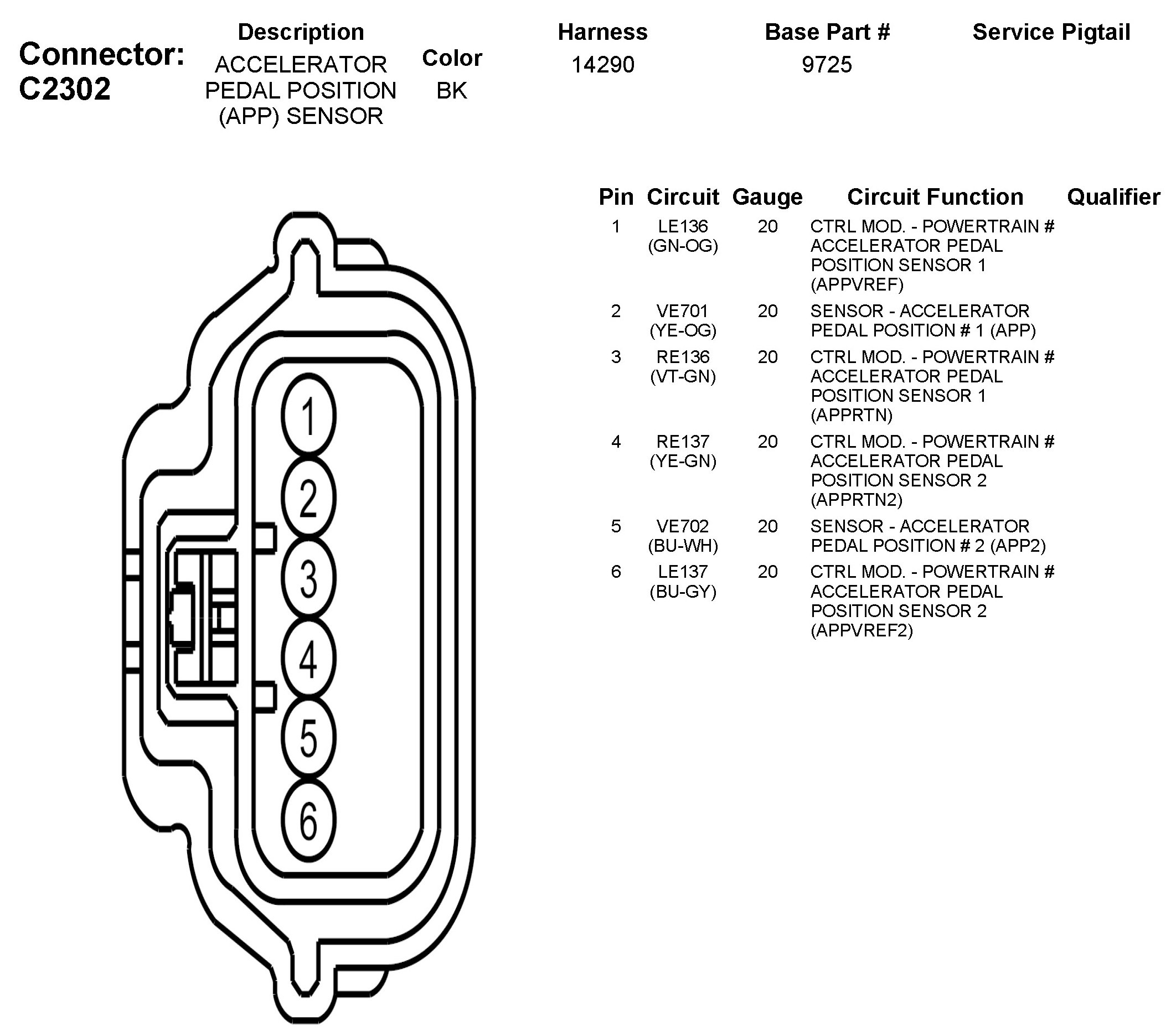

C2302 Accelerator Pedal Position (APP) Sensor
