Cruise Control Switch




Cruise Control Switch

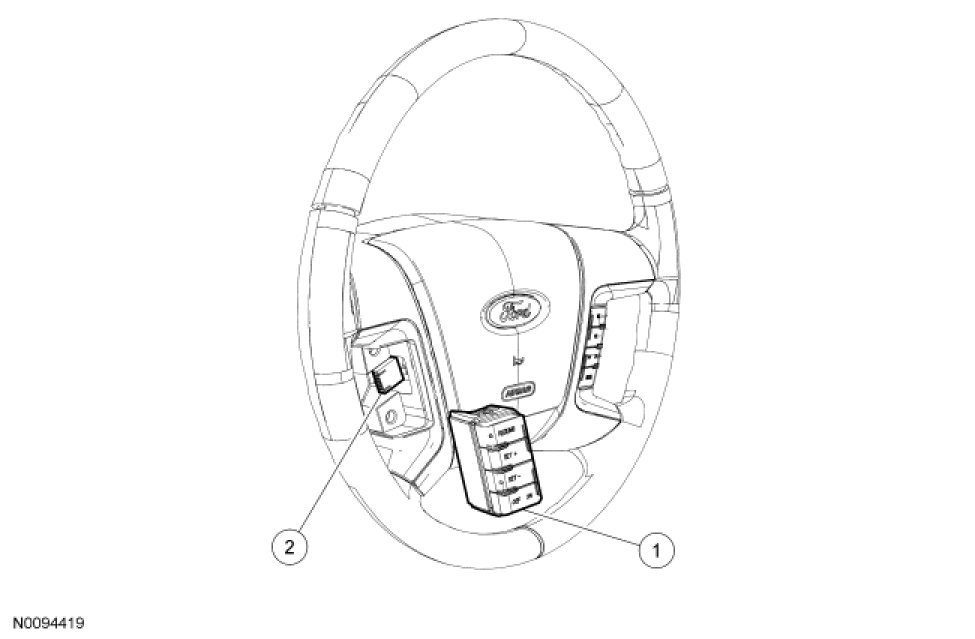

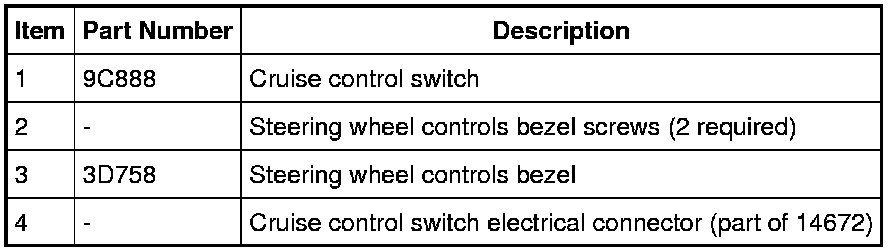

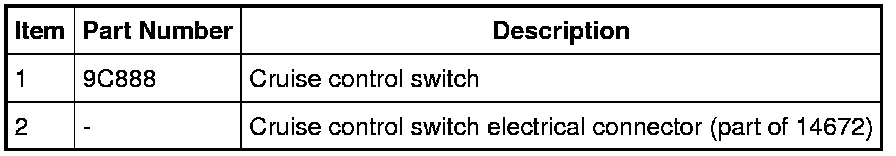

Without Bezel

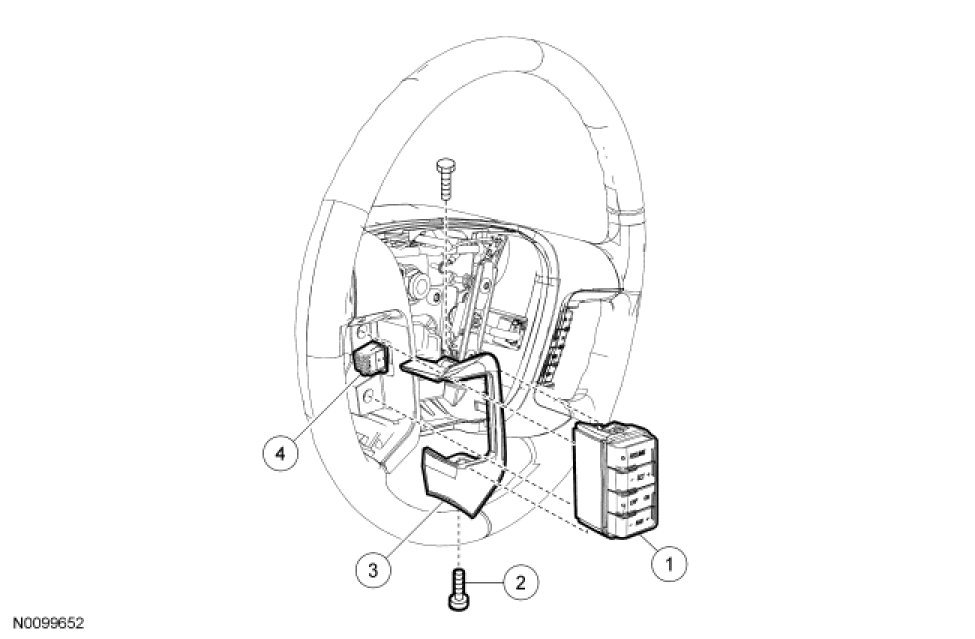

With Bezel









Removal and Installation

1. Remove the center steering wheel bezel. For additional information, refer to Steering Column Steering Wheel Bezel.

2. Remove the cruise control switch and bezel by prying the switch with a suitable tool, such as a flat bladed screw driver, toward the rear of the vehicle.
- Disconnect the electrical connector.

3. Remove the screws and the steering wheel controls bezel, if equipped.

4. To install, reverse the removal procedure.
