Brake Booster

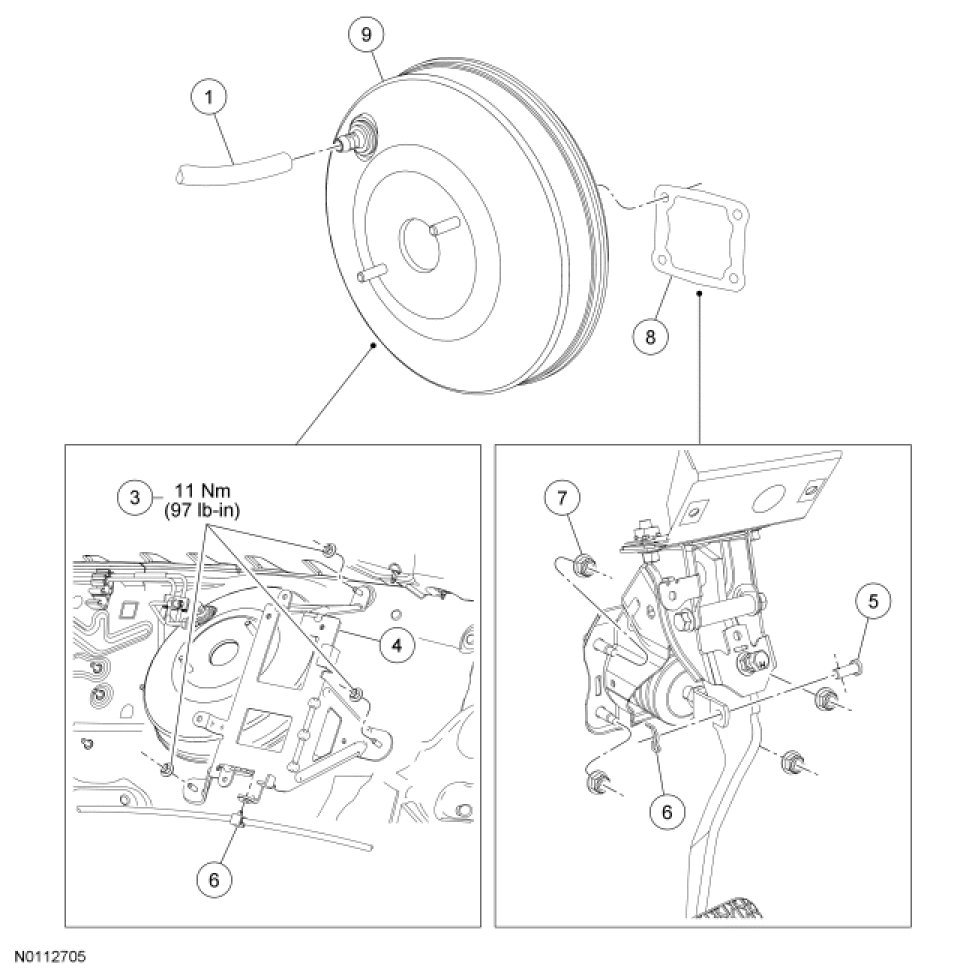

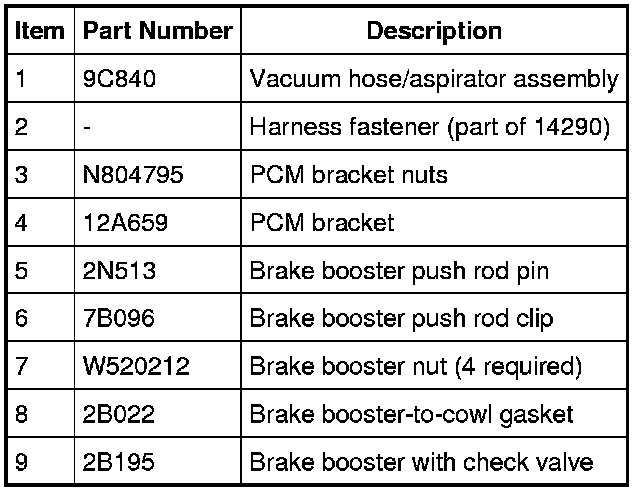

Brake Booster - Exploded View

Brake Booster - Non-Hybrid Vehicles

NOTE: 3.0L Front Wheel Drive (FWD) shown, 3.0L All-Wheel Drive (AWD) and 3.5L similar.
