Brake Disc Shield

Brake Disc Shield - All Wheel Drive (AWD)













Removal

1. Remove the wheel bearing and wheel hub. For additional information, refer to Rear Suspension Rear Suspension.

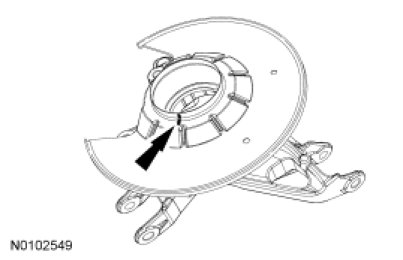

2. Index-mark the brake disc shield to the wheel knuckle.





3. Cut the brake disc shield and remove it from the wheel knuckle.

Installation

1. Transfer the index mark from the removed brake disc shield to the new brake disc shield.

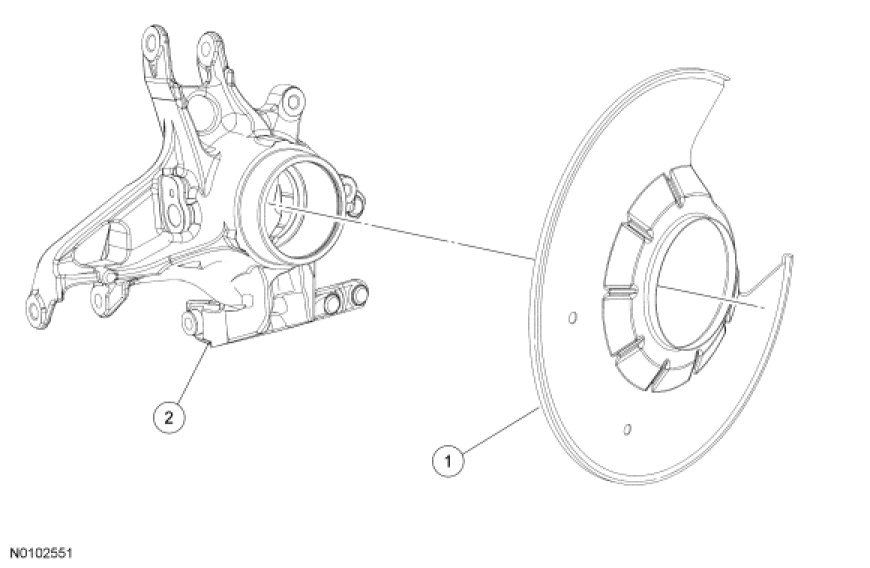

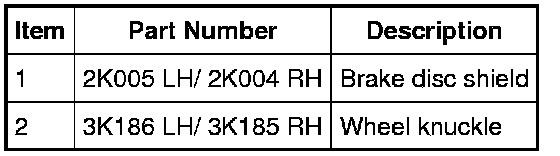

2. Position the brake disc shield onto the wheel knuckle.

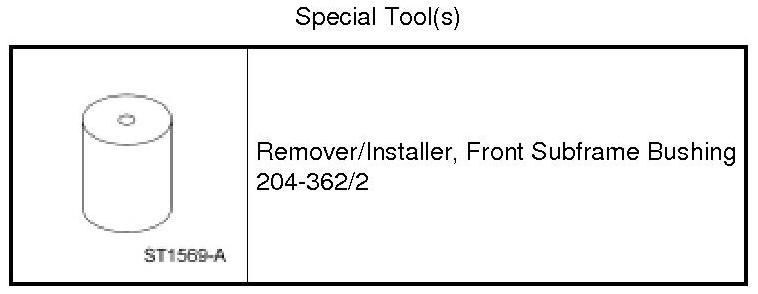

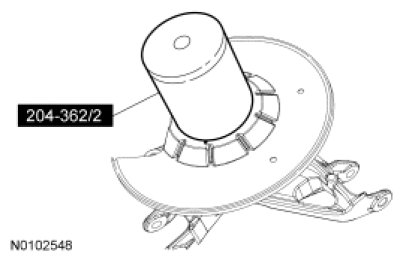

3. Align the index marks and install the brake disc shield onto the wheel knuckle using the Front Subframe Bushing Remover/Installer.
