Home >> Mercury >> 2011 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Diagrams >> Connector Views >> C365 Seat Backrest Heater MAT, Left Front

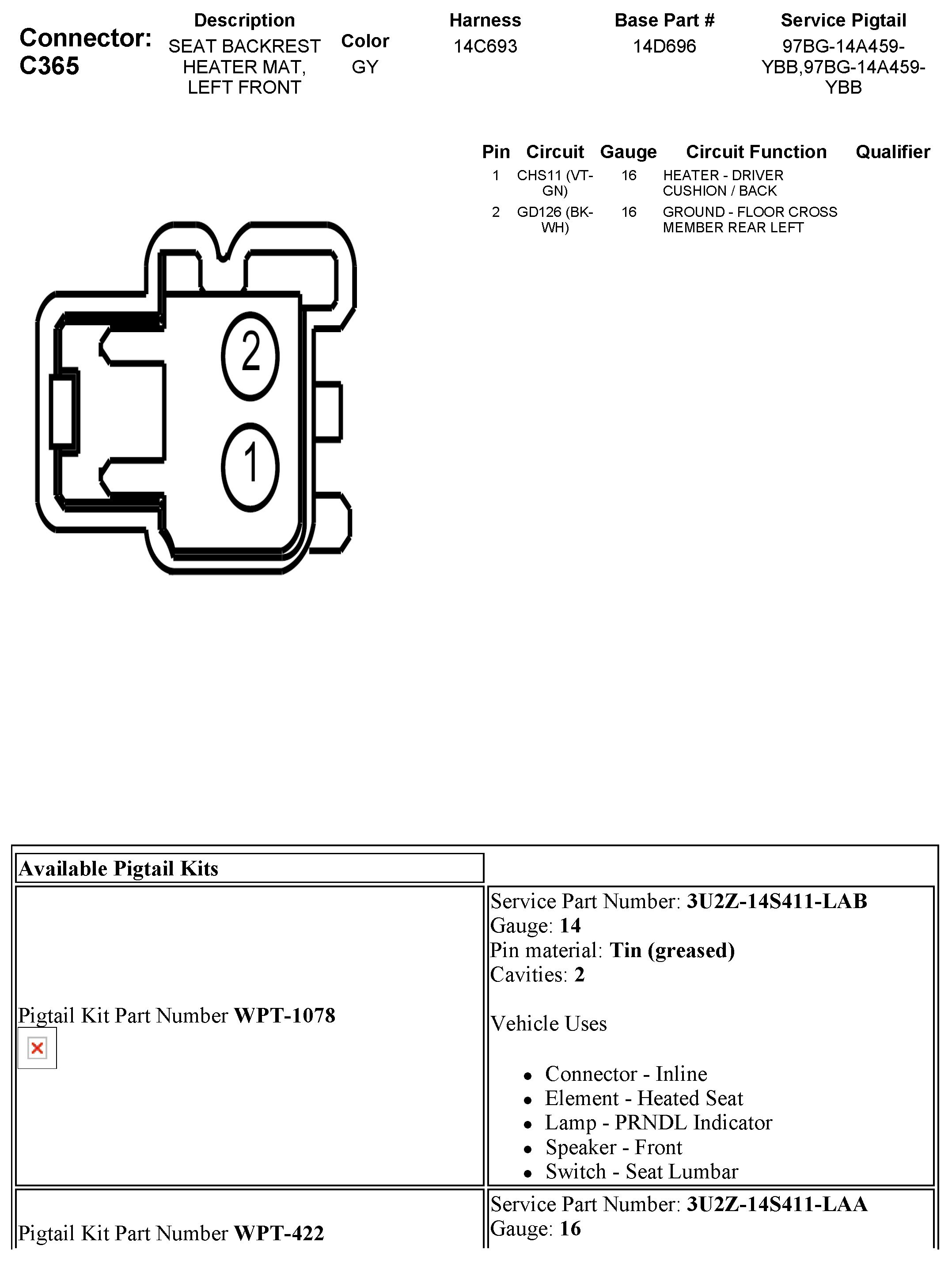

C365 Seat Backrest Heater MAT, Left Front
