Home >> Mercury >> 2011 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Diagrams >> C704 Door Lock Actuator, Left Rear

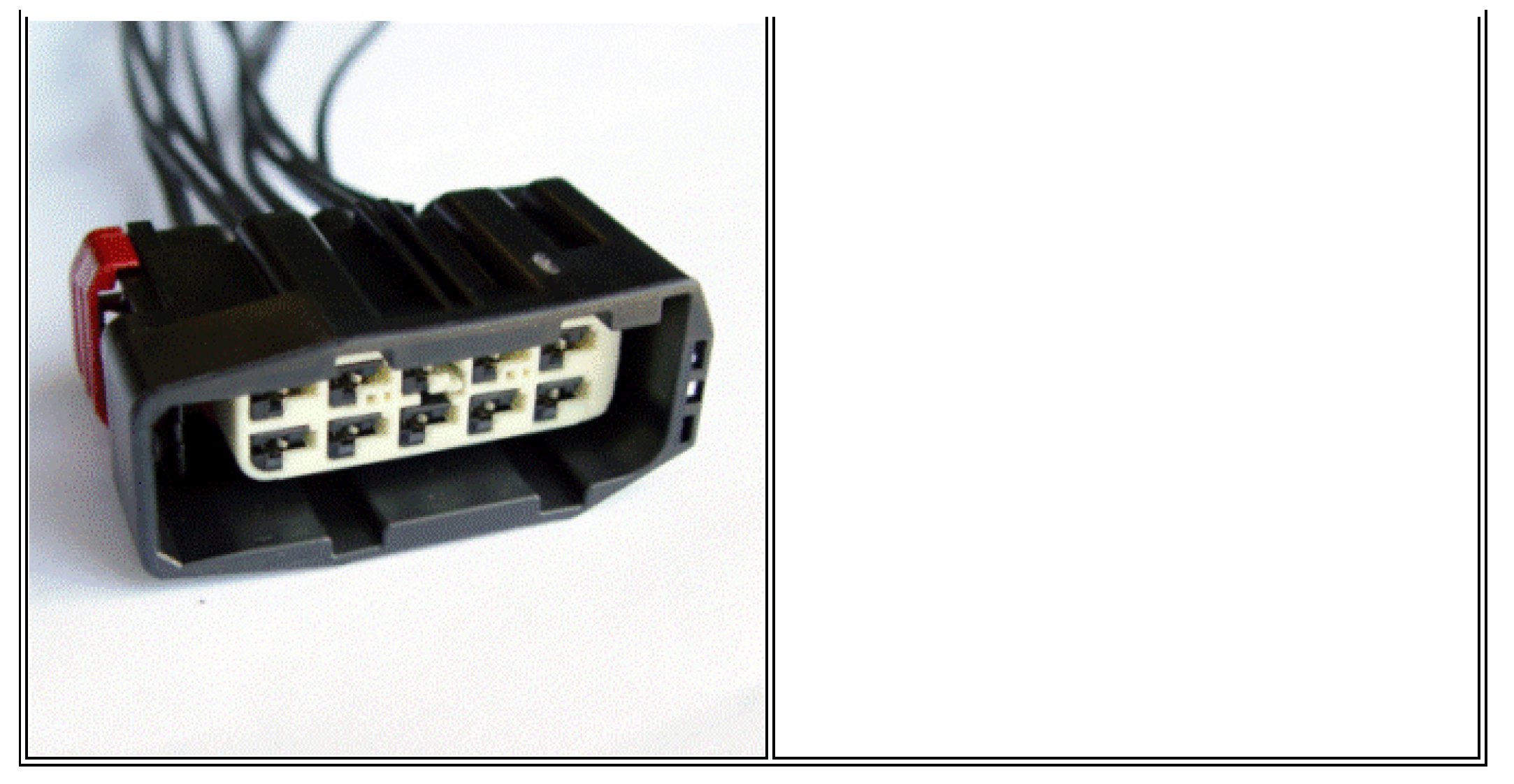

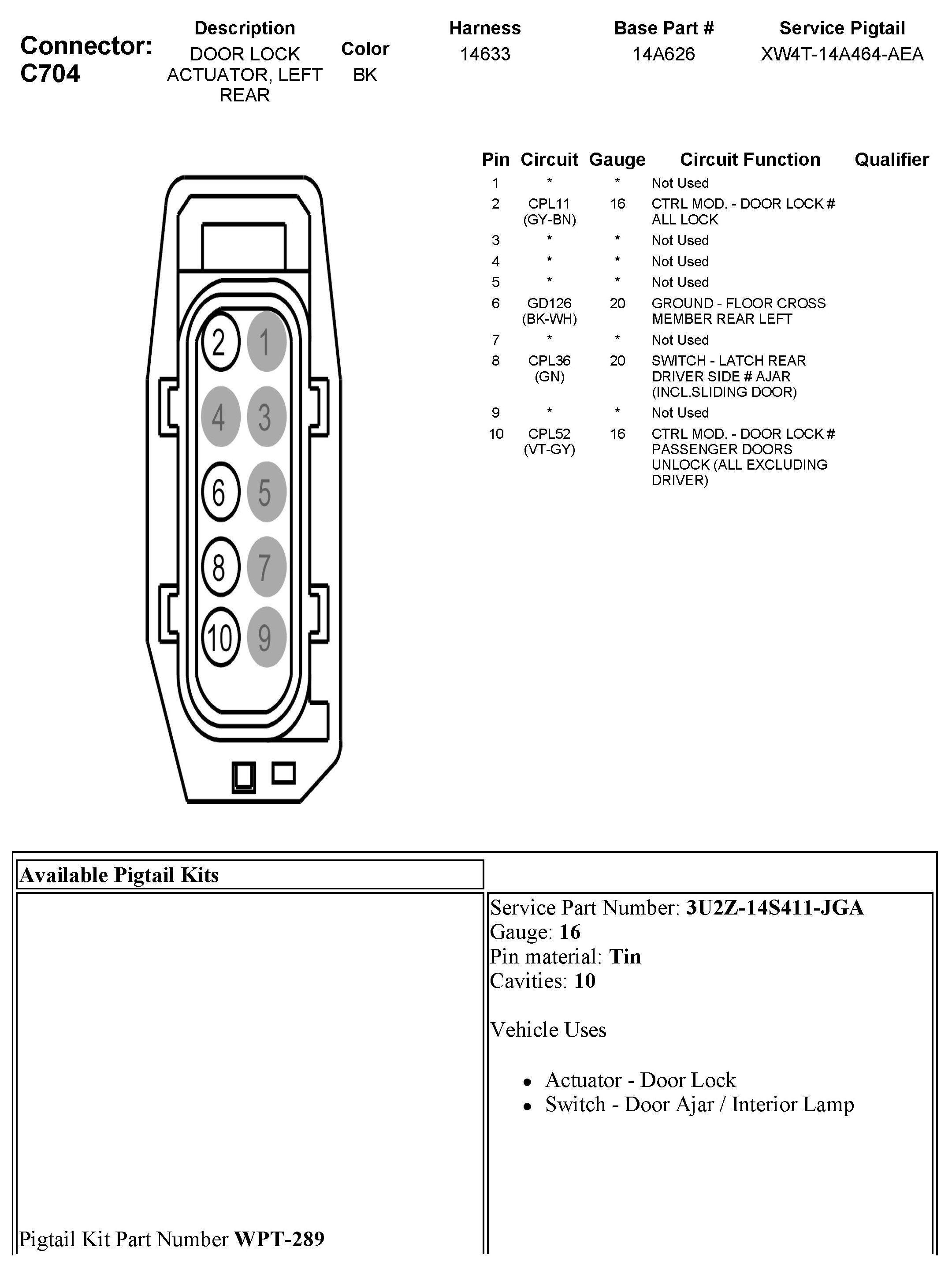

C704 Door Lock Actuator, Left Rear
