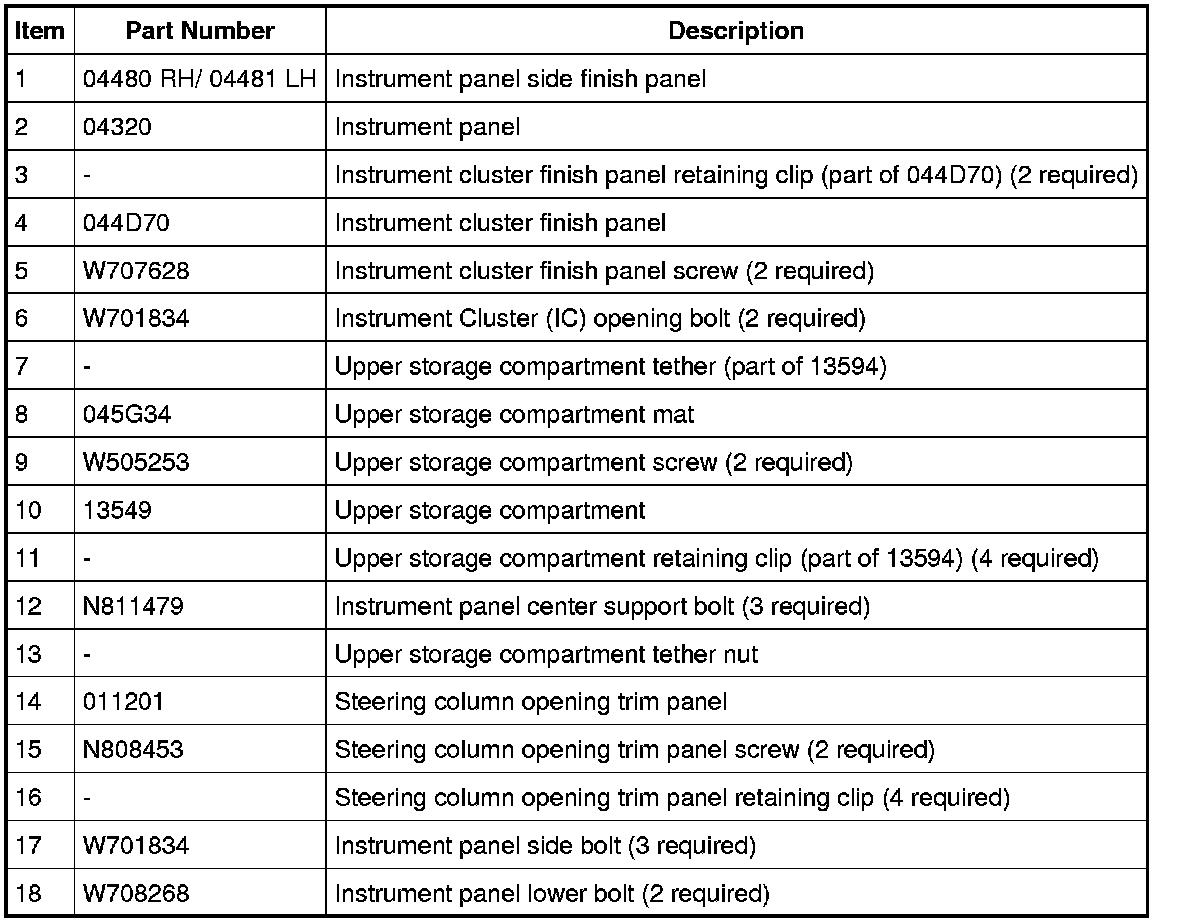

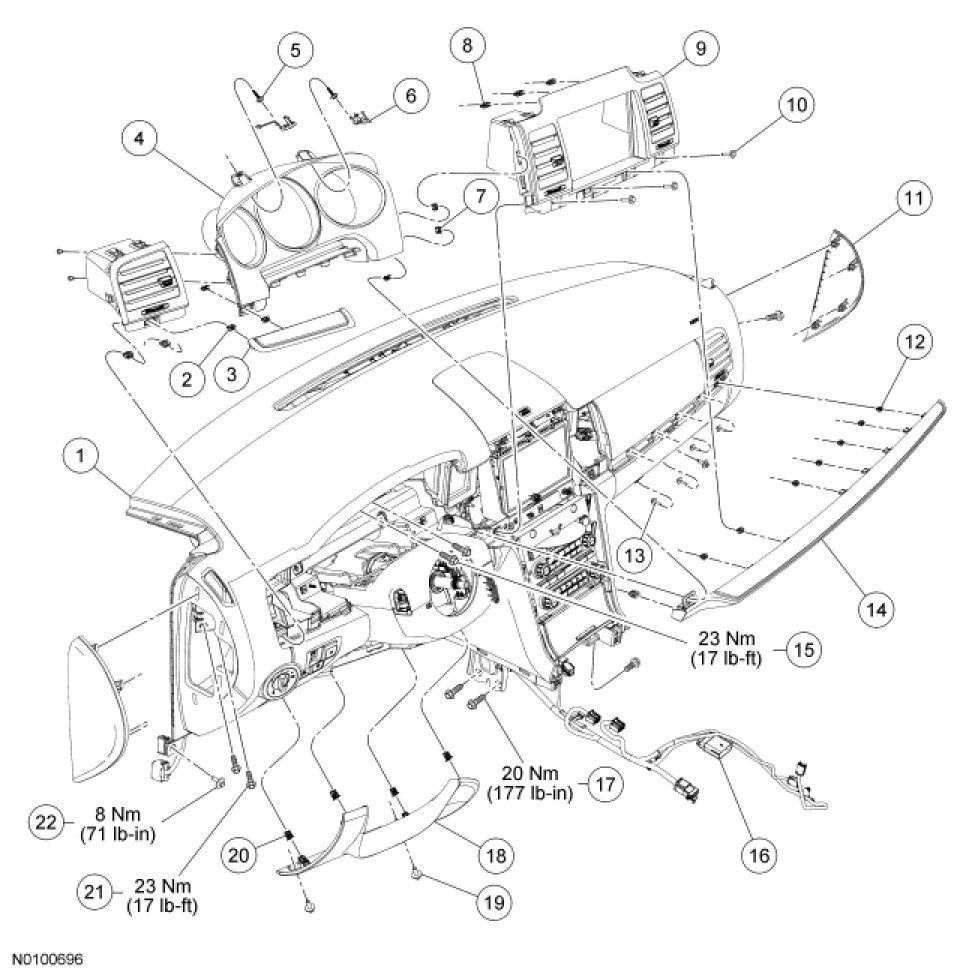

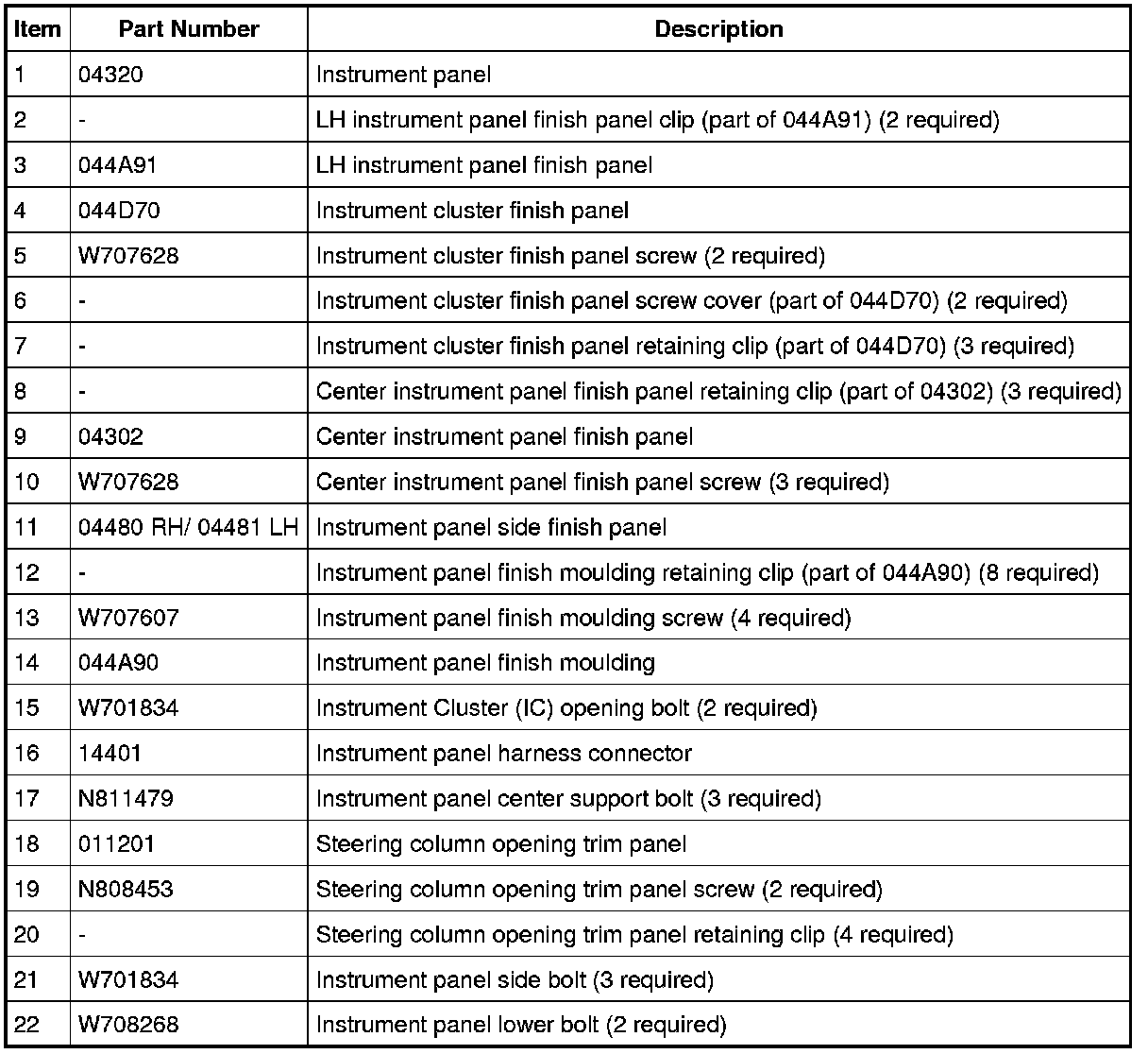

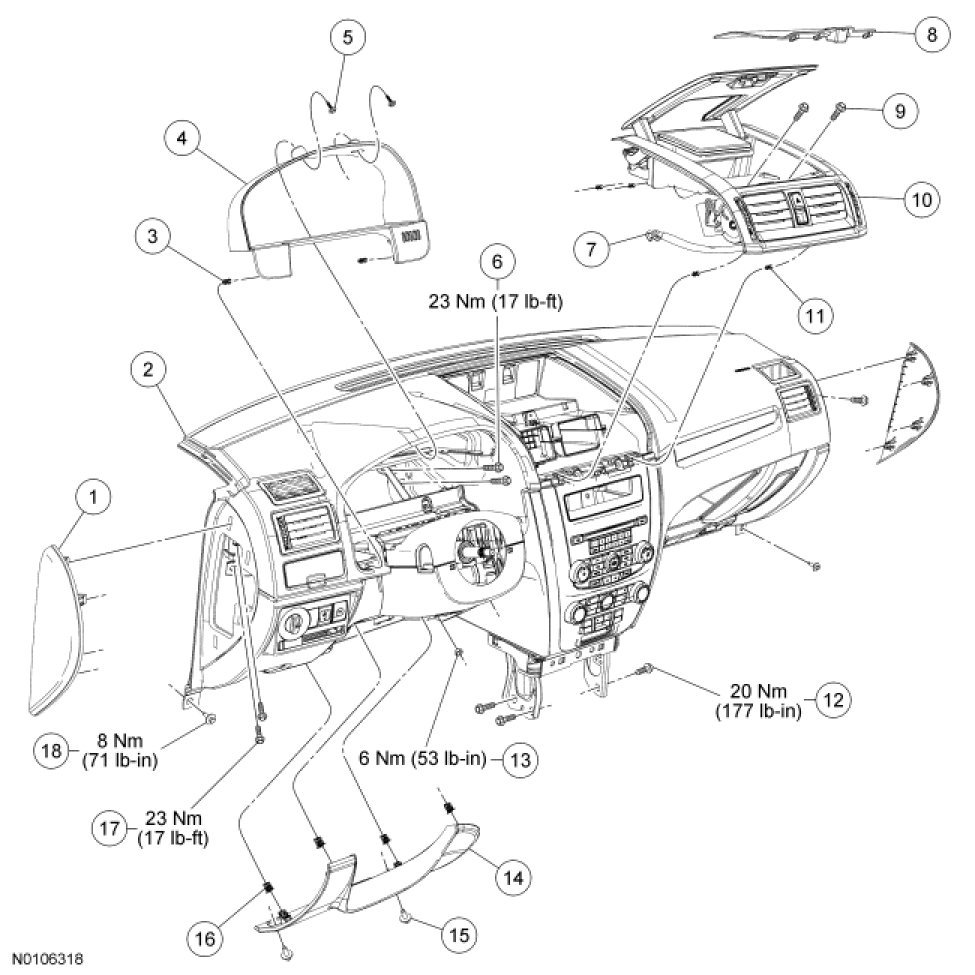

Instrument Panel - Exploded View
Instrument Panel - Exploded View
Instrument Panel - Exploded View
Fusion and Milan
MKZ

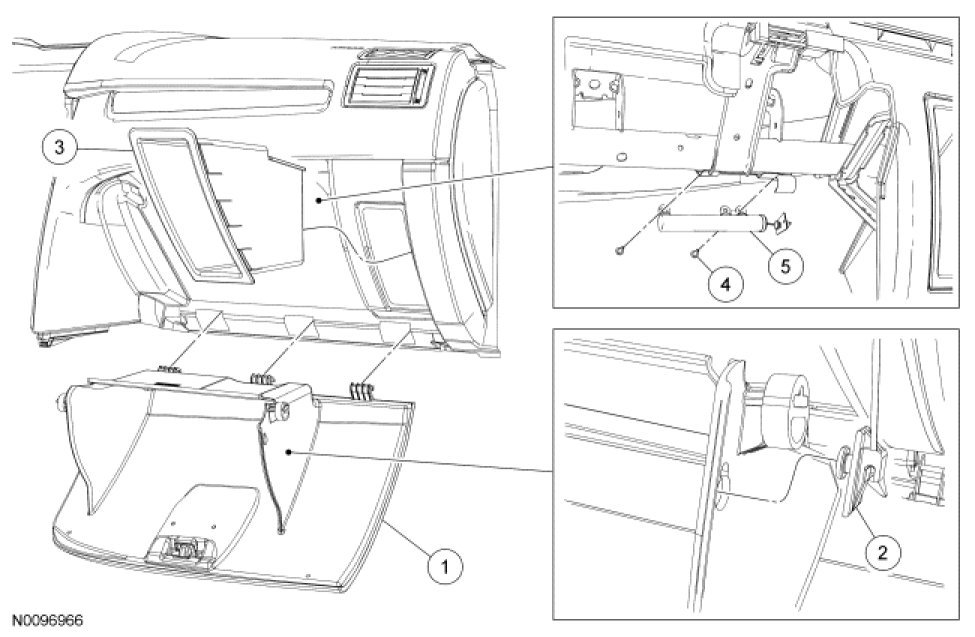

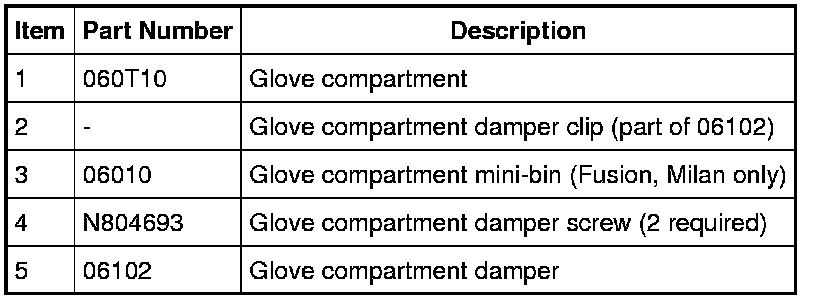

Glove Compartment
